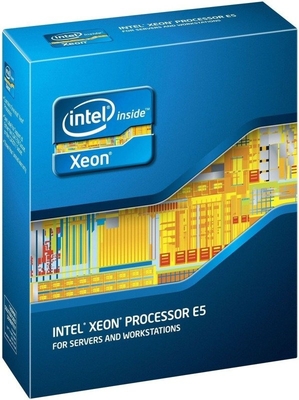

Intel Xeon E5-2660 v 2 2.20 G Hz Socket LGA2011 25MB Cache Retail Boxed Processor Specifications Essentials Processor Number E5-2660V2 Lithography 22 nm Performance Number of Cores 10 Number of Threads 20 Processor Base Frequency 2.2 GHz Max Turbo Frequency 3 GHz Cache 25 MB Smart Cache Bus Speed 8 GT/s QPI Number of QPI Links 2 TDP 95 W VID Voltage Range 0.65–1.30V Supplemental Information Embedded Options Available No Conflict Free Yes Datasheet Link Additional Information URL Link Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR3 800/1066/1333/1600/1866 Max number of Memory Channels 4 Max Memory Bandwidth 59.7 GB/s Physical Address Extensions 46-bit ECC Memory Supported Yes Expansion Options Scalability 2S Only PCI Express Revision 3.0 PCI Express Configurations x 4, x 8, x 16 Max number of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011 Max CPU Configuration 2 TCASE 75°C Package Size 52.5mm x 45mm Low Halogen Options Available See MDDS Advanced Technologies Intel Turbo Boost Technology 2.0 Intel v Pro Technology Yes Intel Hyper-Threading Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel TSX-NI No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions AVX Idle States Yes Enhanced Intel Speed Step Technology Yes Intel Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel Flex Memory Access No Intel Identity Protection Technology No Intel Data Protection Technology Intel AES New Instructions Yes Secure Key Yes Intel Platform Protection Technology OS Guard Yes Trusted Execution Technology Yes Execute Disable Bit Yes ...

Intel Xeon E5-2667 v 3 3.20 GHz Socket LGA2011-3 20 MB Cache Processor (OEM) Specifications Essentials Processor Number E5-2667 V3 Lithography 22 nm Performance Number of Cores 8 Number of Threads 16 Processor Base Frequency 3.2 GHz Max Turbo Frequency 3.6 GHz Cache 20 MB Smart Cache Bus Speed 9.6 GT/s QPI Number of QPI Links 2 TDP 135 W VID Voltage Range 0.65V–1.30V Supplemental Information Embedded Options Available No Conflict Free Yes Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4 1600/1866/2133 Max of Memory Channels 4 Max Memory Bandwidth 68 GB/s Physical Address Extensions 46-bit ECC Memory Supported Yes Graphics Specifications Processor Graphics None Expansion Options Scalability 2S PCI Express Revision 3.0 PCI Express Configurations x 4, x 8, x 16 Max number of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011-3 Max CPU Configuration 2 TCASE 77.8°C Package Size 52.5mm x 45mm Low Halogen Options Available See MDDS Advanced Technologies Intel Turbo Boost Technology 2.0 Intel v Pro Technology Yes Intel Hyper-Threading Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel TSX-NI No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions AVX 2.0 Idle States Yes Enhanced Intel Speed Step Technology Yes Intel Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel Flex Memory Access No Intel Identity Protection Technology No Intel Data Protection Technology Intel AES New Instructions Yes Secure Key Yes Intel Platform Protection Technology OS Guard Yes Trusted Execution Technology Yes Execute Disable Bit Yes ...

The Intel Xeon processor is the solution for specific communication applications that require the highest levels of processing performance
-
...

Intel Xeon E5-2670 v 3 2.30 GHz Socket LGA2011-3 30 MB Cache Retail Boxed Processor Specifications Essentials Processor Number E5-2670V3 Lithography 22 nm Performance Number of Cores 12 Number of Threads 24 Processor Base Frequency 2.3 GHz Max Turbo Frequency 3.1 GHz Cache 30 MB Smart Cache Bus Speed 9.6 GT/s QPI Number of QPI Links 2 TDP 120 W VID Voltage Range 0.65V–1.30V Supplemental Information Embedded Options Available No Conflict Free Yes Datasheet Link Product Brief Link Additional Information URL Link Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4 1600/1866/2133 Max number of Memory Channels 4 Max Memory Bandwidth 68 GB/s Physical Address Extensions 46-bit ECC Memory Supported Yes Graphics Specifications Processor Graphics None Expansion Options Scalability 2S PCI Express Revision 3.0 PCI Express Configurations x 4, x 8, x 16 Max number of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011-3 Max CPU Configuration 2 TCASE 84.5°C Package Size 52.5mm x 45mm Low Halogen Options Available See MDDS Advanced Technologies Intel Turbo Boost Technology 2.0 Intel v Pro Technology Yes Intel Hyper-Threading Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel TSX-NI No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions AVX 2.0 Idle States Yes Enhanced Intel Speed Step Technology Yes Intel Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel Flex Memory Access No Intel Identity Protection Technology No Intel Data Protection Technology Intel AES New Instructions Yes Secure Key Yes Intel Platform Protection Technology OS Guard Yes Trusted Execution Technology Yes Execute Disable Bit Yes ...

Intel Xeon E5-2680 v 3 2.50 G Hz Socket LGA2011-3 30MB Cache Retail Boxed Processor Specifications Essentials Processor Number E5-2680V3 Lithography 22 nm Performance Number of Cores 12 Number of Threads 24 Processor Base Frequency 2.5 GHz Max Turbo Frequency 3.3 GHz Cache 30 MB Smart Cache Bus Speed 9.6 GT/s QPI Number of QPI Links 2 TDP 120 W VID Voltage Range 0.65V–1.30V Supplemental Information Embedded Options Available Yes Conflict Free Yes Datasheet Link Product Brief Link Additional Information URL Link Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4 1600/1866/2133 Max number of Memory Channels 4 Max Memory Bandwidth 68 GB/s Physical Address Extensions 46-bit ECC Memory Supported Yes Graphics Specifications Processor Graphics None Expansion Options Scalability 2S PCI Express Revision 3.0 PCI Express Configurations x 4, x 8, x 16 Max number of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011-3 Max CPU Configuration 2 TCASE 84.5°C Package Size 52.5mm x 45mm Low Halogen Options Available See MDDS Advanced Technologies Intel Turbo Boost Technology 2.0 Intel v Pro Technology Yes Intel Hyper-Threading Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel TSX-NI No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions AVX 2.0 Idle States Yes Enhanced Intel Speed Step Technology Yes Intel Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel Flex Memory Access No Intel Identity Protection Technology No Intel Data Protection Technology Intel AES New Instructions Yes Secure Key Yes Intel Platform Protection Technology OS Guard Yes Trusted Execution Technology Yes Execute Disable Bit Yes ...

SPECIFICATIONS Processor Number
- E5-2687W of Cores
- 8 of Threads
- 16 Clock Speed
- 3.1 GHz Max Turbo Frequency
-




...

Intel Xeon E5-2687W v 3 3.10 G Hz Socket LGA2011-3 25MB Cache Retail Boxed Processor Specifications Essentials Processor Number E5-2687WV3 Lithography 22 nm Performance Number of Cores 10 Number of Threads 20 Processor Base Frequency 3.1 GHz Max Turbo Frequency 3.5 GHz Cache 25 MB Smart Cache Bus Speed 9.6 GT/s QPI Number of QPI Links 2 TDP 160 W VID Voltage Range 0.65V–1.30V Supplemental Information Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4 1600/1866/2133 Max of Memory Channels 4 Max Memory Bandwidth 68 GB/s Physical Address Extensions 46-bit ECC Memory Supported Yes Graphics Specifications Processor Graphics None Expansion Options Scalability 2S PCI Express Revision 3.0 PCI Express Configurations x 4, x 8, x 16 Max number of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011-3 Max CPU Configuration 2 TCASE 74.7°C Package Size 52.5mm x 45mm Low Halogen Options Available See MDDS Advanced Technologies Intel Turbo Boost Technology & Dagger; 2.0 Intel v Pro Technology Yes Intel Hyper-Threading Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel TSX-NI No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions AVX 2.0 Idle States Yes Enhanced Intel Speed Step Technology Yes Intel Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel Flex Memory Access No Intel Identity Protection Technology No Intel Data Protection Technology Intel AES New Instructions Yes Secure Key Yes Intel Platform Protection Technology OS Guard Yes Trusted Execution Technology Yes Execute Disable Bit Yes ...

The Intel Xeon processor is the solution for specific communication applications that require the highest levels of processing performance
-
...

Intel Xeon E5-2695 v 3 2.30 G Hz Socket LGA2011-3 35MB Cache Retail Boxed Processor Specifications Essentials Processor Number E5-2695V3 Lithography 22 nm Performance Number of Cores 14 Number of Threads 28 Processor Base Frequency 2.3 GHz Max Turbo Frequency 3.3 GHz Cache 35 MB Smart Cache Bus Speed 9.6 GT/s QPI Number of QPI Links 2 TDP 120 W VID Voltage Range 0.65V–1.30V Supplemental Information Embedded Options Available No Conflict Free Yes Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4 1600/1866/2133 Max number of Memory Channels 4 Max Memory Bandwidth 68 GB/s Physical Address Extensions 46-bit ECC Memory Supported Yes Graphics Specifications Processor Graphics None Expansion Options Scalability 2S PCI Express Revision 3.0 PCI Express Configurations x 4, x 8, x 16 Max number of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011-3 Max CPU Configuration 2 TCASE 82.6°C Package Size 52.5mm x 51mm Low Halogen Options Available See MDDS Advanced Technologies Intel Turbo Boost Technology 2.0 Intel v Pro Technology Yes Intel Hyper-Threading Technology Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel TSX-NI No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions AVX 2.0 Idle States Yes Enhanced Intel Speed Step Technology Yes Intel Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel Flex Memory Access No Intel Identity Protection Technology No Intel Data Protection Technology Intel AES New Instructions Yes Secure Key Yes Intel Platform Protection Technology OS Guard Yes Trusted Execution Technology Yes Execute Disable Bit Yes ...

The Intel Xeon processor is the solution for specific communication applications that require the highest levels of processing performance
-
...
