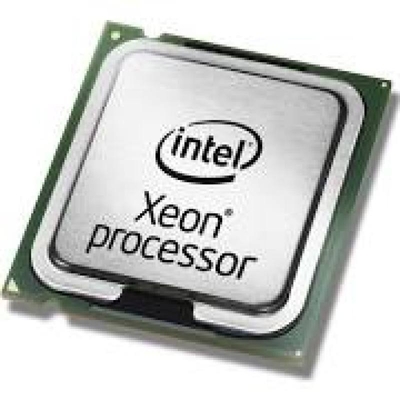

The Xeon Processor from Intel is designed to deliver enhanced reliability & flexibility for server platforms. This processor offers excellent performance & headroom for peak Internet server loads, resulting in faster response times, support for more users & enhanced scalability. It has been tested & validated on Dell™ systems to ensure it will work with your system. This processor is fully supported by Dell Technical Support when used with a Dell system. This product is compatible with the following systems: Power Edge T420 ...

The heart of an agile, efficient data center that meets your diverse needs Servers & storage solutions based on Intel Xeon processors deliver an unmatched combination of performance & built-in capabilities to support virtualized data centers & next-generation private clouds that are flexible, efficient, cost-effective, & built to scale. The Intel Xeon processor E5 v 2 family can boost server performance by up to 50 percent over previous-generation Intel Xeon processor-based servers. ...

The Intel Xeon processor is the solution for specific communication applications that require the highest levels of processing performance
-
...

Intel Xeon E5-2603 v 3 1.60 G Hz Socket LGA2011-3 15MB Cache Retail Boxed Processor Specifications Essentials Processor Number E5-2603V3 Lithography 22 nm Performance Number of Cores 6 Number of Threads 6 Processor Base Frequency 1.6 GHz Cache 15 MB Smart Cache Bus Speed 6.4 GT/s QPI Number of QPI Links 2 TDP 85 W VID Voltage Range 0.65V–1.30V Supplemental Information Embedded Options Available No Conflict Free Yes Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4 1600 Max number of Memory Channels 4 Max Memory Bandwidth 51 GB/s Physical Address Extensions 46-bit ECC Memory Supported Yes Graphics Specifications Processor Graphics None Expansion Options Scalability 2S PCI Express Revision 3.0 PCI Express Configurations x 4, x 8, x 16 Max number of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011-3 Max CPU Configuration 2 TCASE 72.8°C Package Size 52.5mm x 45mm Low Halogen Options Available See MDDS Advanced Technologies Intel Turbo Boost Technology No Intel v Pro Technology Yes Intel Hyper-Threading Technology No Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel TSX-NI No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions AVX 2.0 Idle States Yes Enhanced Intel Speed Step Technology Yes Intel Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel Flex Memory Access No Intel Identity Protection Technology No Intel Data Protection Technology Intel AES New Instructions Yes Secure Key Yes Intel Platform Protection Technology OS Guard Yes Trusted Execution Technology Yes Execute Disable Bit Yes ...

The Intel Xeon processor is the solution for specific communication applications that require the highest levels of processing performance
-
...

The Intel Xeon processor is the solution for specific communication applications that require the highest levels of processing performance
-
...

Intel Xeon E5-2609 v 2 2.5 G Hz Socket LGA2011 10MB Cache Retail Boxed Processor Specifications Essentials Processor Number E5-2609V2 Lithography 22 nm Performance Number of Cores 4 Number of Threads 4 Processor Base Frequency 2.5 GHz Max Turbo Frequency 2.5 GHz Cache 10 MB Smart Cache Bus Speed 6.4 GT/s QPI Number of QPI Links 2 TDP 80 W VID Voltage Range 0.65–1.30V Supplemental Information Embedded Options Available Yes Conflict Free Yes Datasheet Link Additional Information URL Link Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR3 800/1066/1333 Max number of Memory Channels 4 Max Memory Bandwidth 42.6 GB/s Physical Address Extensions 46-bit ECC Memory Supported Yes Expansion Options Scalability 2S Only PCI Express Revision 3.0 PCI Express Configurations x 4, x 8, x 16 Max number of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011 Max CPU Configuration 2 TCASE 71°C Package Size 52.5mm x 45mm Low Halogen Options Available See MDDS Advanced Technologies Intel Turbo Boost Technology No Intel v Pro Technology Yes Intel Hyper-Threading Technology No Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel TSX-NI No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions AVX Idle States Yes Enhanced Intel Speed Step Technology Yes Intel Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel Flex Memory Access No Intel Identity Protection Technology No Intel Data Protection Technology Intel AES New Instructions Yes Secure Key Yes Intel Platform Protection Technology OS Guard Yes Trusted Execution Technology Yes Execute Disable Bit Yes ...

Intel Xeon E5-2609 v 3 1.9 MHz Socket LGA2011-3 15MB Cache Retail Boxed Processor Specifications Essentials Processor Number E5-2609V3 Lithography 22 nm Performance Number of Cores 6 Number of Threads 6 Processor Base Frequency 1.9 GHz Cache 15 MB Smart Cache Bus Speed 6.4 GT/s QPI Number of QPI Links 2 TDP 85 W VID Voltage Range 0.65V–1.30V -Supplemental Information Embedded Options Available Yes Conflict Free Yes Datasheet Link Product Brief Link Additional Information URL Link Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4 1600 Max number of Memory Channels 4 Max Memory Bandwidth 51 GB/s Physical Address Extensions 46-bit ECC Memory Supported Yes Graphics Specifications Processor Graphics None Expansion Options Scalability 2S PCI Express Revision 3.0 PCI Express Configurations x 4, x 8, x 16 Max number of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011-3 Max CPU Configuration 2 TCASE 70.9°C Package Size 52.5mm x 45mm Low Halogen Options Available See MDDS Advanced Technologies Intel Turbo Boost Technology No Intel v Pro Technology Yes Intel Hyper-Threading Technology No Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel TSX-NI No Intel 64 Yes Instruction Set 64-bit Instruction Set Extensions AVX 2.0 Idle States Yes Enhanced Intel Speed Step Technology Yes Intel Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel Flex Memory Access No Intel Identity Protection Technology No Intel Data Protection Technology Intel AES New Instructions Yes Secure Key Yes Intel Platform Protection Technology OS Guard Yes Trusted Execution Technology Yes Execute Disable Bit Yes ...

The Intel Xeon processor is the solution for specific communication applications that require the highest levels of processing performance
-
...

The Intel Xeon processor is the solution for specific communication applications that require the highest levels of processing performance
-
...
