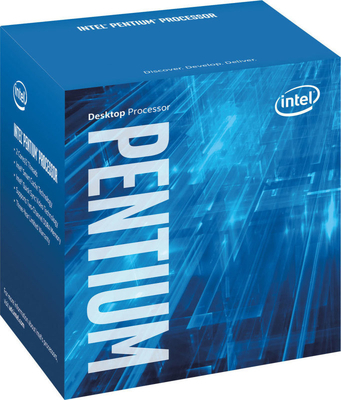

Intel Pentium Dual Core G4520 3.6 GHz Socket LGA1151 3MB Cache Retail Boxed Processor Specifications -Essentials Processor Number G4520 Intel Smart Cache 3 MB DMI3 8 GT/s Instruction Set 64-bit Instruction Set Extensions SSE4.1/4.2 Embedded Options Available No Lithography 14 nm Scalability 1S Only Thermal Solution
Specification PCG 2015C (65W) Performance Number of Cores 2 Number of Threads 2 Processor Base Frequency 3.6 GHz TDP 51 W Memory Specifications Max Memory Size (dependent on memory type) 64 GB Memory Types DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V Max of Memory Channels 2 Max Memory Bandwidth 34.1 GB/s ECC Memory Supported Yes Graphics Specifications Processor Graphics Intel HD Graphics 530 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.05 GHz Graphics Video Max Memory 64 GB Graphics Output e DP/DP/HDMI/DVI 4K Support Yes, at 60 Hz Max Resolution (Intel Wi Di) 1080p Max Resolution (HDMI 1.4) 4096x 2304@24 Hz Max Resolution (DP) 4096x 2304@60 Hz Max Resolution (e DP
- Integrated Flat Panel) 4096x 2304@60 Hz Max Resolution (VGA) N/A Direct X* Support 12 Open GL* Support 4.4 Intel Quick Sync Video Yes Intel In Tru 3D Technology Yes Intel Insider Yes Intel Wireless Display Yes Intel Clear Video HD Technology Yes Intel Clear Video Technology Yes Number of Displays Supported 3 Device ID 0x 1912 Expansion Options PCI Express Revision 3.0 PCI Express Configurations Up to 1x 16, 2x 8, 1x 8+2x 4 Max of PCI Express Lanes 16 Package Specifications Max CPU Configuration 1 Package Size 37.5mm x 37.5mm Graphics & IMC Lithography 14 nm Sockets Supported FCLGA1151 Low Halogen Options Available See MDDS Advanced Technologies Intel Turbo Boost Technology No Intel v Pro Technology No Intel Hyper-Threading Technology No Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel TSX-NI No Intel 64 Yes Idle States Yes Enhanced Intel Speed Step Technology Yes Thermal Monitoring Technologies Yes Intel Identity Protection Technology & Dagger; Yes Intel Stable Image Platform Program (SIPP) No Intel Small Business Advantage No Intel Data Protection Technology Intel AES New Instructions Yes Secure Key Yes Intel Software Guard Extensions (Intel SGX) Yes Intel Memory Protection Extensions (Intel MPX) No Intel Platform Protection Technology OS Guard No Trusted Execution Technology No Execute Disable Bit Yes
