The Inno 3D Ge Force GTX 560 Ti is built from the ground up for Direct X 11 & delivers the ultimate next generation gaming experience. The GTX 560 Ti packs highly detailed visuals into your games without sacrificing high frame rates. Together with NVIDIA 3D Vision, Phys X, & CUDA technologies, Ge Force GTX 560 Ti powers all the incredibly realistic effects that your games can throw its way. GPU
- Nvidia Geforce GTX 560 Ti CUDA cores
- 384 Core Frequency (MHz)
- 822 Processor Clock (MHz)
- 1645 Memory Clock (MHz)
- 4008 Memory Amount
- 1024MB Memory Interface
- 256 Bit Memory Type
- GDDR5







...

Inno 3D launch the GTX 560 Ti 448 Core edition. Boasting 448 Cuda cores, a 320bit interface to 1.28GB of onboard GDDR5 RAM & clock speeds of 760 M Hz & 3800 M Hz. Specifications Cuda Cores
- 448 Graphics Clock
- 760 M Hz Processor Clock
- 1644 M Hz Memory Clock
- 3800 M Hz Memory Amount
- 1280MB Memory Interface
- 320bit Bus
- PCI-Express






...

Microsoft Direct X 11 full support DX11 with full shader model 5.0 GPU accelerated tesselation NVIDIA PHYSX technology New class of gaming interaction More dynamic & realistic exp. NVIDIA CUDA technology CUDA C/C++ Support Direct Compute 5.0 / Open CL Support DTS-HD Audio Bitstreaming Support HDMI 1.4a Connector

Specification Graphics Engine
- Nvidia Ge Force GTX 560 Ti Core/ Shader/ Mem
- 822/1644/4000 MHz Interface
- PCI-Express 2.0 Memory Type
- 1GB GDDR5 Memory Bus
- 256-bit Direct X support
- DX 11 Max. Resolution
- 2560 x 1600 Outputs
- DVI x 2 + mini HDMI









...

It sports 16 scythe blades on each of its enormous fans that work actively with the Herculez Ball Bearing to keep the temperature cool under the hood. The Herculez is made up of a large heatsink with several large heatpipes protruding from the side. The reflective cores indicate a well lapped heatsink as the flat & smooth surface provides better surface area for heat dissipation. Looking at the underside you get a good look at the large heatsink fins which are quite dense & have been designed around the shroud as they fit it very nicely. Heatpipes are an efficient way of moving heat from one area to another & are usually used to connect the high density block of the cooler with the large surface area fins. Specifications GPU
- Nvidia GTX 560 Ti Memory
- 1GB GDDR5 Core Clock
- 880 M Hz Memory Clock
- 4100 M Hz Memory Bus
- 256bit SLI Ready
- Yes Outputs
- Dual DVI, HDMI Max Resolution
- 2560 x 1600 Bus
- PCI-Express








...

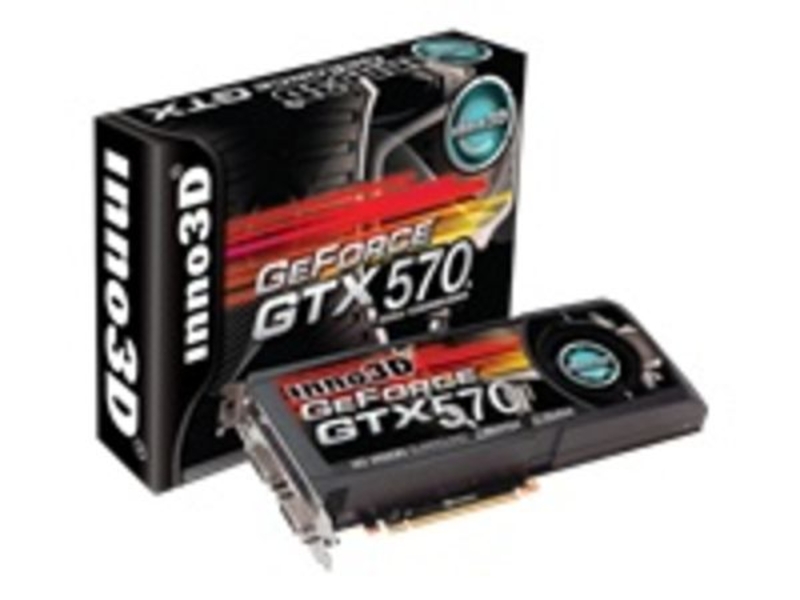

The GTX 570 boasts an amazing 480 CUDA cores, a 320-bit interface to 1.28GB of onboard GDDR5 RAM, & clock speeds of 732 M Hz & 1464 M Hz. GTX 570 continues with the redesigned from the ground up architecture to deliver the best performance on DX11
- adding dedicated engines in the GPU to accelerate key features like tessellation. Game performance & image quality has received a tremendous boost, enabling film-like geometric realism for game characters & objects. Geometric realism is central to the GTX 570 architectural enhancements for graphics. In addition, Phys X simulations are much faster, & developers can utilize GPU computing features in games most effectively.
...

Experience blockbuster games like Call of Duty: Black Ops & Tom Clancys H.A.W.X. 2 in their full glory. With screaming performance & an innovative vapor chamber thermal design, Ge Force GTX 580 rips through the latest games while running quieter than the previous generation. As youve come to expect from a Ge Force GTX GPU, GTX 580 packs support for all the premium GTX gaming technologies such as NVIDIA Surround, 3D Vision, Phys X, & SLI. Ge Force GTX 580 dont play DX11 without it! Specifications CUDA cores
- 512 Graphics Clock (MHz)
- 772 Processor Clock (MHz)
- 1544 M Hz Memory Clock (MHz)
- 4000 M Hz Memory Amount
- 1536MB Memory Interface
- 384 bit Memory Bandwidth (GB/sec)
- 192.4 Texture Fill Rate (billion/sec)
- 49.4







...

Inno 3D is thrilled to announce the launch of the mighty Inno 3D Ge Force GTX 580, the worlds fastest Direct X 11 GPU. Experience blockbuster games like Call of Duty: Black Ops & Tom Clancys H.A.W.X. 2 in their full glory. With screaming performance & an innovative vapor chamber thermal design, Ge Force GTX 580 rips through the latest games while running quieter than the previous generation. As youve come to expect from a Ge Force GTX GPU, GTX 580 packs support for all the premium GTX gaming technologies such as NVIDIA Surround, 3D Vision, Phys X, & SLI (note
- Due to the size of the cooler an E-ATX motherboard is advised, ATX boards will not have enough depth between the PCI-E slots to accommodate the larger cooler). Ge Force GTX 580 dont play DX11 without it! GPU
- Inno 3D Geforce GTX 580 CUDA cores
- 512 Graphics Clock (MHz)
- 772 Processor Clock (MHz)
- 1544 M Hz Memory Clock (MHz)
- 4000 M Hz Memory Interface
- 384 bit






...

Inno 3D is excited to announce the launch of the Inno 3D Ge Force GTX 650. Tap into the horsepower of the GPU for the visually-charged boost on your favourite applications. Edit your photos & HD Videos & push the limits if your Web experience with a new generation of GPU-accelerated browsers. In addition, Phys X simulations are much faster, & developers can utilize GPU computing features in games most effectively. Due to that, gaming performance & image quality has received a tremendous boost, enabling film-like geometric realism for game characters & objects. Specifications GPU- Nvidia Ge Force GTX 650 Memory Size
- 1GB GDDR5 CUDA Cores
- 384 Memory Interface
- 128bit Graphics Core Base Clock
- 1058 M Hz Memory Clock
- 5000 M Hz Outputs
- Dual DVI, Mini HDMI Interface
- PCI-Express Maximum Graphics Card Power (W)
- 80W Minimum System Power Requirement (W)
- 400W Supplementary Power Connectors
- One 6-pin









...

The Inno 3D Ge Force GTX 660 Hercule Z2000S. Tap into the horsepower of the GPU for the visually-charged boost on your favourite applications. Edit your photos & HD Videos & push the limits if your Web experience with a new generation of GPU-accelerated browsers. In addition, Phys X simulations are much faster, & developers can utilize GPU computing features in games most effectively. Due to that, gaming performance & image quality has received a tremendous boost, enabling film-like geometric realism for game characters & objects. Specifications GPU- Nvidia Ge Force GTX 660 Memory Size
- 2GB GDDR5 Memory Interface
- 192 bit Core Clock
- 980 M Hz Memory Clock
- 6000 M Hz Outputs
- Dual DVI, HDMI, Display Port Interface
- PCI-Express





...

The unveiling of the i Chill Ge Force GTX 670 Hercule Z 3000 arrives. Game performance & image quality has received a tremendous boost, enabling film-like geometric realism for game characters & objects. Geometric realism is central to the GTX 670 architectural enhancements for graphics. In addition, Phys X simulations are much faster, & developers can utilize GPU computing features in games most effectively. Heatpipes are an efficient way of moving heat from one area to another & are usually used to connect the high density block of the cooler with the large surface area fins. Specifications Product
- i Chi LL GTX 670 Hercule Z 3000 Edition Chipset
- Nvidia GTX 670 Memory
- 2048 Mb GDDR5 Core Frequency
- 1344 MHz Memory Frequency
- 6.2 Gbps Graphics Base Clock / Boost Clock
- 1020 / 1071 Memory Bus
- 256-bit Processors Clock
- 2040 MHz Max. Resolution
- 2560x 1600 SLI Ready
- Yes Outputs
- 2 Dual-Link DVI, HDMI, DP Interface
- PCI-E 3.0 x 16











...
