The HPE Smart Array E208e-p SR Gen 10 Controller, supporting 12 Gb/s SAS & PCIe 3.0, is an ideal cost-effective solution for RAID 0, 1, 5, and 10 & Software Defined Storage solutions on externally attached drives. This controller operates in Mixed Mode which combines RAID & HBA operations simultaneously. It has eight external SAS lanes, allowing connection to externally attached SAS or SATA drives, and provides enterprise-class reliability, security & efficiency needed to address your evolving data storage needs. This controller offers enhanced security by encrypting data-at-rest on any drive with HPE Smart Array SR Secure Encryption. ...

Are you looking for a cost effective, enterprise-class controller for internal attached drives without occupying a PCIe expansion slot? The HPE Smart Array E208i-a SR Gen 10 Controller, supporting 12 Gb/s SAS & PCIe 3.0, provides a cost-effective storage solution with enterprise-class reliability supporting RAID 0, 1, 5, & 10 & software-defined storage (SDS). This controller has eight internal SAS lanes, allowing connection to SAS or SATA drives, supports Mixed Mode operations of RAID & HBA simultaneously, & offers encryption for data-at rest on any drive. This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot. Cost-Effective SAS Storage Connectivity The HPE Smart Array E208i-a SR Gen 10 Controller is a cost effective enterprise-class controller that provides the basic building blocks for simple RAID storage solutions while delivering 12 Gb/s SAS connectivity on HPE Pro Liant Gen 10 Servers when connected to 12 Gb/s internal storage devices. Offers a low-cost solution to enable software-defined storage. Built-in Reliability & Security The HPE Smart Array E208i-a SR Gen 10 Controller protects data-at-rest on any drive attached to the controller with HPE Smart Array SR Secure Encryption (optional license). Comply with regulations for sensitive data, such as HIPAA & Sarbanes-Oxley with HPE Smart Array SR Secure Encryption. Preserve data integrity with HPE Smart SSD Wear Gauge, which alerts you to potential drive issues before a drive fails. enhanced Efficiency & Storage Management The HPE Smart Array E208i-a SR Gen 10 Controller has increased flexibility with Mixed Mode which operates in RAID & HBA simultaneously & eliminates the expense of having to purchase another controller. Rapidly configure simple RAID volumes on servers with the UEFI storage configuration tool, which also facilitates scripting support to configure an array via i LO through RESTful interface. Quickly set up, configure, & manage drives attached to the controller with HPE Smart Storage Administrator (SSA), an intuitive interface used to create RAID volumes, manage advanced controller features, & deploy Smart Array solutions. ...

The HPE Smart Array E208i-a SR Gen 10 Controller, supporting 12 Gb/s SAS & PCIe 3.0, is an ideal cost-effective solution for RAID 0, 1, 5, and 10 & Software Defined Storage solutions. This controller operates in Mixed Mode which combines RAID & HBA operations simultaneously. It has eight internal SAS lanes, allowing connection to SAS or SATA drives, and offers encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption. This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot & provides enterprise-class reliability, security & efficiency needed to address your evolving data storage needs. Storage interface (SAS/SATA) PCI Express 3.0 x 8 link RAID 0, 1, 5, 10 Mixed Mode (RAID logic drives & HBA physical drives simultaneously) Legacy & UEFI boot operation UEFI System Utilities (storage configuration) Up to 238 physical drives Up to 64 logical drives HPE Smart Array SR Secure Encryption (optional license) HPE SSD Smart Path Rapid Parity Initialization (RPI) Rapid rebuild Drive Sanitize Performance Optimization-Degraded Reads & Read Coalescing Power efficiency Seamless upgrades from HPE Smart Array Software RAID Seamless upgrades to HPE Smart Array P-class Controllers ...

The HPE Smart Array E208i-p SR Gen 10 Controller, supporting 12 Gb/s SAS & PCIe 3.0, is an ideal cost-effective solution for RAID 0, 1, 5, and 10 & Software Defined Storage solutions. This controller operates in Mixed Mode which combines RAID & HBA operations simultaneously. It has eight internal SAS lanes, allowing connection to SAS or SATA drives, and provides enterprise-class reliability, security & efficiency needed to address your evolving data storage needs. This controller offers enhanced security by encrypting data-at-rest on any drive with HPE Smart Array SR Secure Encryption. ...

The HPE Smart Array P408e-p SR Gen 10 Controller, supporting 12 Gb/s SAS & PCIe 3.0, is ideal for maximizing performance on externally attached drives while supporting advanced RAID levels with 4 GB flash-backed write cache (FBWC). This controller operates in Mixed Mode which combines RAID & HBA operations simultaneously. It has eight external SAS lanes, allowing connection to externally attached SAS or SATA drives, and provides enterprise-class storage performance, reliability, security & efficiency needed to address your evolving data storage needs. This controller offers enhanced security by encrypting data-at-rest on any drive with HPE Smart Array SR Secure Encryption. ...

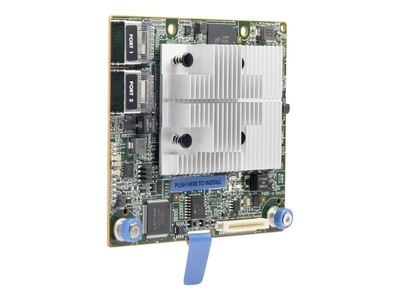

Are you looking for an enterprise-level controller to maximize performance & storage capacity without occupying a PCI Express (PCIe) expansion slot? The HPE Smart Array P408i-a SR Gen 10 controller provides enterprise-class storage performance, reliability, security & efficiency needed to address your evolving data storage needs. The Smart Array P408i-a SR Gen 10 controller is ideal for maximizing performance while supporting advanced RAID levels with 2 GB Flash-Backed Write Cache (FBWC). This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot. Increased performance for faster data insights The HPE Smart Array P408i-a SR Gen 10 controller is an enterprise-class RAID controller that increases performance in messaging, database, or general server applications. enhanced efficiency & storage management The HPE Smart Array P408i-a SR Gen 10 controller has increased flexibility with Mixed Mode which operates in RAID & HBA simultaneously & eliminates the expense of having to purchase another controller. ...

Are you looking for an enterprise-level controller to maximize performance & storage capacity? The HPE Smart Array P408i-p SR Gen 10 Controller, supporting 12 Gb/s SAS & PCIe 3.0, provides enterprise-class storage performance, reliability, security & efficiency needed to address your evolving data storage needs. This controller has eight internal SAS lanes, allowing connection to SAS or SATA drives, supports Mixed Mode operations of RAID & HBA simultaneously, & offers encryption for data-at-rest on any drive. The Smart Array P408i-p SR Gen 10 Controller is ideal for maximizing performance while supporting advanced RAID levels with 2 GB Flash-Backed Write Cache (FBWC). This controller occupies a PCIe expansion slot. The Gen 10 controllers are supported by the HPE Smart Storage Battery. The HPE Smart Storage Battery supports multiple devices & is sold separately. ...

The HPE Smart Array P420 Controller is a low profile, 6 Gb/s, PCIe 3.0, Serial Attached SCSI (SAS) RAID controller that provides enterprise class, second generation storage performance & data protection for select HPE Pro Liant Gen 8 rack servers & tower servers. It features eight internal SAS ports & delivers increased server uptime by providing advanced storage functionality, including online RAID level migration (between any RAID levels) with flash back write cache, global online spare, & pre-failure warning. Data compatibility between HPE Smart Array Controllers means customers can easily upgrade to future Smart Array Controllers. HPE Smart Array Advanced Pack 2.0 firmware makes it easier for customers to protect their data with advanced functionality for this next generation of Smart Array controllers, including features such as RAID 1 ADM (Advanced Data Mirroring). Increased performance & data protection, with reduced initial setup time. Up to 3x performance improvement over past generation, using up to 2 GB DDR3-1333 cache memory. Long term data retention with flash back write cache (FBWC) offered as a standard feature, up to 2 GB capacity. Support for RAID 0/1, 1+0, 5, 50, 6, 60. New predictive spare activation for enhanced rebuild & maximized uptime. Reduction in parity initialization from 45 days to 5 hours. ...

The HPE Smart Array P420 Controller is an enterprise-class 6 Gb/s controller that provides enhanced performance, internal scalability & lower maintenance. P420 controller is ideal for RAID 0/1, 1+0, 5, 50, 6 & 60 & additional advanced features are upgradable by Smart Array Advanced Pack. P420 delivers increased server uptime by providing advanced storage functionality, including: online RAID level migration with flash-backed write cache (FBWC), global online spare, & pre-failure warning. ...

The HP Smart Array P421 Controller is a low profile, 6 Gb/s, PCIe 3.0, Serial Attached SCSI (SAS) RAID controller that provides enterprise class, second generation storage performance, maximum external scalability, & data protection for select HP Pro Liant Gen 8 rack servers & tower servers. It features eight external SAS ports & delivers increased server uptime by providing advanced storage functionality, including online RAID level migration (between any RAID levels) with flash back write cache, global online spare, & pre-failure warning. Data compatibility between HP Smart Array Controllers means customers can easily upgrade to future Smart Array Controllers. HP Smart Array Advanced Pack 2.0 firmware makes it easier for customers to protect their data with advanced functionality for this next generation of Smart Array controllers, including features such as RAID 1 ADM (Advanced Data Mirroring). ...
