Offering excellent performance at an even keener price, SAPPHIRE HD 7850 shares the features of the HD 7000 family with Dual-X cooling technology, a highly efficient multi-heatpipe cooler with dual fans providing quiet & very cool operation during normal operating conditions, & superb cooling performance even under extreme load. Specifications GPU AMD HD 7850 GPU Spec
- 860 MHz Core Clock, 28 nm Chip, 1024 x Stream Processors Memory
- 2048MB, 256 bit GDDR5 4800 MHz Effective Output
- 1 x Dual-Link DVI, 1 x HDMI (with 3D), 2 x Mini-Display Port, Display Port 1.2

Dimensions
- 210 (L)x 105 (W)x 35 (H) mm Size. System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 2X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 1X75 Watt 6-pin PCI Express power connector is required. Certified power supplies are recommended. 1024MB Minimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. For an AMD Cross Fire X system, a second same AMD Radeon graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required. To support 3 displays, one of the monitors has to support Display Port. 500 Watt Power Supply is required.





...

The Sapphire new model in the HD 7850 family of graphics cards based on the revolutionary new graphics GCN (Graphics Core Next) architecture from AMD. Offering excellent performance at an even keener price point, SAPPHIRE HD 7850 2GB GDDR5 model will ship with core clock of 860 M Hz & memory at 1200 M Hz (4.8 Gb/s effective). Equipped with a dual BIOS, & the new output configuration of Dual link DVI-I, Dual link DVI-D, HDMI & Display Port. SAPPHIRE HD 7850 2GB GDDR5 also features SAPPHIRE’s latest dual-extractor cooler technology
- Dual-X
- a highly efficient multi-heatpipe cooler with dual fans providing quiet & very cool operation during normal operating conditions, & superb cooling performance even under extreme load.

Specification Output 2 x Dual-Link DVI 1 x HDMI (with 3D) 1 x Display Port Display Port 1.2 GPU 860 MHz Core Clock 28 nm Chip 1024 x Stream Processors Memory 2048 MB Size 256 -bit GDDR5 4800 MHz Effective Dimension 207 (L)x 105 (W)x 35 (H) mm Size Software Driver CD System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 2X75 Watt 6-pin PCI Express power connector is required. Certified power supplies are recommended. 1024MB Minimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. For an AMD Cross Fire X system, a second same AMD Radeon graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required. 500 Watt Power Supply is required.



...

The Sapphire new model in the HD 7850 family of graphics cards based on the revolutionary new graphics GCN (Graphics Core Next) architecture from AMD. Offering excellent performance at an even keener price point, SAPPHIRE HD 7850 2GB OC GDDR5 model will ship with core clock of 920 M Hz & memory at 1250 M Hz (5 Gb/s effective). Equipped with a dual BIOS, & the new output configuration of Dual link DVI-I, Dual link DVI-D, HDMI & Display Port. SAPPHIRE HD 7850 2GB OC GDDR5 also features SAPPHIRE’s latest dual-extractor cooler technology
- Dual-X
- a highly efficient multi-heatpipe cooler with dual fans providing quiet & very cool operation during normal operating conditions, & superb cooling performance even under extreme load.

Specification Output 2 x Dual-Link DVI 1 x HDMI (with 3D) 1 x Display Port Display Port 1.2 GPU 920 MHz Core Clock 28 nm Chip 1024 x Stream Processors Memory 2048 MB Size 256 -bit GDDR5 5000 MHz Effective Dimension 207 (L)x 105 (W)x 35 (H) mm Size Software Driver CD System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 4X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 2X75 Watt 6-pin PCI Express power connector is required. Certified power supplies are recommended. 1024MB Minimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray™ / HD DVD playback requires Blu-ray / HD DVD drive. For an AMD Cross Fire X system, a second same AMD Radeon graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required. To support 3 displays, one of the monitors has to support Display Port. 500 Watt Power Supply is required.



...

Offering excellent performance at an even keener price, SAPPHIRE HD 7850 OC shares the features of the HD 7000 family with Dual-X cooling technology, a highly efficient multi-heatpipe cooler with dual fans providing quiet & very cool operation during normal operating conditions, & superb cooling performance even under extreme load. Specifications GPU AMD HD 7850 GPU Spec
- 920 MHz Core Clock (860 MHz Standard), 28 nm Chip, 1024 x Stream Processors Memory
- 2048MB, 256 bit GDDR5, 5000 MHz Effective (4800 M Hz standard) Output
- 1 x Dual-Link DVI, 1 x HDMI (with 3D), 2 x Mini-Display Port, Display Port 1.2

Dimensions
- 210 (L)x 105 (W)x 35 (H) mm Size. System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 2X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 1X75 Watt 6-pin PCI Express power connector is required. Certified power supplies are recommended. 1024MB Minimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. For an AMD Cross Fire X system, a second same AMD Radeon graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required. To support 3 displays, one of the monitors has to support Display Port. 500 Watt Power Supply is required.





...

The SAPPHIRE HD 7870 Fle X brings this feature to the performance segment with its core clock speeds of 1000 M Hz & 1200 Mhz (4.8 Gb/sec effective) for the 2GB of on board high speed DDR5 memory. It also features the company’s latest Dual-X cooler technology, with its graduated heatpipes & two aerofoil fans with dust repelling bearings for efficient cooling & low noise operation. The Fle X feature enables users to connect low-cost DVI monitors for the first three screens in landscape or portrait mode providing a cost-effective solution for multiscreen gaming or increased productivity in content creation & editing applications. Using the Display Port output, the SAPPHIRE HD 7870 Fle X supports four screens in Eyefinity, providing additional display options.

Specification Output 1 x Dual-Link DVI 1 x HDMI (with 3D) 1 x Display Port 1 x Single-Link DVI-D Display Port 1.2 GPU 1000/1050 MHz Core Clock 28 nm Chip 1280 x Stream Processors Memory 2048 MB Size 256 -bit GDDR5 4800/5000 MHz Effective Dimension 260 (L)x 113 (W)x 35 (H) mm Size Software Driver CD SAPPHIRE Tri XX Utility System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 4X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 2X75 Watt 6-pin PCI Express power connector is required. Certified power supplies are recommended. 1024MB Minimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. For an AMD Cross Fire X system, a second same AMD Radeon graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required. 500 Watt Power Supply is required. To support 4 displays, one of the monitors has to support Display Port.

...

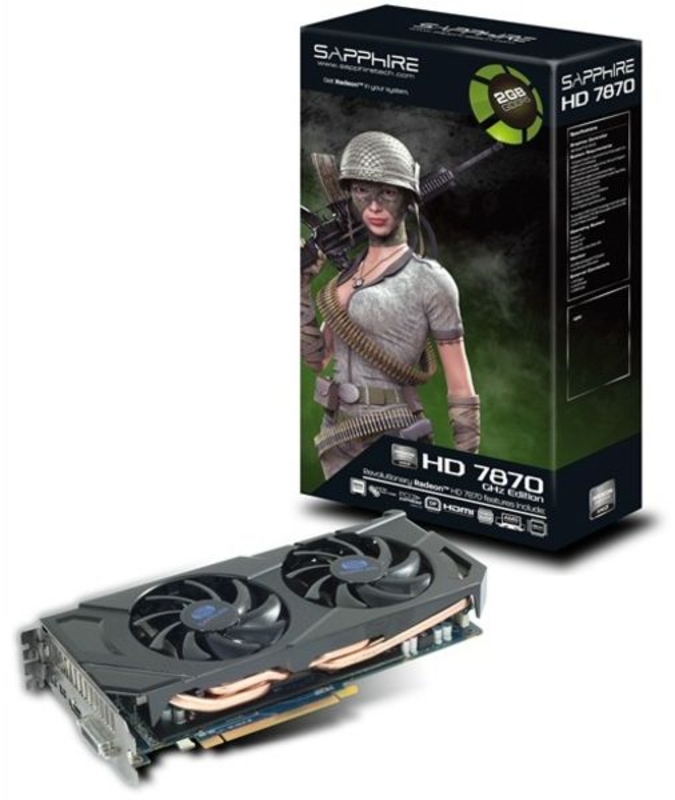

The new SAPPHIRE HD 7800 series of graphics cards is based on the third family of GPU’s from AMD built in its new 28nm process & featuring the highly acclaimed GCN graphics processing architecture. The SAPPHIRE HD 7870 GHz Edition OC, factory-overclocked to 1050 MHz engine & effective 5000 MHz memory, offers superior performance than standard models. It is equipped with SAPPHIRE’s new dual-extractor technology
- Dual-X
- a highly efficient multi-heatpipe cooler with dual fans providing quiet & very cool operation during normal operating conditions, & superb cooling performance even under extreme load. Specifications GPU
- AMD HD 7870 GPU Specs
- 1050 M Hz (v 1000 M Hz standard) Core Clock, 28 nm Chip, 1024 x Stream Processors Memory
- 2048 MB Size, 256 bit GDDR5, 5000 M Hz (v 4800 M Hz) Effective Output
- 1 x Dual-Link DVI, 1 x HDMI (with 3D), 2 x Mini-Display Port, Display Port 1.2 Dimension
- 260 (L)x 113 (W)x 35 (H) mm Size. System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 4X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 2X75 Watt 6-pin PCI Express power connector is required. Certified power supplies are recommended 1024MB Minimum of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive For an AMD Cross Fire X system, a second same AMD Radeon graphics card, an AMD Cross Fire X Ready motherboard & one AMD Cross Fire X Bridge Interconnect cable per graphics card (optional) are required To support 3 displays, one of the monitors has to support Display Port 500 Watt Power Supply is required






...

The new SAPPHIRE HD 7950 models are only the second family of graphics cards to incorporate the latest generation of GPU’s from AMD built in a new 28nm process & featuring the new GCN optimised graphics processing architecture. The HD 7950 GPU has a new internal structure with 1792 Stream processors & a 384-bit high speed memory interface with over 264GB/sec memory bandwidth.

Specification GPU 810 MHz Core Clock 28 nm Chip 1792 x Stream Processors Memory 3072 MB Size 384 -bit GDDR5 5000 MHz Effective Output 1 x Dual-Link DVI 1 x HDMI (with 3D) 2 x Mini-Display Port Display Port 1.2

Dimensions 265 (L)x 100 (W)x 36 (H) mm Size.



...

The SAPPHIRE HD 7950 3GB features SAPPHIREs new dual-extractor technology
- Dual-X
- a highly efficient multi-heatpipe cooler

...

The SAPPHIRE HD 7950 3GB with Boost features SAPPHIREs new dual-extractor technology
- Dual-X
- a highly efficient multi-heatpipe

...

The new SAPPHIRE HD 7950 models are only the second family of graphics cards to incorporate the latest generation of GPU’s from AMD built in a new 28nm process & featuring the new GCN optimised graphics processing architecture. The HD 7950 GPU has a new internal structure with 1792 Stream processors & a 384-bit high speed memory interface with over 264GB/sec memory bandwidth.

Specification Output 1 x Dual-Link DVI 1 x HDMI (with 3D) 2 x Mini-Display Port Display Port 1.2 GPU 810 MHz Core Clock 28 nm Chip 1792 x Stream Processors Video Memory 3072 MB Size 384 -bit GDDR5 5000 MHz Effective Dimension 265 (L)x 100 (W)x 36 (H) mm Size Software Driver CD SAPPHIRE Tri XX Utility Accessory Cross Fire Bridge Interconnect Cable DVI to VGA Adapter Mini-DP to DP Cable 6 PIN to 4 PIN Power Cable x 2

...
