Features Features Powered by Ge Force GTX 1080 Integrated with 8GB GDDR5X 256bit memory 90mm cooler fan One-click Super Overclocking 17cm compact card size Core Clock Boost: 1771 MHz/ Base: 1632 MHz in OC Mode Boost: 1733 MHz/ Base: 1607 MHz in Gaming Mode (Reference Card Boost: 1733 MHz / Base: 1607 MHz) Overview Optimized compact size – Tiny but mighty Embedded with powerful Geforce GTX 1080 in an extremely compact graphics card, 17cm length GTX 1080 mini ITX is capable to fit into any small chassis & delivers a great gaming performance. GIGABYTE Custom-designed Cooling System The GIGABYTE Custom-designed cooling system features a 90mm fan, 3 pure copper composite heat-pipes, unique blade fan design, heat pipes direct touch technology together delivering an effective heat dissipation capacity for higher performance at lower temperatures. Unique Blade Fan Design The airflow is spilt by the triangle fan edge, & guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans. 3D Active Fan The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle. AORUS Graphics Engine Clock speeds, voltage, fan performance, power target can be monitored & tuned in real-time according to your own preference through this intuitive interface.

Specification Graphics Processing Ge Force GTX 1080 Core Clock Boost: 1771 MHz/ Base: 1632 MHz in OC Mode Boost: 1733 MHz/ Base: 1607 MHz in Gaming Mode (Reference Card Boost: 1733 MHz / Base: 1607 MHz) Memory Clock 10010 MHz Memory Size 8 GB Memory Type GDDR5X Memory Bus 256 bit Card Bus PCI-E 3.0 x 16 Output Dual-link DVI-D*1 / HDMI *1 / Display Port*3 Digital max resolution 7680x 4320 Multi-view 4 Card size H=37 L=169 W=131 mm PCB Form ATX Direct X 12 Open GL 4.5 Recommended PSU 500W Power Connectors 8 pin*1 SLI support 2-way SLI HB

...

Features Powered by Ge Force GTX 1080 Ti Integrated with 11GB GDDR5X 352-bit memory interface WINDFORCE 3X Cooling System RGB fusion – 16.7M customizable color lighting Built for Extreme Overclocking 8+2 Power Phases Overview Core Clock Boost: 1620 MHz / Base 1506 MHz in OC mode Boost: 1582 MHz / Base 1480 MHz in Gaming mode Be Different. Be Unique. Dare to stand out with a clean, white build in style. Crafted in elegant white finish with orange accent, the GTX 1080 Ti Gaming OC is a perfect match for those who are building not just a gaming rig, but rather a stunning masterpiece. WINDFORCE 3X COOLING SYSTEM The WINDFORCE 3X cooling system features 3 unique blade fans, 5 composite copper heat pipes, heat-pipe direct touch & 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures. GAME IN STYLE RGB FUSION With 16.7M customizable color options & numerous lighting effects, you could now choose the right scheme for your gaming rig through AORUS graphics engine. TITAN X-GRADE CHOKES & CAPACITORS FOR EXTREME DURABILITY Engineered with the same highest-grade chokes & capacitors as those of Titan X, the graphics card delivers outstanding performance & longer system lifespan.

Specification Graphics Processing Ge Force GTX 1080 Ti Core Clock Boost: 1620 MHz / Base 1506 MHz in OC mode Boost: 1582 MHz / Base 1480 MHz in Gaming mode Memory Clock 11010 MHz Memory Size 11 GB Memory Type GDDR5X Memory Bus 352 bit Card Bus PCI-E 3.0 x 16 Output Dual-link DVI-D *1 HDMI-2.0b*1 (Max Resolution: 4096x 2160 @60 Hz) Display Port-1.4 *3 (Max Resolution: 7680x 4320 @60 Hz) Digital max resolution 7680x 4320 Multi-view 4 Card size H=37 L=280 W=114 mm PCB Form ATX Direct X Direct X 12 API feature level 12_1 Open GL 4.5 Recommended PSU 600W Power Connectors 8 pin+6 pin

...

Features Features Powered by Ge Force GTX 1080 Ti Integrated with 11GB GDDR5X 352-bit memory interface Turbo Fan Cooling System Vapor Camber Combined Heat-pipe Design Built for Extreme Overclocking 8+2 Power Phases Core Clock Boost: 1620 MHz / Base: 1506 MHz in OC mode Boost: 1582 MHz / Base: 1480 MHz in Gaming mode Overview Be Different. Be Unique. Dare to stand out with a clean, white build in style. Crafted in elegant white finish with orange accent, the GIGABYTE Ge Force GTX 1080 Ti Turbo 11G is a perfect match for those who are building not just a gaming rig, but rather a stunning masterpiece. TURBO FAN COOLING SYSTEM GIGABYTE turbo fan cooling system features the exclusive blower fan design with the heat pipe direct touch technology to efficiently direct the heat out of the case, delivering blazing fast yet stable performance when running VR or games in ultra HD. The card is also easy to install within the 2 PCI-E slot width due to its compact profile. One-click Overclocking With a simple click on AORUS Graphics engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.

Specification Graphics Processing Ge Force GTX 1080 Ti Core Clock Boost: 1620 MHz / Base: 1506 MHz in OC mode Boost: 1582 MHz / Base: 1480 MHz in Gaming mode Memory Clock 11010 MHz Memory Size 11 GB Memory Type GDDR5X Memory Bus 352 bit Card Bus PCI-E 3.0 x 16 Output HDMI-2.0b*1 (Max Resolution: 4096x 2160 @60 Hz) Display Port-1.4 *3 (Max Resolution: 7680x 4320 @60 Hz) Digital max resolution 7680x 4320 Multi-view 4 Card size H=36.6 L=270 W=116.6 mm PCB Form ATX Direct X Direct X 12 API feature level 12_1 Open GL 4.5 Recommended PSU 600W Power Connectors 8 pin+6 pin Accessories HDMI to DVI-D adapter

...

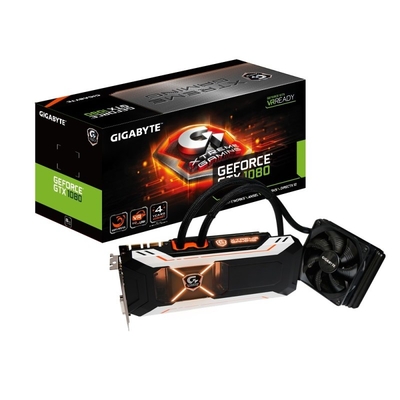

Gigabyte Ge Force GTX 1080 Xtreme Gaming Premium Pack 8GB GDDR5X Dual-Link DVI-D HDMi 3x Display Port PCI-E Graphics Card Marvel at the ultra-realistic graphics produced by this Gigabyte Ge Force GTX 1080 graphics card. More than 2560 CUDA cores work together to deliver incredible results straight to the screen of your computer thanks to the Pascal architecture that

Includes:: Fin FET transistors & a 16nm manufacturing process for outstanding speed. It also

Includes:: 8GB of GDDR5X RAM, which works rapidly to transfer data. Play your favourite virtual reality games, or even game in 1440p or 4K for powerful graphics that defy belief. Although this graphics card draws a lot of power to accomplish its extreme gaming support, it also has energy-saving features to reduce the overall load on it. A trio of stack fans force air through the cooling fins & the heat pipes efficiently so that heat is dissipated away from the card. Because they spin alternately, this Gigabyte Ge Force GTX 1080 graphics card stays consistently cool across the card. Specifications: Graphics Processing Ge Force GTX 1080 Core Clock Boost: 1936 MHz / Base: 1784 MHz in OC mode Boost: 1898 MHz / Base: 1759 MHz in Gaming mode Memory Clock OC mode: 10416 MHz Gaming mode: 10211 MHz Process Technology 16 nm Memory Size 8 GB Memory Bus 256 bit Card Bus PCI-E 3.0 x 16 Memory Type GDDR5X Direct X 12 Open GL 4.5 PCB Form ATX Digital max resolution 7680x 4320@60 Hz Multi-view 4 I/O Standard mode (Dual-link DVI-D*1, DP1.4*3, HDMI 2.0b*1) VR mode (Dual-link DVI-D*1, DP*1, HDMI*3) Card size H=56 L=289 W=138 mm Recommended PSU 500W (WITH TWO 8-Pin EXTERNAL POWER CONNECTOR)



...

XTREME PERFORMANCE GIGABYTE Xtreme Gaming Series graphics cards are crafted for perfection in pursuit of the ultimate graphics experience for gaming enthusiasts. Based on the revolutionary NVIDIA Pascal GPU architecture, Xtreme gaming graphics card brings you incredible gaming experience. GPU Gauntlet Sorting Pascal-powered graphics card give you superior performance & power efficiency Support up to 8K display @60 Hz (requires 2*DP1.3 connectors) Outstanding performance for Virtual Reality gaming Specifications Graphics Processing Ge Force GTX 1080 Core Clock Boost: 1936 MHz / Base: 1784 MHz in OC mode Boost: 1898 MHz / Base: 1759 MHz in Gaming mode Memory Clock OC mode: 10400 MHz Gaming mode: 10206 MHz Process Technology: 16 nm Memory

Size: 8 GB Memory Bus: 256 bit Card Bus: PCI-E 3.0 x 16 Memory Type: GDDR5X Direct X: 12 Open GL: 4.5 PCB Form: ATX Digital max resolution: 7680x 4320@60 Hz Multi-view: 4 I/O: Standard mode (Dual-link DVI-D*1, DP1.4*3, HDMI 2.0b*1) VR mode (Dual-link DVI-D*1, DP*1, HDMI*3) Card

Size: H=56 L=289 W=138 mm Recommended PSU: 500W (WITH TWO 8-Pin EXTERNAL POWER CONNECTOR)



...

Features Powered by Ge Force GTX 1650 NVIDIA Turing™ architecture & Ge Force Experience™ Integrated with 4GB GDDR6 128bit memory interface 80mm unique blade fan 170 mm compact card size GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM GIGABYTE Custom-designed cooling system features a 80mm unique blade fan, delivering an effective heat dissipation capacity for higher performance at lower temperatures. COMPACT SIZE FOR EASY INSTALLATION With less than 170mm in length, the graphics card can be easily installed in any small chassis. The airflow is spilt by the triangular fan edge & guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow. Ultra-Cooling Lower RDS (on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging & discharging at extremely low temperature. Low Power Loss Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss & EMI interference. Longer Life Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance & longer lifespan. FRIENDLY PCB DESIGN Fully automated production process ensures finest top quality of the circuit boards & eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build. ...

Powered by Ge Force GTX 1650 NVIDIA Turing™ architecture & Ge Force Experience™ Integrated with 4GB GDDR6 128-bit memory interface WINDFORCE 2X Cooling System with alternate spinning fans 80 mm unique blade fans WINDFORCE 2X COOLING SYSTEM WINDFORCE 2X cooling system features 2x 80mm unique blade fans, alternate spinning fan, & 3D active fan, together delivering an effective heat dissipation. ALTERNATE SPINNING The GIGABYTE “ Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow & reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence & enhancing the airflow pressure. 3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, & the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle. Ultra Cooling Lower RDS (on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging & discharging at extremely low temperature. Low Power Loss Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss & EMI interference. Longer Life Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance & longer lifespan. ...

Promotional keys for Fortnite gear will be sent out via email. These will be sent up to 5 working days after the invoice date. Model Name GV-N1650OC-4GD Marketing Name Ge Force GTX 1650 OC 4G Core Clock (MHz) TBD Cuda Core TBD Mem Clock (MHz) 8002 Mem Size (MB) 4096 Mem Bus (bit) 128 I/O HDMI (Gold Plated)x 2 DP (Gold Plated)x 1 Card Interface PCI-E 3.0 x 16 Board Form ATX 2 slot Fan/ Heat Sink WINDFORCE 2X Card Size (mm) H=36 L=191 W=112 Warranty 3 Years EAN Code 4.71933E+12 UPC Code 8.89523E+11 Power Connector N/A Card Weight (kg) 0.38 Colour Box Weight (kg) 0.68 Carton Qty 20 Colour Box Size L295*W210.5*H50mm ...

Promotional keys for Fortnite gear will be sent out via email. These will be sent up to 5 working days after the invoice date. Model Name GV-N1650IXOC-4GD Marketing Name Ge Force GTX 1650 MINI ITX OC 4G Core Clock (MHz) TBD Cuda Core TBD Mem Clock (MHz) 8002 Mem Size (MB) 4096 Mem Bus (bit) 128 I/O HDMI (Gold Plated)x 2 DP (Gold Plated)x 1 Card Interface PCI-E 3.0 x 16 Board Form ATX 2 slot Fan/ Heat Sink mini-ITX Card Size (mm) H=36 L=152 W=114 Warranty 3 Years EAN Code 4.71933E+12 UPC Code 8.89523E+11 Power Connector N/A Card Weight (kg) 0.3 Colour Box Weight (kg) 0.61 Carton Qty 20 Colour Box Size L295*W210.5*H50mm ...

Promotional keys for Fortnite gear will be sent out via email. These will be sent up to 5 working days after the invoice date. Model Name GV-N1650OC-4GD Marketing Name Ge Force GTX 1650 OC 4G Core Clock (MHz) TBD Cuda Core TBD Mem Clock (MHz) 8002 Mem Size (MB) 4096 Mem Bus (bit) 128 I/O HDMI (Gold Plated)x 2 DP (Gold Plated)x 1 Card Interface PCI-E 3.0 x 16 Board Form ATX 2 slot Fan/ Heat Sink WINDFORCE 2X Card Size (mm) H=36 L=191 W=112 Warranty 3 Years EAN Code 4.71933E+12 UPC Code 8.89523E+11 Power Connector N/A Card Weight (kg) 0.38 Colour Box Weight (kg) 0.68 Carton Qty 20 Colour Box Size L295*W210.5*H50mm ...
