Features Built-in Intel Celeron™ J3455 (up to 2.3 GHz) quad-core processor GIGABYTE Ultra Durable™ Technology Dual channel DDR3L SO-DIMM slot support All Solid Capacitors with Humidity Protection New Glass Fabric PCB design Dual Gb E LAN with high ESD Protection Extra two SATA 6 Gb/s interfaces for more system storage connectivity High Quality Audio Capacitors PCI interface for wide-range expansion card selections Overview GIGABYTE J3455N-D3H The GIGABYTE J3455 Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel Celeron™ J3455 quad-core processor. Designed for compact, small form factor PC systems & devices, the GIGABYTE J3455N-D3H is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity

Includes:: digital & analog display outputs via VGA ports, two extra SATA 6 Gb/s connectors. Intel Celeron™ J3455 Processor The Intel Celeron™ J3455 Quad-Core processor is the latest system on chip (So C) from Intel, combining CPU, graphics & memory controller in one package. Based on the 14nm manufacturing process, the Intel Celeron™ J3455 uses the smallest package of any desktop processor within a low thermal envelope of on 10 watts. The Intel Celeron™ J3455 boasts excellent performance including DX12 gaming on Intel HD Graphics, plus a dedicated HEVC decoder for smooth HD video playback. High Quality Audio Capacitors GIGABYTE Ultra Durable™ motherboards use high quality Nippon Chemicon ARE series audio capacitors. These professional audio capacitors deliver the highest quality sound resolution & sound expansion to create the most realistic sound effects for user experience. HDMI™-The Next Generation Multimedia Interface HDMI™ is a High-Definition Multimedia Interface which provides up to 5 Gb/s video transmitting bandwidth & 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video & audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces & their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD & other protected media content. 4K Ultra HD Support 4K resolution is the next technological milestone in high-definition content delivery, utilizing Approx. 4, 000 pixels on the horizontal axis, more than four times todays standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.

Specification CPU Built in with an Intel Quad-Core Celeron J3455 SoC (2.3 GHz) * Do not disassemble the onboard SoC & the heatsinks by yourself to avoid damage to these components. 2 MB Cache Memory 2 x DDR3L SO-DIMM sockets supporting up to 16 GB of system memory Dual channel memory architecture Support for DDR3L 1866/1600/1333 MHz memory modules Support for non-ECC memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated in the So C: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x 2160@30 Hz Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN 2 x Realtek Gb E LAN chips (10/100/1000 Mbit) Expansion Slots 1 x PCI slot Storage Interface Integrated in the So C: 2 x SATA 6 Gb/s connectors (SATA3 0, SATA3 1) ASMedia ASM1061 chip: 2 x SATA 6 Gb/s connectors (SATA3 2, SATA3 3) USB Integrated in the So C: 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) SOC + GENESYS LOGIC USB (Universal Serial Bus) 2.0 Hub: 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x parallel port header 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x TPM header Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x serial ports 1 x D-Sub port 1 x HDMI port 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 2 x RJ-45 ports 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Bundle Software Norton Internet Security (OEM version) Operating System Support for Windows 10 64-bit Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.



...

The GA-M52LT-D3 is based on NVIDIA n Force 520LE chipset & supports new generation of 45nm AMD AM3 Phenom II/ Athlon II processors, integrated DDR3 memory controller, Hyper Transport„¢ 3.0 technology links, & so on. With the innovative S features- Safe, Smart technologies, this motherboard is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power & environment in real life at the same time. CPU Support for Socket AM3 processors: AMD Phenom„¢II processor / AMD Athlon„¢II processor click here for list of supported processors Hyper Transport Bus 2000 MT/s Chipset NVIDIA n Force 520LE chipset Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 16GB of system memory Dual channel memory architecture Support for DDR3 1666+/1333/1066 MHz memory modules click here for list of supported memory Audio Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF In/ Out Support for CD In LAN RTL 8201EL chip (10/100 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 2 x PCI Express x 1 slot 4 x PCI slots Storage Interface Integrated in the chipset: 1 x IDE connector supporting ATA-133/100/66/33 & up to 2 IDE devices 2 x SATA 3 Gb/s connectors supporting up to 2 SATA 3 Gb/s devices Support for SATA RAID 0, RAID 1 i TE IT8720 chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive USB Integrated in the chipset Up to 8 USB (Universal Serial Bus) 2.0/1.1 ports (4 on the back panel, 4 via the USB (Universal Serial Bus) brackets connected to the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX power connector 1 x 4-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 2 x SATA 3 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x power fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF In header 1 x S/PDIF Out header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x parallel port 1 x serial port 1 x coaxial S/PDIF Out 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/ Subwoofer Speaker Out/ Rear Speaker Out/ Side Speaker Out/ Line In/ Line Out/ Microphone) I/O Controller IT8720 chip H/W Monitoring System voltage detection System temperature detection CPU / System fan speed detection CPU / System overheating warning CPU / System fan failure warning CPU / system fan speed control BIOS 2 x 8 Mbit flash Use of licensed AWARD BIOS Support for Dual BIOS„¢ Pn P 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b Unique Features Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery 2 Support for Easy Tune Support for Auto Green Support for On/ Off Charge Bundle Software Norton Internet Security (OEM version) Operating System Support for Microsoft Windows 7/ Vista/XP Form Factor ATX form factor; 30.5cm x 21.6cm ...

CPU AM3+ Socket: Support for AMD AM3+ FX processors (Note 1) Support for AMD Phenom II processors/ AMD Athlon II processors (Please refer "CPU Support List on Gigabyte website" for more information.) Hyper Transport Bus 2000 MT/s Chipset NVIDIA Ge Force 7025/n Force 630a chipset Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 8GB of system memory (Note 2) Dual channel memory architecture Support for DDR3 1600/1333/1066/800 MHz memory modules (Please refer " Memory Support List on gigabyte website" for more information.) Onboard Graphics Chipset: 1 x D-Sub port Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel (Note 3) LAN 1 x Realtek RTL8211CL chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 2 x PCI Express x 1 slots 1 x PCI slot Storage Interface Chipset: 4 x SATA 3 Gb/s connectors supporting up to 4 SATA 3 Gb/s devices Support for RAID 0, RAID 1, RAID 5, RAID 10, & JBOD USB (Universal Serial Bus) Chipset: Up to 10 USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 3 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x parallel port connector 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x serial port 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/ Line Out/ Microphone) I/O Controller i TE IT8720 chip H/W Monitoring System voltage detection CPU / System temperature detection CPU / System fan speed detection CPU / System overheating warning CPU / System fan fail warning CPU fan speed control (Note 4) BIOS 2 x 16 Mbit flash Use of licensed AWARD BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b Unique Features Supports @BIOS Supports Q-Flash Support for Xpress BIOS Rescue Supports Download Center Supports Xpress Install Supports Xpress Recovery 2 Supports Easy Tune (Note 5) Support for Auto Green Support for On/ Off Charge Operating System Support for Microsoft Windows 7/ Vista/XP Form Factor Micro ATX Form Factor; 24.4cm x 20.5cm Note (Note 1) You must install an external graphics card if you want to install Windows XP on your AM3+ CPU-based system. (Note 2) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. (Note 3) To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. (Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install. (Note 5) Available functions in Easy Tune may differ by motherboard model. ...

The GA-MA785GT-UD3H introduces revolutionary GIGABYTE Ultra Durable 3 technology on AMD platform with featuring 2 oz copper PCB & further helps to reduce the system temperature & dramatically enhance the performance. Based on AMD 785G chipset, GA-MA785GT-UD3H is integrated ATI Radeon HD 4200 (DX10.1) graphics engine & supports the latest 45nm AMD AM3 Phenom II/ Athlon II processors, Hyper Transport™ 3.0 technology links, DDR3 memory, PCI Express 2.0 graphics interface & so on. With the innovative GIGABYTE Easy Energy Saver technology, GA-MA785GT-UD3H is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power & environment in real life at the same time. CPU Support for AM3 processors: AMD Phenom™ II processor/ AMD Athlon™ II processor Hyper Transport Bus 5200 MT/s Chipset North Bridge: AMD 785G South Bridge: AMD SB710 Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory Dual channel memory architecture Support for DDR3 1800 (O.C.) /1666/ 1333/1066 MHz memory modules Onboard Graphics Integrated in the North Bridge: 1 x D-Sub port 1 x DVI-D port 1 x HDMI port Audio Realtek ALC889A codec High Definition Audio 2/4/5.1/7.1-channel Support for Dolby Home Theater Support for S/PDIF In/ Out Support for CD In LAN Realtek 8111C chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16_1) 1 x PCI Express x 16 slot, running at x 4 (PCIEX4_1) (The PCIEX16_1 & PCIEX4_1 slots support ATI Hybrid Cross Fire X technology & conform to PCI Express 2.0 standard.) 3 x PCI Express x 1 slots (The PCIEX1_2 & PCIEX1_3 slots share the same PCIe bus with the PCIEX4_1 slot.) 2 x PCI slots Storage Interface South Bridge: 1 x IDE connector supporting ATA-133/100/66/33 & up to 2 IDE devices 6 x SATA 3 Gb/s connectors supporting up to 6 SATA 3 Gb/s devices Support for SATA RAID 0, RAID 1, RAID 10 & JBOD i TE IT8718 chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive IEEE 1394 T.I. TSB43AB23 chip Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket connected to the internal IEEE 1394a header) USB Integrated in the South Bridge Up to 12 USB (Universal Serial Bus) 2.0/1.1 ports (6 on the back panel, 6 via the USB (Universal Serial Bus) brackets connected to the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 6 x SATA 3 Gb/s connectors 1 x CPU fan header 2 x system fan header 1 x power fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF In/ Out header 2 x IEEE 1394a header 3 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x parallel port header 1 x serial port header 1 x chassis intrusion header 1 x power LED header 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard or PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x optical S/PDIF Out connector 1 x IEEE 1394a port 6 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/ Subwoofer Speaker Out/ Rear Speaker Out/ Side Speaker Out/ Line In/ Line Out/ Microphone) I/O Controller ITE IT8718 chip H/W Monitoring System voltage detection CPU/ System temperature detection CPU/ System fan speed detection CPU overheating warning CPU/ System fan fail warning CPU/ System fan speed control (Note 6) BIOS 2 x 8 Mbit flash Use of licensed AWARD BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b Unique Features Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery 2 Support for Easy Tune (Note 7) Support for Easy Energy Saver Support for Time Repair Support for Q-Share Form Factor ATX Form Factor; 30.5cm x 22.9 cm ...

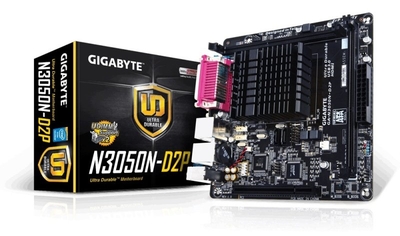

Built-in Intel Celeron™ N3050 (1.6 GHz) dual-core processor GIGABYTE Ultra Durable™ Technology Dual channel DDR3/-L UDIMM slot support All Solid Capacitors with Humidity Protection New Glass Fabric PCB design Gb E LAN with high ESD Protection HDMI port supports 4K display on rear panel Audio Noise Guard with High Quality Audio Capacitors PCIe & PCI interface for wide-range expansion card selections The GIGABYTE N3050M m ATX motherboard is a fully integrated PC motherboard featuring the Intel Celeron™ N3050 dual-core processor. Designed for compact, small form factor PC systems & devices, the GIGABYTE N3050M-D3P is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity

Includes:: digital & analog display outputs via VGA & HDMI ports, while a PCIe plus a PCI slot provides wide-range expansion card selections. Intel Celeron™ N3050 Processor The Intel Celeron™ N3050 Dual-Core processor is the latest system on chip (So C) from Intel, combining CPU, graphics & memory controller in one package. Based on the 14nm manufacturing process, the Intel Celeron™ N3050 uses the smallest package of any desktop processor within a low thermal envelope of on 6 watts. The Intel Celeron™ N3050 boasts excellent performance including DX11.2 gaming on Intel HD Graphics, plus a dedicated HEVC decoder for smooth 4K UHD video playback. Bringing UDIMM support to Braswell The GIGABYTE motherboard is specifically designed with two UDIMM slots, making it compatible with widely available desktop DDR3/L memory. Unlike SO-DIMM memory, UDIMM has the advantage of bringing to users a wider & more easily accessible range of RAM. Specifications CPU Built in with an Intel Dual-Core Celeron N3050 SoC (1.6 GHz) * Do not disassemble the onboard SoC & the heatsinks by yourself to avoid damage to these components. 2 MB Cache Memory 2 x DDR3 DIMM sockets supporting up to 8 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3/DDR3L 1600/1333 MHz memory modules * Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded to 1066 MHz. Support for non-ECC memory modules (Please refer " Memory Support List" on Gigabyte website for more information.) Onboard Graphics Integrated in the So C: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x 2160@30 Hz Maximum shared memory of 512 MB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 4 slot, running at x 1 (PCIEX1_2) 1 x PCI Express x 1 slot, running at x 1 (PCIEX1_1) 1 x PCI slot Storage Interface Integrated in the So C: 2 x SATA 6 Gb/s connectors USB (Universal Serial Bus) Integrated in the So C: 4 x USB (Universal Serial Bus) 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) headers) So C+GL850S chips: 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB (Universal Serial Bus) 3.0/2.0 header 2 x USB (Universal Serial Bus) 2.0/1.1 header 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x serial port 1 x parallel port 2 x USB3.0/2.0 port 2 x USB (Universal Serial Bus) 2.0/1.1 port 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring System voltage detection CPU/ System temperature detection CPU/ System fan speed detection CPU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. Operating System Support for Windows 10 32-bit/64-bit Support for Windows 8.1 64-bit Support for Windows 7 32-bit/64-bit * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTE's website & install it before installing Windows 7 Form Factor Micro ATX Form Factor; 22.6cm x 18.0cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website

...

Gigabyte GA-N3050N-D3H Intel Dual-Core Celeron N3050 VGA HDMI Mini-ITX Motherboard Specifications: CPU Built in with an Intel Dual-Core Celeron N3050 SoC (1.6 GHz) * Do not disassemble the onboard SoC & the heatsinks by yourself to avoid damage to these components. 2 MB Cache Memory 2 x DDR3/L SO-DIMM sockets supporting up to 8 GB of system memory * If only one DDR3/L memory module is to be installed, be sure to install it in the SODIMM_1 socket. Dual channel memory architecture Support for DDR3/L 1333/1600 MHz memory modules Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded to 1066 MHz. Support for non-ECC memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated in the So C: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x 2160@30 Hz Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN: 2 x Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 1 slot 1 x Mini PCI Express x 1 slot (The Mini PCI Express slot conforms to PCI Express 2.0 standard.) (For Mini-PCIE card/not m SATA card) Storage Interface Integrated in the So C: 2 x SATA 6 Gb/s connectors USB (Universal Serial Bus) Integrated in the So C: 4 x USB (Universal Serial Bus) 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) headers) 2 x GL850S chips: 6 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x SATA 6 Gb/s connectors 1 x USB (Universal Serial Bus) 3.0/2.0 headers 1 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x parallel port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x serial port 2 x USB (Universal Serial Bus) 3.0/2.0 port 4 x USB (Universal Serial Bus) 2.0/1.1 ports 2 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller: i TE I/O Controller Chip H/W Monitoring System voltage detection CPU/ System temperature detection CPU/ System fan speed detection CPU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. Bundle Software: Norton Internet Security (OEM version) Operating System Support for Windows 10 32-bit/64-bit Support for Windows 8.1/7 64-bit * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTE's website & install it before installing Windows 7. Form Factor: Mini-ITX Form Factor; 17.0cm x 17.0cm ...

Gigabyte GA-N3150N-D3V Intel Quad-Core Celeron N3150 VGA DVI-D Mini-ITX Motherboard Specifications: CPU Built in with an Intel Quad-Core Celeron N3150 SoC (1.6 GHz) * Do not disassemble the onboard SoC & the heatsinks by yourself to avoid damage to these components. 2 MB Cache Memory 2 x DDR3 SO-DIMM sockets supporting up to 8 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3/DDR3L 1600/1333 MHz memory modules * Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded to 1066 MHz. Support for non-ECC memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated in the So C: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 512 MB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN: 2 x Realtek Gb E LAN chips (10/100/1000 Mbit) Expansion Slots 1 x PCI slot 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) Storage Interface So C: 2 x SATA 6 Gb/s connectors (SATA 3 0/1) ASMedia ASM1061 chip: 2 x SATA 6 Gb/s connectors (SATA 3 2/3)& Scaron; USB (Universal Serial Bus) So C: 4 x USB (Universal Serial Bus) 3.0/2.0 port (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) So C+2 x GENESYS LOGIC USB (Universal Serial Bus) 2.0 Hubs: 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB (Universal Serial Bus) 3.0/2.0 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x parallel port header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 2 x serial ports 1 x D-Sub port 1 x DVI-D port 2 x USB (Universal Serial Bus) 3.0/2.0 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 2 x RJ-45 ports 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller: i TE I/O Controller Chip H/W Monitoring System voltage detection CPU/ System temperature detection CPU/ System fan speed detection CPU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Bundle Software: Norton Internet Security (OEM version) Operating System: Support for Windows 10 32-bit/64-bit Support for Windows 8.1/7 64-bit * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTE's website & install it before installing Windows 7. Form Factor: Mini-ITX Form Factor; 17.0cm x 17.0cm ...

Features Built-in Intel Celeron™ N3160 (1.6 GHz) quad-core processor GIGABYTE Ultra Durable™ Technology Dual channel DDR3/-L SO-DIMM slot support All Solid Capacitors with Humidity Protection New Glass Fabric PCB design Dual Gb E LAN with high ESD Protection Extra two SATA 6 Gb/s interfaces for more system storage connectivity High Quality Audio Capacitors PCI interface for wide-range expansion card selections M.2 PCIe expansion slot supports wireless networking cards Overview GIGABYTE N3160N-D3V The GIGABYTE N3160N Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel Celeron™ N3160 quad-core processor. Designed for compact, small form factor PC systems & devices, the GIGABYTE N3160N-D3V is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity

Includes:: digital & analog display outputs via VGA ports, two extra SATA 6 Gb/s connectors, while a M.2 PCIe slot provides flexible Wi-Fi option. Intel Celeron™ N3160 Processor The Intel Celeron™ N3160 Quad-Core processor is the latest system on chip (So C) from Intel, combining CPU, graphics & memory controller in one package. Based on the 14nm manufacturing process, the Intel Celeron™ N3160 uses the smallest package of any desktop processor within a low thermal envelope of on 6 watts. The Intel Celeron™ N3160 boasts excellent performance including DX11.2 gaming on Intel HD Graphics, plus a dedicated HEVC decoder for smooth HD video playback. High Quality Audio Capacitors GIGABYTE Ultra Durable™ motherboards use high quality Nippon Chemicon ARE series audio capacitors. These professional audio capacitors deliver the highest quality sound resolution & sound expansion to create the most realistic sound effects for user experience. GIGABYTE Ultra Durable™ GIGABYTE Ultra Durable™ debuts on GIGABYTE motherboards, with a range of features & component choices that provide record-breaking performance, cool & efficient operation & extended motherboard lifespan. Ultra Performance GIGABYTE uses All Solid Caps (Capacitors) & Low RDS (on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.

Specification CPU Built in with an Intel Quad-Core Celeron N3160 SoC (1.6 GHz) * Do not disassemble the onboard SoC & the heatsinks by yourself to avoid damage to these components. 2 MB Cache Memory 2 x DDR3 SO-DIMM sockets supporting up to 8 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3/DDR3L 1600/1333 MHz memory modules * Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded to 1066 MHz. Support for non-ECC memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated in the So C: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 512 MB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN 2 x Realtek Gb E LAN chips (10/100/1000 Mbit) Expansion Slots 1 x PCI slot 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) Storage Interface So C: 2 x SATA 6 Gb/s connectors (SATA 3 0/1) ASMedia ASM1061 chip: 2 x SATA 6 Gb/s connectors (SATA 3 2/3) USB So C: 4 x USB (Universal Serial Bus) 3.0/2.0 port (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) So C+2 x GENESYS LOGIC USB (Universal Serial Bus) 2.0 Hubs: 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB (Universal Serial Bus) 3.0/2.0 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x parallel port header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 2 x serial ports 1 x D-Sub port 1 x DVI-D port 2 x USB (Universal Serial Bus) 3.0/2.0 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 2 x RJ-45 ports 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring System voltage detection CPU/ System temperature detection CPU/ System fan speed detection CPU/ System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Bundle Software Norton Internet Security (OEM version) Operating System Support for Windows 10 32-bit/64-bit Support for Windows 8.1 64-bit Support for Windows 7 32-bit/64-bit * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTEs website & install it before installing Windows 7. Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.



...

Gigabyte motherboards feature a 3x USB (Universal Serial Bus) power boost, delivering greater compatibility & extra power for USB (Universal Serial Bus) devices. Gigabytes unique USB (Universal Serial Bus) power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB (Universal Serial Bus) device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, & provide more stable & plentiful power delivery. Featuring an advanced proprietary software design, Gigabyte Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with Intels highly efficient 45nm CPUs, Easy Energy Saver is able to provide exceptional levels of power savings & enhanced power efficiency without sacrificing computing performance. Supports Intel latest high performance CPU delivers the most energy-efficient performance available today. Based on Intels Micro Architecture, the Intel multi-core processors with 4 cores & two shared L2 caches provide the best capability-per-watt solutions & are an ideal choice for multi-media enthusiasts & intensive multi-tasking environments. This cutting-edge processor offers significant performance boosts & provides an overall more energy efficient platform. Dual BIOS is a Gigabyte patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, Gigabyte Dual BIOS allows quick & seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. Revolutionary PCI express interface provides scalable bandwidth for multi-purpose usage. PCI-E x 16 interface delivers the utmost graphics experience; PCI-E x 1interface delivers twice the bandwidth. ...

CPU Support for Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1155 package L3 cache varies with CPU (Some Intel Core™ processors require a graphic card, please refer "CPU support List" for more information.) Chipset Intel H61 Express Chipset Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. Dual channel memory architecture Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules (Please refer " Memory Support List" for more information.) Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN 1 x Atheros 8151 LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (The PCI Express x 16 slot conforms to PCI Express 3.0 standard.) * PCIE Gen.3 is dependent on CPU & expansion card compatibility. 2 x PCI Express x 1 slots (All PCI Express x 1 slots conform to PCI Express 2.0 standard.) 3 x PCI slots Storage Interface Chipset: 4 x SATA 3 Gb/s connectors (SATA2 0~3) supporting up to 4 SATA 3 Gb/s devices Marvell 88SE9172 chip: 2 x SATA 6 Gb/s connectors (GSATA3 4~5) supporting up to 2 SATA 6 Gb/s devices Support for RAID 0 & RAID 1 USB (Universal Serial Bus) Chipset: Up to 6 USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Etron EJ168 chip: Up to 2 USB (Universal Serial Bus) 3.0/2.0 ports on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3 Gb/s connectors 2 x SATA 6 Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x power fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x parallel port 1 x serial port 1 x coaxial S/PDIF Out connector 2 x USB (Universal Serial Bus) 2.0/1.1 ports 2 x USB (Universal Serial Bus) 3.0/2.0 ports 1 x RJ-45 port 3 x audio jacks (Line In/ Line Out/ Microphone) I/O Controller i TE IT8728 chip H/W Monitoring System voltage detection CPU/ System temperature detection CPU/ System/ Power fan speed detection CPU overheating warning CPU/ System/ Power fan fail warning CPU/ System fan speed control * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install. BIOS 2 x 32 Mbit flash Use of licensed AMI EFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a Bundle Software Norton Internet Security (OEM version) Operating System Support for Microsoft Windows 8/7/ Vista/XP Form Factor ATX Form Factor; 30.5cm x 19.0cm ...
