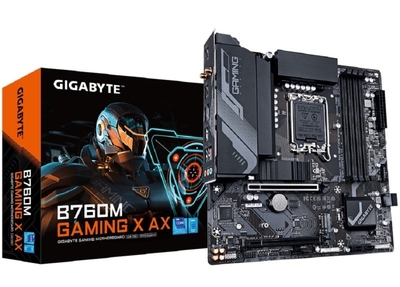

Intel Socket LGA 1700: Support 13th & 12th Gen Series Processors Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution Dual Channel DDR5:4*DIMMs XMP Memory Module Support Next Generation Storage:2*PCIe 4.0 x 4 M.2 Connectors M.2 Thermal Guard: To Ensure M.2 SSD Performance EZ-Latch:PCIe 4.0x 16 Slot with Quick Release Design Fast Networks:2.5 Gb E LAN & Wi-Fi 6E 802.11ax Extended Connectivity: Rear USB (Universal Serial Bus)-C 10 Gb/s, DP, HDMI Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus: Update BIOS Without Installing the CPU, Memory & Graphics Card PERFORMANCE 6+2+1 Phases Hybrid Digital VRM Design • Premium Choke & Capacitors to improve transient response & minimize oscillation DDR5 Overclocking Up to 7600 & Beyond GIGABYTE is offering a tested & proven platform that has memory overclocking capability up to 7600 & beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable & that the XMP function is activated & enabled on their GIGABYTE motherboard THERMAL Enlarged Surface Design of MOSFET Heatsink greatly improves heat dissipation. SMART FAN 6 Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool & quiet. Multiple fan headers can support PWM/DC fan & pump, & users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. CONNECTIVITY GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage & Wi-Fi connectivity. PERSONALIZATION GIGABYTE motherboards bundle several useful & intuitive software to help users to control every aspect of motherboard & provide customizable lighting effect with outstanding aesthetics to fit your unique personality. ...

Features • Intel Socket LGA 1700: Support 13th & 12th Gen Series Processors • Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution • Dual Channel DDR4:4*DIMMs XMP Memory Module Support • Next Generation Storage:2*PCIe 4.0 x 4 M.2 Connectors • M.2 Thermal Guard: To Ensure M.2 SSD Performance • EZ-Latch:PCIe 4.0x 16 Slot with Quick Release Design • Fast Networks:2.5 Gb E LAN • Extended Connectivity: Rear USB (Universal Serial Bus)-C 10 Gb/s, DP, HDMI • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory & Graphics Card 6+2+1 Phases Hybrid Digital VRM Design 6+2+1 Phases Low RDS (on) MOSFETs Premium Choke & Capacitors to improve transient response & minimize oscillation GIGABYTE Ultra-Efficient M.2 Thermal Guard With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling & bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. CONNECTIVITY GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network & storage. PERSONALIZATION GIGABYTE motherboards bundle several useful & intuitive software to help users to control every aspect of motherboard & provide customizable lighting effect with outstanding aesthetics to fit your unique personality. ...

Shielded Memory Routing All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. Impedance Optimized Topology By optimizing memory trace width, length & style from HPC simulation to actual implementation, overall impedance is lowered between CPU memory controller & memory modules to achieve higher DDR5 speed. Low Signal Loss PCB Server grade mid-loss or low-loss PCB material is chosen to lower signal loss inside PCB & maintain DDR5 high speed signal transmission. GIGABYTE Perf Drive Perf Drive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, & temperature according to their needs easily when using 13th gen Intel Core™ processors. GIGABYTE Ultra-Efficient M.2 Thermal Guard With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling & bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. CONNECTIVITY GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network & storage. First adopter on 2.5 Gb E LAN onboard 2X Faster than ever
- Adoption of 2.5G LAN provide up to 2.5 Gb E network connectivity, with at least 2 times faster transfer speeds compared to general 1 Gb E networking, perfectly designed for gamers with ultimate online gaming experience.
- Support Multi-Gig (10/100/1000/2500 Mbps) RJ-45 Ethernet Connecting the Future
- USB (Universal Serial Bus) 3.2 Gen 2 Type-C The Worlds Next Universal Connector The USB (Universal Serial Bus) Type-C is a new reversible connector that is loaded with useful features such as USB (Universal Serial Bus) 3.2 Gen 2 support for 10 Gb/s transfer speed. Powered by the Intel USB (Universal Serial Bus) 3.2 Gen 2 controller, this little port provides the best USB (Universal Serial Bus) Type-C experience possible. High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution & high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. PERSONALIZATION GIGABYTE motherboards bundle several useful & intuitive software to help users to control every aspect of motherboard & provide customizable lighting effect with outstanding aesthetics to fit your unique personality. Friendly User Interface The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan. My Favorites Add constantly used items into the favorite menu for quick access. Storage Information Show all kinds of storage information including SATA, PCIE & M.2 interface. Changelog List all changes before saving & exiting bios. Quickly review overall settings modification. Intuitive Load Line Curve Clearly show each loadline calibration setting in an intuitive curve graph. GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware





...

Features • Intel Socket LGA 1700: Support 13th & 12th Gen Series Processors • Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution • Dual Channel DDR4:2*DIMMs XMP Memory Module Support • Next Generation Storage:2*PCIe 4.0 x 4 M.2 Connectors • EZ-Latch:PCIe 4.0x 16 Slot with Quick Release Design • Fast Networks:2.5 Gb E LAN • Extended Connectivity: Rear USB (Universal Serial Bus)-C 5 Gb/s, DP, HDMI, D-Sub • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory & Graphics Card GIGABYTE motherboards bundle several useful & intuitive software to help users to control every aspect of motherboard & provide customizable lighting effect with outstanding aesthetics to fit your unique personality. UNPARALLELED PERFORMANCE With the fast-moving technology changes, GIGABYTE always follows the latest trends & provides customers with advanced features & latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards & outstanding connectivity to enable optimized performance for gaming. ...

Features • Intel Socket LGA 1700: Support 13th & 12th Gen Series Processors • Unparalleled Performance: Hybrid 8+1+1 Phases Digital VRM Solution • Dual Channel DDR4:4*DIMMs XMP Memory Module Support • Next Generation Storage:2*PCIe 4.0 x 4 M.2 Connectors • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance • EZ-Latch:PCIe 4.0x 16 Slot with Quick Release Design • Fast Networks:2.5 Gb E LAN & Intel Wi-Fi 6E 802.11ax • Extended Connectivity: Front USB (Universal Serial Bus)-C 10 Gb/s, DP, HDMI • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory & Graphics Card UNPARALLELED PERFORMANCE With the fast-moving technology changes, GIGABYTE always follows the latest trends & provides customers with advanced features & latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards & outstanding connectivity to enable optimized performance for gaming. Outstanding Thermal Design GIGABYTE Motherboards Un-throttled performance is guaranteed by innovative & optimized thermal design to ensure the best CPU, Chipset, SSD stability & low temperatures under full load application & gaming performance. GIGABYTE motherboards bundle several useful & intuitive software to help users to control every aspect of motherboard & provide customizable lighting effect with outstanding aesthetics to fit your unique personality. GIGABYTE Ultra Durable™ design provides product durability & high-quality manufacturing process. GIGABYTE motherboards use the best components & reinforce every slots to make each of them solid & durable. ...

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra-compact PC with a stylish design based high polish surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity & convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra-compact, versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your h&. Intel Celeron J1900 Based on the Silvermot micro-architecture, utilizing the 22nm process technology. The So Cs feature significant improvements in computational power, energy efficiency, enhanced graphical & media performance making the BRIX ideal for thin clients, retail transactional clients, & digital signage. Advanced Features For Power Users The Brix is engineered to take full advantage of what the hardware & its UEFI BIOS are capable of. & therefore, it’s designed to deliver the most intuitive & integrated operating systems in the world. Trouble-Free Setup The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety & reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple & elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit. Processor Intel Celeron J1900 up to 2.42 G Hz Memory 4GB DDR3L 1 x SO-DIMM Hard Drive 120GB SSD Optical Drive None Software No Operating System Display Not Included Graphics Intel HD Audio Realtek ALC283 Networking Gigabit LAN (Realtek RTL8111G) Power Supply Input: AC 100-240V Output: DC 12V 2.5A

Dimensions Width 56.1mm Depth 107.6mm Height 114.4mm Interfaces 1 x USB (Universal Serial Bus) 3.0 2 x USB (Universal Serial Bus) 2.0 1 x HDMI 1 x VGA D-Sub 1 x RJ45 1 x Audio-out / Mic-in 1 x DC-in 1 x Kensington lock slot Expansion slots 1 x Half-size mini-PCIe slot occupied by the Wi Fi+BT card Warranty/ Miscellaneous 1 Year Manufacturer Warranty VESA 75 x 75 & 100 x 100 mm

...

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra-compact PC with a stylish design based high polish surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity & convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra-compact, versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your h&. Intel Celeron J1900 Based on the Silvermot micro-architecture, utilizing the 22nm process technology. The So Cs feature significant improvements in computational power, energy efficiency, enhanced graphical & media performance making the BRIX ideal for thin clients, retail transactional clients, & digital signage. Advanced Features For Power Users The Brix is engineered to take full advantage of what the hardware & its UEFI BIOS are capable of. & therefore, it’s designed to deliver the most intuitive & integrated operating systems in the world. Trouble-Free Setup The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety & reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple & elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit. Processor Intel Celeron J1900 2.42 G Hz Memory 4GB DDR3L 1333 M Hz 1 x SO-DIMM Hard Drive 240GB SSD Optical Drive None Software No Operating System Display Not Included Graphics Intel HD Audio Realtek ALC283 Networking Gigabit LAN (Realtek RTL8111G) Power Supply Input: AC 100-240V Output: DC 12V 2.5A

Dimensions Width 56.1mm Depth 107.6mm Height 114.4mm Interfaces 1 x USB (Universal Serial Bus) 3.0 2 x USB (Universal Serial Bus) 2.0 1 x HDMI 1 x VGA D-Sub 1 x RJ45 1 x Audio-out / Mic-in 1 x DC-in 1 x Kensington lock slot Expansion slots 1 x Half-size mini-PCIe slot occupied by the Wi Fi+BT card Warranty/ Miscellaneous 1 Year Manufacturer Warranty VESA 75 x 75 & 100 x 100 mm

...

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra-compact PC with a stylish design based high polish surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity & convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra-compact, versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your h&. Intel Celeron N2807 Based on the Silvermot micro-architecture, utilizing the 22nm process technology. The So Cs feature significant improvements in computational power, energy efficiency, enhanced graphical & media performance making the BRIX ideal for thin clients, retail transactional clients, & digital signage. Advanced Features For Power Users The Brix is engineered to take full advantage of what the hardware & its UEFI BIOS are capable of. & therefore, it’s designed to deliver the most intuitive & integrated operating systems in the world. Trouble-Free Setup The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety & reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple & elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit. Processor Intel Celeron N2807 2.17 G Hz Memory 4GB DDR3L 1 x SO-DIMM Hard Drive 120GB SSD Optical Drive None Software No Operating System Display Not Included Graphics Intel HD Audio Realtek ALC283 Networking Gigabit LAN (Realtek RTL8111G) Power Supply Input: AC 100-240V Output: DC 12V 2.5A

Dimensions Width 56.1mm Depth 107.6mm Height 114.4mm Interfaces 1 x USB (Universal Serial Bus) 3.0 2 x USB (Universal Serial Bus) 2.0 1 x HDMI 1 x VGA D-Sub 1 x RJ45 1 x Audio-out / Mic-in 1 x DC-in 1 x Kensington lock slot Expansion slots 1 x Half-size mini-PCIe slot occupied by the Wi Fi+BT card Warranty/ Miscellaneous 1 Year Manufacturer Warranty VESA 75 x 75 & 100 x 100 mm

...

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra-compact PC with a stylish design based high polish surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity & convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra-compact, versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your h&. Intel Celeron N2807 Based on the Silvermot micro-architecture, utilizing the 22nm process technology. The So Cs feature significant improvements in computational power, energy efficiency, enhanced graphical & media performance making the BRIX ideal for thin clients, retail transactional clients, & digital signage. Advanced Features For Power Users The Brix is engineered to take full advantage of what the hardware & its UEFI BIOS are capable of. & therefore, it’s designed to deliver the most intuitive & integrated operating systems in the world. Trouble-Free Setup The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety & reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple & elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit. Processor Intel Celeron N2807 2.17 G Hz Memory 4GB DDR3L 1333 M Hz 1 x SO-DIMM Hard Drive 250GB SSD Optical Drive None Software No Operating System Display Not Included Graphics Intel HD Audio Realtek ALC283 Networking Gigabit LAN (Realtek RTL8111G) Power Supply Input: AC 100-240V Output: DC 12V 2.5A

Dimensions Width 56.1mm Depth 107.6mm Height 114.4mm Interfaces 1 x USB (Universal Serial Bus) 3.0 2 x USB (Universal Serial Bus) 2.0 1 x HDMI 1 x VGA D-Sub 1 x RJ45 1 x Audio-out / Mic-in 1 x DC-in 1 x Kensington lock slot Expansion slots 1 x Half-size mini-PCIe slot occupied by the Wi Fi+BT card Warranty/ Miscellaneous 1 Year Manufacturer Warranty VESA 75 x 75 & 100 x 100 mm

...

Features Features 14nm Intel N3350 to deliver to the most intuitive & integrated operating systems in the world Supports 2.5” thickness 7.0/ 9.5mm Hard Drives (1 x 6 Gbps SATA3) Ultra compact PC design – 0.69L (56.1 x 107.6 x 114.4mm) 1 x SO-DIMM DDR3L 1.35V Slots (1333/ 1600/ 1866 MHz) Intel IEEE 802.11 ac, Dual Band Wi-Fi & Bluetooth 4.0 NGFF M.2 card Supports dual displays via a VGA & a HDMI port Gigabit LAN Audio jack (Headphone & Microphone) VESA mounting bracket (75 x 75mm + 100 x 100mm) Support Fanless Design Additional Items Required with this product (not included): * Storage (Example: Hard Drive) * Memory * Operating System Overview Redefining the Desktop PC Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based on a brushed aluminum surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity & convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra compact, versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your h&. Intel Celeron Processor The new generation of Intel Celeron Processors leverage the 14nm process technology. The new processors improve upon power consumption along with enhancements in performance for graphics & computations. For the BRIX the new Celeron processors deliver a 30% increase in performance & at least 35% better 3D graphics performance gen-over-gen. The system-on-chip (So C) design provides an even smaller footprint than its desktop counterparts, making BRIX the ideal solution for thin clients, POS solutions, & digital signage. Dual Display With HDMI & VGA output, the BRIX can power two displays simultaneously, making it a perfect choice as a high productivity PC in both working environment & home entertainment. VESA Support The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety & reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple & elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

Specification Dimension 56.1 mm x 107.6 mm x 114.4 mm (2.21" x 4.24" x 4.5") Motherboard Size 100 x 105 mm CPU Intel Celeron Processor N3350, 2.4 G Hz, 2 core (TDP 6W) Memory 1 x SO-DIMM DDR3L slots (DDR3 1.35V) 1333/ 1600/ 1866 MHz Max. 8GB LAN Gigabit LAN (Realtek RTL8111HS) Wifi Card Intel Dual Band Wireless-AC 3168 Graphics Intel HD Graphics 500 Audio Realtek ALC891 VGA Resolution (Max.) 1920 x 1200 @60 Hz HDMI Resolution (Max.) 3840 x 2160 @30 Hz Expansion Slots 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the Wi Fi+BT card Rear I/O 1 x HDMI (1.4) 2 x USB (Universal Serial Bus) 3.0 1 x RJ45 1 x DC-In 1 x Kensington lock slot Side I/O 1 x VGA 1 x Headphone & Microphone jack 2 x USB (Universal Serial Bus) 3.0 Storage Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 6 Gbps SATA3) Power Supply Input: AC 100-240V Output: DC 19V 2.1A VESA Bracket included Supports 75 x 75 & 100 x 100 mm Support OS WIN10 64bit Environment System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C

...
