UNPARALLELED PERFORMANCE With the fast-moving technology changes, GIGABYTE always follows the latest trends & provides customers with advanced features & latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards & outstanding connectivity to enable optimized performance for gaming. Direct Digital VRM Design To ensure maximum Turbo Boost & overclocking performance of AMDs new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components. PCIe 5.0 x 4 M.2 Connector The PCIe 5.0 x 4 M.2 Slot supports the latest M.2 2280 form factor. AMD EXPO™ & Intel XMP 3.0 User Profile Define & create your own SPD profile into Native, EXPO & XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device. DDR5 EXPO & XMP Overclocking Up to 6400 & Beyond* AORUS is offering a tested & proven platform that the memory overclocking capability is able up to 6400 & beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel XMP capable, the EXPO/XMP function is activated & enabled on their AORUS motherboard. Shielded Memory Routing All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. EXPO & XMP Dual Support GIGABYTE AM5 MB supports both AMD EXPO™ and/or Intel XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu & easily reach overclocked memory performance. DDR5 Auto Booster Automatically Boost the Native DDR5 frequency to 5000 M Hz while the system is under heavy loading by a single click OUTSTANDING THERMAL DESIGN GIGABYTE Motherboards unparalleled performance is guaranteed by innovative & optimized thermal design to ensure the best CPU, Chipset, SSD stability & low temperatures under full load application & gaming performance. M.2 Thermal Guard III with Active Cooling M.2 Thermal Guard III with Active Cooling constructed with 6X optimized heat dissipation surface to prevent throttling & bottleneck that high-speed/ large capacity of M.2 SSDs may cause, especially under heavy workload. The special design of heatsink grooves in the direction of CPU further enhances the in-chassis air flow & optimizes the heat convection efficiency. SMART FAN 6 Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool & quiet. Multiple fan headers can support PWM/DC fan & pump, & users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. CONNECTIVITY GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, & Wi-Fi connectivity. 802.11ax Wi-Fi 6E The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6 G Hz b&, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections & speeds up to 2.4 Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 & with faster transmission. Connecting the Future
- Front USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C Featuring the USB (Universal Serial Bus) 3.2 Gen 2x 2 design which is doubled the performance than previous generation of USB (Universal Serial Bus) 3.2 Gen 2. It works up to 20 Gbps ultra-fast data transfer while connecting to USB (Universal Serial Bus) 3.2 compliant peripherals. Through the USB (Universal Serial Bus) Type-C connector, users can enjoy the flexibility of reversible connection to access & store massive amounts of data rapidly. Rear USB (Universal Serial Bus) 3.2 Gen 2 Type-C with Display Port™ Alternate Mode Display Port™ over USB (Universal Serial Bus) Type-C enables the delivery of full Display Port A/V performance (driving monitor resolutions of 4K & beyond), Super Speed USB (Universal Serial Bus) (USB 3.2 Gen 2) 10 Gbps data transition & power delivery with the convenience of reversible plug orientation & cable direction. True High-Fidelity Music (Realtek ALC4080) Paired with Realteks latest ALC4080 Codec, playback for surround sound audio & DSD enabled music are easier than ever. DTS :X Ultra Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based & object-based audio. Provides out-of-the-box calibration for a range of headphones & speakers. Provides post-processing enhancements & device level tuning for DTS codecs. DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary & moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization & accurate localization. PERSONALIZATION GIGABYTE motherboards bundle several useful & intuitive software to help users to control every aspect of motherboard & provide customizable lighting effect with outstanding aesthetics to fit your unique personality. RGB Fusion Multi-Zone Light Show Design Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support & a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. Multi-key A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios. ULTRA DURABLE GIGABYTE Ultra Durable™ design provides product durability & high-quality manufacturing process. GIGABYTE motherboards use the best components & reinforce every slots to make each of them solid & durable. EZ-Latch With GIGABYTE EZ-Latch, you can DIY your PC in no time, quick & easy. Q-Flash Plus Update the BIOS easily without installing the CPU, memory & graphics card. With GIGABYTE Q-Flash Plus, you dont need to install the CPU, memory & graphics card nor enter the BIOS menu to flash the BIOS. Just download & save a new BIOS file (rename to gigabyte.bin) on the USB (Universal Serial Bus) flash drive, then press the dedicated Q-Flash Plus button & you’re good to go!
...

Features • AMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors • Unparalleled Performance: Twin 12*+2+1 Phases Digital VRM Solution • Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel XMP Memory Module Support • Superfast Storage:1* PCIe 5.0 x 4 & 1* PCIe 4.0 x 4 M.2 Connector • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance • EZ-Latch:PCIe x 16 Slot & M.2 Connectors with Quick Release & Screwless Design • Fast Networks:2.5 Gb E LAN & Wi-Fi 6E 802.11ax • Extended Connectivity:HDMI, DP, Front USB (Universal Serial Bus)-C 20 Gb/s, Rear USB (Universal Serial Bus)-C 10 Gb/s • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory & Graphics Card With the fast-moving technology changes, GIGABYTE always follows the latest trends & provides customers with advanced features & latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards & outstanding connectivity to enable optimized performance for gaming. GIGABYTE Motherboards unparalleled performance is guaranteed by innovative & optimized thermal design to ensure the best CPU, Chipset, SSD stability & low temperatures under full load application & gaming performance. GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, & Wi-Fi connectivity. GIGABYTE motherboards bundle several useful & intuitive software to help users to control every aspect of motherboard & provide customizable lighting effect with outstanding aesthetics to fit your unique personality. GIGABYTE Ultra Durable™ design provides product durability & high-quality manufacturing process. GIGABYTE motherboards use the best components & reinforce every slots to make each of them solid & durable. ...

Durable Performance GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance & timeless platform. Digital VRM Design 5+2+2 Phases Digital VRM Solution with Low RDS (on) MOSFETs EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 7600 & Beyond Future Connectivity The ultimate connectivity with blazing data-transfer speeds through the next generation network & storage. 2.5 Gb E LAN Supercharge your gaming with 2.5 Gb E LAN Achieve lightning-fast speeds, minimal lag, & unbeatable performance to elevate your gaming setup & dominate the competition. PCIe 4.0 Hardware Design GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed & maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. Hi-Fi Audio High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution & high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. Easy Friendly Innovative & intuitive hardware, software, & BIOS interface design to create your personal style. EZ-Latch Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. Q-Flash Plus Update the BIOS easily without installing the CPU, memory & graphics card. With GIGABYTE Q-Flash Plus, you dont need to install the CPU, memory & graphics card nor enter the BIOS menu to flash the BIOS. Just download & save a new BIOS file (rename to gigabyte.bin) on the USB (Universal Serial Bus) flash drive, then press the dedicated Q-Flash Plus button & you’re good to go! Smart Fan 6 Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool & quiet. Multiple fan headers can support PWM/DC fan & pump, & users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. GIGABYTE Control Center GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function. ...

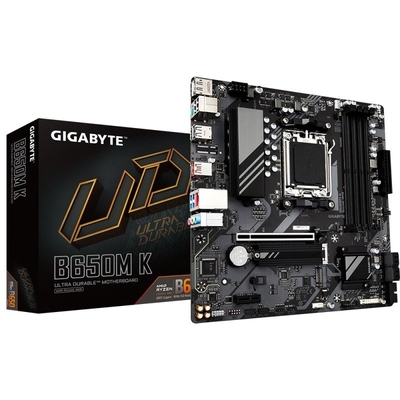

Features • AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors • Unparalleled Performance: Direct 6+2+1 Phases Digital VRM Solution • Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support • Super Speed Storage: 2*PCIe 4.0 x 4 M.2 Connectors • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance • PCIe x 16 EZ-Latch with Quick Release & Screwless Design • Fast Networks: 2.5 Gb E LAN • Extended Connectivity: 2*DP, HDMI, 2*USB (Universal Serial Bus)-C 10 Gb/s • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory & Graphics Card • With the fast-moving technology changes, GIGABYTE always follows the latest trends & provides customers with advanced features & latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards & outstanding connectivity to enable optimized performance for gaming. Direct Digital VRM Design To ensure maximum Turbo Boost & overclocking performance of AMDs new generation CPU, GIGABYTE UD series motherboard equip the best VRM design ever built with the highest quality components. PCIe 4.0 Hardware Design GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed & maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 6400 & Beyond* GIGABYTE is offering a tested & proven platform that the memory overclocking capability is able up to 6400 & beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel XMP capable, the EXPO/XMP function is activated & enabled on their GIGABYTE motherboard. Shielded Memory Routing All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. ...

Features • AMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors • Unparalleled Performance: Direct 6+2+1 Phases Digital VRM Solution • Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel XMP Memory Module Support • Super Speed Storage:2*PCIe 4.0 x 4 M.2 Connectors • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance • EZ-Latch:PCIe x 16 Slot & M.2 Connectors with Quick Release & Screwless Design • Fast Networks:2.5 Gb E LAN & Wi-Fi 6E 802.11ax • Extended Connectivity:2*DP, HDMI, 2*USB (Universal Serial Bus)-C 10 Gb/s • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory & Graphics Card UNPARALLELED PERFORMANCE With the fast-moving technology changes, GIGABYTE always follows the latest trends & provides customers with advanced features & latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards & outstanding connectivity to enable optimized performance for gaming. Outstanding Thermal Design GIGABYTE Motherboards Un-throttled performance is guaranteed by innovative & optimized thermal design to ensure the best CPU, Chipset, SSD stability & low temperatures under full load application & gaming performance. GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, & WIFI connectivity. GIGABYTE motherboards bundle several useful & intuitive software to help users to control every aspect of motherboard & provide customizable lighting effect with outstanding aesthetics to fit your unique personality. GIGABYTE Ultra Durable™ design provides product durability & high-quality manufacturing process. GIGABYTE motherboards use the best components & reinforce every slots to make each of them solid & durable. ...

Durable Performance GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance & timeless platform. Digital VRM Design 5+2+2 Phases Digital VRM Solution with Low RDS (on) MOSFETs GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS (on) MOSFETs design to support AMDs new generation CPUs by offering incredible precision in delivering power to the motherboards most power-hungry & energy-sensitive components as well as delivering enhanced system performance & ultimate hardware scalability. EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 6400 & Beyond GIGABYTE is offering a tested & proven platform that the memory overclocking capability is able up to 6400 & beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel XMP capable, the EXPO/XMP function is activated & enabled on their GIGABYTE motherboard. EXPO & XMP Support Unlock DDR5 Voltage Secure Mode MB provides fixed 5V to Native DDR5 memory & built-in PMIC outputs locked 1.1v to memory IC.
- GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
- Transforms Native DDR5 memory module to Overclocked DDR5 memory
- Increases DDR5 memory overclocking performance & capability
- Supports all PMIC vendors for maximum compatibility EXPO & XMP Support GIGABYTE Exclusive DDR5 Circuit Design Programmable Mode GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode & control Native DDR5 voltage with wide range. EXPO & XMP Support Shielded Memory Routing All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. EXPO & XMP Support EXPO & XMP Dual Support GIGABYTE AM5 MB supports both AMD EXPO™ & Intel XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu & easily reach overclocked memory performance. EXPO & XMP Support DDR5 Auto Booster Automatically Boost the Native DDR5 frequency to 5000 M Hz while the system is under heavy loading by a single click. EXPO & XMP Support AMD EXPO™ & Intel XMP 3.0 User Profile
- SPD Re-defined or retrieve from database
- Performance Simulation
- Save/ Load Profile
- Overclocked Performance
- Profile Clearance Define & create your own SPD profile into Native, AMD EXPO™ & Intel XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device. Future Connectivity The ultimate connectivity with blazing data-transfer speeds through the next generation network & storage. Gb E LAN with Bandwidth Management Gb E LAN features a network bandwidth management application which helps to improve network latency & maintain low ping times to deliver better responsiveness in crowded LAN environments. PCIe 4.0 Hardware Design GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed & maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. Hi-Fi Audio High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution & high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. Easy Friendly Innovative & intuitive hardware, software, & BIOS interface design to create your personal style. EZ-Latch Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. Q-Flash Plus Update the BIOS easily without installing the CPU, memory & graphics card. With GIGABYTE Q-Flash Plus, you dont need to install the CPU, memory & graphics card nor enter the BIOS menu to flash the BIOS. Just download & save a new BIOS file (rename to gigabyte.bin) on the USB (Universal Serial Bus) flash drive, then press the dedicated Q-Flash Plus button & you’re good to go!
- STEP 1: Plug 24pin & 8pin power supply cable on motherboard
- STEP 2: Download motherboard BIOS file & rename to ""gigabyte.bin"", save to USB (Universal Serial Bus) flashdrive, & plug USB (Universal Serial Bus) flashdrive into Q-Flash USB (Universal Serial Bus) port
- STEP 3: Press Q-Flash Plus button, & motherboard will start updating BIOS automatically. Smart Fan 6 Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool & quiet. Multiple fan headers can support PWM/DC fan & pump, & users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. Cooling Features
- High Current Support: Each fan headers support PWM & DC fan & Water Cooling Pump, & up to 24W (12V x 2A) with Over-Current Protection
- Precision Control: Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode: Slope/ Stair dual mode for different user scenario
- Fan Stop: Fan can stop completely below users specified temperature point Smart Fan 6 BIOS UI
- Improve fan curve UI: We increase control points from 5 to 7 & larger fan speed graph for precise & easier fan curve control.
- Slope/ Stair dual graph mode: Fan curve can be quickly switch with Slope & Stair modes for different user scenario. Slope is traditional & intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
- Manual Input: For advanced users, we provide fan speed manual input for more precise control.
- EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, & Smart Fan 6 can quickly generate a fan curve.
- Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS. GIGABYTE Control Center GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date & support future products
























...

Features • Supports 12th Gen Intel Core™ Series Processors • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs • 16*+1+1 Twin Hybrid Digital VRM Design with 60A Dr MOS • Shielded Memory Routing for Better Memory Overclocking • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks • WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna • Amp-Up Audio with ALC1220 & WIMA Audio Capacitors • Blazing Fast Intel 2.5 Gb E LAN with Bandwidth Management • Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x 4 M.2 with Enlarged Thermal Guards • Super Speed USB (Universal Serial Bus) 3.2 Gen 2x 2 Type-C delivers up to 20 Gb/s transfer speeds • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP • Q-Flash Plus Update BIOS without Installing the CPU, Memory & Graphics Card Rule supreme with the B660 AORUS gaming motherboards. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery & dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lakes performance in all its gaming glory. Unparalleled Performance With technology moving so fast, GIGABYTE still keep up with the latest trends & provide our customers with advanced features & latest technology. GIGABYTE B660 Series motherboards come with upgraded power solution, latest storage standards & outstanding connectivity to enable optimize performance for gaming. GIGABYTE B660 Series Motherboards Un-throttled performance is guaranteed by innovative & optimized thermal design to ensure the best CPU, Chipset, SSD stability & low temperatures under full load application & gaming CONNECTIVITY GIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility & blazing data-transfer speed with next generation network, storage, & WIFI connectivity. Personalization GIGABYTE motherboards bundle several useful & intuitive software to help users to control every aspect of motherboard & provide customizable lighting effect with outstanding aesthetics to fit your unique personality. ULTRA DURABLE GIGABYTE Ultra Durable™ features its product durability & high-quality manufacturing process. GIGABYTE motherboards use the best components & reinforce every slots to make each of them solid & durable. ...

Features • Supports 12th Gen Intel Core™ Series Processors • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs • 8+2+1 Phases Hybrid Digital VRM with MOS Heatsink • GIGABYTE Gaming LAN with Bandwidth Management • Dual Ultra-Fast NVMe PCIe 4.0 x 4 M.2 • Rear Super Speed USB (Universal Serial Bus) 3.2 Gen 2x 2 TYPE-C delivers up to 20 Gb/s transfer speeds • High Quality Audio Capacitors & Audio Noise Guard • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP • Q-Flash Plus Update BIOS without Installing the CPU, Memory & Graphics Card Cleaner & more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies & heavy loading. 8+2+1 Phases Low RDS (on) MOSFETs Solid capacitors to improve transient response & minimize oscillation 8-pin Solid Pin CPU Power Connector Support for DDR4 XMP Up to 5333 M Hz & Beyond* GIGABYTE is offering a tested & proven platform that ensures proper compatibility with profiles up to 5333 M Hz & beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable & that the XMP function is activated & enabled on their GIGABYTE motherboard. Q-Flash Plus Update the BIOS easily without installing the CPU, memory & graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory & graphics card nor enter the BIOS menu to flash the BIOS. Just download & save a new BIOS file (rename to gigabyte.bin) on the USB (Universal Serial Bus) flash drive, then press the dedicated Q-Flash Plus button & you’re good to go! ...

Features • Supports 12th Gen Intel Core™ Series Processors • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs • 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink • WIFI 6 802.11ax 2T2R & BT5 with AERO Antenna • Fast 2.5 Gb E LAN with Bandwidth Management • Dual Ultra-Fast NVMe PCIe 4.0 x 4 M.2 with Thermal Guard • Rear Super Speed USB (Universal Serial Bus) 3.2 Gen 2 TYPE-C for Fast & Versatile Connections • High Quality Audio Capacitors & Audio Noise Guard • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP • Q-Flash Plus Update BIOS without Installing the CPU, Memory & Graphics Card Cleaner & more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies & heavy loading. 6+2+1 Phases Low RDS (on) MOSFETs Solid capacitors to improve transient response & minimize oscillation 8-pin Solid Pin CPU Power Connector GIGABYTE Ultra-Efficient M.2 Thermal Guard With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling & bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. 2X Faster than ever Adoption of 2.5G LAN provide up to 2.5 Gb E network connectivity, with at least 2 times faster transfer speeds compared to general 1 Gb E networking, perfectly designed for gamers with ultimate online gaming experience. Q-Flash Plus Update the BIOS easily without installing the CPU, memory & graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory & graphics card nor enter the BIOS menu to flash the BIOS. Just download & save a new BIOS file (rename to gigabyte.bin) on the USB (Universal Serial Bus) flash drive, then press the dedicated Q-Flash Plus button & you’re good to go! ...

Features • Supports 12th Gen Intel Core™ Series Processors • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs • 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink • Fast 2.5 Gb E LAN with Bandwidth Management • Dual Ultra-Fast NVMe PCIe 4.0 x 4 M.2 with Thermal Guard • Rear Super Speed USB (Universal Serial Bus) 3.2 Gen 2 TYPE-C for Fast & Versatile Connections • High Quality Audio Capacitors & Audio Noise Guard • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP • Q-Flash Plus Update BIOS without Installing the CPU, Memory & Graphics Card Cleaner & more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies & heavy loading. 6+2+1 Phases Low RDS (on) MOSFETs Solid capacitors to improve transient response & minimize oscillation 8-pin Solid Pin CPU Power Connector GIGABYTE Ultra-Efficient M.2 Thermal Guard With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling & bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. First adopter on 2.5 Gb E LAN onboard 2X Faster than ever Adoption of 2.5G LAN provide up to 2.5 Gb E network connectivity, with at least 2 times faster transfer speeds compared to general 1 Gb E networking, perfectly designed for gamers with ultimate online gaming experience. Update the BIOS easily without installing the CPU, memory & graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory & graphics card nor enter the BIOS menu to flash the BIOS. Just download & save a new BIOS file (rename to gigabyte.bin) on the USB (Universal Serial Bus) flash drive, then press the dedicated Q-Flash Plus button & you’re good to go! ...
