Features Supports AMD Ryzen™ & 7th Generation A-series/ Athlon™ Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Fast 2 USB (Universal Serial Bus) 3.1 Gen 2 with USB (Universal Serial Bus) Type-A Ultra-Fast PCIe Gen 3 x 4 M.2 with PCIe NVMe & SATA mode support High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting Realtek Gigabit LAN with c Fos Speed Internet Accelerator Software Smart Fan 5 features 5 Temperature Sensors & 3 Hybrid Fan Headers GIGABYTE UEFI Dual BIOS™ APP Center Including Easy Tune™ & Cloud Station™ Utilities Overview Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. All Hybrid Fan Pin Headers • All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. • Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans. Realtek Gb E LAN with c Fos Speed Internet Accelerator Networking Realtek Gb E LAN features c Fos Speed, a network traffic management application which helps to improve network latency & maintain low ping times to deliver better responsiveness in crowded LAN environments.

Specification CPU AM4 Socket: AMD Ryzen™ processor AMD 7th Generation A-series/ Athlon™ processor (Please refer "CPU Support List" for more information.) Chipset AMD X370 Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 3200 (O.C.)/2933 (O.C.)/2667*/2400/2133 MHz memory modules * Support for higher than DDR4 2667 MHz may vary by CPU. Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 2 GB * Actual support may vary by CPU. Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x 16 slot, running at x 4 (PCIEX4) 1 x PCI Express x 1 slot (The PCIEX4 & PCIEX1 slots conform to PCI Express 2.0 standard.) Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x 4*/x 2 SSD support) * Actual support may vary by CPU. 6 x SATA 6 Gb/s connectors Support for RAID 0, RAID 1, & RAID 10 * Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 & SATA connectors. USB Chipset: 2 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A ports (red) on the back panel 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports (available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) CPU: 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6 Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x 10 pin, for the GC-TPM2.0 module only) 2 x serial port headers 1 x parallel port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A ports (red) 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD Auto Green Ambient LED BIOS Setup Cloud Station Color Temperature Easy Tune Fast Boot Game Boost ON/OFF Charge Smart Backup Smart Keyboard Smart Time Lock System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Summit Ridge & Bristol Ridge CPU. * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTEs website & install it before installing Windows 7. Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...

Features 12 PCIe Slots Perfect for Mining &9935; Dual 12V AUX power connector for PCIe slot Supports 7th/ 6th Generation Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs 8-channel HD Audio with High Quality Audio Capacitors Audio Noise Guard with LED Trace Path Lighting Realtek Gb E LAN with c Fos Speed Internet Accelerator Software Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers APP Center Including Easy Tune™ & Cloud Station™ Utilities Overview 12 Native PCIe Slots For Increased Yield Potential & Dual 12V AUX power connector for PCIe slot GIGABYTE B250-Fin Tech is equipped with 12 native PCIe slots giving the miners the opportunity to mine with up to 12 GPUs at the same time for maximum performance. Also, it comes with two 12V AUX power connectors making sure your system will always have the power it needs. Cost saving combination The GIGABYTE B250-Fin Tech not only offers double the GPU support than standard motherboards but at the same time saves you money. Get the same mining performance without having to pay extra money for a second setup. Paying extra money for a second CPU, motherboard, HDD / SDD & memory kit can be costly. Thats what makes the GIGABYTE B250-Fin Tech the ideal choice for miners! GIGABYTE Mining Kit Front Panel Switch Card Mining racks are an open-case environment. They usually lack the support of Power ON/ Reset buttons. This GIGABYTE module adds Power-On & Reset button on your system making your mining experience smoother. 3-in-1 PSU Power-On Adapter Modern mining rigs require more than one power supply powering your system at the same time. With the GIGABYTE Power-On adapter you can now connect up to 3 different power supplies in the most simple way. A safer cheaper & easier way than ever before! GIGABYTE Fine Tuned BIOS Mining Mode- Hassle Free, Optimized Settings This GIGABYTE exclusive mode elevates your mining efficiency to unprecedented levels. Simply select the BIOS Mining Mode & it will automatically update settings to maximize stability & compatibility with multi-graphical configurations, making mining easier & more efficient than ever. Smart Fan 5 With Smart Fan 5 users can ensure that their PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Specification CPU Support for 7thand 6th generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B250 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2400 MHz or XMP memory, you must install a 7th Generation processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor- Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 1 GB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 11 x PCI Express x 1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) Storage Interface Chipset: 6 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 & SATA connectors. USB Chipset: 6 x USB (Universal Serial Bus) 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x PCIe power connectors 1 x CPU fan header 3 x system fan headers 6 x SATA 6 Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Ambient LED Auto Green BIOS Setup Color Temperature Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart Time Lock System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Windows 10 64-bit (for 7th Generation Intel Processors) Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors) * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTEs website & install it before installing Windows 7. Form Factor ATX Form Factor; 30.5cm x 20.0cm

...

Features Supports AMD Ryzen™ & 7th Generation A-series/ Athlon™ Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs Fast 2 USB (Universal Serial Bus) 3.1 Gen 2 with USB (Universal Serial Bus) Type-A High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting Realtek Gigabit LAN with c Fos Speed Internet Accelerator Software Smart Fan 5 features 5 Temperature Sensors & 2 Hybrid Fan Headers GIGABYTE UEFI Dual BIOS™ APP Center Including Easy Tune™ & Cloud Station™ Utilities Overview Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. All Hybrid Fan Pin Headers • All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. • Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans. Enhanced BIOS Interface The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition & the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows. Realtek Gb E LAN with c Fos Speed Internet Accelerator Software Realtek Gigabit LAN features c Fos Speed, a network traffic management application which helps to improve network latency & maintain low ping times to deliver better responsiveness in crowded LAN environments.

Specification CPU AM4 Socket: AMD Ryzen™ processor AMD 7th Generation A-series/ Athlon™ processor (Please refer "CPU Support List" for more information.) Chipset AMD B350 Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 3200 (O.C.)/2933 (O.C.)/2667*/2400/2133 MHz memory modules * Support for higher than DDR4 2667 MHz may vary by CPU. Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 2 GB * Actual support may vary by CPU. Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x 1 slots (The PCI Express x 1 slots conform to PCI Express 2.0 standard.) Storage Interface 4 x SATA 6 Gb/s connectors Support for RAID 0, RAID 1, & RAID 10 USB Chipset: 2 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A ports (red) on the back panel 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports available through the internal USB (Universal Serial Bus) header 4 x USB (Universal Serial Bus) 2.0/1.1 ports available through the internal USB (Universal Serial Bus) headers CPU: 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan headers 4 x SATA 6 Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x speaker header 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A ports (red) 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD Auto Green Ambient LED BIOS Setup Cloud Station Color Temperature Easy Tune Fast Boot Game Boost ON/OFF Charge Smart Backup Smart Keyboard Smart Time Lock System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the " Windows USB (Universal Serial Bus) Installation Tool" from GIGABYTEs website & install it before installing Windows 7. Form Factor Micro ATX Form Factor; 22.6cm x 19.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...

Features Supports 8th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4 New Hybrid Digital PWM Design Intel CNVi 802.11ac Wave 2 2T2R WIFI High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting Dual Ultra-Fast M.2 with PCIe Gen 3 X4/X2 (1 with Thermal Guard) & SATA interface RGB FUSION with Multi-Zone Digital LED Light Show design Intel Native USB (Universal Serial Bus) 3.1 Gen 2 USB (Universal Serial Bus) Type-A Intel USB (Universal Serial Bus) 3.1 Gen 1 USB (Universal Serial Bus) Type-C™ Intel Gb E LAN with c Fos Speed Internet Accelerator Software CEC 2019 Ready, Save the Power as Easy as One Click Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design Ultra Durable™ 25KV ESD & 15KV Surge LAN Protection Intel Optane™ Memory Ready Lightning-Fast Intel Thunderbolt™ 3 AIC Support Overview Integrated Intel 802.11ac Wave 2 CNVi WIFI Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections & speeds up to 1.73 Gbps. Double the speed compared to the previous generation. Extreme Performance with M.2 NVMe SSD With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling & bottlenecks from M.2 devices as it helps to reduce & dissipate heat before it becomes an issue. Dual-Mode M.2 Slot Design Support both PCIe NVMe + SATA SSDs GIGABYTE Motherboards are built with dual M.2 slots. With a PCIe NVMe + SATA dual-mode design on both M.2 slots, users can build a RAID storage system with two NVMe M.2 SSDs, two SATA mode M.2 SSDs or a SATA mode M.2 SSD + a general SATA SSD. This configuration is designed for flexibility & adaptation to fit most users & gamers requests. RGB Fusion with Digital LEDs Support With AORUS Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard RGB & external RGBW / Digital LED light strips for their PC. Already feature filled with colors & patterns, RGB Fusion on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, & illuminations. AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips & up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns & various speed settings with more to come. * Digital LEDs are available only on select Motherboards, external LED Strips, Digital LED Strips are not included with Motherboard purchase. Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Specification CPU Support for 8th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B360 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i 7/i 5 processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@30 Hz * Support for HDMI 1.4 version & HDCP 2.2. Maximum shared memory of 1 GB Audio Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Intel Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x 16 slot, running at x 4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX1_2/PCIEX1_3 slots. The PCIEX4 slot operates at up to x 2 mode when the PCIEX1_2 or PCIEX1_3 slot is populated. 1 x PCI Express x 16 slot, running at x 1 (PCIEX1_3) 2 x PCI Express x 1 slots (PCIEX1_1, PCIEX1_2) (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI) * B360 AORUS GAMING 3 WIFI

Includes:: the GC-CI22M_A CNVi wireless module. * The CNVi connector shares bandwidth with the USB (Universal Serial Bus) 2.0/1.1 port on the back panel (the one below the LAN port). When a Wi-Fi module is populated in the CNVi connector, the USB (Universal Serial Bus) 2.0/1.1 port becomes unavailable. Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x 4/x 2 SSD support) (M2A_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x 2 SSD support) (M2P_16G) 6 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 & SATA connectors. Intel Optane™ Memory Ready Multi-Graphics Technology Support for AMD Quad-GPU Cross Fire™ & 2-Way AMD Cross Fire™ technologies USB Chipset: 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) on the back panel 1 x USB (Universal Serial Bus) Type-C™ port on the back panel, with USB (Universal Serial Bus) 3.1 Gen 1 support 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB (RGBW) LED strip headers 6 x SATA 6 Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 1 x USB (Universal Serial Bus) 2.0/1.1 header 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x 6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) 1 x USB (Universal Serial Bus) Type-C™ port, with USB (Universal Serial Bus) 3.1 Gen 1 support 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Time Lock Smart HUD System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 22.5cm



...

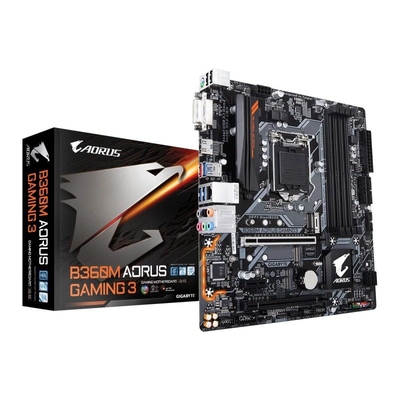

Features Supports 8th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4 New Hybrid Digital PWM Design Intel CNVi 802.11ac Wave 2 2T2R WIFI Upgradable High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting Dual Ultra-Fast M.2 with PCIe Gen 3 X4/X2 & SATA interface RGB FUSION supports RGB LED strips in 7 colors Intel Native USB (Universal Serial Bus) 3.1 Gen 2 USB (Universal Serial Bus) Type-A GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management CEC 2019 Ready, Save the Power as Easy as One Click Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design Ultra Durable TM 25KV ESD & 15KV Surge LAN Protection Intel Optane™ Memory Ready Lightning-Fast Intel Thunderbolt™ 3 AIC Support Overview Soar Free With WIFI Intel CNVi WIFI Upgrade kit The Intel CNVi WIFI Upgrade kit offers an easy way to upgrade Intel CNVi WIFI Upgradeable motherboards with new & faster Gigabit WIFI connectivity without having to upgrade to a whole new system. Dual NVMe PCIe Gen 3 M.2 Slots (x 4, x 2) GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. Exclusive Realtek 8118 Gaming LAN High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance & friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features & the fastest & smoothest Internet experience.

Specification CPU Support for 8th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B360 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i 7/i 5 processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@30 Hz * Support for HDMI 1.4 version & HDCP 2.2. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Audio Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x 16 slot, running at x 4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX1_2, PCIEX1_3, & PCIEX1_4 slots. When the PCIEX1_2, PCIEX1_3, or PCIEX1_4 slot is populated, the PCIEX4 slot operates at up to x 1 mode. 4 x PCI Express x 1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI) Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x 4/x 2 SSD support) (M2A_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x 2 SSD support) (M2P_16G) 6 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 & SATA connectors. Intel Optane™ Memory Ready (Note) Supported by the M2A_32G connector only. Multi-Graphics Technology Support for AMD Quad-GPU Cross Fire™ & 2-Way AMD Cross Fire™ technologies USB Chipset: 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) on the back panel 5 x USB (Universal Serial Bus) 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) * The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB (Universal Serial Bus) 2.0/1.1 ports routed to the F_USB2 header becomes unavailable. Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 6 x SATA 6 Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x 6 pin, for the GC-TPM2.0_S module only) 1 x parallel port header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) 3 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Time Lock Smart HUD System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) Operating System Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 22.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...

Features Supports 8th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4 New Hybrid Digital PWM Design High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting Ultra-Fast M.2 with PCIe Gen 3 X4 & SATA interface GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management CEC 2019 Ready, Save the Power as Easy as One Click Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design Ultra Durable™ 15KV Surge LAN Protection Intel Optane™ Memory Ready Overview Exclusive Realtek 8118 Gaming LAN High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance & friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features & the fastest & smoothest Internet experience. NVMe PCIe Gen 3 x 4 2280 M.2 Connector (Up to 32 Gb/s) GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution & high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the boards sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Specification CPU Support for 8th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B360 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i 7/i 5 processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 1 GB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 2 x PCI Express x 1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x 4/x 2 SSD support) 6 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 & SATA connectors. Intel Optane™ Memory Ready USB Chipset: 6 x USB (Universal Serial Bus) 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 6 x SATA 6 Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x 6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Time Lock Smart HUD System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...

Features Supports 8th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4 New Hybrid Digital PWM Design High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting Ultra-Fast M.2 with PCIe Gen 3 X4 & SATA interface RGB FUSION supports RGB LED strips in 7 colors Intel Native USB (Universal Serial Bus) 3.1 Gen 2 USB (Universal Serial Bus) Type-A Intel Gb E LAN with c Fos Speed Internet Accelerator Software CEC 2019 Ready, Save the Power as Easy as One Click Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design Ultra Durable™ 25KV ESD & 15KV Surge LAN Protection Intel Optane™ Memory Ready GIGABYTE UEFI Dual BIOS™ Overview NVMe PCIe Gen 3 x 4 22110 M.2 Connector (Up to 32 Gb/s) GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. Intel Gb E LAN with c Fos Speed Internet Accelerator Networking Intel Gb E LAN features c Fos Speed, a network traffic management application which helps to improve network latency & maintain low ping times to deliver better responsiveness in crowded LAN environments. The Industrys Leading LAN Static-Electricity & Surge Protection GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard & its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, & your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular & inconsistent power delivery. Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Specification CPU Support for 8th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B360 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i 7/i 5 processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x Display Port, supporting a maximum resolution of 4096x 2304@60 Hz * Support for Display Port 1.2 version, HDCP 2.2, & HDR. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@30 Hz * Support for HDMI 1.4 version & HDCP 2.2. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Audio Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Intel Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x 16 slot, running at x 4 (PCIEX4) 1 x PCI Express x 1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x 4/x 2 SSD support) 6 x SATA 6 Gb/s connectors Intel Optane™ Memory Ready Multi-Graphics Technology Support for AMD Quad-GPU Cross Fire™ & 2-Way AMD Cross Fire™ technologies USB Chipset: 1 x USB (Universal Serial Bus) Type-C™ port on the back panel, with USB (Universal Serial Bus) 3.1 Gen 1 support 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) on the back panel 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6 Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x 6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x Display Port 1 x HDMI port 1 x USB (Universal Serial Bus) Type-C™ port, with USB (Universal Serial Bus) 3.1 Gen 1 support 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Time Lock Smart HUD System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 23.0cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...

Features Supports 8th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4 New Hybrid Digital PWM Design Intel CNVi 802.11ac Wave 2 2T2R WIFI Upgradable High Quality Audio Capacitors & Audio Noise Guard Ultra-Fast M.2 with PCIe Gen 3 X4 & SATA interface Intel Native USB (Universal Serial Bus) 3.1 Gen 2 with USB (Universal Serial Bus) Type-A & Type-C™ Intel Gb E LAN with c Fos Speed Internet Accelerator Software CEC 2019 Ready, Save the Power as Easy as One Click Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design Ultra Durable™ 25KV ESD & 15KV Surge LAN Protection Intel Optane™ Memory Ready Overview Soar Free With WIFI Intel CNVi WIFI Upgrade kit The Intel CNVi WIFI Upgrade kit offers an easy way to upgrade Intel CNVi WIFI Upgradeable motherboards with new & faster Gigabit WIFI connectivity without having to upgrade to a whole new system. Intel Gb E LAN with c Fos Speed Internet Accelerator Networking Intel Gb E LAN features c Fos Speed, a network traffic management application which helps to improve network latency & maintain low ping times to deliver better responsiveness in crowded LAN environments. Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Hybrid Fan Pin Headers Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. Save the power as easy as one click CEC Requirement: PC power consumption must be under a certain level when its in off mode, idle mode, st&-by mode. With high power efficiency hardware components & fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode & fully comply with new CEC 2019 (California Energy Commission) power consumption requirement

Specification CPU Support for 8th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B360 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i 7/i 5 processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x DVI-I port, supporting a maximum resolution of 1920x 1200@60 Hz 2 x Display Ports, supporting a maximum resolution of 4096x 2304@60 Hz * Support for Display Port 1.2 version, HDCP 2.2, & HDR. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Audio Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Intel Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x 16 slot, running at x 4 (PCIEX4) 2 x PCI Express x 1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI) * The CNVi connector shares bandwidth with the F_USB2 header. When a WIFI module is populated in the CNVi connector, one of the USB (Universal Serial Bus) 2.0/1.1 ports routed to the F_USB2 header becomes unavailable. Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x 4/x 2 SSD support) 6 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 & SATA connectors. Intel Optane™ Memory Ready Multi-Graphics Technology Support for AMD Quad-GPU Cross Fire™ & 2-Way AMD Cross Fire™ technologies USB Chipset: 1 x USB (Universal Serial Bus) Type-C™ port on the back panel, with USB (Universal Serial Bus) 3.1 Gen 2 support 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) on the back panel 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) * The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB (Universal Serial Bus) 2.0/1.1 ports routed to the F_USB2 header becomes unavailable. Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x M.2 Socket 3 connector 6 x SATA 6 Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x serial port headers 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x DVI-I port 2 x Display Ports 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A port (red) 1 x USB (Universal Serial Bus) Type-C™ port, with USB (Universal Serial Bus) 3.1 Gen 2 support 2 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart Time Lock Smart HUD System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) c Fos Speed Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 23.0cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...

Features Supports 8th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4 New Hybrid Digital PWM Design High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting Ultra-Fast M.2 with PCIe Gen 3 X4 & SATA interface RGB FUSION supports RGB LED strips in 7 colors GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management CEC 2019 Ready, Save the Power as Easy as One Click Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design Ultra Durable™ 15KV Surge LAN Protection Intel Optane™ Memory Ready GIGABYTE UEFI Dual BIOS™ Overview Exclusive Realtek 8118 Gaming LAN High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance & friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features & the fastest & smoothest Internet experience. Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution & high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the boards sensitive analogy audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Specification CPU Support for 8th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B360 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i 7/i 5 processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x 2160@30 Hz * Support for HDMI 1.4 version & HDCP 2.2. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x 4 slot 1 x PCI Express x 1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x 4/x 2 SSD support) 6 x SATA 6 Gb/s connectors Intel Optane™ Memory Ready USB Chipset: 6 x USB (Universal Serial Bus) 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6 Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x 6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for Dual BIOS™ Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Time Lock Smart HUD System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 22.6cm x 20.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...

Features Supports 8th Gen Intel Core™ Processors Dual Channel Non-ECC Unbuffered DDR4 New Hybrid Digital PWM Design High Quality Audio Capacitors & Audio Noise Guard with LED Trace Path Lighting Ultra-Fast M.2 with PCIe Gen 3 X4 & SATA interface GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management CEC 2019 Ready, Save the Power as Easy as One Click Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design Ultra Durable™ 15KV Surge LAN Protection Intel Optane™ Memory Ready Overview Exclusive Realtek 8118 Gaming LAN High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance & friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features & the fastest & smoothest Internet experience. Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM & Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Immersive VR Gaming Experience > VR requires more performance than Full HD graphics for a steady 90FPS or greater. > Only Gaming PCs can provide the best VR experience.

Specification CPU Support for 8th Generation Intel Core™ i 7 processors/ Intel Core™ i 5 processors/ Intel Core™ i 3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel B360 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1 Rx 8/2 Rx 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1 Rx 8/2 Rx 8/1 Rx 16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i 7/i 5 processor. (Please refer " Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x 1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x 2160@30 Hz * Support for HDMI 1.4 version & HDCP 2.2. Maximum shared memory of 1 GB Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN Realtek Gb E LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x 16 slot, running at x 16 1 x PCI Express x 1 slot (The PCI Express slots conform to PCI Express 3.0 standard.) Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x 4/x 2 SSD support) 4 x SATA 6 Gb/s connectors * Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 & SATA connectors. Intel Optane™ Memory Ready USB Chipset: 6 x USB (Universal Serial Bus) 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB (Universal Serial Bus) header) 6 x USB (Universal Serial Bus) 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 4 x SATA 6 Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB (Universal Serial Bus) 3.1 Gen 1 header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x 6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x HDMI port 4 x USB (Universal Serial Bus) 3.1 Gen 1 ports 2 x USB (Universal Serial Bus) 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller i TE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS Pn P 1.0a, DMI 2.7, Wf M 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS Auto Green Cloud Station Easy Tune Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Time Lock Smart HUD System Information Viewer USB (Universal Serial Bus) Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton Internet Security (OEM version) Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win 9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

...
