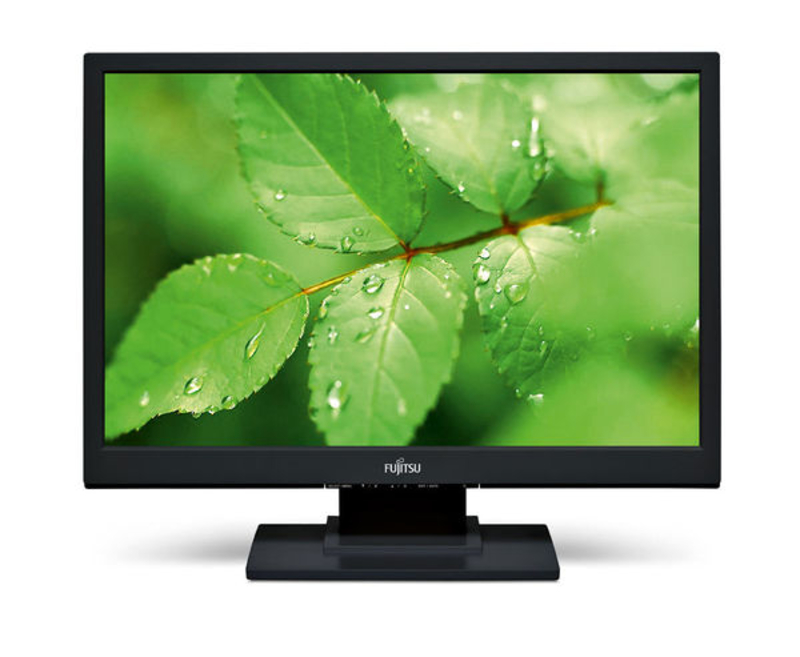

Featuring all the advantages of TFT technology in the adapted Fujitsu Display family look, this 19-inch widescreen display of the E line is the ideal choice for customers seeking a standard TFT with excellent picture quality. The space saving design offers a new scope for arranging a workplace. The display E19W-5 offers you all the benefits of LCD technology at a very competitive price. The E19W-5 offers high energy efficiency & advanced ergonomics. Due to its small form factor it can be used everywhere in office environments. It is the ideal display for restricted desk space, especially for text-oriented office applications. Unique, high efficient energy saving solutions like ECO operation mode & ECO standby. Convenient & fatigue-proof longtime-usage with excellent visual ergonomics for the office. Flexible connectivity with DVI & Analog (VGA). Representative design with space saving front frame & smart details like discretely integrated speakers. Technical details- Special features
- ECO button, ECO Status LED: 3 colors for 3 modes Ergonomic stand Stand: Removable Tilt angle: -5° / +20° Picture performance Panel & backlit: TN/CCFL Contrast
- typical: 1000:1 Contrast
- advanced: 10, 000:1 Response time typical: 5 ms Viewing angle (h/v)
- typical: 170°/170° CR5:1 Color performance: 16.7 million colors (Hi-FRC) Brightness
- typical: 300 cd/m 2 Size & resolution Aspect ratio: 16:10 Diagonal
Size: 48.1 cm (19-inch) Resolution (native): 1440 x 900 pixel (recommended) Resolution (interpolated): 1024 x 768 pixel, 800 x 600 pixel, 640 x 480 pixel Picture
Size: 408.24 x 255.15mm Pixel Pitch: 0.284 &1084; Frequencies Horizontal: 30
- 83 k Hz Vertical: 55
- 76 Hz Connectivity DVI: 1 x DVI (HDCP) VGA/D-SUB: 1 x D-SUB Audio signal input: 3.5 mm stereo phone jack Audio sound output: 2x 1W Ease-of-use menu Languages: Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Italian, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish Brightness / Contrast: Brightness, Contrast, Black level, Auto level
Colour: s RGB, 6500K, 7500K, 9300K, Native, Custom Color (R, G, B) Image adjust: Clock, Phase, H-Position, V-Position, Sharpness Audio: Mute, Volume Information: Model name, S/N, Resolution/mode, Signal input Setup: Input select, Language, DDC-CI, OSD-Position, OSD-Timeout, Factory recall Power consumption (typical, w/o sound) Soft switch off: 0.4 W Power save mode: 0.4 W Operating with EPA settings: 17.9 W Operating maximum brightness: 21.7 W Power supply display: integrated Electrical values Rated voltage range: 100 V
- 240 V Rated frequency range: 50 Hz
- 60 Hz Protection class: 1 Compliance Europe: CE certification according to EC Directive 2004/108/EEC, EN 60950, Ro HS, WEEE, IT-Eco-Declaration Model: E19W-5 Miscellaneous Mounting: VESA DDC/ CI, Standardized mounting interface VESA FP MP MI 100 mm, Kensington lock Package content: D-SUB Data cable 1.8 m, Audio cable 1.8 m, Power cable for wall socket (Euro-Schuko-Type CEE7) 1.8 m, Quickstart flyer, Warranty booklet, Getting Started Manual Display delivered accessories notes: Data cables & audio cable detachable on display Warranty Standard Warranty: 3 years Service level: Collect & Return Service (depending on country) Spare Parts availability: 5 years Service Weblink: http://ts.fujitsu.com/ Supportservice
