Fractal Design Newton R3 Series power supply units (PSUs) provide clean power efficiently & silently. The Newton R3 is the ultimate choice for demanding high-end gaming computers & ultra-quiet media PCs. The visual appearance of Newton R3 Series PSUs is proof of Fractal Design's commitment to providing innovative computer components infused with stylish, elegant, contemporary Scandinavian design. The key features 80PLUS Platinum Single, powerful 12V rail SLI (800W & up) & Cross Fire X Certified Long-life ball-bearing fan Modular cables Japanese capacitors Semi-passive fan 80 PLUS Platinum certified efficiency Newton R3 Series PSUs meet the highest efficiency specifications currently available for consumer-grade power supplies. This efficiency produces both positive environmental impact, as well as reduces electricity bills. in addition, because the Newton R3 Series PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. Excellent electrical performance Newton R3 Series PSUs feature excellent DC voltage regulation & ripple suppression; they can deliver their full-rated wattage continuously even with an intake temperature as high as 50°C. SLI & Cross Fire X support Newton R3 Series PSUs are tested & certified compatible with the latest graphics cards. Modular Cables With the exception of a few, all cables on the Newton series power supplies can be detached from the PSU unit. This reduces the clutter, assists with a clean installation & improves the airflow in the computer case. Compliant with the latest standards Newton R3 PSUs are compliant with the latest PSU standards: ATX12V 2.31 & EPS12V2.92. Semi-passive Fan Operation Newton R3 Series PSUs generate very little heat, they work well without active cooling in most environmental & loading conditions, especially in a well-ventilated case. Subsequently, Newton R3 Series PSUs are equipped with temperature sensors that only start the fan when required to keep the operating temperature down. Single powerful 12V rail To provide maximum support for modern components, Newton R3 Series PSUs deliver their full wattage from a single 12V rail. Extra-long ATX12V cable Newton R3 Series PSUs are equipped with a 700mm long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases. Long-life Ball-bearing Fan Newton R3 Series PSUs are equipped with ball-bearing fans, which provide the longest expected fan life available on the market. Premium Japanese capacitors Newton R3 Series PSUs are equipped with 100% high-end Japanese industrial capacitors for maximum reliability & longer life. General specifications Wattage range
- 600-1000W 80PLUS Certification
- Platinum Modular cables
- Yes Fan type
- 135mm ball-bearing Maximum operating temperature at full load
- 50°C Semi-passive operation
- Yes Capacitors
- Japanese Case

Dimensions
- W x H x D (mm)
- 150 x 86 x 165 Life expectancy (MTBF)
- 100, 000 hours at full load PSU

Specification compliance
- ATX 2.31 & EPS 2.92 Package

Dimensions
- W x H x D (mm)
- 445 x 235 x 145 Warranty
- 5 Years



















...

Fractal Design Newton R3 Series power supply units (PSUs) provide clean power efficiently & silently. The Newton R3 is the ultimate choice for demanding high-end gaming computers & ultra-quiet media PCs. The visual appearance of Newton R3 Series PSUs is proof of Fractal Design's commitment to providing innovative computer components infused with stylish, elegant, contemporary Scandinavian design. The key features 80PLUS Platinum Single, powerful 12V rail SLI (800W & up) & Cross Fire X Certified Long-life ball-bearing fan Modular cables Japanese capacitors Semi-passive fan 80 PLUS Platinum certified efficiency Newton R3 Series PSUs meet the highest efficiency specifications currently available for consumer-grade power supplies. This efficiency produces both positive environmental impact, as well as reduces electricity bills. in addition, because the Newton R3 Series PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. Excellent electrical performance Newton R3 Series PSUs feature excellent DC voltage regulation & ripple suppression; they can deliver their full-rated wattage continuously even with an intake temperature as high as 50°C. SLI & Cross Fire X support Newton R3 Series PSUs are tested & certified compatible with the latest graphics cards. Modular Cables With the exception of a few, all cables on the Newton series power supplies can be detached from the PSU unit. This reduces the clutter, assists with a clean installation & improves the airflow in the computer case. Compliant with the latest standards Newton R3 PSUs are compliant with the latest PSU standards: ATX12V 2.31 & EPS12V2.92. Semi-passive Fan Operation Newton R3 Series PSUs generate very little heat, they work well without active cooling in most environmental & loading conditions, especially in a well-ventilated case. Subsequently, Newton R3 Series PSUs are equipped with temperature sensors that only start the fan when required to keep the operating temperature down. Single powerful 12V rail To provide maximum support for modern components, Newton R3 Series PSUs deliver their full wattage from a single 12V rail. Extra-long ATX12V cable Newton R3 Series PSUs are equipped with a 700mm long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases. Long-life Ball-bearing Fan Newton R3 Series PSUs are equipped with ball-bearing fans, which provide the longest expected fan life available on the market. Premium Japanese capacitors Newton R3 Series PSUs are equipped with 100% high-end Japanese industrial capacitors for maximum reliability & longer life. General specifications Wattage range
- 600-1000W 80PLUS Certification
- Platinum Modular cables
- Yes Fan type
- 135mm ball-bearing Maximum operating temperature at full load
- 50°C Semi-passive operation
- Yes Capacitors
- Japanese Case

Dimensions
- W x H x D (mm)
- 150 x 86 x 165 Life expectancy (MTBF)
- 100, 000 hours at full load PSU

Specification compliance
- ATX 2.31 & EPS 2.92 Package

Dimensions
- W x H x D (mm)
- 445 x 235 x 145 Warranty
- 5 Years



















...

Summary Smart modular with having an universal connection from the PSU, it makes it easier to connect your peripherals the way you want. The power & efficiency
- 80 PLUS! When you buy a Fractal Design power supply, you can rest assured that you get what you pay for. 100% real wattage, we guarantee that it can run with continuous load on the specified wattage. One other important factor with this PSU is that it has a very good efficiency, well over 80% & 80 PLUS certified by the 80 PLUS organisation. The silence Apart from being powerful, this power supply wont break your ears. On the contrary, it will be hard to know if its actually running or not! With a hand picked, high quality 120mm fan mounted with rubber fittings, the fan will only spin as much as needed under the different loads. The high efficiency of well over 80% is crucial, since it minimizes the heat the power supply emits, enabling the fan to spin at lower speeds & be more silent. The Quality Every manufacturer claims to have this, but we have real life numbers to show: less than 1% in RMA rate is an impressively low number. We value durability when creating our power supplies, we never choose to save costs when choosing the components inside the power supply. As an example, we use long durable Japanese capacitors in the PSU. Description Supports ATX12V 2.3, EPS12V 2.91/2.92 & older ATX12V v 2.01 Product Features Dedicated single 12V-rail, powering a total of 50A 100% real wattage
- this PSU delivers what it claims to do! Smart Modular
- all modular cables have the same type of connection, making it easy to connect the way you want & also making it future proof Silent & 80 PLUS certified
- save your ears & the environment Quality
- Durability & extremely low failure rate




...

Summary Smart modular with having an universal connection from the PSU, it makes it easier to connect your peripherals the way you want. The power & efficiency
- 80 PLUS! When you buy a Fractal Design power supply, you can rest assured that you get what you pay for. 100% real wattage, we guarantee that it can run with continuous load on the specified wattage. One other important factor with this PSU is that it has a very good efficiency, well over 80% & 80 PLUS certified by the 80 PLUS organisation. The silence Apart from being powerful, this power supply wont break your ears. On the contrary, it will be hard to know if its actually running or not! With a hand picked, high quality 120mm fan mounted with rubber fittings, the fan will only spin as much as needed under the different loads. The high efficiency of well over 80% is crucial, since it minimizes the heat the power supply emits, enabling the fan to spin at lower speeds & be more silent. The Quality Every manufacturer claims to have this, but we have real life numbers to show: less than 1% in RMA rate is an impressively low number. We value durability when creating our power supplies, we never choose to save costs when choosing the components inside the power supply. As an example, we use long durable Japanese capacitors in the PSU. Description Supports ATX12V 2.3, EPS12V 2.91/2.92 & older ATX12V v 2.01 Product Features Dedicated single 12V-rail, powering a total of 60A 100% real wattage
- this PSU delivers what it claims to do! Smart Modular
- all modular cables have the same type of connection, making it easy to connect the way you want & also making it future proof Silent (135mm fan) & 80 PLUS certified
- save your ears & the environment Quality
- Durability & extremely low failure rate




...

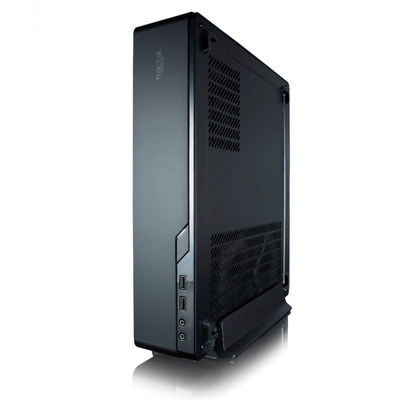

Fractal Design Node 202 Computer Case (black) The Node 202 is the ultimate PC case for those looking for a beautifully designed, compact chassis that can house a capable gaming build. This small footprint is an intelligently built unit where extreme detail was placed into the design phase to get every line & spec in perfect harmony. With both horizontal & vertical orientation possibilities, the Node 202 can be placed anywhere in the house. The sleek design makes it very attractive next to the TV in the living room or on your desk in the office. The internal layout of the Node 202 keeps the hot components separate & has them all placed in proximity of free-flow air so the case will run cool despite not having any extra case fans. Key features Featuring a sleek & elegant design that will fit in any space or room Extremely small footprint with a volume of only 10.2 liters A highly versatile case that can be set up both vertically & horizontally Supports Mini-ITX motherboards, SFX power supplies & graphics cards up to 310mm in length Provides a smart thermal interior design highlighting separate motherboard & graphics card chambers Strategically placed air filters for a dust free interior Specifications Mini ITX motherboard compatibility 2
- 2.5& Prime; SSD unit positions 2 expansion slots 2
- 120mm optional fan positions in graphics card chamber CPU coolers up to 56 mm in height PSU compatibility: SFX PSUs up to 130mm long Graphics card compatibility: Maximum dimension of graphics card is 310x 145x 47mm (Lx Hx D) Can be placed both vertical & horizontal position 3 dust filters included (for CPU, GPU & PSU) Case

Volume: 10.2 litres Colors available: Black Case

Dimensions
- Horizontal (Wx Hx D): 377 x 82 x 330 mm Case

Dimensions
- Horizontal, with feet/protrusions/screws (Wx Hx D): 377 x 88 x 332 mm Case

Dimensions
- Vertical, with feet/protrusions/screws (Wx Hx D): 125 x 385 x 332 mm Net weight: 3.5kg Package

Dimensions (Wx Hx D): 145 x 463 x 388 mm Package weight: 4.0kg Front interface 2
- USB (Universal Serial Bus) 3.0 Audio in/out Power button with LED (white) Package contents Node 202 computer case Accessory box User manual Vertical stand Riser card for graphics card















...

The Node 304 is the latest compact computer chassis from Fractal Design featuring a unique modular interior for outstanding configurability. The Node 304 accommodates up to six hard drives. Unused mounting brackets can removed to allow for long graphic cards, additional airflow or more space for organizing cables. in addition, it is equipped with three hydraulic bearing fans, easy-to-clean air filters in all intakes & two front USB (Universal Serial Bus) 3.0 ports. Featuring hybrid functionality, the Node 304 case is ideally used as a cool-running file server, a stylish & quiet home theatre PC or a powerful gaming system highlighting minimalistic & stunning Scandinavian design & maximum functionality. Compact, modular interior
- Minimalistic design with an elegant aluminum front panel
- Unique new modular mounting system that accommodates up to 6 hard drives
- Accommodates tower CPU coolers & single-fan water cooling systems
- Filtered air intakes ensure a dust-free environment for internal components
- Three Silent Series R2 hydraulic bearing fans included
- Excellent cooling for all components
- Accommodates ATX power supplies
- Fan controller for all fans included
- USB (Universal Serial Bus) 3.0 for fast file transfers Technical specifications Mini ITX, DTX motherboard compatibility 2 expansion slots 6 – supports either 3.5" or 2.5" HHD / SSD ATX PSUs, up to 160mm in length (To fit in combination with a long graphics card, PSUs with modular connectors on the back typically need to be shorter than 160 mm) Graphics cards, up to 310mm in length, when 2 HDD brackets are removed (Graphics cards longer than 170 mm will conflict with PSUs longer than 160mm) Tower CPU coolers, up to 165 mm tall Case

Dimensions (W x H x D): 250 x 210 x 374 mm Case

Volume: 19, 5 Liters Net weight: 4, 9kg Cooling / ventilation 2
- Front mounted 92mm Silent Series R2 hydraulic bearing fans, 1300 RPM speed (compatible with 80mm fans) – included 1
- Rear mounted 140mm Silent Series R2 hydraulic bearing fan, 1000 RPM speed (compatible with 120mm fans) – included Removable air filters for front fans & PSU Fan filter for graphics card 1
- fan controller for all 3 fans included Front interface 2
- USB (Universal Serial Bus) 3.0 (Internal 3.0 to 2.0 adapter included) 1
- 3.5mm audio in (microphone) 1
- 3.5mm audio out (headphone) Power button with LED HDD LED


















...

The Node 304 features a unique modular interior for outstanding configurability. The Node 304 accommodates up to six hard drives. Unused mounting brackets can be removed to allow for long graphic cards, additional airflow or more space for organizing cables. in addition, it is equipped with three hydraulic bearing fans, easy-to-clean air filters in all intakes & two front USB (Universal Serial Bus) 3.0 ports. Featuring hybrid functionality, the Node 304 case is ideally used as a cool-running file server, a stylish & quiet home theatre PC or a powerful gaming system highlighting minimalistic & stunning Scandinavian design & maximum functionality. Key features Compact, modular interior Minimalistic design with an elegant aluminum front panel Unique new modular mounting system that accommodates up to 6 hard drives Accommodates tower CPU coolers & single-fan water cooling systems Filtered air intakes ensure a dust-free environment for internal components Three Silent Series R2 hydraulic bearing fans included Excellent cooling for all components Accommodates ATX power supplies Fan controller for all fans included USB (Universal Serial Bus) 3.0 for fast file transfers Specifications Mini ITX, DTX motherboard compatibility 2 expansion slots 6 “ supports either 3.5" or 2.5" HDD / SSD ATX PSUs, up to 160mm in length (To fit in combination with a long graphics card, PSUs with modular connectors on the back typically need to be shorter than 160 mm) Graphics cards, up to 310mm in length, when 2 HDD slots (1 HDD hanging bracket total) are removed (Graphics cards longer than 170 mm will conflict with PSUs longer than 160mm) Tower CPU coolers, up to 165 mm tall Case

Dimensions (W x H x D): 250 x 210 x 374 mm Case

Volume: 19.5 Liters Net weight: 4.9kg Colors available: Black & White Cooling system 2
- Front mounted 92mm Silent Series R2 hydraulic bearing fans, 1300 RPM speed (compatible with 80mm fans) “ included 1
- Rear mounted 140mm Silent Series R2 hydraulic bearing fan, 1000 RPM speed (compatible with 120mm fans) “ included Removable air filters for front fans & PSU Fan filter for graphics card 1
- fan controller for all 3 fans included Front interface 2
- USB (Universal Serial Bus) 3.0 (Internal 3.0 to 2.0 adapter included) 1
- 3.5mm audio in (microphone) 1
- 3.5mm audio out (headphone) Power button with LED HDD LED Package contents Node 304 computer case User manual Accessory box Additional information EAN/GTIN-13: 7350041081111 UPC: 817301011112 Product code: FD-CA-NODE-304-WH Available for System Integrators









...

The Node 605 highlights a minimalistic, sleek Scandinavian appeal which is designed to integrate into your home theatre equipment. Featuring a stunning exterior appearance accompanied by a modern, black interior with sound & vibration dampening materials, the Fractal Design Node 605 supports a full ATX motherboard as well as a graphics card up to 280mm in length. Cleverly hidden behind the access panel on the solid 8mm thick aluminum front panel are two USB (Universal Serial Bus) 3.0 ports, a Fire Wire port & a multi-format card reader for multiple formats. Solid aluminum front panel Supports full ATX motherboards Noise-dampening material 4 HDD/SSD slots Integrated card reader Two Silent Series R2 hydraulic bearing fans included Supports graphic cards up to 280mm in length (180mm with all hard drives in place) USB (Universal Serial Bus) 3.0 & Fire Wire front connectors Technical specifications ATX, micro ATX, Mini ITX, DTX motherboard compatibility 7 expansion slots 4
- supports either 2.5" or 3.5" HDD / SSD 1 slim-line ODD (only supported with m ATX or smaller motherboards) PSU compatibility: 180 mm (including any modular connectors) with both hard drive cages mounted or 190 mm (excluding cables & any modular connectors) with one hard drive cage mounted CPU cooler compatibility: Approx 125mm with side-mounted fans
- For coolers with top-mounted fans, Fractal Design recommends that you add at least 30 mm clearance for decent airflow Case

Dimensions (W x H x D): 445 x 164 x 349 mm (excluding front panel
- 440 x 162 x 341 mm) Net weight: 6, 0kg Cooling / ventilation 5 (3
- 120mm + 2
- 80mm) 2 – 120mm Silent Series R2 fans included Removable air filters for side fans & PSU Integrated three-channel fan controller Graphics card compatibility 180 mm with both hard drive cages mounted 255 mm with one hard drive cage mounted 290 mm in the top two ATX expansion card slots with two hard drive cages mounted 280 mm in the top four ATX expansion card slots with one hard drive cage mounted, containing one 3.5" HDD & one 2.5" SSD Front interface 2
- USB (Universal Serial Bus) 3.0 1
- Fire Wire (IEEE 1394) 1
- 3.5mm audio in (microphone) 1
- 3.5mm audio out (headphone) Power button with LED HDD LED Retail package contents Node 605 computer case User manual Accessory box










...

The Node 804 is a micro ATX chassis which focuses on cooling performance & maximum configurability, all packed in an interesting new form factor with Scandinavian elegant design. The dual chamber layout separates hot running components from the cooler ones & allows for unrestricted airflow over the motherboard, processor and graphics card. The case comes with three excellent 120mm fans but can be upgraded with several additional fans if needed. Featuring plenty of options for placing water cooling components, tall heat sinks & hard drives. The flexibility of this case really gives the users the possibility to create their optimal system build. Key features Highly effective dual chamber case layout for best possible cooling. Minimalistic design with an elegant brushed aluminum front panel Unique hard drive mounting system, fitting up to 8 x 3.5&8243;, 4 x 2.5” or up to 10 x 3.5”, 2 x 2.5&8243; drives HDD/SSD Three Fractal Design Silent Series R2 fans included with the case & space for an additional 7 fans. Excellent water cooling support with space for up to 4 radiators simultaneously. All intakes feature removable dust filters providing a dust-free interior. Featuring a window side panel to show off your set up in style. Additional space in the front to mount a slim optical bay drive & 2 x 2.5&8243; drives. Fan controller included. Five expansion slots that allows for multiple GPU setups. Specifications Micro ATX & Mini ITX motherboard compatibility 8
- 3.5&8243; HDD positions 2
- 2.5&8243; dedicated SSD unit positions 2
- Extra positions for either 3, 5&8243; or 2, 5&8243; drives 5 expansion slots 10
- Fan positions (3 x 120mm Silent Series R2 fans included) Filtered fan slots in front, top & bottom CPU coolers up to 160 mm in height PSU compatibility: ATX PSUs up to 260 mm deep Graphics card compatibility: Graphics cards up to 320mm in length. Graphics cards up to 290 mm in length may be installed if a fan is installed in the lower position in the front. Velcro strap for easy cable management Clear Window side panel included Colors available: Black Case

Dimensions (Wx Hx D): 344 x 307 x 389 mm Net weight: 6 kg Package

Dimensions (Wx Hx D): 370 x 468 x 412 mm Package weight: 7.7kg Cooling system Front: 4 Â- 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed) Rear: 1
- 120/140mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed) Rear: 1
- 120mm fan slots (included is 1 hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed) Top: 4
- 120x 140mm fans (not included) Fan controller: 1
- Integrated fan controller for up to 3 fans (included) Water cooling compatibility Front (right chamber)
- 240 mm radiator configurations up to 60 mm thick (with fans) & 278 mm tall are allowed. Front (left chamber)
- 240 mm radiator configurations up to 60 mm thick (with fans) & 278 mm tall are allowed. Using a radiator in this position prevents the use of a fan in the top position just next to it. Top (right chamber)
- 240/280 mm radiators up to 130mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere. No limitation to thickness. Top (left chamber)
- 240 mm radiator configurations up to 130 mm thick (with fans) will fit. Radiators in this position limits the height of memory modules to 48 mm tall. Maximum radiator configuration: 1x 240mm, 1x 280mm & 2x 120mm radiators simultaneously. Front interface 2
- USB (Universal Serial Bus) 3.0 Audio in/out Power button with LED (blue) HDD activity LED (white) Package contents Node 804 computer case Accessory box User manual
















...

North reimagines the gaming PC, introducing natural materials & bespoke details to make gaming a stylish addition to the living space. Fusing design & airflow engineering, the case features fine-patterned mesh ventilation & an open front with real walnut or oak panels. The design is complemented by sleek brass or steel details & an integrated tab for easy access to the top of the case. Inside, North offers an intuitive interior layout & generous compatibility. Get a head start on your build with the two included 140 mm Aspect PWM fans Choose a GPU up to 355 mm, or up to 300 mm with a 360 mm front radiator Enhance the look of your gaming station with sleek wood & alloy details Natural design Enjoy a sophisticated looking case which integrates effortlessly into your living space Enhance your gaming station with a real oak or walnut front, a faux leather tab & sleek steel or brass details Type-C interface Three front USB (Universal Serial Bus) ports including one USB (Universal Serial Bus) 3.1 Gen 2 Type-C with fast charging support & speeds up to 10 Gbps Gaming ready Support radiators up to 240 mm in the top & 360 mm in the front Room for a GPU up to 355 mm with front fans installed or up to 300 mm with a front radiator Seven bridgeless expansion slots allow for extensive customization Designed for ATX / m ATX / ITX motherboards Easy access Remove the side panels, unclip the front & pop off the top panel using an integrated tab Ventilated performance Natural ventilation through an open front & a stylishly integrated mesh top panel The mesh version of the case features a full mesh side panel in addition to the top Flexible storage North features two included combined 3.5& Prime;/2.5& Prime; drive mounts & two dedicated 2.5& Prime; drive mounts out of the box Build versatility Make the most of your building experience with an intuitive interior&82layout Two Aspect 14 PWM fans preinstalled with room to expand up to a total of four 140 mm or six 120 mm fans The mesh version also ships with a fanhub & a fan bracket, providing an additional two fan positions ...
