As the newest member of the Arc family of airflow cases, the Arc Midi R2 is developed with high-performance computer systems in mind. Featuring three high performance Silent Series R2 fans & ample water cooling options, the Arc Midi R2 layout maximizes airflow throughout the case & keeps even the most demanding systems at cool temperatures. Designed to house even the thickest radiators in both the top & front panels without extensive modifications, the Arc Midi R2 offers all this within a mid size case. The chassis comes complete with a stylish window side panel, fan controller, easy to clean dust filters, high level of workmanship, flexible hard drive mounting system & plenty of space for cable routing. Key features Designed with high airflow in mind while consistently holding a minimalistic, sleek look & feel Featuring a window side panel to show off your set up in style Extensive water cooling support, designed to support thick radiators in the front & top positions Three Silent Series R2 fans with integrated fan controller included HDD cages are now split 5 + 3 & are both rotatable & removable for maximum configuration & airflow Support for up to 8 hard drive bays with accommodation for an additional 2 x 2, 5” inch drives behind the motherboard Easy installation & configuration with ample cable routing space making it simple for everyone to make a very tidy looking computer build Removable fan filters for easy dust maintenance & washing Specifications ATX, Micro ATX, Mini ITX motherboard compatibility 2
- 5.25" bays 8
- 3.5" HDD trays
- all compatible with SSDs 2
- 2.5" additional SSD positions behind the mothboard plate 7 + 1 expansion slots 7
- Fan positions (3 Silent Series R2 fans included) Filtered fan slots in front, top & bottom CPU coolers up to 180 mm tall PSU compatibility: ATX PSUs up to 170 mm deep when using the bottom fan location; when not using this fan location longer PSUs (up to 270 mm deep) can be used Graphics card compatibility: Graphics cards up to 290mm in length with the top HDD cage installed
- With the top cage removed, graphics cards up to 430mm in length may be installed 26 mm of space for cable routing behind the motherboard plate Thick rubber grommets on all holes on the motherboard plate Colors available: Black Case

Dimensions (Wx Hx D): 230 x 460 x 515mm Net weight: 10.7kg Package

Dimensions (Wx Hx D): 320 x 610 x 560mm Package weight: 12kg Cooling system Front: 1
- hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed (included); 1
- 120/140mm fan (not included) Rear: 1
- hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed (included) Top: 1
- hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed (included); 2
- 120/140mm fans (not included) Bottom: 1
- 120/140mm fan (not included) Fan controller: 1
- integrated fan controller for up to 3 fans (included) Water cooling compatibility: Front – 240 mm radiators (thick & slim) when HDD cages are repositioned or removed Top – 240 mm radiators (thick & slim) Bottom – 120mm radiators Rear – 120mm radiators Front Interface 2
- USB (Universal Serial Bus) 3.0 Audio in/out Power button with LED (blue) HDD activity LED (red) Reset button Fan controller Package Contents Arc Midi R2 computer case Accessory box User manual

















...

The Arc XL brings forth a balanced combination of airflow, water-cooling & high-performance component configurability in a minimalistic & sleek full-tower form. Its strength lies with the extensive cooling options allowing the possibility to install multiple graphics card set ups into a supercharged system. The case is filled with smart features such as simple-clean dust filters, integrated fan controller, flexible hard drive mounting, window side panel & plenty of space for tidy cable routing. It also comes equipped with three high quality Silent Series R2 fans contributing to maximum airflow straight out of the box. Key features Delivering maximum airflow within a sleek & minimalistic body design Spacious internal layout with 9 PCI expansion slots allowing the biggest, most demanding components & cooling setups Designed for extensive water cooling configurations, accommodating multiple thick 240mm radiators & slim radiators up to 360mm in length with space to spare for pumps & reservoirs! Offering added value with three Silent Series R2 fans included, giving you excellent cooling straight out of the box! Featuring a three-speed fan controller strategically integrated in the front panel for easy access With multiple easy-to-clean dust filters designed into the case, you can ensure a dust free interior Providing ample storage capacity with a flexible hard drive mounting system for up to 8 x 3, 5 drives while accommodating an additional 2 x 2, 5 drives behind the motherboard Innovative SSD position mounting, using brackets to allow for easy access once your system is completely built Featuring a window side panel to show off your set up in style Specifications ATX, Micro ATX, Mini ITX, E-ATX, XL-ATX motherboard compatibility 4
- 5.25" bays 8
- 3.5" HDD trays
- all compatible with SSDs 2
- 2.5" dedicated SSD positions behind the mothboard plate 9 expansion slots 7
- Fan positions (3 Silent Series R2 fans included) Filtered fan slots in front, top & bottom CPU coolers up to 180 mm tall PSU compatibility: ATX PSUs up to 190 mm deep when using the bottom fan location; when not using this fan location longer PSUs (up to 345 mm deep) can be used Graphics card compatibility: Graphics cards up to 330mm in length with the top HDD cage installed
- With the top cage removed, graphics cards up to 480mm in length may be installed 26 mm of space for cable routing behind the motherboard plate Thick rubber grommets on all holes on the motherboard plate Window side panel included Colors available: Black Case

Dimensions (Wx Hx D): 232 x 572 x 552mm Net weight: 13.8kg Package

Dimensions (Wx Hx D): 322 x 625 x 635mm Package weight: 16.3kg Cooling system Front: 2
- 120/140mm fans (included is one hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed) Rear: 1
- 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed) Top: 3
- 120x 140mm fans (included is one hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed) Bottom: 1
- 120/140mm fan (not included) Fan controller: 1
- Integrated fan controller for up to 3 fans (included) Water cooling compatibility: Front “ 240 mm radiators (thick & slim) when HDD cages are repositioned or removed Top “ 240mm radiators (thick) or 280 & 360mm radiators (slim) Bottom “ 120mm radiators Rear “ 120 & 140mm radiators Front interface 2
- USB (Universal Serial Bus) 3.0 2
- USB (Universal Serial Bus) 2.0 Audio in/out Power button with LED (blue) HDD activity LED (red) Reset button Fan controller Package contents Arc XL computer case Accessory box User manual Additional information EAN/GTIN-13: 7350041080992 UPC: 817301010993 Product code: FD-CA-ARC-XL-BL-W Available for System Integrators
















...

Customer note: current stock (July 2010 onwards) is the enhanced R2 version of this model. difference is: * Two expansion slots instead of one, enabling support for Mini DTX M/B * enhanced HDD cage * enhanced front fan module The Fractal Design Array Mini ITX NAS case is setting new standards for the Home Server/DIY NAS market. With its whopping six (!) hard drive bays in a very small enclosure, hardly bigger than your average bread toaster, its certainly creating a new niche. Built in high quality aluminium straight through with a nice touch for details, the Array case provides a very exclusive way to store all your important data. The hard drive cage with room for six 3, 5-inch HDD & one SSD, is removable & fitted with silicone anti-vibration grommets to minimise noise from the hard drives. In the front our award winning Silent Series 140mm is fitted, together with a washable filter. It takes in air from the side ventilation holes in the front panel. This ensures an efficient, but yet silent, cooling over the hard drives. Furthermore, there is a SFX 300W PSU included, rated at more than 80% efficiency, with a silent temperature controlled fan. We have decided to include this PSU in the package, since its fairly hard to find quality SFX PSUs in the market that is also silent, & not too expensive. You can fit a Mini ITX motherboard into the case & theres also room for one expansion card, for example a RAID card which youd typically want to get the most out of your six hard drives. All necessary components & software naturally needs to be purchased separately, but we can recommend to use specialised NAS/ Home Server software such as Free NAS or Windows Home Server. Please note that there is no room for a 5, 25-inch drive, we deliberately left this out since you dont generally use that in a NAS/ Home Server environment, & it saved us a lot of space which we could use for fitting hard drives instead. CASE SPECIFICATIONS Built in high quality aluminium Silent, efficient 300W SFX PSU included Room for six silicone mounted 3, 5-inch HDD Room for one SSD Removable HDD cage for easy mounting Silent Series 140mm fan included in front, with washable filter Space available for CPU cooler: circa 90mm height Space available for expansion card: circa 140mm length Fits Mini ITX motherboards One expansion slot Case

Dimensions (Wx Hx D): 230x 223x 350mm Net weight: 4.1kg PSU SPECIFICATIONS 80 PLUS rated SFX 300W PSU Silent, temperature controlled fan 7x SATA-connectors, 1x Molex, 1x 4-pin & 1x 20/24pin Meets CE, TUV safety requirements FAN SPECIFICATIONS 140mm Silent Series Dimensions: 140 x 140 x 25mm RPM: 600 +/- 10% RPM Noise: 9 d BA Airflow: 39 CFM, 66 m&sup 3;/h Connection: 3-pin Power: 2.52 W +/- 10% Textile covered electrical cable

...

Summary The Fractal Design Define R4 is the latest in the Define Series of computer cases offering minimalistic & stunning ...

The Fractal Design Define R4 is the latest in the Define Series of computer cases offering minimalistic & stunning Scandinavian ...

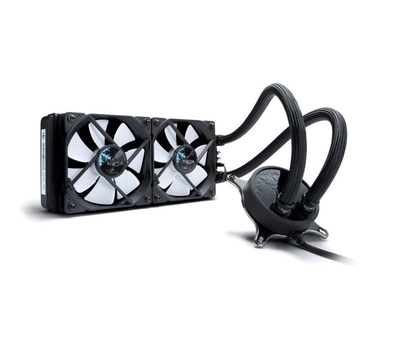

Product Description The Celsius series builds upon proven technology with cutting edge advancements & premium sound dampening materials to deliver extreme cooling performance with minimum noise output. Smart dual mode speed controls are both simple & robust with no need for additional software. Both fan & pump speeds can be managed by an intelligent auto mode or switched to PWM mode for precise user control. For true enthusiasts, the satisfaction of a clean & efficient build can never be overstated, & the Celsius makes this easier than ever with an integrated fan hub & concealed cable routing. Brand Fractal Design Item Weight 200 g Product

Dimensions 12 x 3 x 12 cm Item model number FD-WCU-CELSIUS-S36-BK Color Black

...

Cool, quiet & colourful Stylish glass pump face with backlit logo & ARGB LED effects. Outstanding airflow High-performance Dynamic PWM fans for excellent airflow & minimal noise Optimized fan geometry balances airflow with extra emphasis on static pressure Strategic blade notches diffuse noise from blade/stator interaction Trip Wire technology reduces blade turbulence LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan Get the balance right Our intelligent auto mode dynamically adjusts the fan & pump speeds for optimized silent performance – & a simple twist of the pump face changes to PWM mode for full user control. Tidier through technology ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation. Forget the thermal paste With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation. Colour-coordinated cooling Your options for controlling the colour effects of Celsius+ are continually growing, with current certifications including Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma & ASRock Polychrome support. Mounting made easy Supports the most common sockets for both Intel & AMD. Up our sleeves Braided tube sleeves readily contain both the fan control cables & ARGB wires. Main Features Tinted glass pump face with backlit logo & ARGB LED effects Articulating elbow fittings make tubes easier to route & reduces tension on the pump Backed by a 5-year warranty for extended peace of mind ...

The brilliance of Prisma Prisma ARGB PWM fans deliver outstanding airflow with brilliant lighting effects Specially designed fan blades & outer ring produce a uniform glow Optimized fan geometry balances airflow with extra emphasis on static pressure Trip Wire technology reduces blade turbulence LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan Get the balance right Our intelligent auto mode dynamically adjusts the fan & pump speeds for optimized silent performance – & a simple twist of the pump face changes to PWM mode for full user control. Tidier through technology ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation. Forget the thermal paste With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation. Colour-coordinated cooling Your options for controlling the colour effects of Celsius+ are continually growing, with current certifications including Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma & ASRock Polychrome support. Mounting made easy Supports the most common sockets for both Intel & AMD. Up our sleeves Braided tube sleeves readily contain both the fan control cables & ARGB wires. Main Features Tinted glass pump face with backlit logo & ARGB LED effects Articulating elbow fittings make tubes easier to route & reduces tension on the pump Backed by a 5-year warranty for extended peace of mind ...

Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block & an upgraded on-radiator PWM fan hub with ARGB support. Cool, quiet & colorful Stylish glass pump face with backlit logo & ARGB LED effects Get the balance right Our intelligent auto mode dynamically adjusts the fan & pump speeds for optimized silent performance €;;” & a simple twist of the pump face changes to PWM mode for full user control Tidier through technology ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation Forget the thermal paste With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation Colour- coordinated cooling Your options for controlling the colour effects of Celsius+ are continually growing, with current certifications including Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma & ASRock Polychrome support Mounting made easy Supports the most common sockets for both Intel & AMD Up our sleeves Braided tube sleeves readily contain both the fan control cables & ARGB wires ...

Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block & an upgraded on-radiator PWM fan hub with ARGB support. Cool, quiet & colorful Stylish glass pump face with backlit logo & ARGB LED effects Get the balance right Our intelligent auto mode dynamically adjusts the fan & pump speeds for optimized silent performance €;;” & a simple twist of the pump face changes to PWM mode for full user control Tidier through technology ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation Forget the thermal paste With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation Colour- coordinated cooling Your options for controlling the colour effects of Celsius+ are continually growing, with current certifications including Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma & ASRock Polychrome support Mounting made easy Supports the most common sockets for both Intel & AMD Up our sleeves Braided tube sleeves readily contain both the fan control cables & ARGB wires ...
