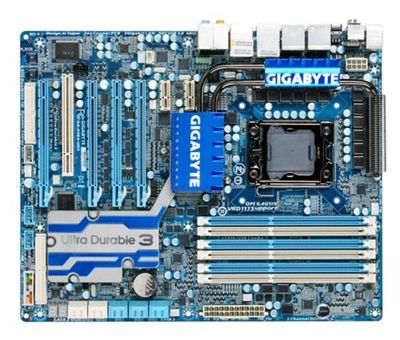

*EX Display* Gigabyte GA-X58A-UD5 Intel X58 Socket 1366 8 Channel Audio ATX Motherboard (
Includes: back plate only) * No driver cd/cables or manual included* * Only
Includes:: Back plate* Supports new generation Intel 32nm 6-core processors Ultra Durable 3 Technology with copper cooled quality for lower working temperature Supports newest NEC Super Speed USB (Universal Serial Bus) 3.0 with superfast transfer rates of up to 5 Gbps Supports 3 channel DDR3 2100+ memory Scalable ability to both 3 way Cross Fire X & 3 way SLI support for ultimate graphics Based on the Intel X58 chipset, the GIGABYTE GA-X58A-UD5 delivers all the killer next generation features that gaming enthusiasts & power users have been waiting for including GIGABYTEs 333 Onboard Acceleration features with support for USB (Universal Serial Bus) 3.0, Serial-ATA Revision 3.0 (6 Gbps) & a 3x USB (Universal Serial Bus) Power Boost, as well as multi-GPU support for NVIDIA 3-Way SLI & ATI Cross Fire X & support for Intels high performance processors offering a high level of future CPU headroom for users wanting to maintain cutting-edge levels of performance. With the memory controller integrated directly into the processor die, the GIGABYTE GA-X58A-UD5 also supports triple channel DDR3 memory for blazing fast memory performance. CPU Support for an Intel Core i 7 series processor in the LGA1366 package (Go to GIGABYTEs website for the latest CPU support list.) L3 cache varies with CPU QPI 4.8GT/s, 6.4GT/s Chipset North Bridge: Intel X58 Express Chipset South Bridge: Intel ICH10R Memory 6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory Dual/3 channel memory architecture Support for DDR3 2200/1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Go to GIGABYTEs website for the latest memory support list.) Audio Realtek ALC889 codec High Definition Audio 2/4/5.1/7.1-channel Support for Dolby Home Theater Support for S/PDIF In/ Out Support for CD In LAN 2 x RTL8111D chip (10/100/1000 Mbit) Support for Teaming Support Smart Dual LAN Expansion Slots 2 x PCI Express x 16 slots, running at x 16 (PCIEX16_1/PCIEX16_2) 2 x PCI Express x 16 slot, running at x 8 (PCIEX8_1/PCIEX8_2) (The PCIEX16_1, PCIEX16_2, PCIEX8_1 & PCIEX8_2 slots conform to PCI Express 2.0 standard.) 2 x PCI Express x 1 slots 1 x PCI slot Multi-Graphics Technology Support for 2-Way/3-Way ATI Cross Fire X/NVIDIA SLI technology Storage Interface South Bridge: 6 x SATA 3 Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3 Gb/s devices Support for SATA RAID 0, RAID 1, RAID 5, & RAID 10 Marvell 9128 chip: 2 x SATA 6 Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6 Gb/s devices Support for SATA RAID 0, & RAID 1 GIGABYTE SATA2 chip: 1 x IDE connector supporting ATA-133/100/66/33 & up to 2 IDE devices 2 x SATA 3 Gb/s connectors (GSATA2_8, GSATA2_9) supporting up to 2 SATA 3 Gb/s devices Support for SATA RAID 0, RAID 1, & JBOD JMicron JMB362 chip: 2 x e SATA 3 Gb/s connectors (e SATA/USB Combo) on the back panel sup- porting up to 2 SATA 3 Gb/s devices Support for SATA RAID 0, RAID 1, & JBOD i TE IT8720 chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive USB Integrated in the South Bridge Up to 10 USB (Universal Serial Bus) 2.0/1.1 ports (6 on the back panel, including 2 e SATA/USB Combo, 4 via the USB (Universal Serial Bus) brackets connected to the internal USB (Universal Serial Bus) headers) NEC chip: Up to 2 USB (Universal Serial Bus) 3.0/2.0 ports on the back panel IEEE 1394 T.I. TSB43AB23 chip Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 8 x SATA 3 Gb/s connectors 2 x SATA 6 Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x power fan header 1 x North Bridge fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF In header 1 x S/PDIF Out header 2 x USB (Universal Serial Bus) 2.0/1.1 headers 1 x IEEE 1394a header 1 x power button 1 x reset button Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x coaxial S/PDIF Out connector 1 x optical S/PDIF Out connector 1 x clearing CMOS button 2 x IEEE 1394a ports 4 x USB (Universal Serial Bus) 2.0/1.1 ports 2 x USB (Universal Serial Bus) 3.0 ports 2 x e SATA/USB Combo connectors 2 x RJ-45 port 6 x audio jacks (Center/ Subwoofer Speaker Out/ Rear Speaker Out/ Side Speaker Out/ Line In/ Line Out/ Microphone) I/O Controller i TE IT8720 chip H/W Monitoring System voltage detection CPU/ North Bridge temperature detection CPU/ System/ Power fan speed detection CPU overheating warning CPU fan fail warning CPU/ System fan speed control BIOS 2 x 16 Mbit flash Use of licensed AWARD BIOS Support for Dual BIOS Pn P 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b Unique Features Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery 2 Support for Easy Tune Support for Dynamic Energy Saver 2 Support for Smart 6 Support for Auto Green Support for e Xtreme Hard Drive Support for Q-Share Operating System Support for Microsoft Windows 7/ Vista/XP Form Factor ATX Form Factor; 30.5cm x 24.4cm
