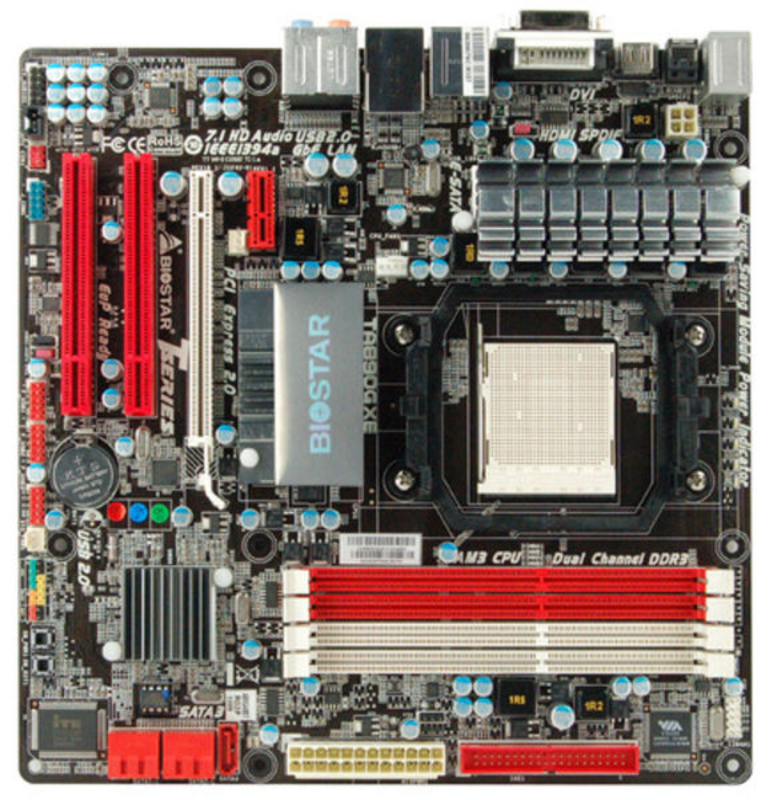

*EX Display* Biostar TA890GXE 890GX Socket AM3 Onboard DVI VGA HDMI 8
Channel Audio MATX Motherboard (Includes Back Plate Only)

Product Description

*EX Display* Biostar TA890GXE 890GX Socket AM3 Onboard DVI VGA HDMI 8 Channel Audio m ATX Motherboard (
Includes: back plate only) Supported Socket AM3 processors AMD Phenom II / Athlon II processor Supported AMD Mutil Core (x 6, x 4, x 2) AMD 140W processor support AMD 890GX Chipset with ATI Radeon HD 4290 DX10.1 Graphics 4 DIMM supported DDR3-1600 (OC)/1333/1066 On Board 128MB DDR3 Side-Port memory Supported SATA 6 Gb/s 2X speed than current SATA 3G ATI Hybrid Graphics Support Integrated HDMI/DVI interface with HDCP Support 1080P HD Video Experience BIOSTAR G.P.U (Green Power Utility ) for green power saving your desktop D.P.U ( Digital Power Unit ) Technology for better OC experience AMD Over Drive„¢ with ACC feature (Advanced Clock Calibration) supported BIO-unloc KING BIO-unloc KING technology enables the ACC function on AMD processors & unlocks extra 3rd or 4th core with a super-simple click on the keyboard. DPU (Digital Power Unit) BIOSTAR DPU (Digital Power Unit) delivers high-speed phase control for lower, efficient, & balanced temperature. DPU can be configured for precise optimization of the power current. It also supports dynamic phase control that automatically increments & decrements active phases based upon load current. With DPUs Utility & 3D (Digital Comm&, Digital Communication & Digital Control) architecture, it improves CPU VR efficiency by over 15% gain performance. GTO63 the newest technology presented by BIOSTAR GTO 63 stands for Grea Turbo Overclock, which is specially designed for overclockers. GT60, SATA 6G, & AMD 6-core processor support the Actor of GTO 63. GTO 63 offers GT60 technology with gaming capability of up to 60% gain performance; SATA6G has the fastest storage transfer rate on Earth; & the upcoming AMD 6-core processor has remarkable multi-computing solution. Real 4+1 Phases Power Design 4+1-phase VRM design with high quality power components such as low RDS (on) Mosfet for lower temperature has the advantage to raise the overclocking ability for Phenom/ Phenom II CPU. 2 Phase Memory Power Design 2-phase independent power design increases memory voltage stability & durability. Chipset AMD 890GX / SB850 CPU SUPPORT AMD Phenom„¢ II X6 Processor AMD Phenom„¢ II X4 Processor AMD Phenom„¢ II X3 Processor AMD Phenom„¢ II X2 Processor AMD Athlon„¢ II X4 Processor AMD Athlon„¢ II X3 Processor AMD Athlon„¢ II X2 Processor AMD Sempron„¢ Processor Maximum CPU TDP (Thermal Design Power): 140 Watt HT Support HT3.0 up to 5.2GT/s (Depends on AMD CPU Specification) MEMORY Support Dual Channel DDR3 1600 (OC)/1333/1066/800 M Hz 4 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory EXPANSION SLOT 2 x PCI Slots 1 x PCI-E x 1 2.0 Slot 1 x PCI-E x 16 2.0 Slot STORAGE 5 x SATA3 6 Gb/s Connector 1 x IDE Connector Support SATA RAID: 0, 1, 5, 10 USB (Universal Serial Bus) 4 x USB (Universal Serial Bus) 2.0 Port 3 x USB (Universal Serial Bus) 2.0 Header IEEE 1394 VIA VT6330 1 x IEEE 1394a Port 1 x IEEE 1394a Header Gb E Realtek RTL8111DL
- 10/100/1000 Controller INTEGRATED VIDEO ATI Radeon„¢ HD4290 Graphics with 128MB DDR3 Side-port memory, Max. Memory Share Up to 512 MB Support ATI Hybrid Crossfire. Please refer to http://ati.amd.com/technology/hybridgraphics/technology.html for details CODEC Realtek ALC892 8+2 Channel Blu-ray Audio REAR I/O 1 x PS/2 Mouse 1 x PS/2 Keyboard 1 x e SATA2 3 Gb/s Connector 1 x Fire Wire IEEE 1394a Port 4 x USB (Universal Serial Bus) 2.0 Port 1 x HDMI Connector 1 x DVI-D Connector 1 x VGA Port 1 x RJ-45 Port 6 x Audio Connector 1 x S/PDIF Out Port INTERNAL I/O 3 x USB (Universal Serial Bus) 2.0 Header 5 x SATA3 6 Gb/s Connector 1 x IDE Connector 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-OUT Header 1 x CPU FAN Header 2 x System FAN Header 1 x Serial Header 1 x Fire Wire IEEE 1394 Header 1 x CIR Header DIMENSION Micro ATX Form Factor Dimension: 24.4cm X 24.4cm (W x L ) OS SUPPORT Support Windows XP / Vista / 7
