NVIDIA NVS 300 x 16 for Display Port – The Standard for Multi-Display Business Graphics The NVIDIA NVS 300 by PNY for x 16 PCIe high resolution, multi-display business graphics solution, designed for small & standard form factor systems, delivers reliable hardware & software for a stable business environment. Tested on leading business applications, this configuration of the NVIDIA NVS 300

Includes:: a DMS-59 to dual Display Port adapter capable of driving two Display Port compatible displays up to resolutions of 2560 x 1600 at 60 Hz. With NVIDIA Mosaic Mode & NVIEW technologies built in, you can span & efficiently manage your entire Windows desktop across multiple displays. NVIDIA power management technology reduces overall system energy costs. It intelligently adapts the total power utilization of the graphics subsystem based on the applications being run by the end user. This power optimized design helps reduce Total Cost of Ownership (TCO) & increase reliability.

Specification
- Memory
- 512MB DDR3 Memory Interface
- 64-bit Memory Bandwidth
- 12.6 GB/s CUDA Paralell Processing Cores
- 16 Maximum Power Consumption
- 17.5W Thermal Solution
- Passive Energy Star Compliant
- Yes Physical

Dimensions
- SFF 2.731" H x 5.70" L Display Connectors
- DMS-59 to DP + DP Number of Displays Supported
- 2 Display Port with Audio
- Yes PCIe High Definition Audio Support
- Yes Maximum Digital Resolution
- 2560 x 1600 at 60 Hz HDCP Support
- Yes Graphics APIs
- Open GL 3.3, Direct X 10.1, Shader Model 4.1 Compute APIs
- CUDA, Direct Compute & Open CL NVIEW Enabled
- Yes Mosiac Mode Enabled
- Yes NVIDIA NVS 300 Architecture
- 128-bit color precision 12 pixels per clock rendering engine 3D volumetric texture support 3rd generation occlusion culling 16 textures per pixel in fragment programs 32x FSAA (Full-Scene Antialiasing) Rotated Grid FSAA Window ID clipping functionality Compliant with professional Open GL & Direct X applications Shading Architecture
- Full Shader Model 4.1 (Open GL 3.3, Direct X 10.1 class) Long fragment programs (unlimited instructions) Long vertex programs (unlimited instructions) Looping & subroutines (up to 256 loops per vertex program) Dynamic flow control Conditional execution Display Port Audio
- Dolby Digital (AC3) DTS 5.1 Dual Channel & Multi-channel (7.1 LPCM) Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, & 192 K Hz 16-bit, 20-bit & 24-bit word sizes Minimum System Requirements
- Windows 7, Vista, XP SP3, Linux, or Solaris PCIe x 16 expansion slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation Blu-ray, DVD-ROM or CD-ROM drive Display Port compatible display (s)




























...

The NVIDIA NVS 300 high resolution, multi-display business graphics solution, designed for small & standard form factor systems, delivers reliable hardware & software for a stable business environment. Tested on leading business applications, NVS 300 is capable of driving two VGA, single link DVI, Display Port or HDMI displays. With NVIDIA Mosaic & NVIDIA n View technologies built in, you can span & efficiently manage your entire Windows desktop across multiple displays. ...

Features The New Standard for Dual-Display Commercial Graphics The NVIDIA NVS™ 315 delivers incredible flexibility, scalability, & compatibility that lets you get the most from your existing display infrastructure. This version of the NVS 315 is ideal for Display Port users, or new installations where Display Port monitors are required. NVIDIA n View & Mosaic work with the NVS 315 to provide a whole new way to maximize your productivity. Easily manage many windows across multiple high-resolution displays & virtual desktops with a panoramic overview of your entire workspace. Best of all, the NVS 315 is designed with simplified IT management in mind, including advanced tools that make integrating & maintaining a large-scale PC deployment fast & easy. PNY provides unsurpassed service & commitment to its professional graphics customers offering: 3-Year Warranty, pre- & post-sales support, dedicated Quadro Field Application Engineers & direct tech support hotlines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, Software installation disc & documentation to ensure a quick & successful install. Overview Minimum System Requirements Windows 8, 7, Vista, SP SP3, Linux, or Solaris Available PCIe x 16 expansion slot 2GB or more of system memory, 4GB recommended 200MB of available disc space for full software installation Blu-ray or DVD-ROM (or Internet access) Display Port compatible display (s) Package Contains NVIDIA NVS 315 x 16 PCIe professional graphics board Attached full height bracket Unattached low profile bracket DMS-59 to dual Display Port adapter Software Installation & Documentation disc Printed Quick Start Guide

Specification CUDA Cores 48 GPU Memory 1.0 GB DDR3 Memory Interface 64-bit Memory Bandwidth 14GB/s System Interface PCI Express Gen 2 x 16 Maximum Power Consumption 19.5 W Thermal Solution Ultra-quiet Fansink Energy Star Compliant Yes Form Factor SFF, 2.731" H x 5.70" L Display Connectors DMS-59 to dual Display Port Display Port 1.2 Yes Display Port Multi-Streaming Yes Display Port Display Cloning Yes Display Port with Audio Yes Number of Displays Supported 2 Maximum Resolution 2560 x 1600 at 60 Hz HDCP Support Yes Graphics APIs Shader Model 5.0 (Open GL 4.3, Direct X 11) Compute APIs CUDA, Open CL, Direct Compute n View Yes Mosaic Yes Warranty 3 Years PNY Part Number VCNVS315DP-PB

...

CUDA Cores
- 192 GPU Memory
- 2GB DDR3 Memory Interface
- 128-bit Memory Bandwidth
- 28.5GB/s System Interface
- PCI




...

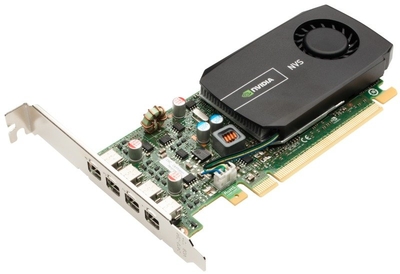

PNY NVIDIA NVS 510 2GB DDR3 Quad DVi Display Port PCI-E Graphics Card CUDA Cores
- 192 GPU Memory
- 2GB DDR3 Memory Interface
-


...

The NVIDIA Quadro NVS 420 by PNY Technologies for x 16 PCIE is a quad-display business graphics solution, specifically designed for small form factor systems, that delivers a reliable hardware & software platform for enterprise environments requiring robust IT management tools for seamless companywide deployment. Featuring NVIDIA n View™ advanced display software technology & support for up to four 30” displays at 2560 x 1600 resolution, business professionals can maximize productivity through increased desktop real estate & advanced application management tools. The Quadro NVS 420 is tested on leading business applications & designed to meet the needs of today’s most demanding business user. Featuring CUDA™ parallel computing processors with a unified architecture designed to dynamically allocate GPU resources, the Quadro NVS 420 solution delivers optimized performance for business graphics. Capable of supporting up to four digital displays at resolutions of up to 2560 x 1600 each through Display Port connectors (PN VCQ420NVS-X16-PB, DVI display users should purchase PN VCQ420NVSX16DVI-PB), the Quadro NVS 420 maximizes productivity by enabling more screen real estate from a single graphics card. Through the NVIDIA n View advanced display software, Quadro NVS 420 enables features such as profiles, extended Windows taskbar, gridlines, & virtual desktops. In addition, Quadro NVS 420 provides high-quality HD video output & high memory bandwidth for today’s more demanding digital signage requirements.

Specification Product Specifications: Bus Interface: PCI Express x 16 Memory

Size: 512MB of local GDDR3 frame buffer (256MB per GPU) Memory Interface: 128-bit (64-bit per GPU) Form Factor: SFF (Small Form Factor) profile, 2.731” (H) x 6.6” (L) Display Connectors: VHDCI to quad Display Port (PN VCQ420NVS-X16-PB) Display Connectors: VHDCI to quad DVI-D Single Link (PN VCQ420NVSX16DVI-PB) Max. Displays per Board: 4 Max Digital Display Resolution: 2560 x 1600 (Display Port) Power & Cooling: 40W – Active Fansink n View Enabled: Yes



...

PNY On-The-Go Duo-Link OU3 32GB USB (Universal Serial Bus) Flash Drive Overview With PNY Duo-Link OU3 On-The-Go Flash Drive you can easily & quickly transfer & share files (music, pictures, videos, movies…) stored on your PC or Mac computer to your Android device thanks to its USB (Universal Serial Bus) & Micro-USB connectors. Want to share easily content stored on your smartphone with your friends? Transfer files on your PNY Duo-Link & plug it on your friend’s Android device! Thanks to PNY Duo-Link we can also free up your internal storage capacity by transferring heavy files on PNY Duo-Link & stream directly on your Android Smartphone or Tablet.

Features: Weight: 2, 2g

Size: 2, 7 x 1, 7 x 7, 6 cm Speed (USB 3.0 connector): 32/64GB: up to 120MB/s read, 20MB/s write Warranty: 2 years Environmental Conditions: Operating Temperature: 0°C to +70°C Storage Temperature:
- 40°C to +85°C Supported OS: Windows 2000/ XP / Vista, Windows 7, Windows 8; Mac OS: 10.3 & above; Smartphone: Android 4.0 later




...

Optima technology offers faster data transfer & optimizes the device functionalities dealing with the device buffer memory content. SDHC Optima flash cards are the ideal storage solution for cameras & camcorders that use SD flash cards. SDHC Optima cards are enhanced for HD (High Definition) video recording because of its high capacity & performances. ...

Superb reliability & low power consumption make the PNY Secure Digital Optima card perfect for digital applications. Optima technology offers faster data transfer & optimizes the device functionalities dealing with the device buffer memory content. SDHC OPTIMA flash cards are the ideal storage solution for cameras & camcorders that use SD flash cards. SDHC OPTIMA cards are enhanced for HD (High Definition) video recording because of its high capacity & performances. As a proof of quality PNY Optima is the Flash Memory choice of National Geographic Emergency Explorers program 2008. Features A must-have for digital SLR cameras & digital recorders Highly recommended for burst-mode photography Reduced lag time between shots SPI-mode compatible Integrated SDMI encryption technology (Secure Digital Music Initiative) ensures that data & copyrighted music remain secure This technology satisfies artists needs for safeguarding their work, & content owners & users enjoy greater data security Infinitely reusable without quality loss 100% compatible with all devices using SD Secure Digital cards 5 Year Manufacturer Warranty

Specification Storage Memory Type: Flash Memory

Size: 16GB Memory Package: SDHC Performance Read Speed: up to 16MB/s Write Speed: up to 8MB/s Mean Time Between Failure (MTBF): 1, 000, 000 Hours Environmental Operating Temperature 0 to 55°C Storage Temperature -20 to 65°C Other Voltage: 2.7 to 3.6V Dimensions: 2.40cm (W) x 0.21cm (D) x 3.20cm (H)



...

Optima technology offers faster data transfer & optimizes the device functionalities dealing with the device buffer memory content. SDHC Optima flash cards are the ideal storage solution for cameras & camcorders that use SD flash cards. SDHC Optima cards are enhanced for HD (High Definition) video recording because of its high capacity & performances. ...
