Exclusive 0d B thermal design dissipates heat efficiently without any noise ASUS low profile HTPC & multimedia-focused graphics cards are optimized for smooth 1920x 1080 streaming & Blu-ray 3D EMI Shield Reduces 66%* of electromagnetic interference for a stable signal, clearer screen display & a safer, healthier computing environment Specifications Graphics Engine
- AMD Radeon HD 6450 Bus Standard
- PCI Express 2.1 Video Memory
- DDR3 1GB Engine Clock
- 625 MHz Memory Clock
- 1200 MHz (600 MHz DDR3 ) RAMDAC
- 400 MHz Memory Interface
- 64-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 (DVI-D) HDMI Output: Yes x 1 HDCP Support: Yes ASUS Features
- Silent Series Power Consumption
- up to 75 Wno additional PCIe power required

Dimensions
- 7 " x 5.43 " Inch











...

Exclusive 0d B thermal design dissipates heat efficiently without any noise EMI Shield Reduces 66%* of electromagnetic interference for a stable signal, clearer screen display & a safer, healthier computing environment Specifications Graphics Model
- AMD Radeon HD 6450 Bus Standard
- PCI Express 2.1 Video Memory
- DDR3 2GB Engine Clock
- 650 MHz Memory Clock
- 1200 MHz (DDR3 ) Memory Interface
- 64-bit Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 (DVI-D) HDMI Output: Yes x 1 HDCP Support: Yes Power Consumption
- up to 75 Wno additional PCIe power required ASUS Features
- Silent Series

Dimensions
- 6.6 " x 4.6 " Inch Low Profile Brackets not included.










...

Pump up graphics performance with Super Alloy Power that delivers 15% Performance boost, 2.5 longer lifespan, 35C cooler operation Dust-proof fan design dissipates heat efficiently & extends card lifespan by 25% longer LP Bracket bundled: HTPC ready design. Free Low profile bracket bundled Specifications Graphics Engine AMD Radeon HD 6570 Bus Standard PCI Express 2.1 Video Memory DDR3 1GB Engine Clock 650 MHz Memory Clock 1800 MHz (900 MHz DDR3 ) Memory Interface 128-bit Resolution DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 (DVI-D) HDMI Output: Yes x 1 HDCP Support: Yes Software ASUS Utilities & Driver Low Profile Bracket Bundled Yes (1 slots x 2 ) ASUS Features Super Alloy Power

Dimensions 6.6 " x 4.6 " Inch

...

Asus HD 6570 2GB DDR3 DVI HDMI PCI-E Graphics Card Graphics Engine
- AMD Radeon HD 6570 Bus Standard
- PCI Express 2.1 Video

...

Pump up graphics performance with Super Alloy Power that delivers 15% Performance boost, 2.5 longer lifespan, 35C cooler operation Dust-proof fan design dissipates heat efficiently & extends card lifespan by 25% longer Graphics Engine AMD Radeon HD 6670 Bus Standard PCI Express 2.1 Video Memory DDR3 1GB Engine Clock 800 MHz Memory Clock 1800 MHz (900 MHz DDR3 ) Memory Interface 128-bit Resolution DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 (DVI-D) HDMI Output: Yes x 1 HDCP Support: Yes Software ASUS Utilities & Driver ASUS Features Super Alloy Power

Dimensions 6.6 " x 4.6 " Inch

...

Specifications Graphics Engine
- AMD Radeon HD 6670 Video Memory
- GDDR5 1GB Engine Clock
- 810 MHz Memory Clock
- 4 GHz



...

Pump up graphics performance with Super Alloy Power that delivers 15% Performance boost, 2.5 longer lifespan, 35°C cooler operation Dust-proof fan design dissipates heat efficiently & extends card lifespan by 25% longer Specifications Graphics Engine
- AMD Radeon HD 6670 Bus Standard
- PCI Express 2.1 Video Memory
- DDR3 2GB Engine Clock
- 800 MHz Memory Clock
- 1800 MHz (DDR3 ) Memory Interface
- 128-bit Resolution
- DVI Max Resolution 2560x 1600 Interface
- D-Sub x 1, DVI x 1 (DVI-D), HDMI x 1 Power Consumption Up to 75W no additional PCIe power required ASUS Features Fan Sink Super Alloy Power

Dimensions 6.6 " x 4.6 " Inch









...

Direct CU copper heat pipes directly contact with the GPU for rapid heat dissipation for 20%* cooler operation compared to reference Pump up graphics performance with Super Alloy Power that delivers 15% Performance boost, 2.5 longer lifespan, 35C cooler operation Graphics Engine AMD Radeon HD 6770 Bus Standard PCI Express 2.1 Video Memory GDDR5 1GB Engine Clock 850 MHz Memory Clock 4000 MHz (1000 MHz GDDR5 ) RAMDAC 400 MHz Memory Interface 128-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1, Yes x 1 (via HDMI to DVI adaptor x 1) HDMI Output: Yes x 1 HDCP Support: Yes Accessories 1 x HDMI to DVI adaptor 1 x Power cable Software ASUS Utilities & Driver Dirt 3 coupon x 1 ASUS Features Direct CU Series Super Alloy Power

Dimensions 9.64 " x 5.71 " x 1.57 " Inch

...

Factory Overclocked at 790 M Hz for 10 M Hz higher than clock performance Boost up to 50%* higher with ASUS exclusive Voltage Tweak Exclusive Direct CU thermal solution reaches 20% cooler Immersive multi-display gaming experience with advanced Eyefinity technology Direct CU Precision mounted Direct CU copper heatpipes in direct contact with the GPU for rapid heat dissipation – creating 20%* cooler & quiet performance in idle. Voltage Tweak Full throttle overclocking with exclusive ASUS Voltage Tweak via Smart Doctor – boosting 50%* more speed, performance & satisfaction!

Specification Graphics Engine AMD Radeon HD 6850 Bus Standard PCI Express 2.1 Video Memory GDDR5 1GB Effective Memory Bandwidth 256-bit Engine Clock 790 MHz Memory Clock 4000 MHz (1000 MHz GDDR5 ) RAMDAC 400 MHz Memory Interface 256-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 (via DVI to D-Sub adaptor x 1) DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Accessories 1 x Cross Fire cable 2 x Power cable 1 x DVI to D-Sub adaptor ASUS Features Direct CU Series Dimensions 10.24 " x 4.84 " Inch

...

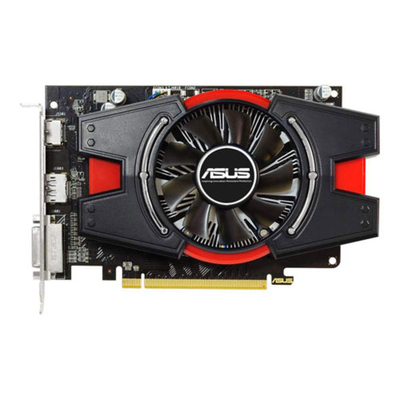

Asus HD 7750 1GB GDDR5 DVI HDMI Display Port PCI-E Graphics Card GPU Tweak utility helps you modify & tune clock speeds, voltages, & fan performance via an intuitive interface. AMD Eyefinity technology extends your viewing landscape across multiple monitors. New PCIe 3.0 delivers double the bandwidth per lane of PCIe 2.0 for faster GPU–CPU communication. Specifications: Graphics Engine
- AMD Radeon HD 7750 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 1GB Engine Clock
- 820 MHz Memory Clock
- 4600 MHz (1150 MHz GDDR5 ) RAMDAC
- 400 MHz Memory Interface
- 128-bit Resolution
- D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface
- D-Sub Output: Yes x 1 (via DVI to D-Sub adaptor x 1) DVI Output: Yes x 1 (DVI-I) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Accessories
- 1 x DVI to D-Sub adaptor Power Consumption
- up to 75 Wno additional PCIe power required Software
- ASUS Utilities & Driver ASUS Features
- Fan Sink

Dimensions
- 7.8 " x 5 " x 1.7 " Inch















...
