D-link HD Outdoor Fixed Dome Camera With Color Night Vision- 1/3
Megapixel Progressive CMOS Sensor- H.264/ MPEG-4/ MJPEG- Max.
Resolution 1280x720 Up To 30 Fps- WDR For Critical Light Source- Color
Image Provide In 0.1 Lux Low Light Environment

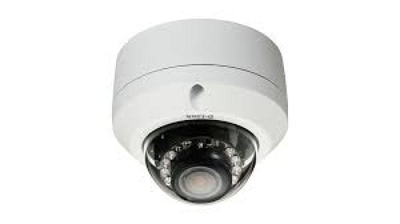

The D-Link DCS-6315 HD WDR Varifocal Outdoor Fixed Dome Network Camera is a high definition professional video surveillance and security solution suitable for small, medium and large enterprises. The camera uses a high-sensitivity megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in video surveillance applications without the need for additional accessories. High-Quality Colour Night Vision Incorporating a highly sensitive CMOS sensor with LowLight+ technology, the DCS-6315 provides outstanding performance in low light-conditions, resulting in more vibrant colour detail regardless of the amount of light available.
The noise reduction feature has been upgraded and enhanced to provide exceptional quality images with high levels of detail. To maximise bandwidth efficiency and improve image quality, the DCS-6315 provides real-time video compression using the H.264, MPEG&8209;4 and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory. Continuous Monitoring The DCS-6315’s WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects
that are backlit or in brightly lit areas. In low-light situations, the infrared-cut filter automatically slides out of the way to use all available light. The DCS-6315 also has built-in IR LED illuminators with a 15 metre range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable video surveillance camera capable of monitoring an area 24 hours a day. Robust Management Software The DCS-6315 HD WDR Varifocal Outdoor Fixed Dome Network Camera includes D-ViewCam™, a complete video surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital
input devices, keeping administrators informed of any unusual activity. Flexible Connectivity The DCS-6315 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. In addition, the included digital input and output connector enables connections to external devices such as IR sensors, switches and alarm relays. Features Exceptional Video Quality 1/3” 1 megapixel progressive CMOS sensor with colour night vision capability HD resolution of 1280 x 720 Wide Dynamic Range image enhancement LowLight+ H.264, MPEG-4, MJPEG codec support for streaming and recording Motion detection Privacy masks Outdoor Placement Built-in IR LED illuminator with
a 15 metre range for use in dark areas Range of mounting options for flexible placement Rugged IP68 weatherproof housing Weathershield to protect unit when mounted outdoors Flexibility MicroSD/SDHC/SDXC card slot for onboard storage1 10/100 Fast Ethernet port with PoE ensures easy integration into your network DI/DO socket for connection to external devices Audio in and out jacks can be connected to a microphone and speaker for 2-way communication Technical Specifications Camera Camera Hardware Profile 1/3” Megapixel progressive CMOS sensor 15 metre IR illumination distance Built-in infrared-cut removable (ICR) filter module Minimum illumination: 0.1 lux colour mode 0.02 lux black and white mode 0 lux black and white mode with IR LED on Minimum object distance 0.2 m 2.8 to 12mm
variable focal lens Aperture F1.4 Angle of view (16:9) (H) 90° to 28° (V) 58.8° to 16° (D) 103° to 33° Camera Housing IP-68 compliant weatherproof housing IK-10 compliant vandal-proof housing Included weathershield Image Features Configurable image size, quality, frame rate, and bit rate Time stamp and text overlays Configurable motion detection windows Configurable privacy mask zones Configurable exposure time, brightness, saturation, contrast, sharpness. Video Compression Simultaneous H.264/MPEG-4/MJPEG format compression H.264/MPEG-4 multicast streaming JPEG for still images Video Resolution 16:9 - 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176 at up to 30 fps 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at up to 30 fps
Audio Support G.726 G.711 External Device Interfaces 10/100 BASE-TX Ethernet port with PoE 1 DI / 1 DO DC12 V, 400 mA Output microSD/SDHC/SDXC card slot, accepts cards up to 64 GB1 Audio input / output Network Network Protocols IPv6 IPv4 TCP/IP UDP ICMP DHCP client NTP client (D-Link) DNS client DDNS client (D-Link) SMTP client FTP client HTTP / HTTPS Samba client PPPoE UPnP port forwarding RTP / RTSP/ RTCP IP filtering QoS CoS Multicast ONVIF compliant SNMP Security Administrator and user group protection Password authentication HTTP and RTSP authentication System Management System Requirements for Web Interface Browser: Internet Explorer, Firefox, Chrome, Safari Event Management Motion detection Event notification and uploading of snapshots/video clips via e-mail or FTP Supports
multiple SMTP and FTP servers Multiple event notifications Multiple recording methods for easy backup Remote Management Take snapshots/video clips and save to local hard drive Configuration interface accessible via web browser OS Support Windows 2000/XP/Vista/Windows 7/8/iPhone/iPad/Android D-ViewCam™ System Requirements Operating System: Microsoft Windows 8/7/Vista/XP Web Browser: Internet Explorer 7 or higher Protocol: Standard TCP/IP D-ViewCam™ Software Functions Remote management/control of up to 32 cameras Supports all management functions provided in web interface Viewing of up to 32 cameras on one screen Scheduled motion triggered, or manual recording options General Weight 1.112kg (2.45 lbs) Power Input: 100 to 240 V AC, 50/60 Hz Output: 12 V DC 1.5 A Power
Consumption 12.24 +/- 5% watts Temperature Operating: -30 to 50 °C (-22 to 124 °F) Storage: -20 to 70 °C (-4 to 158 °F) Humidity Operating: 20% to 80% non-condensing Storage: 5% to 95% non-condensing Certifications CE CE LVD FCC C-Tick Dimensions Ø128 x 123.2 mm Optional Accessories DCS-34-3 - Bent Arm Mount, 253 x 150 mm (9.96 x 5.9 inches), 770 grams (1.7 lbs) 1. microSD card not included
The noise reduction feature has been upgraded and enhanced to provide exceptional quality images with high levels of detail. To maximise bandwidth efficiency and improve image quality, the DCS-6315 provides real-time video compression using the H.264, MPEG&8209;4 and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory. Continuous Monitoring The DCS-6315’s WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects
that are backlit or in brightly lit areas. In low-light situations, the infrared-cut filter automatically slides out of the way to use all available light. The DCS-6315 also has built-in IR LED illuminators with a 15 metre range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable video surveillance camera capable of monitoring an area 24 hours a day. Robust Management Software The DCS-6315 HD WDR Varifocal Outdoor Fixed Dome Network Camera includes D-ViewCam™, a complete video surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital
input devices, keeping administrators informed of any unusual activity. Flexible Connectivity The DCS-6315 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. In addition, the included digital input and output connector enables connections to external devices such as IR sensors, switches and alarm relays. Features Exceptional Video Quality 1/3” 1 megapixel progressive CMOS sensor with colour night vision capability HD resolution of 1280 x 720 Wide Dynamic Range image enhancement LowLight+ H.264, MPEG-4, MJPEG codec support for streaming and recording Motion detection Privacy masks Outdoor Placement Built-in IR LED illuminator with
a 15 metre range for use in dark areas Range of mounting options for flexible placement Rugged IP68 weatherproof housing Weathershield to protect unit when mounted outdoors Flexibility MicroSD/SDHC/SDXC card slot for onboard storage1 10/100 Fast Ethernet port with PoE ensures easy integration into your network DI/DO socket for connection to external devices Audio in and out jacks can be connected to a microphone and speaker for 2-way communication Technical Specifications Camera Camera Hardware Profile 1/3” Megapixel progressive CMOS sensor 15 metre IR illumination distance Built-in infrared-cut removable (ICR) filter module Minimum illumination: 0.1 lux colour mode 0.02 lux black and white mode 0 lux black and white mode with IR LED on Minimum object distance 0.2 m 2.8 to 12mm
variable focal lens Aperture F1.4 Angle of view (16:9) (H) 90° to 28° (V) 58.8° to 16° (D) 103° to 33° Camera Housing IP-68 compliant weatherproof housing IK-10 compliant vandal-proof housing Included weathershield Image Features Configurable image size, quality, frame rate, and bit rate Time stamp and text overlays Configurable motion detection windows Configurable privacy mask zones Configurable exposure time, brightness, saturation, contrast, sharpness. Video Compression Simultaneous H.264/MPEG-4/MJPEG format compression H.264/MPEG-4 multicast streaming JPEG for still images Video Resolution 16:9 - 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176 at up to 30 fps 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at up to 30 fps
Audio Support G.726 G.711 External Device Interfaces 10/100 BASE-TX Ethernet port with PoE 1 DI / 1 DO DC12 V, 400 mA Output microSD/SDHC/SDXC card slot, accepts cards up to 64 GB1 Audio input / output Network Network Protocols IPv6 IPv4 TCP/IP UDP ICMP DHCP client NTP client (D-Link) DNS client DDNS client (D-Link) SMTP client FTP client HTTP / HTTPS Samba client PPPoE UPnP port forwarding RTP / RTSP/ RTCP IP filtering QoS CoS Multicast ONVIF compliant SNMP Security Administrator and user group protection Password authentication HTTP and RTSP authentication System Management System Requirements for Web Interface Browser: Internet Explorer, Firefox, Chrome, Safari Event Management Motion detection Event notification and uploading of snapshots/video clips via e-mail or FTP Supports
multiple SMTP and FTP servers Multiple event notifications Multiple recording methods for easy backup Remote Management Take snapshots/video clips and save to local hard drive Configuration interface accessible via web browser OS Support Windows 2000/XP/Vista/Windows 7/8/iPhone/iPad/Android D-ViewCam™ System Requirements Operating System: Microsoft Windows 8/7/Vista/XP Web Browser: Internet Explorer 7 or higher Protocol: Standard TCP/IP D-ViewCam™ Software Functions Remote management/control of up to 32 cameras Supports all management functions provided in web interface Viewing of up to 32 cameras on one screen Scheduled motion triggered, or manual recording options General Weight 1.112kg (2.45 lbs) Power Input: 100 to 240 V AC, 50/60 Hz Output: 12 V DC 1.5 A Power
Consumption 12.24 +/- 5% watts Temperature Operating: -30 to 50 °C (-22 to 124 °F) Storage: -20 to 70 °C (-4 to 158 °F) Humidity Operating: 20% to 80% non-condensing Storage: 5% to 95% non-condensing Certifications CE CE LVD FCC C-Tick Dimensions Ø128 x 123.2 mm Optional Accessories DCS-34-3 - Bent Arm Mount, 253 x 150 mm (9.96 x 5.9 inches), 770 grams (1.7 lbs) 1. microSD card not included
