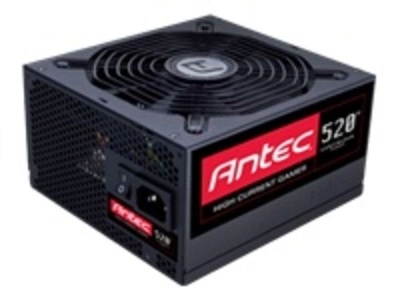

High Current Power, Low Cost Power Supply Antec's High Current power supplies are the perfect PSU combination of power & efficiency. The High Current Gamer features a high-power +12V rail & special heavy-duty High Current connectors & cabling that supply extreme levels of power, & also superb efficiency thanks to 80 PLUS Bronze certification & Active PFC. Highest-quality gold-plated connectors, Japanese-brand capacitors & quiet 135 mm double ball bearing fans complete the package. If loads of power, High Current engineering & extreme efficiency are what youre after, the High Current Gamer is the PSU for you.

Features: 620 watts of Continuous Power 80 PLUS Bronze certified
- up to 88% efficient High Current +12V rail for graphics card compatibility & over current protection (OCP) for safety Quiet 135 mm double ball bearing cooling fan All Japanese brand capacitors for reliability Gold-plated High Current terminals for optimal conductivity ATX12V version 2.3 & EPS12V version 2.91 compliant Full industrial-grade protection:
- Over current protection (OCP)
- Over voltage protection (OVP)
- Short circuit protection (SCP)
- Over power protection (OPP) Universal Input
- works on any 100V
- 240V grid Active PFC with PF: 0.99
- less harmonic pollution & more savings on corporate electrical bills MTBF: 100, 000 hours Meets 2010 EUP requirement: 5 Vsb < 1W Safety: c UL, TUV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R Unit Dimension
- 86mm (H) x 150mm (W) x 160mm (D)
- 3.39" (H) x 5.91" (W) x 6.3" (D) Package Dimension
- 115mm (H) x 273mm (W) x 181mm (D)
- 4.5" (H) x 10.9" (W) x 7.1" (D) Weight
- Net: 4.6 lbs / 2.1 kg
- Gross: 5.9 lbs / 2.7kg Cable Connectors: 1 x 20+4 Pin 2 x 6+2 PCI-E 1 x 6 Pin PCI-E 6 x SATA 6 x Molex 1 x Floppy 1 x 4+4 Pin ATX/EPS















...

Elite power meets unrivaled performance Antec's HCG M power supplies are the perfect combination of power & efficiency. The HCG M features special heavy-duty High Current connectors & cabling that supply extreme levels of power, & superb efficiency thanks to 80 PLUS Bronze certification & Active PFC. Highest-quality connectors, Japanese-brand capacitors, & a quiet 135 mm double ball bearing fan complete the package. The HCG-620M features High Current Cable Management & 10-pin modular connectors. If loads of power, High Current engineering & extreme efficiency are what you're after, the HCG M is the PSU for you.

Features: 620 watts of Continuous Power 80 PLUS Bronze certified — up to 87% efficient High Current Hybrid Cable Management — special 10-pin & 5-pin modular connectors for High Current rail Quiet 135 mm Double Ball Bearing cooling fan Stealth Wires: all wires darkened for minimal visibility in chassis All Japanese brand capacitors for reliability Thermal Manager: an advanced low voltage fan control for optimal heat & noise management Up to 90% power available on +12V rail ATX12V version 2.32 & EPS12V version 2.92 compliant Heavy-duty protection circuitry on all rails prevents damage from a variety of dangers:
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Short Circuit Protection (SCP)
- Over Power Protection (OPP)
- Surge & Inrush Protection (SIP) AQ5 — Antec Quality 5 year limited warranty on parts & labor MTBF: 100, 000 hrs POWER SUPPLY CONNECTORS ASSORTMENT:
- 1 x 24 (20+4)-pin
- 1 x 8 (4+4)-pin ATX12V/EPS12V
- 2 x 8 (6+2)-pin PCI-E
- 6 x SATA
- 6 x Molex
- 1 x Floppy













...

Description Antec’s HCG M power supplies are the perfect combination of power & efficiency. The HCG M features special heavy-duty High Current connectors & cabling that supply extreme levels of power, & superb efficiency thanks to 80 PLUS BRONZE certification & Active PFC. HCG M’s innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors & even future connectors of 10, 12, 14 or 16-pins. Highest-quality connectors, Japanese-brand capacitors, & a quiet 135 mm double ball bearing LED fan complete the package. Circuit Shield™ makes the HCG-750M safe & reliable in any environment with its nine industrial-grade protections. If loads of power, High Current engineering & extreme efficiency are what you’re after, the HCG M is the PSU for you. Key Features 750W Continuous Power
- Guaranteed 750W of Continuous Power from Antec 80 PLUS BRONZE certified
- Up to 88% efficient, to reduce your electricity bill 16-pin Socket Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket & allow for future connector changes Cooling
- 135 mm LED DBB Silence Fan Japanese Heavy-Duty Caps
- High-performance Japanese capacitors ensure tightest DC stability & regulation Connectors 20+4 Pin Main Connectors:1 4+4 Pin 12V Connectors:1 SATA Connectors:9 (Modular) 4-Pin Molex Connectors:6 (Modular) 6+2 Pin PCI-e Connectors:4 (Modular) Floppy Drive Connectors:1 (Modular) Detailed Specifications Dimensions: 150mm x 86mm x 170mm (W x H x D) Input Voltage: 100-240 VAC Input Current: 10
- 5A Input Frequency Range: 50-60 Hz PFC: Active PFC (>.99) Power Good Signal: 0 Hold Up Time: 0 Efficiency: 88% MTBF: 100, 000 Hours Protection: OCP / OVP / UVP / SCP / OPP / SIP Power: 750w Operation Temperature: 0-50°C Safety: UL / c UL / CB / CE / FCC / TUV / BSMI / CCC more.. Cooling: 135mm White LED DBB Silence Fan Noise: < 21 d BA 80 Plus Certified: Yes
- 80 Plus Bronze





...

Antec’s HCG M power supplies are the perfect combination of power & efficiency. The HCG M features special heavy-duty High Current connectors & cabling that supply extreme levels of power, & superb efficiency thanks to 80 PLUS BRONZE certification & Active PFC. HCG M’s innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors & even future connectors of 10, 12, 14 or 16-pins. Highest-quality connectors, Japanese-brand capacitors, & a quiet 135 mm double ball bearing LED fan complete the package. Circuit Shield™ makes the HCG-850M safe & reliable in any environment with its nine industrial-grade protections. If loads of power, High Current engineering & extreme efficiency are what you’re after, the HCG M is the PSU for you.

Features: 850W Continuous Power
- Guaranteed 850W of Continuous Power from Antec 80 PLUS BRONZE certified
- Up to 88% efficient, to reduce your electricity bill AQ5
- Antec Quality 5 year warranty & lifetime global 24/7 support 16-pin Socket
- Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket & allow for future connector changes 135 mm LED DBB Silence
- Whisper-quiet high-quality double ball bearing LED fan with long lifetime Thermal Manager
- An advanced low voltage fan control for optimal heat & noise management High Current Rails
- 2 +12V rails with high load capabilities ensure maximum CPU & GPU compatibility 98.8% +12V
- Output for maximum CPU & GPU support Multi PCI-E
- 4 PCI-E connectors for multiple GPU support NVIDIA SLI-Ready & AMD Crossfire certified
- Tested & certified by NVIDIA for SLI & AMD for Crossfire systems Circuit Shield™
- Full suite of industrial grade protections:
- Over Current Protection (OCP),
- Over Voltage Protection (OVP),
- Under Voltage Protection (UVP),
- Short Circuit Protection (SCP),
- Over Power Protection (OPP),
- Over Temperature Protection (OTP) & Surge & Inrush Protection (SIP) Japanese Heavy-Duty Caps
- High-performance Japanese capacitors ensure tightest DC stability & regulation Stealth Wires
- All wires darkened for minimal visibility in chassis




















...

. rm-cont h 2, . rm-row h 2{margin:0 0 10px}.u 1, . u 1-2{float:left}.rm-row{
Width:725px;overflow:hidden;padding:30px 0;border-bottom:1px
...

Antec HCP-1000 1000W HCP Platinum 80+ Platinum 13.5cm PWM DBB Fan Jap Caps Description Antecs High Current Pro Platinum series is the pinnacle of power supplies. High Current Pro Platinum is fully modular with a revolutionary 20+8-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS PLATINUM & Er P Lot 6: 2013 certified, operating up to 94% efficient, you can reduce your electricity bill by up to 25% when compared to many other power supplies. HCP Platinums innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors & even future connectors of 10, 12, 14 or 16-pins. Backed by a 7 year warranty & lifetime global 24/7 support, the HCP-1000 Platinum embodies everything a power supply can accomplish today. Key Features 1000W Continuous Power
- Guaranteed 1000W of Continuous Power from Antec 80 PLUS PLATINUM certified
- Up to 94% efficient, to reduce your electricity bill 135 mm DBB Silence
- Whisper-quiet high-quality double ball bearing fan with long lifetime High Current Rails
- 4 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility All Japanese Heavy-Duty Caps
- All high-performance Japanese capacitors ensure tightest DC stability & regulation AQ7
- Antec Quality 7 year warranty & lifetime global 24/7 support Detailed Specifications Dimensions: 150mm x 86mm x 190mm (W x H x D) Input Voltage: 100-240 VAC Input Current: 6.5A Input Frequency Range: 50-60 Hz PFC: Active PFC (>.99) Power Good Signal: 100-500 ms Hold Up Time: >17ms Efficiency: 94% MTBF: 100, 000 Hours Protection: OCP / OVP / UVP / OPP / SCP / BOP / SIP / NLO Power: 1000w Operation Temperature: 0-40°C Safety: UL, c UL, CB, CE, FCC, T œV, BSMI, CCC, C-Tick, GOST Cooling: 135mm Ultra Silent Fan Noise: < 17 d BA 80 Plus Certified: Yes
- 80 Plus Platinum Certification: n Vidia SLi Certified ATi Crossfire Certified






...

Antec HCP-1300 1300W 80+ Platinum Certified PSU Description Antecs High Current Pro Platinum series is the pinnacle of power supplies. High Current Pro Platinum is fully modular with a revolutionary 20+8-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS PLATINUM & Er P Lot 6: 2013 certified, operating up to 94% efficient, you can reduce your electricity bill by up to 25% when compared to many other power supplies. HCP Platinums innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors & even future connectors of 10, 12, 14 or 16-pins. All cables are darkened to become Stealth Wires & are thus nearly invisible in your chassis. 4 High Current Rails & a 100% +12V output ratio maximize HCP-1300 Platinums capabilities to power the latest CPUs & GPUs. HCP Platinums Phase Wave Design is a server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology. All Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your systems performance. Antecs intelligent Thermal Manager fan control spins the high-quality 13.5cm DBB fan optimally to cool your PSU quietly. Circuit Shield makes the HCP-1300 Platinum safe & reliable in any environment with its nine industrial-grade protections. Backed by a 7 year warranty & lifetime global 24/7 support, the HCP-1300 Platinum embodies everything a power supply can accomplish today. Key Features 1300W Continuous Power
- Guaranteed 1300W of Continuous Power from Antec 80 PLUS PLATINUM certified
- Up to 94% efficient, to reduce your electricity bill Save Energy & Money
- Reduce your electricity bill by up to 25% AQ7
- Antec Quality 7 year warranty & lifetime global 24/7 support 16-pin Socket
- Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket & allow for future connector changes 28 (20+8)-pin MBU socket
- Worlds first socket for possible future MBU connectors 135 mm DBB Silence
- Whisper-quiet high-quality double ball bearing fan with long lifetime Thermal Manager
- An advanced low voltage fan control for optimal heat & noise management High Current Rails
- 4 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility 100% +12V
- Output for maximum CPU & GPU support Multi PCI-E
- 10 PCI-E connectors for multiple GPU support OC Link
- Allows 2 HCP Platinums to work in tandem to power the most demanding systems Circuit Shield
- Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protection (SIP), No Load Operation (NLO) & Brown-Out Protection (BOP) All Japanese Heavy-Duty Caps
- All high-performance Japanese capacitors ensure tightest DC stability & regulation Phase Wave Design
- A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology Stealth Wires
- All wires darkened for minimal visibility in chassis Connectors 24 Pin Main Connectors:1 4+4 Pin 12V Connectors:1 8-Pin 12V Connectors:1 SATA Connectors:9 4-Pin Molex Connectors:6 6+2 Pin PCI-e Connectors:10 Floppy Drive Connectors:1 Detailed Specifications Dimensions: 150mm x 86mm x 190mm (W x H x D) Input Voltage: 100-240 VAC Input Current: 15A-7A Input Frequency Range: 50-60 Hz PFC: Yes
- Power Factor Control Power Good Signal: Hold Up Time: Efficiency: 80 PLUS PLATINUM certified
- Up to 94% efficient MTBF: Protection: OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO / BOP Power: 1300W Operation Temperature: 0-50°C Safety: UL, c UL, CB, CE, FCC, TUV, BSMI, CCC, C-Tick, GOST Cooling: Noise: 80 Plus Certified: Yes
- 80 Plus Platinum


















...

Antec HCP-1300 1300W 80+ Platinum Certified PSU 13.5cm DBB Fan Jap Caps Description Antec’s High Current Pro Platinum series is the pinnacle of power supplies. High Current Pro Platinum is fully modular with a revolutionary 20+8-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS PLATINUM & Er P Lot 6: 2013 certified, operating up to 94% efficient, you can reduce your electricity bill by up to 25% when compared to many other power supplies. HCP Platinum’s innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors & even future connectors of 10, 12, 14 or 16-pins. All cables are darkened to become Stealth Wires & are thus nearly invisible in your chassis. 4 High Current Rails & a 100% +12V output ratio maximize HCP-1300 Platinum’s capabilities to power the latest CPU’s & GPU’s. HCP Platinum’s Phase Wave Design is a server-class “full-bridge” LLC design with a synchronous rectification based on a DC-DC topology. All Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance. Antec’s intelligent Thermal Manager fan control spins the high-quality 13.5cm DBB fan optimally to cool your PSU quietly. Circuit Shield makes the HCP-1300 Platinum safe & reliable in any environment with its nine industrial-grade protections. Backed by a 7 year warranty & lifetime global 24/7 support, the HCP-1300 Platinum embodies everything a power supply can accomplish today. Key Features 1300W Continuous Power
- Guaranteed 1300W of Continuous Power from Antec 80 PLUS PLATINUM certified
- Up to 94% efficient, to reduce your electricity bill Save Energy & Money
- Reduce your electricity bill by up to 25% AQ7
- Antec Quality 7 year warranty & lifetime global 24/7 support 16-pin Socket
- Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket & allow for future connector changes 28 (20+8)-pin MBU socket
- Worlds first socket for possible future MBU connectors 135 mm DBB Silence
- Whisper-quiet high-quality double ball bearing fan with long lifetime Thermal Manager
- An advanced low voltage fan control for optimal heat & noise management High Current Rails
- 4 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility 100% +12V
- Output for maximum CPU & GPU support Multi PCI-E
- 10 PCI-E connectors for multiple GPU support OC Link
- Allows 2 HCP Platinums to work in tandem to power the most demanding systems Circuit Shield
- Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protection (SIP), No Load Operation (NLO) & Brown-Out Protection (BOP) All Japanese Heavy-Duty Caps
- All high-performance Japanese capacitors ensure tightest DC stability & regulation Phase Wave Design
- A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology Stealth Wires
- All wires darkened for minimal visibility in chassis Connectors 24 Pin Main Connectors:1 4+4 Pin 12V Connectors:1 8-Pin 12V Connectors:1 SATA Connectors:9 4-Pin Molex Connectors:6 6+2 Pin PCI-e Connectors:10 Floppy Drive Connectors:1 Detailed Specifications Dimensions: 150mm x 86mm x 190mm (W x H x D) Input Voltage: 100-240 VAC Input Current: 15A-7A Input Frequency Range: 50-60 Hz PFC: Yes
- Power Factor Control Power Good Signal: Hold Up Time: Efficiency: 80 PLUS PLATINUM certified
- Up to 94% efficient MTBF: Protection: OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO / BOP Power: 1300W Operation Temperature: 0-50°C Safety: UL, c UL, CB, CE, FCC, TUV, BSMI, CCC, C-Tick, GOST Cooling: Noise: 80 Plus Certified: Yes
- 80 Plus Platinum


















...

Antec's HCP-750 unifies raw power with advanced PSU engineering to meet the demands of high performing PCs. A full-featured, 80 PLUS Gold certified unit, HCP-750 is capable of outputting 100 percent of its rated power on its four +12V rails to ensure CPU & graphics card compatibility. Exclusive to the High Current series, HCP-750 boasts High Current heavy-gauge 16 AWG wiring that boosts conductivity, increasing efficiency & improving power delivery. In addition, a double-layer PCB & onboard DC-to-DC converters provide substantial voltage stability. To tackle the needs of your system, pick up Antec's HCP-750.

Features: 750 watts of Continuous Power 80 PLUS™ Gold certified
- up to 92% efficient NVIDIA SLI-Ready certified, ATI Cross Fire X™ certified Intelligent Hybrid Cable Management utilizes a 10-pin modular connector system Special heavy-gauge 16 AWG High Current cable for CPU connectors boosts conductivity, increasing efficiency & improving power delivery 2 x 8-pin CPU connectors included for dual-CPU gaming, server applications & high-end motherboards Gold-plated high-current terminals for optimal conductivity 135 mm double ball bearing PWM fan for optimal & quiet cooling Four fully-protected High Current +12V rails ensure high-end CPU & graphics cards compatibility Up to 100% power available on +12V rails DC-to-DC voltage regulator modules ensure stability & higher efficiency Highest quality Japanese brand capacitors for long-term reliability Double-layer PCB allows for heavy-duty components ATX12V version 2.3 & EPS12V version 2.92 compliant Full suite of industrial grade protection:
- Over current protection (OCP)
- Over voltage protection (OVP)
- Short circuit protection (SCP)
- Over power protection (OPP)
- Over temperature protection (OTP) All cables braided & wrapped for better airflow & neatness Universal Input – works on any 100V
- 240V grid Active PFC with PF: 0.99 MTBF: 100, 000 hours Meets 2010 EUP requirement: 5 Vsb < 1W AQ5 Antec Quality 5-year limited warranty on parts & labor Safety: c UL, Tu V, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R Dimensions: 3.4” (H) x 5.9” (W) x 7.1” (D) 86 mm (H) x 150 mm (W) x 180 mm (D) Net Weight: 5.5 lbs / 2.5kg








...

Antec&226;s High Current Pro Platinum series is the pinnacle of power supplies. High Current Pro Platinum is fully modular with a revolutionary 20+8-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS&194;&174; PLATINUM & Er P Lot 6: 2013 certified, operating up to 94% efficient, you can reduce your electricity bill by up to 25% when compared to many other power supplies. HCP Platinum&226;s innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors & even future connectors of 10, 12, 14 or 16-pins. All cables are darkened to become Stealth Wires & are thus nearly invisible in your chassis. 4 High Current Rails & a 100% +12V output ratio maximize HCP-850 Platinum&226;s capabilities to power the latest CPU&226;s & GPU&226;s. HCP Platinum&226;s Phase Wave&226;&8222;&162; Design is a server-class &226;&8364;&3full-bridge&226;&8364; LLC design with a synchronous rectification based on a DC-DC topology. All Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system&226;s performance. Antec&226;s intelligent Thermal Manager fan control spins the high-quality 13.5cm DBB fan optimally to cool your PSU quietly. Circuit Shield&226;&8222;&162; makes the HCP-850 Platinum safe & reliable in any environment with its nine industrial-grade protections. Backed by a 7 year warranty & lifetime global 24/7 support, the HCP-850 Platinum embodies everything a power supply can accomplish today. Key Features Platinum Efficiency - up to 94% efficient for reduced energy bills AQ7 - Full seven year warranty for peace of mind Components - All Japanese heavy duty components Cool & Quiet - A 135mm fan with voltage control for quiet & cool computing Stealth Wires - All cables are darkened for the ultimate in design asthetics PSU Specifications AC INPUT: 100-240 VAC 5.5A 50-60 Hz DC Output Max +3.3V +5V +12V1 +12V2 +12V3 +12V4 -12V +5VSB 25A 25A 40A 40A 40A 40A 0.5A 3A 850W Connectors 20+4 Pin Main Connectors: 1 (Modular) 4+4 Pin 12V Connectors: 1 (Modular) 8-Pin 12V Connectors: 1 (Modular) SATA Connectors: 9 (Modular) 4-Pin Molex Connectors: 6 (Modular) 6+2 Pin PCI-e Connectors: 6 (Modular) Floppy Drive Connectors: 1 (Modular) Detailed Specifications Dimensions: 190mm x 150mm x 86mm (W x H x D) Input Voltage: 100-240 VAC Input Current: 5.5A Input Frequency Range: 50-60 Hz PFC: Active PFC (>.99) Power Good Signal: 100-500 ms Hold Up Time: >17ms Efficiency: 94% MTBF: > 100, 000 Hours Protection: UL, c UL, CB, CE, FCC, T&195;&3V, BSMI, CCC, C-Tick, GOST-R Power: 850W Operation Temperature: 0-50&194;&176;C Safety: UL, c UL, CB, CE, FCC, T&195;&3V, BSMI, CCC, C-Tick, GOST Cooling: 135mm DBB fan Noise: < 17 d BA 80 Plus Certified: Yes
- 80 Plus Platinum Certification: n Vidia SLi Certified ATi Crossfire Certified General Specifications Manufacturer Part Number: 0-761345-06251-0 EAN Number: 0761345062510 Has Mains Plug: Yes

Colour: Black


...
