Upgrade to an energy efficient, reliable, & high performance PC Computer System This 430 Watt Power Supply is 80 Plus certified, providing stable power while balancing maximum energy efficiency. Compliant with ATX12V 2.3 standards, this EPS12V 2.91 power supply offers four 12V power rails, two 6-pin PCI Express connectors & an 8-pin EPS connector. A versatile power solution, the PSU is suitable as an energy efficient replacement/upgrade power supply for desktop PCs, & features Active Power Factor Correction & 20/24 pin motherboard support to deliver the flexibility needed to support AMD or Intel CPU-based entry-level servers, gaming PCs & high end work stations. To encourage re-using your existing PC power cord as a new environmental initiative. Designed to provide dependable, long-lasting power, this 80 plus 430 Watt ATX12V 2.3 EPS Computer power supply meets or exceeds 80 Plus, providing 80.5% or greater efficiency at 20%, 50% & 100% loads. Warranty 3 Years Color Gray Enclosure Type Nickel-plated Steel Output Power 430W Peak Power Output 500W Efficiency Rating 84.08% @20%/89W 84.81% @50%/219W 82.47% @100%/437W Power Factor Correction Active Fans 1
- 80 mm Fan Bearing Type Dual Ball Bearing Noise Level 31.3 d Ba RPM 3000 RPM +/-10% Air Flow Rate 43.94 CFM Connectors 1
- 24 pin ATX Power with detachable 4 pin Female Connectors 1
- 4 pin Mini-Power (SP4) Female Connectors 1
- 8 pin (4+4) 2x ATX12V (EPS) Power Female Connectors 2
- 6 pin PCIe Power Female Connectors 3
- 4 pin Power (LP4) Female Connectors 5
- 15 pin SATA Power Female Input Current 10A @ 115VAC / 5A @ 230VAC Input Voltage 110 ~ 240 AC Input Voltage Frequency 47~63 Hz Max Inrush Current 60A @ 110VAC / 120A @ 220VAC Current +12.0V1 (A) 20A Current +12.0V2 (A) 20A Current +12.0V3 (A) 20A Current +12.0V4 (A) 20A Current -12.0V (A) 0.5A Current +3.3V (A) 24A Current +5.0V (A) 24A Current +5.0 Vsb (A) 2.5A Product Length 140 Product Width 150 Product Height 86 Product Weight 1710 Humidity 5~90% RH Operating Temperature 0°C to 40°C (32°F to 104°F) @ 90% Load Storage Temperature -20°C to 80°C (-4°F to 176°F) MTBF 100, 000 hours Shipping (Package) Weight 1.72kg [3.8 lb]






...

Upgrade to an energy efficient, reliable, & high performance PC Computer System This 530 Watt Power Supply is 80 Plus Bronze certified, providing stable power while balancing maximum energy efficiency. Compliant with ATX12V 2.3 standards, this EPS12V 2.91 power supply offers four 12V power rails, two 6-pin PCI Express connectors & an 8-pin EPS connector. A versatile power solution, the PSU is suitable as an energy efficient replacement/upgrade power supply for desktop PCs, & features Active Power Factor Correction & 20/24 pin motherboard support to deliver the flexibility needed to support AMD or Intel CPU-based entry-level servers & high end work stations. To encourage re-using your existing PC power cord as a new environmental initiative, a PC power cord is NOT included; however if you require one they are available as an optional accessory. Designed to provide dependable, long-lasting power, this higher level 80 Plus 530 Watt ATX12V 2.3 EPS12V Computer power supply meets or exceeds 80 Plus Bronze standards, providing 82% or greater efficiency at 20%, 50% & 100% loads. Warranty 3 Years Color Gray Enclosure Type Nickel-plated Steel Output Power 530W Peak Power Output 600W Efficiency Rating 84.72% @20%/109W 85.61% @50%/271W 82.01% @100%/535W Power Factor Correction Active Fans 1
- 80 mm Fan Bearing Type Dual Ball Bearing Noise Level 31.3 d Ba RPM 3000 RPM +/-10% Air Flow Rate 43.94 CFM Connectors 1
- 24 pin ATX Power with detachable 4 pin Female Connectors 1
- 4 pin Mini-Power (SP4) Female Connectors 1
- 8 pin (4+4) 2x ATX12V (EPS) Power Female Connectors 2
- 6 pin PCIe Power Female Connectors 3
- 4 pin Power (LP4) Female Connectors 5
- 15 pin SATA Power Female Input Current 10A @ 115VAC / 5A @ 230VAC Input Voltage 110 ~ 240 AC Input Voltage Frequency 47~63 Hz Max Inrush Current 60A @ 110VAC / 120A @ 220VAC Current +12.0V1 (A) 20A Current +12.0V2 (A) 20A Current +12.0V3 (A) 20A Current +12.0V4 (A) 20A Current -12.0V (A) 0.5A Current +3.3V (A) 24A Current +5.0V (A) 24A Current +5.0 Vsb (A) 2.5A Product Length 140 Product Width 150 Product Height 86 Product Weight 1710 Humidity 5~90% RH Operating Temperature 0°C to 40°C (32°F to 104°F) @ 90% Load Storage Temperature -20°C to 80°C (-4°F to 176°F) MTBF 100, 000 hours Shipping (Package) Weight 1.72kg [3.8 lb]






...

Reduce internal cable clutter & upgrade to high efficiency 80 Plus performance. This 630 Watt Modular Power Supply is 80 Plus certified, making it suitable as an energy efficient replacement/upgrade power supply for desktop PCs. This ATX12V PSU features Active Power Factor Correction & 20/24-pin motherboard support to deliver the flexibility needed to support AMD or Intel CPU-based entry-level servers & high-end workstations, while providing stable power & maximum energy efficiency. Compliant with ATX12V 2.3 standards, this EPS12V 2.91 power supply offers four 12V power rails, an 8-pin EPS connector, & a modular cable design, enabling you to choose the connectors you require based on your system configuration. The power supply also features a 120mm fan for quieter, more efficient cooling in demanding systems. Designed to provide dependable, long-lasting power, this higher level 630 Watt ATX12V 2.3 EPS12V power supply meets or exceeds 80 Plus standards, providing 80% or greater efficiency at 20%, 50% & 100% loads. Warranty 3 Years Color Gray Enclosure Type Nickel-plated Steel Output Power 630W Peak Power Output 700W Efficiency Rating 85.39% @20%/130W 85.29% @50%/323W 80.02% @100%/636W Power Factor Correction Active Fans 1
- 120 mm Fan Bearing Type Dual Ball Bearing Noise Level 31.3 d Ba RPM 3000 RPM +/-10% Air Flow Rate 43.94 CFM Connectors 1
- 24 pin ATX Power with detachable 4 pin Female Connectors 1
- 4 pin Mini-Power (SP4) Female Connectors 1
- 6 pin PCIe Power Female Connectors 1
- 8 pin (4+4) 2x ATX12V (EPS) Power Male Connectors 2
- 8 pin (6+2) PCIe Power Female Connectors 3
- 4 pin Power (LP4) Female Connectors 6
- 15 pin SATA Power Female Input Current 10A @ 115VAC / 5A @ 230VAC Input Voltage 110 ~ 240 AC Input Voltage Frequency 47~63 Hz Max Inrush Current 60A @ 110VAC / 120A @ 220VAC Current +12.0V1 (A) 20A Current +12.0V2 (A) 20A Current +12.0V3 (A) 20A Current +12.0V4 (A) 20A Current -12.0V (A) 0.5A Current +3.3V (A) 24A Current +5.0V (A) 24A Current +5.0 Vsb (A) 2.5A Product Length 141 mm [5.55 in] Product Width 150 Product Height 86 Product Weight 2.1kg [4.64 lb] Humidity 10~90% RH Operating Temperature 0°C to 40°C (32°F to 104°F) @ 90% Load Storage Temperature -20°C to 80°C (-4°F to 176°F) MTBF 100, 000 hours Shipping (Package) Weight 2.6kg [5.75 lb]







...

All-in-one tester, designed for testing RJ45, RJ11, USB (Universal Serial Bus) & BNC cables This professional-grade multi-function cable tester offers a simple way to test RJ45, RJ11, USB (Universal Serial Bus) & BNC cables, eliminating time & hassle. ...

Convert & scale a VGA signal to work with an HDMI® enabled display or monitor Easy to use converter with built-in scaler to help ensure compatibility with most displays means that you can convert analog audio/video to digital format avoiding costly upgrades Backed by Star Tech.com’s 2-year warranty & free lifetime technical support The VGA2HDMIPRO VGA to HDMI® Audio Video Converter with scaler takes an analog VGA video signal & converts to a digital HDMI or DVI-D output. The device has a built-in scaler that will allow you to adjust the output signal to a resolution that is compatible with your HDMI (or DVI) enabled display. In addition to the video conversion, the device also features both a 3.5 mm & Toslink audio connection providing the option to output the accompanying audio combined into the HDMI output, or through a separate Toslink cable to your television or home theater receiver. A perfect solution for bridging your analog technology with a newer DVI or HDMI-enabled device while maintaining high-quality video & audio performance (up to 1920x 1200 / 1080p). The VGA to HDMI converter/scaler features an automatic native resolution detection feature that make it easy to setup & ensures broad display compatibility as well as a convenient on-screen display menu offering access to several selectable output resolutions & image adjustments giving you full control of your multimedia output. Backed by a Star Tech.com 2-year warranty & free lifetime technical support. What’s in the box VGA to HDMI Converter / Scaler 4ft (1.2m) VGA Cable 6ft (1.8m) 3.5mm to RCA Cable Universal Power Adapter (US/UK/EU/AUS) Instruction Manual ...

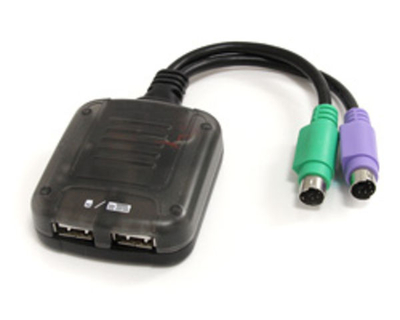

The Star Tech PS/2 to USB (Universal Serial Bus) Adapter means that you can connect a standard PS/2 keyboard & PS/2 mouse to a single USB (Universal Serial Bus) port on your PC or Mac. USB (Universal Serial Bus)-compliant operating systems (such as Windows 98 or Mac OS 8.6) will automatically recognize your keyboard & mouse as USB (Universal Serial Bus) input devices. It is ideal for connecting a full size keyboard & mouse to the USB (Universal Serial Bus)-capable notebook computer. It can also be used as a basic console sharer for instructional applications. ...

Star Tech.com QSFP+ Server Network Card
- PCI Express
- Intel XL710 Chip Converged Fiber NIC Adapter PCIe 40 Gbps 1x QSFP+ Slot

...

Copper QSFP+ Cable 40 Gbps Active DAC Lifetime Warranty FULL TITLE - Star Tech.com QSFP40GAC7M 7m MSA Compliant QSFP+ Direct-Attach Twinax Cable Delivers reliable 40 Gbps connections for 40 G Base-T compliant networks Star Tech.com SFP cables are backed by a lifetime warranty Uses a cost-effective cabling alternative to fiber-optic setups The QSFP40GAC7M is an MSA compliant direct-attach copper QSFP+ cable that’s designed, programmed & tested to work in 40G network deployments. It delivers dependable 40 Gb E connectivity over&82copper cabling, &82which is a cost-effective alternative to fiber-optic cable setups.&82&82 This active Twinax cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. The cable is hot-swappable, making upgrades & replacements seamless by minimizing network disruptions. At 7 meters long & designed for high-speed performance, this copper QSFP+ cable is ideal for medium-distance applications such as across-rack network switch or server connections. ...

Star Tech.com Quad-Port SFP+ Server Network Card Add four 10 Gigabit fiber Ethernet ports to your server or workstation, using the SFP+ transceiver of your choice Key features Provide redundant network links to mission-critical systems Add four 10 Gb E SFP+ slots to your server or workstation for fast, high-bandwidth connectivity, compatible with SR or LR transceivers Compatible with multimode & single-mode fiber ...

The R-Port Serial Remote Control module offers a unique way to expand the capability of your Server Remote Control device or Digital KVM switch. All configuration settings are stored separately in each attached device in nonvolatile memory so that they will not be lost in the event of a power outage or disconnection. Control your serial devices
- routers, managed switches, printers, or even serial console based Linux servers
- as if you were right there in the room with them. Daisy-chain up to 16 R-Port devices, & control them all using an interactive Web interface! To minimize your space & infrastructure requirements, the R-Port devices use a single cable to carry both power & data. Star Tech.com's Server Remote Control products allow you the flexibility to control your device locally via console, or remotely via the network or the public Internet. You choose the best way to work with your devices!

...
