The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is ideal for increased connectivity & maximum performance for enterprise data center flexibility. The HBA features the SAS3808 x 8, Gen 4.0 I/O Controller (IOC), making it part of the industry's first HBA family to offer both PCIe Gen 4.0 host & storage interfaces. With increased bandwidth & IOPS performance compared to previous generations, the 9500-8e adapter delivers the performance & scalability needed by critical applications. Connects up to 1024 SAS/SATA devices or 32 NVMe devices Provides maximum connectivity & performance for high-end servers & applications Support critical applications with the bandwidth of PCIe 4.0 connectivity Universal Bay Management (UBM) Ready ...

The high-port 9500-16i Tri-Mode, PCIe Gen 4.0 HBA is ideal for increased connectivity & maximum performance for enterprise data center flexibility. With increased bandwidth & IOPS performance compared to previous generations, the 9500-16i adapter delivers the performance & scalability needed by critical applications. Connects up to 1024 SAS/SATA devices or 32 NVMe devices Provides maximum connectivity & performance for high-end servers & applications Support critical applications with the bandwidth of PCIe 4.0 connectivity Universal Bay Management (UBM) Ready ...

The explosive growth of data in cloud & enterprise datacenters is driving the need for a higher performance storage interface to speed the ability of critical applications to access data. Avago's solutions are designed to deliver the performance & data protection capabilities required for the highly-demanding server & storage platforms. ...

The Mega RAID 9500 series is the industry's first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host & storage interfaces. The Mega RAID 9560-16i adapter, based on the SAS3916 high-port count PCIe 4.0 x 8 RAID-on-Chip (Ro C), delivers twice the performance of previous generations. The 9560-16i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today's ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode Ser Des technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-16i is instrumental in getting the most performance & flexibility out of U.3 backplanes: With Tri-Mode Ser Des technology, the adapter negotiates between speeds & protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure. Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller Fits into rack-mounted servers with low-profile form factor & side-mounted SAS connectors Form-factor friendly cable exit Support critical, high-bandwidth applications with PCIe 4.0 connectivity Balance protection & performance for critical applications with RAID 0, 1, 5, 6, 10, 50 & 60 JBOD mode with RAID 0, 1, 10 & JBOD for SDS environments Add more protection & peace of mind with Cache Vault flash cache protection ...

The Mega RAID 9500 series is the industry's first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host & storage interfaces. The Mega RAID 9560-8i adapter, based on the SAS3908 high-port count PCIe 4.0 x 8 RAID-on-Chip (Ro C), delivers twice the performance of previous generations. The 9560-8i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today's ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode Ser Des technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-8i is instrumental in getting the most performance & flexibility out of U.3 backplanes: With Tri-Mode Ser Des technology, the adapter negotiates between speeds & protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure. Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller Fits into rack-mounted servers with low-profile form factor & side-mounted SAS connectors Form-factor friendly cable exit Support critical, high-bandwidth applications with PCIe 4.0 connectivity Balance protection & performance for critical applications with RAID 0, 1, 5, 6, 10, 50 & 60 JBOD mode with RAID 0, 1, 10 & JBOD for SDS environments Add more protection & peace of mind with Cache Vault flash cache protection ...

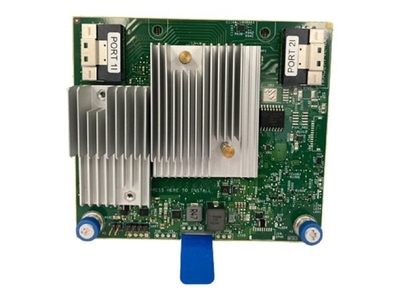

Powerful performance Broadcom Mega RAID Storage Controllers for HPE Gen 10 Plus feature Broadcom MR416i controllers with impressive performance including up to 13, 700 Mbs of bandwidth, 3M random read IOPS, and 240K RAID5 random write IOPS. 2nd generation tri-mode Ser Des Broadcom Mega RAID Storage Controllers for HPE Gen 10 Plus is enabled with Ser Des for exceptional support of NVMe 4/SAS3/SATA protocols. With tri-mode support, achieve the scalability & flexibility you need for shifting business environments. Enhanced security Broadcom Mega RAID Storage Controllers for HPE Gen 10 Plus is built with the HPE Silicon Root of Trust for firmware authentication & support for self-encrypting drives to help ensure protection for data at rest & prevention of malware. ...

Supports 50G PAM-4 & 25G NRZ signaling Multi-Host up to four hosts Fully compliant with the SFF-8402 standard SR-IOV with up to 1k virtual functions (VFs) Function-Level Reset (FLR) support Tru Flow flow processing engine Tunnel-aware stateless offloads DCB support
- PFC, ETS, QCN, DCBx RDMA over Converged Ethernet (Ro CE) Network Controller Sideband Interface (NC-SI) SMBus 2.0 MCTP over SMBus Jumbo frames up to 9 KB Advanced congestion avoidance Multiqueue, Net Queue, & VMQ IPv 4 & IPv 6 offloads TCP, UDP, & IP checksum offloads Large send offload (LSO) Large receive offload (LRO) TCP segmentation offload (TSO) Receive-side scaling (RSS) Transmit-side scaling (TSS) VLAN insertion/removal Interrupt coalescing Network boot
- PXE, UEFI Wake-on-LAN (WOL) MSI & MSI-X OCP 3.0 FRU support

...

Broadcom Net Xtreme E-Series N425G Network adapter PCIe 4.0 x 16 low profile 25 Gigabit SFP28 x 4 ...

Based on Broadcom's scalable 10/25/50/100/200G Ethernet controller architecture, the Net Xtreme-E Series P2100G 2x 100G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise & cloud-scale networking & storage applications, including high-performance computing, telco, machine learning, storage disaggregation & data analytics. The P2100G 2x 100G PCIe NIC builds upon the success of the widely deployed Net Xtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance & improve server efficiency. Driven by the growing need for higher server bandwidth & storage capacity to support emerging applications, enterprises, telcos & cloud providers are modernizing their data centers by adopting networking technologies, such as server virtualization & NVMe-o F. The resulting expansion in data volumes increases server-to-server traffic & CPU loads for networking tasks. ...

P210TP
- 2 x 10GBASE-T PCIe NIC High-Performance, Feature-Rich Net Xtreme E-Series Dual-Port 10GBASE-T pcie Ethernet NIC Based
...
