Form factor
- ATX AA (Altered Assembly)
- G28808-XXX BIOS ID string

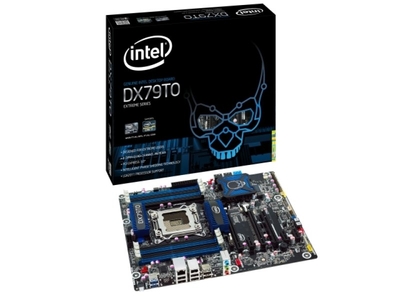

- SIX7910J.86A Processor: At product launch, this Intel Desktop Board DX79TO supports: Intel Core i 7 Extreme Edition processor series in the LGA2011 socket Memory: Eight 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for up to DDR3 1600+ O.C. Support for up to 64 GB of system memory Chipset Intel X79 Express Chipset Audio: Intel High Definition Audio (Intel HD Audio) subsystem in the following configuration: 6-channel (5.1+2 independent multi-streaming) audio subsystem with three analog audio outputs LAN support Intel Gigabit (10/100/1000 Mb/s) LAN subsystem using Intel Gigabit Ethernet Controller Peripheral interfaces: Two Super Speed USB (Universal Serial Bus) 3.0 ports (2 external ports) 14 USB (Universal Serial Bus) 2.0 ports (6 external ports, 8 via internal headers) Six Serial ATA ports: 2 internal connectors (6.0 Gb/s), 4 internal connectors (3.0 Gb/s) Two IEEE 1394a ports (1 external port, 1 via internal header) Consumer Infrared receiver & emitter Expansion capabilities: Two PCI Express 3.0 x 16 bus add-in card connectors Three PCI Express x 1 connectors One PCI Conventional bus connector
