Features Supports 7th Generation Intel Core™ Processor, enables overclocking on Unlocked Intel Core Processors Intel Z270 single chip architecture Support 4-DIMM DDR4-3600 (OC)/ 2400/ 2133/ 1866 up to 64G maximum capacity BIOSTAR Double Hi-Fi Technology inside Lightning Charger Technology Digital Power+ Technology Support USB (Universal Serial Bus) 3.1 Type-C Support M.2 (32 Gb/s) (Intel Optane™ Technology Ready) Support U.2 (32 Gb/s) (Intel Optane™ Technology Ready) Support HDMI 4K resolution

Specification Chipset Intel Z270 CPU SUPPORT 7th & 6th Gen Intel Core™ i 7 LGA 1151 Processor 7th & 6th Gen Intel Core™ i 5 LGA 1151 Processor 7th & 6th Gen Intel Core™ i 3 LGA 1151 Processor 7th & 6th Gen Intel Pentium LGA 1151 Processor 7th & 6th Gen Intel Celeron LGA 1151 Processor Maximum CPU TDP (Thermal Design Power): 95 Watt MEMORY Support Dual Channel DDR4 3600 (OC)/ 2400/ 2133/ 1866 MHz 4 x DDR4 DIMM Memory Slot Max. Supports up to 64GB Memory EXPANSION SLOT 4 x PCI-E 3.0 x 16 Slot (x 16, x 8, x 4, x 4) 2 x PCI-E 3.0 x 16 Slot (x 4) (Intel Optane Technology ready) STORAGE 6 x SATA3 Connector Support SATA RAID: 0, 1, 5, 10 2 x U.2 32 Gb/s Connector, support PCI-E Storage (share w/ PCI-Ex 16_SB_1/PCI-Ex 16_SB_3) (Intel Optane Technology ready) 1 x M.2 Key M 32 Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6 Gb/s (share w/ SATA3_2L) & PCI-E Storage (Intel Optane Technology ready) Support PCI-E Storage RAID: 0, 1, 5 USB 1 x USB (Universal Serial Bus) 3.1 Type-C Port 1 x USB (Universal Serial Bus) 3.1 Port 4 x USB (Universal Serial Bus) 3.0 Port 1 x USB (Universal Serial Bus) 3.0 Header 2 x USB (Universal Serial Bus) 2.0 Header LAN Intel I219V
- Gigabit Ethernet PHY INTEGRATED VIDEO By CPU model Supports DX12 Supports HDCP CODEC Realtek ALC1220 8-Channel Blu-ray Audio Support Blu-ray Audio Support HD Audio Support Biostar Hi-Fi REAR I/O 1 x PS/2 1 x USB (Universal Serial Bus) 3.1 Type-C Port 1 x USB (Universal Serial Bus) 3.1 Port 4 x USB (Universal Serial Bus) 3.0 Port 1 x Display Port Connector, resolution up to 4096 x 2304 @60 Hz (Optional) 1 x HDMI Connector, resolution up to 4096 x 2160 @60 Hz, compliant with HDMI 2.0 1 x HDMI Connector, resolution up to 4096 x 2160 @30 Hz, compliant with HDMI 1.4b 1 x RJ-45 Port 5 x Audio Connector 1 x S/PDIF Out Port INTERNAL I/O 1 x USB (Universal Serial Bus) 3.0 Header 2 x USB (Universal Serial Bus) 2.0 Header 6 x SATA3 6 Gb/s Connector 2 x U.2 32 Gb/s Connector, support PCI-E Storage (share w/ PCI-Ex 16_SB_1/PCI-Ex 16_SB_3) (Intel Optane Technology ready) 1 x M.2 Key M 32 Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6 Gb/s (share w/ SATA3_2L) & PCI-E Storage (Intel Optane Technology ready) 1 x Front Audio Header 1 x Front Panel Header 2 x CPU Fan Header 3 x System Fan Header 1 x LN2 Switch 2 x 5050 LED Header 1 x Thunderbolt 3 Header H/W MONITORING CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU / System Fan Control System Voltage Monitoring OVERVOLTAGE CPU SFR/ CPU Vcore/ VSA/ VCC_IO/ VGT/ VCC_PLL_OC/ DDR/ DDR VPP/ PCH 1.0V DIMENSION ATX Form Factor Dimension: 30.5cm x 24.4cm (W x L ) OS SUPPORT Support Windows 10 (x 64) for Intel 7th Generation Processor &8251; Support Windows 7 / 8.1 (x 64) / 10 (x 64) for Intel 6th Generation Processor BUNDLE SOFTWARE Racing GT Utility Bull Guard Intel Rapid Storage Technology ACCESSORIES 4 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual FEATURES VIVID LED DJ VIVID LED ARMOR 5050 LED FUN ZONE Digital Power+ Lightning Charger M.2 Cooling Protection Supports Double Hi-Fi GT TOUCH Supports 100% Solid capacitor Supports Rapid Debug 3 Supports Charger Booster Supports BIOS Online Update


...

Features Supports 7th Generation Intel Core™ Processor, enables overclocking on Unlocked Intel Core Processors Intel Z270 single chip architecture Support 4-DIMM DDR4-3200 (OC)/ 2400/ 2133/ 1866 up to 64G maximum capacity BIOSTAR Hi-Fi Technology inside Support USB (Universal Serial Bus) 3.0 Type-C Support M.2 (32 Gb/s) (Intel Optane™ Technology Ready) Support U.2 (32 Gb/s) (Intel Optane™ Technology Ready) Support HDMI 4K resolution Specifications Chipset Intel Z270 CPU SUPPORT Intel Core™ i 7 LGA 1151 Processor Intel Core™ i 5 LGA 1151 Processor Intel Core™ i 3 LGA 1151 Processor Intel Pentium LGA 1151 Processor Intel Celeron LGA 1151 Processor Maximum CPU TDP (Thermal Design Power): 95 Watt MEMORY Support Dual Channel DDR4 3200 (OC)/ 2400/ 2133/ 1866 MHz 4 x DDR4 DIMM Memory Slot Max. Supports up to 64GB Memory EXPANSION SLOT 2 x PCI-E x 16 3.0 Slot (x 16, x 4) 2 x PCI-E x 1 3.0 Slot STORAGE 6 x SATA3 Connector Support SATA RAID: 0, 1, 5, 10 1 x U.2 32 Gb/s Connector, support PCI-E Storage (Intel Optane Technology ready) 1 x M.2 Key M 32 Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6 Gb/s & PCI-E Storage (share w/ SATA_1) (Intel Optane Technology ready) Support PCI-E Storage RAID: 0, 1 USB (Universal Serial Bus) 1 x USB (Universal Serial Bus) 3.0 Type-C Port 3 x USB (Universal Serial Bus) 3.0 Port 1 x USB (Universal Serial Bus) 3.0 Header 2 x USB (Universal Serial Bus) 2.0 Port 2 x USB (Universal Serial Bus) 2.0 Header LAN Intel I219V
- Gigabit Ethernet PHY Support Super LAN Surge Protection INTEGRATED VIDEO By CPU model Supports DX12 Supports HDCP CODEC Realtek ALC892 8-Channel Blu-ray Audio Support Blu-ray Audio Support HD Audio Support Biostar Hi-Fi REAR I/O 1 x PS/2 1 x USB (Universal Serial Bus) 3.0 Type-C Port 3 x USB (Universal Serial Bus) 3.0 Port 2 x USB (Universal Serial Bus) 2.0 Port 1 x Display Port Connector, resolution up to 4096 x 2304 @60 Hz (Optional) 1 x HDMI Connector, resolution up to 4096 x 2160 @30 Hz, compliant with HDMI 1.4 1 x DVI-D Connector, resolution up to 1920 x 1200 @60 Hz 1 x VGA Port, resolution up to 1920 x 1200 @60 Hz 1 x RJ-45 Port 6 x Audio Connector INTERNAL I/O 1 x USB (Universal Serial Bus) 3.0 Header 2 x USB (Universal Serial Bus) 2.0 Header 6 x SATA3 6 Gb/s Connector 1 x U.2 32 Gb/s Connector, support PCI-E Storage (Intel Optane Technology ready) 1 x M.2 Key M 32 Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6 Gb/s & PCI-E Storage (share w/ SATA_1) (Intel Optane Technology ready) 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-Out Header 1 x CPU Fan Header 2 x System Fan Header 1 x LN2 Switch 2 x 5050 LED Header 1 x Thunderbolt 3 Header H/W MONITORING CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU / System Fan Control System Voltage Monitoring OVERVOLTAGE CPU Vcore/ VSA/ VCC_IO/ VGT/ VCC_PLL_OC/ DDR/ DDR VPP/ PCH 1.0V DIMENSION Micro ATX Form Factor Dimension: 24.4cm x 24.4cm (W x L ) OS SUPPORT Support Windows 10 (x 64) for Intel 7th Generation Processor &8251; Support Windows 7 / 8.1 (x 64) / 10 (x 64) for Intel 6th Generation Processor BUNDLE SOFTWARE Racing GT Utility Bull Guard Intel Rapid Storage Technology (Optional) ACCESSORIES 4 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual 1 x RGB LED Adapter Cable FEATURES VIVID LED DJ 5050 LED FUN ZONE Supports PURO Hi-Fi (Front) GT TOUCH Supports 100% Solid capacitor Supports Rapid Debug 3 Supports Charger Booster Supports BIOS Online Update
...

Features Supports 8th Generation Intel Core™ Processor, enables overclocking on Unlocked Intel Core Processors Intel Z370 single chip architecture Support 4-DIMM DDR4-3866 (OC)/ 3600 (OC)/ 3200 (OC)/ 2933 (OC)/ 2666 (OC)/ 2400/ 2133/ 1866 up to 64G maximum capacity BIOSTAR Hi-Fi Technology inside Support USB (Universal Serial Bus) 3.1 Support M.2 (32 Gb/s) (Intel Optane™ Technology Ready) Support HDMI 4K resolution Overview Keep RACING, Keep Shining! The 3rd-Gen RACING Golden Generation of RGB Advanced VIVID LED DJ LED enthusiasts can create their exclusive RACING system to show strong personal style by new VIVID LED DJ with more customizability & options to control three RGB LED lighting zones independently, including audio area & 5050 LED FUN ZONE with two LED headers. Users can control color, speed & brightness via 10 different flashing modes with ease. The advanced VIVID LED DJ utility boasts more possibilities for users to create unlimited creativity with 5050 LED FUN ZONE which comes with dual RGB LED header configured to install different LED products. A.I FAN PC enthusiasts can make sure that their gaming system can maintain its best performance while full-load operation & immersive gaming. According to different cooling needs & usage scenarios, users can control speed modes from Quiet to Full On. The new intuitive & easy-to-use A.I FAN utility smartly allows users to have more customizability of fan modes & automatically detects different temperatures to make fan operate at defined speed for optimal cooling performance. Furthermore, hybrid fan headers with A.I FAN UI support both PWM & DC fans for more cooling options. Intuitive RACING BIOS Utility Advanced VIVID LED DJ & A.I FAN utilities are integrated into the whole new 3rd-gen RACING Series BIOS interface to meet different user needs & usage scenarios. The new BIOS UI boasts much more simply intuitive interface designs & system information bar to show instant computing states clearly. Users can adjust settings without having to load Windows. 5050 LED FUN ZONE The 5050 LED FUN ZONE comes with two 5050 LED headers to bring more colorful lighting options to DIY lovers. RGB enthusiasts can fully enjoy DIY fun of creating their own systems with uniquely & strongly personal style with LED strip, RGB fan or any kind of LED product to adjust system color scheme by Advanced VIVID LED DJ utility. VIVID LED DJ fun, Vivid LED lighting style! Intel Optane Memory Support BIOSTAR 3rd-gen RACING Series motherboards all support Intel Optane memory technology to refresh the performance of your PC. Intel Optane memory can accelerate traditional storage devices to reduce boot times & improve the overall performance, like a br&-new system. This revolutionary memory technology transforms your old PC to a performance monster without expensive SSD.

Specification Chipset Intel Z370 CPU SUPPORT 8th Gen Intel Core™ i 7 LGA 1151 Processor 8th Gen Intel Core™ i 5 LGA 1151 Processor 8th Gen Intel Core™ i 3 LGA 1151 Processor 8th Gen Intel Pentium LGA 1151 Processor 8th Gen Intel Celeron LGA 1151 Processor Maximum CPU TDP (Thermal Design Power): 95 Watt MEMORY Support Dual Channel DDR4 3866 (OC)/ 3600 (OC)/ 3200 (OC)/ 2933 (OC)/ 2666 (OC)/ 2400/ 2133/ 1866 MHz 4 x DDR4 DIMM Memory Slot Max. Supports up to 64GB Memory EXPANSION SLOT 3 x PCI-E 3.0 x 16 Slot (x 8, x 8, x 4) (x 4 shared bandwidth with M.2_2, support Intel Rapid Storage Technology) 3 x PCI-E 3.0 x 1 Slot STORAGE 6 x SATA3 Connector Support SATA RAID: 0, 1, 5, 10 1 x M.2 Key M 32 Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6 Gb/s & PCI-E Storage (Intel Optane Technology ready) 1 x M.2 Key M 32 Gb/s Connector, support M.2 type 2242/ 2260/ 2280/ 22110 PCI-E Storage (Intel Optane Technology ready) Support PCI-E Storage RAID: 0, 1 USB 2 x USB (Universal Serial Bus) 3.1 Gen 2 Port 1 x USB (Universal Serial Bus) 3.1 Gen 1 Type-C Port 2 x USB (Universal Serial Bus) 3.1 Gen 1 Port 2 x USB (Universal Serial Bus) 3.1 Gen 1 Header 2 x USB (Universal Serial Bus) 2.0 Port 2 x USB (Universal Serial Bus) 2.0 Header LAN Intel I219V
- Gigabit Ethernet PHY Support Super LAN Surge Protection MULTI GRAPHICS 3-way AMD Crossfire Technology INTEGRATED VIDEO By CPU model Supports DX12 Supports HDCP CODEC Realtek ALC1220 8-Channel Blu-ray Audio Support Blu-ray Audio Support HD Audio Support Biostar Hi-Fi REAR I/O 1 x PS/2 Keyboard/ Mouse 2 x USB (Universal Serial Bus) 3.1 Gen 2 Port 1 x USB (Universal Serial Bus) 3.1 Gen 1 Type-C Port 2 x USB (Universal Serial Bus) 3.1 Gen 1 Port 2 x USB (Universal Serial Bus) 2.0 Port 1 x HDMI Connector, resolution up to 4096 x 2160 @30 Hz, compliant with HDMI 1.4 1 x DVI-D Connector, resolution up to 1920 x 1200 @60 Hz 1 x RJ-45 Port 6 x Audio Connector INTERNAL I/O 2 x USB (Universal Serial Bus) 3.1 Gen 1 Header 2 x USB (Universal Serial Bus) 2.0 Header 6 x SATA3 6 Gb/s Connector (when using SATA SSD on M.2_1, SATA3_1 will be disable) 1 x M.2 Key M 32 Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6 Gb/s & PCI-E Storage (Intel Optane Technology ready) 1 x M.2 Key M 32 Gb/s Connector, support M.2 type 2242/ 2260/ 2280/ 22110 PCI-E Storage (Intel Optane Technology ready) 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-Out Header 2 x CPU Fan Header 3 x System Fan Header 1 x LN2 Switch 2 x 5050 LED Header H/W MONITORING CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU / System Fan Control System Voltage Monitoring OVERVOLTAGE CPU Vcore/ VSA/ VCC_IO/ VGT/ VCC_PLL_OC/ DDR/ DDR VPP/ PCH 1.0V DIMENSION ATX Form Factor Dimension: 30.5cm x 24.4cm (W x L ) OS SUPPORT Support Windows 10 (x 64) BUNDLE SOFTWARE Racing GT Utility Bull Guard Intel Rapid Storage Technology ACCESSORIES 4 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual FEATURES VIVID LED DJ 5050 LED FUN ZONE M.2 Cooling Protection Supports Double Hi-Fi GT TOUCH Supports 100% Solid capacitor Supports Rapid Debug 3 Supports Charger Booster Supports BIOS Online Update Supports A.I FAN


...

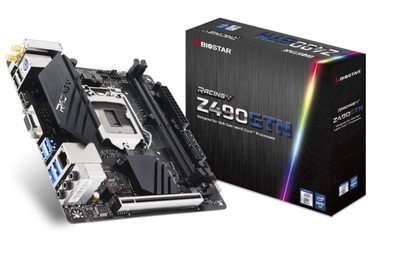

* Free items are subject to availability, please check this is added to your basket on check out. Supports 10th Generation Intel Core™ Processor Intel Z490 single chip architecture Supports 4-DIMM DDR4- 2666/ 2800/ 2933 3200 (OC)/3600 (OC)/ 3800 (OC)/ 4000 (OC)/ 4400+ (OC) up to 128 GB Memory Supports PCIe M.2 (32 Gb/s) Supports Intel Optane Technology Supports HDMI 4K resolution Supports Gb E LAN Supports USB (Universal Serial Bus) 3.2 Gen 1 Socket 1200 for 10th Gen Intel Core™, Pentium & Celeron processors * 10th Generation Intel Core™ Processor Family only support 400-Series. * Please refer to www.biostar.com.tw for CPU support list. 6 x SATA III Connectors (6 Gb/s) 1 x M.2 (E Key) Socket: Supports 2230 type Wi Fi & Bluetooth module & Intel CNVi 2 x USB (Universal Serial Bus) 2.0 Header (each header supports 2 USB (Universal Serial Bus) 2.0 ports) 1 x USB (Universal Serial Bus) 3.2 (Gen 1) Header (each header supports 2 USB (Universal Serial Bus) 3.2 (Gen 1) ports) 2 x 8-Pin Power Connectors 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 3 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Port Header 1 x Thunderbolt 3 Header 2 x LED Header (5V) 1 x LED Header (12V) ...

* Free items are subject to availability, please check this is added to your basket on check out. Supports 10th Generation Intel Core™ Processor Intel Z490 single chip architecture Supports 4-DIMM DDR4- 2666/ 2800/ 2933 3200 (OC)/3600 (OC)/ 3800 (OC)/ 4000 (OC)/ 4400+ (OC) up to 128 GB Memory Supports PCIe M.2 (32 Gb/s) Supports Intel Optane Technology Supports HDMI 4K resolution Supports Gb E LAN Supports USB (Universal Serial Bus) 3.2 Gen 2 Type C Chipset Intel Z490 CPU SUPPORT Socket 1200 for 10th Gen Intel Core™, Pentium & Celeron processors * 10th Generation Intel Core™ Processor Family only support 400-Series. * Please refer to www.biostar.com.tw for CPU support list. MEMORY Supports Dual Channel DDR4 2133/ 2400/ 2666/ 2800/ 2933 Supports Dual Channel DDR4 3200 (OC)/ 3600 (OC)/ 3800 (OC)/ 4000 (OC)/ 4400+ (OC) 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list. INTEGRATED VIDEO By CPU model STORAGE 6 x SATA III Connectors (6 Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology 2 x M.2 (M Key) Sockets Supports M.2 Type 2242/ 2260/ 2280 SSD module, NVMe & AHCI SSD Supports PCIe 3.0 x 4 (32 Gb/s) & SATA III (6 Gb/s) SSD Supports PCIe RAID 0, 1 & Intel Rapid Storage Technology, Intel Optane Technology * When using SATA SSD module on M2M_32G_1 slot, the SATA_3U connector will be disabled. * When using SATA SSD module on M2M_32G_2 slot, the SATA_3L connector will be disabled. LAN Intel i 211-AT; 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability Supports Super LAN Surge Protection AUDIO CODEC ALC1150 7.1 Channels, High Definition Audio USB (Universal Serial Bus) 1 x USB (Universal Serial Bus) 3.2 (Gen 2) Type-C port (1 on rear I/O) 1 x USB (Universal Serial Bus) 3.2 (Gen 2) port (1 on rear I/O) 10 x USB (Universal Serial Bus) 3.2 (Gen 1) ports (8 on rear I/ Os & 2 via internal header) 4 x USB (Universal Serial Bus) 2.0 ports (4 via internal header) EXPANSION SLOT 3 x PCIe 3.0 x 1 Slots 2 x PCIe 3.0 x 16 Slots REAR I/O 2 x Wi Fi Antenna Ports 1 x PS/2 Keyboard/ Mouse 1 x HDMI Port 1 x USB (Universal Serial Bus) 3.2 (Gen 2) Type-C Port 1 x USB (Universal Serial Bus) 3.2 (Gen 2) Port 8 x USB (Universal Serial Bus) 3.2 (Gen 1) ports 1 x LAN port 5 x Audio Jack 1 x SPDIF_ Out INTERNAL I/O 6 x SATA III Connectors (6 Gb/s) 1 x M.2 (E Key) Socket: Supports 2230 type Wi Fi & Bluetooth module & Intel CNVi 2 x USB (Universal Serial Bus) 2.0 Header (each header supports 2 USB (Universal Serial Bus) 2.0 ports) 1 x USB (Universal Serial Bus) 3.2 (Gen 1) Header (each header supports 2 USB (Universal Serial Bus) 3.2 (Gen 1) ports) 2 x 8-Pin Power Connectors 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 3 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Port Header 1 x Thunderbolt 3 Header 2 x LED Header (5V) 1 x LED Header (12V) ...

Chipset Intel Z87 CPU SUPPORT Intel Core i 7 LGA 1150 Processor Intel Core i 5 LGA 1150 Processor Intel Core i 3 LGA 1150 Processor Intel Pentium LGA 1150 Processor Maximum CPU TDP (Thermal Design Power): 95 Watt MEMORY Support Dual Channel DDR3 2800 (OC)/ 2600 (OC)/ 2400 (OC)/ 2200 (OC)/ 2133 (OC)/ 1866 (OC)/ 1800 (OC)/ 1600/ 1333/ 1066 MHz 4 x DDR3 DIMM Memory Slot Max. Supports up to 32GB Memory EXPANSION SLOT 2 x PCI-E x 16 3.0 Slot (CFX x 8) 1 x PCI-E x 16 2.0 Slot (x 4) 3 x PCI-E x 1 2.0 Slot STORAGE 6 x SATA3 Connector Support SATA RAID: 0, 1, 5, 10 Support Intel Smart Response Technology USB (Universal Serial Bus) 2 x USB (Universal Serial Bus) 3.0 Port 1 x USB (Universal Serial Bus) 3.0 Header 4 x USB (Universal Serial Bus) 2.0 Port 2 x USB (Universal Serial Bus) 2.0 Header LAN Realtek RTL8111F
- 10/100/1000 Controller MULTI GRAPHICS AMD Cross Fire X INTEGRATED VIDEO By CPU model Supports DX11.1 Supports HDCP CODEC Realtek ALC898 8 Channel Blu-ray Audio REAR I/O 1 x PS/2 Keyboard 2 x USB (Universal Serial Bus) 3.0 Port 4 x USB (Universal Serial Bus) 2.0 Port 1 x HDMI Connector 1 x DVI Connector 1 x VGA Port 1 x RJ-45 Port 6 x Audio Connector INTERNAL I/O 1 x USB (Universal Serial Bus) 3.0 Header 2 x USB (Universal Serial Bus) 2.0 Header 6 x SATA3 6 Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-OUT Header 1 x CPU FAN Header 4 x System FAN Header 1 x Serial Header 1 x CIR Header DIMENSION ATX Form Factor Dimension: 30.5cm x 24.4cm (W x L ) OS SUPPORT Support Windows 7 / 8
...

The Billion Bi PAC 7800DX is a fibre-ready triple-WAN ADSL2+ dual-band modem router, an all-in-one advanced device including concurrent dual-band Wireless-N 600 Mbps (2.4 G Hz & 5 G Hz), Gigabit Ethernet, 3G/4G LTE, & NAS (Network Attached Storage) in one unit. It comes equipped with the latest high throughput VPN technology to fit the needs of SOHO & office users. As well as being IPv 6-capable, the Bi PAC 7800DX ADSL2+ router supports superfast fibre connections via dual-WAN connectivity through a Gigabit Ethernet WAN port. It also has a USB (Universal Serial Bus) port, allowing the device to act as a print server as well as a NAS (Network Attached Storage) device with DLNA (Digital Living Network Alliance) & FTP (File Transfer Protocol) access. Moreover, the USB (Universal Serial Bus) port can host a 3G/4G LTE modem connecting to the 3G/4G LTE network for Internet access. With an array of advanced features, the Billion Bi PAC 7800DX delivers a future-proof solution for ADSL2+ connections, superfast FTTC & ultra-speed FTTH (Fibre-To-The-Home) network deployment & services. Key Features Triple-WAN ports for 3G/4G LTE, ADSL2+, Gigabit Ethernet WAN (EWAN) for broadband connectivity Simultaneous dual-band Wireless-N 600 Mbps (2.4 G Hz & 5 G Hz) Gigabit WAN & LAN Fibre (FTTC/FTTP/FTTH) ready with high WAN throughput 16 IPSec VPN tunnels Embedded IPSec & PPTP VPN endpoint /server with powerful encryption IPv 6 ready (IPv 4/IPv 6 dual stacks) USB (Universal Serial Bus) port for print server, NAS, DLNA media server, & 3G/4G LTE USB (Universal Serial Bus) modem SNR adjustments to achieve highest sync speeds Monitoring of individual LAN ports Qo S for traffic prioritization & bandwidth management Broadcom chipset for better stability Multiple wireless SSIDs with wireless guest access & client isolation Supports IPTV applications*2 NBN (National Broadband Network) ready*3 Supports port-based Virtual LAN (VLAN) Available Syslog Dynamic Domain Name System (DDNS) Ideal for SOHO & office users Benefits Maximum Performance Dual-band Router Featured with simultaneous dual-band technology, the Bi PAC 7800DX can run both 2.4 G Hz & 5 G Hz frequency bands at the same time, offering ultra-fast wireless speeds of up to 600 Mbps & multiple SSIDs on both bands. The Bi PAC 7800DX, by adopting this state-of-the-art technology, allows for multiple-demand applications, such as streaming HD videos & multiplayer gaming simultaneously. With an integrated 802.11n Wireless Access Point, the router delivers up to 6 times the speed of an 802.11a/b/g network device. It supports a data rate of up to 600 Mbps (2.4 G Hz & 5 G Hz) & is also compatible with 802.11a/b/g equipment. The Wireless Protected Access (WPA-PSK/WPA2-PSK) & Wireless Encryption Protocol (WEP) features enhance the level of transmission security & access control over wireless LAN. The router also supports the Wi-Fi Protected Setup (WPS) standard, allowing users to establish a secure wireless network by simply pushing a button. If your network requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function means that you can expand your wireless network without the need for any external wires or cables. 3G/4G Mobility & Always-On Connectivity With the Bi PAC 7800DX you can connect a 3G/4G LTE USB (Universal Serial Bus) modem to its built-in USB (Universal Serial Bus) port, allowing you to watch movies, download music or access e-mail no matter where you may be. You can even share your Internet connection with others, when away on business, at a show, or wherever there is mobile signal but no fixed line access. The auto fail-over feature ensures maximum connectivity & minimum interruption by quickly & smoothly connecting to a 3G/4G LTE network in the event that your ADSL/fibre/cable line fails. The Bi PAC 7800DX will then automatically reconnect to the ADSL/fibre/cable connection when it's restored, reducing connection costs. These features are perfect for office situations where a constant & uninterrupted connection is critical. Experience Gigabit The Bi PAC 7800DX has four Gigabit LAN ports & the fourth port can be configured as a WAN port if required. This EWAN offers another broadband connectivity option for connecting to a cable, VDSL, fibre or second ADSL modem. The Bi PAC 7800DX again offers users convenience & optimal network performance with data rates reaching up to 1 Gbps. Secure VPN Connections The Bi PAC 7800DX supports comprehensive & robust IPSec VPN (Virtual Private Network) protocols for business users to establish private encrypted tunnels over the public Internet to secure data transmission between headquarters & branch offices. With a built-in DES/3DES VPN accelerator, the router enhances IPSec VPN performance significantly. Pathway to the Future The Bi PAC 7800DX fully supports IPv 6 (Internet Protocol Version 6), launched as the current IPv 4 range is filling up, & IPv 6 is gradually becoming the indispensable addressing system for savvy cloud computing users. Dual stack means the router is capable of running IPv 4 & IPv 6 in parallel during the transition period. With Billion IPv 6 enabled devices, three major transition mechanisms such as Dual-Stack, Dual-Stack Lite, & 6RD (IPv 6 rapid deployment) are supported to be adapted easily into service provider’s IPv 4/IPv 6 network. ...

This wooden garden parasol & base will provide protection from the sun when relaxing in the garden. It has a shower proof canopy that will keep you sheltered from light rain. It is ideal for using with any table & chairs set & is also available with in red fabric QF434145 2.1m parasol in green 7KG sturdy parasol base included Strong 38mm wooden shaft & spindles Great for the summer weather ideal for garden & patio use Rot resistant & fade resistant fabric ...

This wooden garden parasol & base will provide protection from the sun when relaxing in the garden. It has a shower proof canopy that will keep you sheltered from light rain. It is ideal for using with any table & chairs set & is also available in green fabric QF434150 2.1m parasol in red 7KG sturdy parasol base included Strong 38mm wooden shaft & spindles Great for the summer weather ideal for garden & patio use Rot resistant & fade resistant fabric ...

Transportability & patient comfort go h&-in-hand with the modern & excellent Invacare Birdie Compact. This folding, electric hoist will lift up to 150kg & is slightly smaller than the Birdie Folding Electric Hoistwhich lifts up to 170kg. The innovative boom design of the Birdie Compact Hoist offers a trulycomfortable lift & transfer to or from bed, chair or even the floor. The lifters are designed formaximum convenience & offer a folding format that can be carried out easily & without theneed for tools. In addition, the lifter can be dismantled into two parts if needed also withouttools. Click here to view more pictures & details on the PDF leaflet Total user comfort Allowing a 360 range of movement even when the hoist is in the highestposition, the Birdie provides a very comfortable lift & transfer. This allowsthe patient to be easily rotated in the hoist which allows placement into thebed or wheelchair much easier for the carer. Optimising space for the clientcreates a high level of comfort & ensures that the clients knees are not tooclose to the actuator of the hoist, which means that there is a very low riskof injury. Ease of Handling: simple to fold, unfold & dismantle The hoist can easily be folded & unfolded without the need for tools, and
Includes: a snap lock mechanism for added security. The hoist will requireminimal space when stored & is very easy to push & transport**. Ifrequired the mast & boom can be easily detached from the base (no toolsrequired).TV certification for maximum security The hoists are CE certified in line with the Medical Device Directive 93/42/ECC. To ensure the hoists comply with EN ISO 10535, the hoists have beenrigorously tested by Invacare & the German TV institute, an accreditedexternal body. Long boom high user comfort The client can easily be rotated andpositioned. Reduces risk of injury tothe lower limbs. Easy to fold & dismantle Ease of transport & storage. Notools required when folding / unfoldingor when dismantling the hoist. Snap lock Lock snaps into place. A magnetic pinensures optimal security. Jumbo Care control box

Includes:: service reminder, & batterystatus. Jumbo Care diagnostic allowsactuator usage & life cycle to bemonitored by the service agent. Manual leg spread Simply step on the pedal to adjust the legspread. Clip on spreader bar Allows the spreader bar to be changedquickly. Warranty Actuator: 5 years Frame: 3 years Battery: 1 year * 5 Year warranty refers to actuator only Maximum user weight: 150kg Hoist Weight: 36kg Lifting Range: 540-1610mm Leg Length: 1000mm Width (closed) external measurement: 550mm Total Width (open) internal measurement: 890mm Folded Dimensions: Length: 115cm

Height: 42.5cm

Width: 55cm Battery Working capacity: 40 full lifts per charge Two point spreader bar






...
