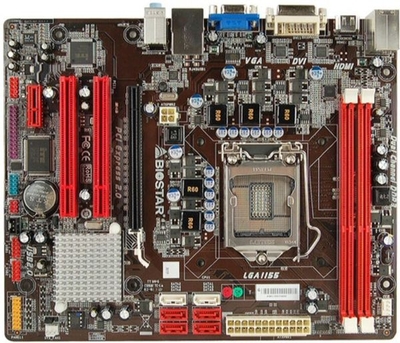

CPU SUPPORT 2nd Generation Intel Core i 7 Processor 2nd Generation Intel Core i 5 Processor 2nd Generation Intel Core i 3 Processor Intel Pentium LGA 1155 Processor Maximum CPU TDP (Thermal Design Power): 95 Watt MEMORY Support Dual Channel DDR3 1066/1333 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory EXPANSION SLOT 2 x PCI Slots 1 x PCI-E x 1 2.0 Slot 1 x PCI-E x 16 2.0 Slot STORAGE 4 x SATA2 3 Gb/s Connector USB (Universal Serial Bus) 4 x USB (Universal Serial Bus) 2.0 Port 2 x USB (Universal Serial Bus) 2.0 Header Gb E Atheros AR8151
- 10/100/1000 Controller INTEGRATED VIDEO By CPU model CODEC VIA VT1708B 6-Channel HD Audio REAR I/O 1 x PS/2 Keyboard 4 x USB (Universal Serial Bus) 2.0 Port 1 x HDMI Connector 1 x DVI Connector 1 x VGA Port 1 x RJ-45 Port 3 x Audio Connector INTERNAL I/O 1 x Printer Header 2 x USB (Universal Serial Bus) 2.0 Header 4 x SATA2 3 Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU FAN Header 1 x System FAN Header 1 x Serial Header DIMENSION Micro ATX Form Factor Dimension: 24.4cm x 19cm (W x L ) OS SUPPORT Support Windows XP / Vista / 7
...

HDMI 3D Visual The HDMI 3D Visual provides a level of interoperability for devices designed to deliver 3D content over the HDMI connection. The latest HDMI

Specification adds key enhancements to support the market requirements for bringing broadcast 3D content into the home featuring key enhancements for 3D applications including the addition of mandatory 3D formats for broadcast content. DX11 Direct 3D 11 enables Direct 3D 10 APIs & Direct 3D 11 APIs to use one underlying rendering device. & it allows developers to achieve a high speed, fully conformant software rasterizer. PCI-E Gen 3.0 PCI-E 3.0 is the next evolution of the ubiquitous & general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCI-E 2.0, while preserving compatibility with software & mechanical interfaces. Charger booster is the best & efficient charger solution for apple devices such as iPad, iPhone. Basically, Charger booster Technology is able to boost the charging time to be more efficiency & faster once any apple goods connecting to our Motherboard. With charger booster technology, you are able to charge your apple devices up to 42 % faster. Dual DDR3-1600 It supports 2 or 4 DIMM Slots DDR3 memory that features data transfer rates of DDR3 1600/1333. The processor support 2 memory channels & setting the memory multiplier, allows selection of the channel speed. These clearly uplift the band width & boost the overall system performance. X.D.C (e Xtreme Durable Capacitors) Biostar adopts low ESR & high ripple conductive solid state caps that provide sufficient, stable power supply to the CPU. The life span can also be more than 6.25 x of ordinary liquid caps

...

Specifications Chipset Intel H61 CPU SUPPORT 2nd Generation Intel Core i 7 Processor 2nd Generation Intel Core i 5 Processor 2nd Generation Intel Core i 3 Processor Intel Pentium LGA 1155 Processor Maximum CPU TDP (Thermal Design Power): 95 Watt MEMORY Support Dual Channel DDR3 1066/1333 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory EXPANSION SLOT 1 x PCI-E x 1 2.0 Slot 1 x PCI-E x 16 2.0 Slot STORAGE 4 x SATA2 3 Gb/s Connector USB (Universal Serial Bus) 4 x USB (Universal Serial Bus) 2.0 Port 2 x USB (Universal Serial Bus) 2.0 Header LAN Atheros AR8152
- 10/100 Controller INTEGRATED VIDEO By CPU model CODEC VIA VT1708B 6-Channel HD Audio REAR I/O 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB (Universal Serial Bus) 2.0 Port 1 x VGA Port 1 x RJ-45 Port 3 x Audio Connector INTERNAL I/O 1 x Printer Header 2 x USB (Universal Serial Bus) 2.0 Header 4 x SATA2 3 Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU FAN Header 1 x System FAN Header 1 x Serial Header DIMENSION Micro ATX Form Factor Dimension: 22.6cm x 17cm (W x L ) OS SUPPORT Support Windows XP / Vista / 7 FEATURES Supports BIO-Remote 2 Windows 7 Compatible Supports Solid capacitor Supports Charger Booster Supports BIOS Online Update
...

Chipset Intel H61 CPU SUPPORT Intel Core i 7 LGA 1155 Processor Intel Core i 5 LGA 1155 Processor Intel Core i 3 LGA 1155 Processor Intel Pentium LGA 1155 Processor Maximum CPU TDP (Thermal Design Power): 95 Watt MEMORY Support Dual Channel DDR3 1066/1333/1600 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory EXPANSION SLOT 1 x PCI-E x 16 3.0 Slot (supported by Core i 5 -3xxx / Core i 7 3xxx CPU) 1 x PCI-E x 1 2.0 Slot STORAGE 4 x SATA2 Connector USB (Universal Serial Bus) 4 x USB (Universal Serial Bus) 2.0 Port 2 x USB (Universal Serial Bus) 2.0 Header LAN Atheros AR8152
- 10/100 Controller INTEGRATED VIDEO By CPU model CODEC VIA VT1708S 6-Channel HD Audio REAR I/O 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB (Universal Serial Bus) 2.0 Port 1 x VGA Port 1 x RJ-45 Port 3 x Audio Connector INTERNAL I/O 2 x USB (Universal Serial Bus) 2.0 Header 4 x SATA2 3 Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU FAN Header 1 x System FAN Header 1 x Serial Header DIMENSION Micro ATX Form Factor Dimension: 22.6cm x 17cm (W x L ) OS SUPPORT Support Windows XP / Vista / 7 / 8 ACCESSORIES 2 x SATA Cable 1 x I/O Shield 1 x CD Driver 1 x Quick Guide FEATURES Windows 8 Compatible Supports BIO-Remote 2 Supports Solid capacitor Supports BIOS-Flasher Supports Charger Booster Supports BIOS Online Update
...

Chipset Intel H61 CPU SUPPORT Intel Core i 7 LGA 1155 Processor Intel Core i 5 LGA 1155 Processor Intel Core i 3 LGA 1155 Processor Intel Pentium LGA 1155 Processor Maximum CPU TDP (Thermal Design Power): 95 Watt MEMORY Support Dual Channel DDR3 1066/1333/1600 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory EXPANSION SLOT 1 x PCI-E x 16 3.0 Slot (supported by Core i 5 -3xxx / Core i 7 3xxx CPU) 1 x PCI-E x 1 2.0 Slot STORAGE 4 x SATA2 Connector USB (Universal Serial Bus) 4 x USB (Universal Serial Bus) 2.0 Port 2 x USB (Universal Serial Bus) 2.0 Header LAN
- Realtek RTL8106E
- 10/100 Controller INTEGRATED VIDEO
- By CPU model CODEC Realtek ALC662 6-Channel HD Audio REAR I/O 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB (Universal Serial Bus) 2.0 Port 1 x VGA Port 1 x RJ-45 Port 3 x Audio Connector INTERNAL I/O 2 x USB (Universal Serial Bus) 2.0 Header 4 x SATA2 3 Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU FAN Header 1 x System FAN Header 1 x Serial Header DIMENSION
- Micro ATX Form Factor Dimension: 19.1cm x 17cm (W x L ) OS SUPPORT
- Support Windows XP / Vista / 7 / 8 ACCESSORIES
- 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide FEATURES Windows 8 Ready Supports Smart Speed LAN Supports BIO-Remote 2 Supports Solid capacitor Supports BIOS-Flasher Supports Charger Booster Supports BIOS Online Update





...

Chipset Intel H77 CPU SUPPORT Intel Core i 7 LGA 1155 Processor Intel Core i 5 LGA 1155 Processor Intel Core i 3 LGA 1155 Processor Intel Pentium LGA 1155 Processor Maximum CPU TDP (Thermal Design Power): 95 Watt MEMORY Support Dual Channel DDR3 1600/1333/1066 MHz 4 x DDR3 DIMM Memory Slot Max. Supports up to 32GB Memory EXPANSION SLOT 1 x PCI-E x 16 3.0 Slot (supported by Core i 5 -3xxx / Core i 7 3xxx CPU) 1 x PCI-E x 16 2.0 Slot (x 4) 2 x PCI-E x 1 2.0 Slot STORAGE 2 x SATA3 6 Gb/s Connector 4 x SATA2 3 Gb/s Connector Support SATA RAID: 0, 1, 5, 10 Support Intel Smart Response Technology USB (Universal Serial Bus) 2 x USB (Universal Serial Bus) 3.0 Port 1 x USB (Universal Serial Bus) 3.0 Header 2 x USB (Universal Serial Bus) 2.0 Port 2 x USB (Universal Serial Bus) 2.0 Header Intel USB3.0 only support Win 7 or later version Gb E Realtek RTL8111E
- 10/100/1000 Controller INTEGRATED VIDEO By CPU model Supports DX11 Supports HDCP CODEC Realtek ALC662 6-Channel HD Audio REAR I/O 1 x PS/2 Mouse 2 x USB (Universal Serial Bus) 3.0 Port 2 x USB (Universal Serial Bus) 2.0 Port 1 x HDMI Connector 1 x DVI Connector 1 x VGA Port 1 x RJ-45 Port 3 x Audio Connector INTERNAL I/O 1 x Printer Header 1 x USB (Universal Serial Bus) 3.0 Header 2 x USB (Universal Serial Bus) 2.0 Header 2 x SATA3 6 Gb/s Connector 4 x SATA2 3 Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU FAN Header 1 x System FAN Header 1 x Serial Header 1 x CIR Header DIMENSION Micro ATX Form Factor Dimension: 24.4cm x 22cm (W x L ) OS SUPPORT Support Windows XP / Vista / 7 FEATURES Supports BIO-Remote 2 Supports BIO-Remote Windows 7 Compatible Supports Solid capacitor Supports Charger Booster Supports BIOS Online Update
...

Biostar H81MDC Ver. 7.2 socket 1150 VGA DVI 8-Channel Blu-ray Audio Micro ATX Motherboard Chipset
- Intel H81 CPU SUPPORT Intel
...

Biostar H81MG Ver. 6.x Socket 1150 VGA DVI 8-Channel Blu-ray Audio Micro ATX Motherboard Specifications: Chipset
- Intel H81 CPU
...

Chipset Intel H81 CPU SUPPORT Intel Core i 7 LGA 1150 Processor Intel Core i 5 LGA 1150 Processor Intel Core i 3 LGA 1150 Processor Intel Pentium LGA 1150 Processor Maximum CPU TDP (Thermal Design Power): 95 Watt MEMORY Support Dual Channel DDR3 1600/1333/1066 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory EXPANSION SLOT 1 x PCI-E x 16 2.0 Slot 1 x PCI-E x 1 2.0 Slot 1 x PCI Slot STORAGE 2 x SATA3 Connector 2 x SATA2 Connector USB (Universal Serial Bus) 2 x USB (Universal Serial Bus) 3.0 Port 2 x USB (Universal Serial Bus) 2.0 Port 2 x USB (Universal Serial Bus) 2.0 Header LAN Realtek RTL8111G
- 10/100/1000 Controller INTEGRATED VIDEO By CPU model Supports DX11.1 CODEC Realtek ALC892 8-Channel Blu-ray Audio REAR I/O 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB (Universal Serial Bus) 3.0 Port 2 x USB (Universal Serial Bus) 2.0 Port 1 x COM Port 1 x Printer Port 1 x VGA Port 1 x RJ-45 Port 3 x Audio Connector INTERNAL I/O 2 x USB (Universal Serial Bus) 2.0 Header 2 x SATA3 6 Gb/s Connector 2 x SATA2 3 Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-OUT Header 1 x CPU FAN Header 1 x System FAN Header DIMENSION Micro ATX Form Factor Dimension: 22.6cm x 18cm (W x L ) OS SUPPORT Support Windows 7 / 8 / 8.1 FEATURES Windows 8 Ready Supports Smart Speed LAN Supports BIO-Remote 2 Supports Solid capacitor Supports Charger Booster Supports BIOS Online Update
...

Biostar H81MGV3 Ver. 7.x Socket 1150 VGA 6-Channel HD Audio Micro ATX Motherboard Chipset Intel H81 CPU SUPPORT Intel Core i 7 LGA 1150 Processor Intel Core i 5 LGA 1150 Processor Intel Core i 3 LGA 1150 Processor Intel Pentium LGA 1150 Processor Maximum CPU TDP (Thermal Design Power): 95 Watt MEMORY Support Dual Channel DDR3 1600/1333/1066 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory EXPANSION SLOT 1 x PCI-E x 16 2.0 Slot 1 x PCI-E x 1 2.0 Slot STORAGE 2 x SATA3 Connector 2 x SATA2 Connector USB (Universal Serial Bus) 2 x USB (Universal Serial Bus) 3.0 Port 2 x USB (Universal Serial Bus) 2.0 Port 2 x USB (Universal Serial Bus) 2.0 Header LAN Realtek RTL8111G
- 10/100/1000 Controller INTEGRATED VIDEO By CPU model Supports DX11.1 CODEC Realtek ALC662 6-Channel HD Audio REAR I/O 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB (Universal Serial Bus) 3.0 Port 2 x USB (Universal Serial Bus) 2.0 Port 1 x VGA Port 1 x RJ-45 Port 3 x Audio Connector INTERNAL I/O 2 x USB (Universal Serial Bus) 2.0 Header 2 x SATA3 6 Gb/s Connector 2 x SATA2 3 Gb/s Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Header 1 x System Fan Header 1 x Serial Header H/W MONITORING CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring DIMENSION Micro ATX Form Factor Dimension: 19cm x 17cm (W x L ) OS SUPPORT Support Windows 7 / 8 / 8.1 BUNDLE SOFTWARE Bull Guard BIO-Remote 2 Biostar MAGIX Multimedia Software Suite Smart Speed LAN FEATURES Supports Solid capacitor Supports BIOS-Flasher Supports Charger Booster Supports BIOS Online Update
...
