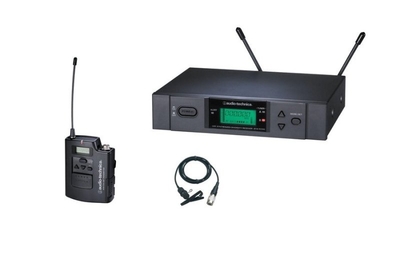

Audio-Technica Unipak System With AT829CW Terminated With Locking
4-pin Connector
Audio-Technica’s third-generation 3000b Series wireless systems offer up to 1001 selectable UHF frequencies and new features for clear sound & intuitive operation. We’ve simplified selection of usable frequencies, increased system reliability, and illuminated transmitter screens for clear reads on dark stages. It all adds up to the luxury of rock-solid, richly detailed high-fidelity sound. The 3000b Series is designed for a wide range of applications including live performance, fixed installation, public address, and houses of worship. The new ATW-R3100b receiver benefits from a newly designed high specification front end filtering system, dual independent diversity along with the latest Audio Technica 1/2 wave antenna technology (depending on frequency band) to
maximise both simultaneous frequency use and range. The 12VDC bias voltage on both BNC antenna inputs allows operation with the ATW-B80 antenna booster or other active components. The new frequency scan function enables automatic assignment of clear open channel selection. Al components in the new 3000b Series have soft-touch controls for quick, easy access to the most important functions during set-up and operation. The system is compatible with the entire line of Wireless Essentials mics and cables. Features 953 - 1001 UHF frequencies in one of six UHF frequency ranges Antenna power available for powered antennas & other in-line RF devices Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system True Diversity operation
reduces dropouts Advanced digital Tone Lock squelch effectively blocks stray RF and communicates transmitter data for receiver display Transmitters offer backlit LCD & dual-color LED Locking battery compartment with secure latch and robust design Ground-lift switch helps eliminate audible hum caused by ground loops Balanced and unbalanced audio output jacks ATW-T310b UniPak transmitter includes Super Hi-Z input that provides optimum load for guitar pickups AT829CW Terminated with locking 4-pin connector for A-T UniPak body-pack wireless transmitters. 55" (1.4 m) cable Element: Fixed-charge back plate, permanently polarized condenser Polar Pattern: Cardioid Frequency Response: 70-16, 000 Hz Open Circuit Sensitivity: -42.8 dBV (7.3mV) re 1V at 1 Pa Signal to Noise Ratio: 67.1 dBA, 1
kHz at 1 Pa Weight: 2.4g Dimensions: 24mm long, 10.5mm diameter Cable: 1.4 m long (permanently attached to microphone), terminated with HRS connector Accessories: AT8131 foam windscreen; AT8434 clothing clip;
maximise both simultaneous frequency use and range. The 12VDC bias voltage on both BNC antenna inputs allows operation with the ATW-B80 antenna booster or other active components. The new frequency scan function enables automatic assignment of clear open channel selection. Al components in the new 3000b Series have soft-touch controls for quick, easy access to the most important functions during set-up and operation. The system is compatible with the entire line of Wireless Essentials mics and cables. Features 953 - 1001 UHF frequencies in one of six UHF frequency ranges Antenna power available for powered antennas & other in-line RF devices Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system True Diversity operation
reduces dropouts Advanced digital Tone Lock squelch effectively blocks stray RF and communicates transmitter data for receiver display Transmitters offer backlit LCD & dual-color LED Locking battery compartment with secure latch and robust design Ground-lift switch helps eliminate audible hum caused by ground loops Balanced and unbalanced audio output jacks ATW-T310b UniPak transmitter includes Super Hi-Z input that provides optimum load for guitar pickups AT829CW Terminated with locking 4-pin connector for A-T UniPak body-pack wireless transmitters. 55" (1.4 m) cable Element: Fixed-charge back plate, permanently polarized condenser Polar Pattern: Cardioid Frequency Response: 70-16, 000 Hz Open Circuit Sensitivity: -42.8 dBV (7.3mV) re 1V at 1 Pa Signal to Noise Ratio: 67.1 dBA, 1
kHz at 1 Pa Weight: 2.4g Dimensions: 24mm long, 10.5mm diameter Cable: 1.4 m long (permanently attached to microphone), terminated with HRS connector Accessories: AT8131 foam windscreen; AT8434 clothing clip;
