Designed for loudspeakers up to 15 kg. (33 lbs.). Sound isolating loudspeaker floor stands. Fillable columns for superior dampening. Top & bottom isolation spikes provided. Stand

Height: 80 cm. (31.5). Supplied in pairs. Max. Weight: 15 kg. (33 lbs.). Top plate dimensions: 125 mm. (4.9) x 125 mm. (4.9). Base plate dimensions: 240 mm. (9.5) x 240 mm. (9.5). Max weight of speaker: 15 kg. (33 lbs.).

Colour: Black.

Height: 800 mm. Max weight: 15 kg.





...

Atlona AT-HDDA-4
- Video/audio switch
- 4 x HDMI
- desktop, rack-mountable, wall-mountable Ultra HD for Vivid Details HDDA-4


...

Atlona 1x 4 HDMI Distribution Amplifier The Atlona 1x 4 HDMI (Ver. 1. 3c) distribution amplifier is a unique device that allows users to connect any digital video source with up to 4 digital HDMI displays. AT HD V14 splits HDMI signal between up to 4 outputs without signal loss maintaining high resolutions up to 1080p or 1920x 1200. ...

The Atlona AT-BAT-DIS7PRO is a portable battery designed to supply required amount of power to a 7-inch PROHD Testing Monitor, the AT-DIS7-PROHD. The battery can last up to 4 hours regardless of the resolution or format displayed by the monitor 4 hour portable battery for AT-DIS7-PROHD. Model: AT-BAT-DIS7PRO The Atlona AT-BAT-DIS7PRO is a portable battery designed to supply required amount of power to a 7-inch PROHD Testing Monitor, the AT-DIS7-PROHD. The battery can last up to 4 hours regardless of the resolution or format displayed by the monitor. The battery comes in a leather case with all the adapters to be able to connect it to the monitor. Technical

Specification Battery capacity: 3600m Ah, 3.7v, 13.32walt Input voltage: 4.5
- 6.0v Input current: 2000m A Output voltage: 5.0+/-.01v Charging Time: 3-4 hours Standby Consumption: < 35u A Package Contents 1 x AT-BAT-DIS7PRO 1 x Leather protective case 1 x USB (Universal Serial Bus) to DC adapter cable 1 x USB (Universal Serial Bus) to micro USB (Universal Serial Bus) cable


...

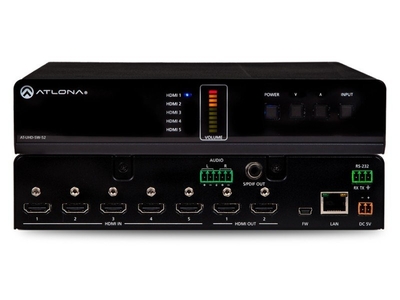

The Atlona AT-UHD-SW-51 is a 5x 1 HDMI switcher with auto-switching & advanced control capability. The switcher supports 4K/UHD @ 60 Hz with 4:2:0 color, offers 3D pass-through, & 10.2 Gbps bandwidth. With front panel buttons & IR control, it can be a standalone switcher. Designed as a cost-effective, easy to install solution, the switcher offers a web-based GUI for easy set-up & management of EDID & HDCP. Additional control options include auto-switching, front panel selector, & compatibility with RS-232 or TCP/IP-based control systems. Audio features include de-embedding of PCM audio over HDMI to either S/PDIF or two-channel analog audio outputs; pass-through of Dolby True HD & DTS-HD Master Audio; plus an Audio Return Channel feed to the S/PDIF output from the HDMI display. The compact, 1U, half-rack width enclosure is easily installed in rack mounted systems with the optional 19” rack mount brackets. Two units can be mounted side-by-side Features 4K/UHD capability Auto-switching TCP/IP, RS-232, & IR control EDID management HDCP management Easy, GUI-based configuration using integrated web server ARC – Audio Return Channel Ethernet 1 HDMI ports quantity 5 x in, 1 x Out ...

The Atlona AT-UHD-M2C-BAL is an audio converter used to extract & downmix multi-channel digital Dolby & DTS surround sound signals from HDMI sources to balanced analog signals for professional audio systems. The converter provides controls for one- or two-channel mode, volume, mute, bass, & treble via RS-232, TCP/IP, & a web-based GUI. A balanced analog audio output is provided on a 5-pin captive screw connector. The video pass-through design of the AT-UHD-M2C-BAL allows it to be placed anywhere in the signal path where a convenient audio feed to the sound system is required. Features HDMI ports quantity 1 x In, 1 x Out Ethernet 1 Universal de-embedder for Dolby & DTS signals Downmixes multi-channel audio to 1 or 2-channel audio Balanced audio output Volume & EQ adjustment 4K/UHD support HDMI Receiver EDID management ...

The Atlona AT-HDR-H2H-44MA is a 4x 4 HDMI matrix switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant & supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-H2H-44MA is ideal for residential applications with the latest as well as emerging 4K/UHD & HDR sources & displays. It is compatible with all video resolutions, audio formats, & color space formats supported in the HDMI 2.0b

Specification, plus the ability to pass metadata for HDR content. The HDR-H2H-44MA

Includes:: EDID & HDCP management features, & can send CEC display control independently to each output. An unbalanced analog audio output is paired with each HDMI input for sending de-embedded HDMI audio to a whole-house audio system. The HDR-H2H-44MA can be controlled via Ethernet, RS-232, & IR. A handheld IR remote control is included. The HDR-H2H-44MA is designed to deliver dependable, pristine-quality image presentations in residential as well as commercial applications. It

Includes:: Atlona’s award-winning 10 year limited product warranty & customer support services, so that integrators can specify, purchase, & install with complete confidence. (Note: The HDR-H2H-44MA de-embeds HDMI two-channel PCM audio. For extracting & downmixing Dolby & DTS audio, Atlona recommends adding one or more AT-HDR-M2C audio converters.) Applications • Residential installations – The HDR-H2H-44MA is designed for AV systems with the latest UHD & HDR sources such as Ultra HD Blu-ray players, plus compatible televisions & projectors. • TV showrooms – The HDR-H2H-44MA can be used for reliable content distribution to televisions, to properly demonstrate the quality & appeal of 4K & HDR programming. • Professional AV applications – Atlona 4K HDR products are ideal for full-motion, highly detailed 4K graphics presentations for visualization, 3D renderings, simulations, & more. Configured & Managed by AMS The Atlona Management System (AMS) is a powerful network software platform ideal for configuring, managing, & monitoring the HDR-H2H-44MA & other Atlona IP-controllable devices over a LAN, WAN, or VPN. AMS is available free from Atlona, & greatly streamlines installation & maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser. Features 4x 4 HDMI matrix switcher • Delivers high performance, reliable HDMI signal matrix switching • Easy to install & deploy in residential & commercial applications Fast, blink-free switching • Fast input selection switching eliminates video blinking in other zones • Eliminates long wait times caused by handshaking & HDCP key validation for an uninterrupted viewing experience in all zones 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats • Ideal for new & emerging 4K/UHD & HDR-capable sources & displays • Compatible with 4K HDR10 & Dolby Vision™ @ 60 Hz • Fully supports video resolutions, audio formats, & color space formats in the HDMI 2.0b

Specification HDCP 2.2 compliant • Adheres to latest

Specification for High-bandwidth Digital Content Protection • Allows protected content stream to pass between devices Independent CEC display control to each output • Sends display power on/off control to a specific HDMI output • Enables independent control of displays connected to the matrix switcher • CEC control can be triggered by IP or RS-232 control commands EDID management • Manages EDID communications with the source through a display’s EDID or internally stored EDID • Ensures desired audio formats & video resolutions are provided to the AV system HDCP management • HDCP compliance can be disengaged through AMS or a control system • Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, & teleconference systems; protected content is not transmitted HDMI audio de-embedding* for each input • Extracts HDMI two-channel PCM audio to an unbalanced analog audio output paired with a corresponding HDMI input • Provides an additional integration option for whole-house as well as commercial audio systems • * For extracting & downmixing Dolby & DTS audio, Atlona recommends adding one or more AT-HDR-M2C audio converters. TCP/IP, RS-232, & IR control • Flexible control options for compatibility with third-party control systems • Reduces integration time & costs •

Includes:: a convenient handheld IR remote control Easy, GUI-based configuration using integrated web server • Offers menu-based configuration of network settings, RS-232 settings, matrix switching, EDID & HDCP management, & audio • Allows fast configuration of internal product settings & troubleshooting from a mobile device or PC in the field Configured & managed by AMS (Atlona Management System) • This IP-controllable product is remotely managed by the Atlona Management System software • Integrates product configuration, management, & updates to reduce installation time & enable remote support Multi-channel audio compliant • Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby True HD, Dolby Atmos, DTS Digital Surround™, DTS-HD Master Audio™, & DTS:X • Allows any multi-channel audio stream to be used within a residential or professional audio system Field-updatable firmware • Rear panel USB (Universal Serial Bus) port provides an easy means for device updates • Ensures long-term system return on investment Front panel button controls & LCD menu display • Matrix switcher can conveniently be controlled, configured, & monitored from the front panel • Provides easy setup, user operation, & troubleshooting Rack mountable 1U, full-rack width enclosure • Installs easily in rack mounted systems with included 19& Prime; rack mount brackets • Reduces installation time & cost Included accessories • Installation guide, IR remote control, rack mounting brackets, & external universal power supply Award-winning 10 year limited product warranty • Ensures long-term product reliability & performance in residential & commercial systems • Specify, purchase, & install with confidence











...

The Atlona Captive Screw Ready IR Receiver provides greater distance & better IR rejection from sources such as: plasma, CFL, & LCD panels. Features & Specifications Frequency range from 30 to 60 k Hz Distance up to 10m w/no interference on axis Reception Angle: +/- 45° off axis

Dimensions (H x W x D) 10 x 62 x 10 (mm) 0.39 x 2.44 x 0.39 (inch) Red status LED indicator for quick verification the IR receiver is picking up the IR remote’s signal

...

Powerful Smart Auto-Switching The HDCAT’s smart switching capability eliminates the need to manually change inputs. Simply power on/off a source device & the matrix conveniently switches automatically. Go Further with More Extend your audio/visual experience up to 330ft. HDBase T technology means that you can send power, video (up to 1080p or 1920x 1200) & audio (all Lossy & Lossless formats) signals over a single category cable. Power of One for All Leave behind the power cable on your receiver. With the latest feature of Power over Category cable (Po Cc) the HDCAT transmits power to all the connected receivers over category cable. Never too Many Displays With a built in local HDMI loop out, send your source to multiple HDCATs. Use one source signal for as many as 8 daisy chains. Additional Features Redundant power supply (optional) EDID learning mode to ensure compatibility Built in S/PDIF & Analog audio loop outs Supports pass through of all 3D formats Pass through support of all Lossy & Lossless audio (up to Dolby True HD or DTS-HD Master Audio). Locking HDMI port Field serviceable firmware port

Includes:: dual purpose wall/rack mount ears, IR remote

...

Atlona HDMI to HDBase T Transmitter Wall Plate Simplify installation with an attractive wall plate that transmits HDMI signals up to 230 feet (70 meters); support up to Ultra HD (4 Kx 2K). HDBase T & power over category cable (Po Cc) allow signal & power over a single category cable. In-Wall Installation Designed for in-wall installation using 2-gang electrical boxes. No power is needed at the transmitter When used with compatible Atlona solution. Higher Resolutions at Longer Distances HDTX-WP wall plates support resolutions up to 1080p as far away as 230 feet (70 meters) & Ultra HD (4 Kx 2K) up to 130 feet (40 meters). Complete Control, Completely Compatible HDTX-WP features complete RS-232, & IR control compatible with all major control systems. Features Works with HDMI up to Ultra HD 4 Kx 2K US 2-gang or optional UK wall plate 3-way power Po Cc to receiver Po Cc from receiver Local power supply Suggested Receiver ...
