The CS1798 8-port USB (Universal Serial Bus) HDMI KVM Switch is a multi-purpose appliance that consolidates access & control of up to 8 HDMI computers from a single USB (Universal Serial Bus) keyboard, USB (Universal Serial Bus) mouse, & monitor console. The CS1798 can be cascaded up to three levels – to control up to 512 computers – all from a single console. In addition the CS1798 features multi-display functionality, which enables the use of standard USB (Universal Serial Bus) cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It means that you can contrast, analyse & monitor video output in convenient ways, substantially simplifying the working environment. Furthermore, the CS1798 comes with ATEN’s on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD confi guration backup/restore to save/back up the OSD settings & restore them as needed. The CS1798 provides multimedia keyboard support & is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).
- One USB (Universal Serial Bus) console controls up to eight HDMI interface computers & two additional USB (Universal Serial Bus) 2.0 devices
- HDMI compatible
- Cascadable to three levels–control up to 512 computers*1
- Multi-Display feature – stack up to eight CS1798 units & display video from up to eight monitors (dual display/triple display/quad display/multi-display)
- 2-port USB (Universal Serial Bus) 2.0 hub built in
- Computer selection via front panel pushbuttons, hotkeys, & multilingual on-screen display (OSD)
- Independent switching of KVM & USB (Universal Serial Bus) focus
- OSD Backup/ Restore feature–enables the administrator to back up the switch’s configuration & user profile information
- Firmware upgradable
- Video Dyna Sync™ – exclusive ATEN technology eliminates boot-up display problems & optimizes resolution when switching between ports
- Superior video quality–supports up to 1080p / 1920 x 1200@60 Hz
- Supports widescreen resolutions
- Audio enabled–full bass response provides a rich experience for 2.1 channel surround sound systems
- Console audio ports on front panel for easy access
- Auto Scan Mode for monitoring all computers
- HDCP compatible
- Multiplatform support– Windows, Linux, Mac, Sun
- Console mouse port emulation/bypass feature supports most mouse drivers & multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/ Sun keyboard support & emulation*2.3.
- Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, & French
- Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, & Simplified Chinese





















...

The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers from a single USB (Universal Serial Bus) keyboard, mouse & HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60 Hz), the CS1822 optimizes user experience of multitasking. With patented ATEN technology – Video Dyna Sync™, users can enjoy better display resolution & faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display & eliminates monitor compatibility issue. In addition, the CS1822 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB (Universal Serial Bus) 3.1 Gen 1 hub, the CS1822 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations & share USB (Universal Serial Bus) peripherals with ease. Integrating these outstanding functionalities, the CS1822 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly. Superior video quality – 4096 x 2160 @ 60 Hz & 3840 x 2160 @ 60 Hz; 2-Port USB (Universal Serial Bus) 3.1 Gen 1 hub with Super Speed 5 Gbps data transfer rates Supports Video Dyna Sync Audio Mixer Modes – mixes up to two audio sources as audio output Computer selection via pushbuttons, hotkeys, mouse & RS-232 commands ...

The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB (Universal Serial Bus) keyboard, mouse & HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60 Hz), the CS1824 optimizes user experience of multitasking. With patented ATEN technology – Video Dyna Sync™, users can enjoy better display resolution & faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display & eliminates monitor compatibility issue. In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB (Universal Serial Bus) 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations & share USB (Universal Serial Bus) peripherals with ease. Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly. Superior video quality – 4096 x 2160 @ 60 Hz & 3840 x 2160 @ 60 Hz; 2-Port USB (Universal Serial Bus) 3.1 Gen 1 hub with Super Speed 5 Gbps data transfer rates Supports Video Dyna Sync Audio Mixer Modes – mixes up to two audio sources as audio output Computer selection via pushbuttons, hotkeys, mouse & RS-232 commands ...

2-Port USB (Universal Serial Bus) 3.0 4K HDMI Dual Display KVMP™ Switch The ATEN CS1842 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant & effortless access to two HDMI interface computers from a single USB (Universal Serial Bus) keyboard, mouse & two HDMI monitors; to meet users’ needs, the CS1842 is compliant with HDMI 2.0 standard & supports superior video quality up to 4K DCI (4096 x 2160 @ 60 Hz), offering the most stunning & vivid visuals. In addition, with patented ATEN technology – Video Dyna Sync™, which optimizes display resolution, speeds up switching between systems, & ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports, providing a smooth & uninterrupted user experience. Considering immediate data sharing, a built-in USB (Universal Serial Bus) 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations & share USB (Universal Serial Bus) peripherals efficiently. • One USB (Universal Serial Bus) keyboard, mouse & two HDMI monitors control two HDMI computers & share two USB (Universal Serial Bus) peripherals • Supports Quad Display by connecting two Dual Display KVM switches • Video Dyna Sync™ – an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, & ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports • Supports superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) & 4K DCI (4096 x 2160 @ 60 Hz) • Computer selection via pushbuttons, hotkeys, mouse 1, remote port selector, & RS-232 commands 2 • Built-in 2-port USB (Universal Serial Bus) 3.1 Gen 1 hub with Super Speed 5 Gbps data transfer rates • Supports console keyboard emulation / bypass feature • Supports console mouse emulation / bypass feature • Independent switching of KVM, USB (Universal Serial Bus) peripheral, & stereo audio focus 3 • Multilingual keyboard mapping – supports English, French, Japanese, & German keyboards • HDMI 2.0 compliant; HDCP 2.2 compliant • Supports HD audio 3 • Power on detection • Auto Scan Mode for monitoring all computers • Firmware upgradable ...

4-Port USB (Universal Serial Bus) 3.0 4K HDMI Dual Display KVMP™ Switch The ATEN CS1844 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant & effortless access to four HDMI interface computers from a single USB (Universal Serial Bus) keyboard, mouse & two HDMI monitors; to meet users’ needs, the CS1844 is compliant with HDMI 2.0 standard & supports superior video quality up to 4K DCI (4096 x 2160 @ 60 Hz), offering the most stunning & vivid visuals. In addition, with patented ATEN technology – Video Dyna Sync™, which optimizes display resolution, speeds up switching between systems, & ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports, providing a smooth & uninterrupted user experience. Considering immediate data sharing, a built-in USB (Universal Serial Bus) 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations & share USB (Universal Serial Bus) peripherals efficiently. • One USB (Universal Serial Bus) keyboard, mouse & two HDMI monitors control four HDMI computers & share two USB (Universal Serial Bus) peripherals • Supports Quad Display by connecting two Dual Display KVM switches • Video Dyna Sync™ – an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, & ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports • Supports superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) & 4K DCI (4096 x 2160 @ 60 Hz) • Computer selection via pushbuttons, hotkeys, mouse 1, remote port selector, & RS-232 commands 2 • Built-in 2-port USB (Universal Serial Bus) 3.1 Gen 1 hub with Super Speed 5 Gbps data transfer rates • Supports console keyboard emulation / bypass feature • Supports console mouse emulation / bypass feature • Independent switching of KVM, USB (Universal Serial Bus) peripheral, & stereo audio focus 3 • Multilingual keyboard mapping – supports English, French, Japanese, & German keyboards • HDMI 2.0 compliant; HDCP 2.2 compliant • Supports HD audio 3 • Power on detection • Auto Scan Mode for monitoring all computers • Firmware upgradable ...

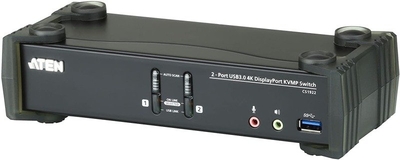

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M 2-Port USB (Universal Serial Bus) 3.0 4K Display Port MST KVMP Switch is the world’s first Display Port KVM switch with a built-in MST hub. The CS1922M enables users to adopt two console displays from a single Display Port 1.2 video source, providing an extended desktop mode & splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections. To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1922M integrates a USB (Universal Serial Bus) 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps – allowing you to maximize multitasking operations. The unique independent switching feature allows the KVM switch’s focus to be on one computer while its USB (Universal Serial Bus) peripheral focus is on another computer. This eliminates the need to purchase a separate USB (Universal Serial Bus) hub or st&-alone peripheral sharer – such as a print server or splitter. in addition, the switch means that you can share the audio from each of the connected computers & even allows HD audio transmitted through a Display Port source. World’s First Display Port KVM Switch with Built-in MST Hub
- One USB (Universal Serial Bus) keyboard/mouse & Display Port or HDMI monitor control 2 computers & 2 USB (Universal Serial Bus) peripherals
- Built-in Multi-Stream Transport (MST) hub allows dual displays (Display Port / HDMI) from a single Display Port source
- Supports MST Mode, Splitter Mode, & Single Port Mode.
- 2-port USB (Universal Serial Bus) 3.1 Gen 1 hub with Super Speed 5 Gbps data transfer speeds
- Display Port Dual-Mode (DP++) technology supports HDMI & DVI signals via a Display Port-to-HDMI/DVI DP++ adapter
- Firmware upgradeable
- Hot pluggable – add or remove computers without powering down the switch Remarkable Audio/ Video Experience
- Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) & 4K DCI (4096 x 2160 @ 60 Hz)
- Display Port 1.2 compliant, HDCP compliant
- Supports HD audio through Display Port
- Full bass response for high-quality 2.1 channel surround sound systems Intelligent Operation
- Computer selection via front panel pushbuttons, hotkeys, mouse, & RS-232 commands
- Independent switching of KVM, USB (Universal Serial Bus) hub, & Audio focus
- Power On Detection – if a computer is powered off, the CS1922M automatically switches to the next powered-on computer
- Auto Scan Mode for monitoring all computers Versatile Compatibility
- Keyboard emulation/bypass feature supports most gaming keyboards
- Mouse emulation/bypass feature supports most mouse drivers & multifunction mice
- Multi-platform support – Windows, Mac & Linux
- Multilingual keyboard mapping supports English, Japanese, French & German keyboards


















...

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M 2-Port USB (Universal Serial Bus) 3.0 4K Display Port MST KVMP Switch is the world’s first Display Port KVM switch with a built-in MST hub. The CS1922M enables users to adopt two console displays from a single Display Port 1.2 video source, providing an extended desktop mode & splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections. To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1922M integrates a USB (Universal Serial Bus) 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps – allowing you to maximize multitasking operations. The unique independent switching feature allows the KVM switch’s focus to be on one computer while its USB (Universal Serial Bus) peripheral focus is on another computer. This eliminates the need to purchase a separate USB (Universal Serial Bus) hub or st&-alone peripheral sharer – such as a print server or splitter. in addition, the switch means that you can share the audio from each of the connected computers & even allows HD audio transmitted through a Display Port source. World’s First Display Port KVM Switch with Built-in MST Hub
- One USB (Universal Serial Bus) keyboard/mouse & Display Port or HDMI monitor control 2 computers & 2 USB (Universal Serial Bus) peripherals
- Built-in Multi-Stream Transport (MST) hub allows dual displays (Display Port / HDMI) from a single Display Port source
- Supports MST Mode, Splitter Mode, & Single Port Mode.
- 2-port USB (Universal Serial Bus) 3.1 Gen 1 hub with Super Speed 5 Gbps data transfer speeds
- Display Port Dual-Mode (DP++) technology supports HDMI & DVI signals via a Display Port-to-HDMI/DVI DP++ adapter
- Firmware upgradeable
- Hot pluggable – add or remove computers without powering down the switch Remarkable Audio/ Video Experience
- Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) & 4K DCI (4096 x 2160 @ 60 Hz)
- Display Port 1.2 compliant, HDCP compliant
- Supports HD audio through Display Port
- Full bass response for high-quality 2.1 channel surround sound systems Intelligent Operation
- Computer selection via front panel pushbuttons, hotkeys, mouse, & RS-232 commands
- Independent switching of KVM, USB (Universal Serial Bus) hub, & Audio focus
- Power On Detection – if a computer is powered off, the CS1922M automatically switches to the next powered-on computer
- Auto Scan Mode for monitoring all computers Versatile Compatibility
- Keyboard emulation/bypass feature supports most gaming keyboards
- Mouse emulation/bypass feature supports most mouse drivers & multifunction mice
- Multi-platform support – Windows, Mac & Linux
- Multilingual keyboard mapping supports English, Japanese, French & German keyboards


















...

The ATEN CS1924 4-Port USB (Universal Serial Bus) 3.0 4K Display Port KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality & transfer speeds on modern computers. The ATEN CS1924 offers an unprecedented performance of delivering 4K resolution, the next generation USB (Universal Serial Bus) 3.1 Gen 1 hub with Super Speed 5 Gbps data transfer rates & enhanced user-friendly operations. As a KVM switch, the CS1924 allows users to access four Display Port computers from a single USB (Universal Serial Bus) keyboard, USB (Universal Serial Bus) mouse & monitor console. Doing so with ease, the CS1924 provides three convenient switching methods – using front panel pushbuttons, mouse, or hotkeys for flexible access to any computer connected to the installation. The unique independent switching feature allows the KVM control to focus on one computer while the USB (Universal Serial Bus) peripheral focus is on another computer. This eliminates the need to purchase a separate USB (Universal Serial Bus) hub or st&-alone peripheral sharer – such as a print server, modem splitter, etc. With its rich feature set, the CS1924 is designed to surpass all requirements in graphic design, animation, & video-editing applications. Such as CAD/CAM (computer aided design/manufacturing). The CS1924 means that you can share the audio from each of the connected computers. HD audio transmitted by Display Port would offer you a different experience.

Features: -4-port Display Port KVMP™ Switch with USB (Universal Serial Bus) 3.1 Gen 1 hub & 2.1 surround sound audio -One USB (Universal Serial Bus) console controls 4 computers & 2 USB (Universal Serial Bus) peripherals -Computer selection via front panel pushbuttons, hotkeys & mouse* -Independent switching of KVM, USB (Universal Serial Bus), & Audio focus -Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) & 4K DCI (4096 x 2160 @ 60 Hz) -2-port USB (Universal Serial Bus) 3.1 Gen 1 hub with Super Speed 5 Gbps data transfer rates -Display Port 1.2 compliant, HDCP compliant -Supports HD audio through Display Port** -Full bass response for high-quality 2.1 channel surround sound systems -Power On Detection – if a computer is powered off, the CS1924 automatically switches to the next powered-on computer -Multi-Stream Transport (MST) allows multiple monitors through a single Display Port connector*** -Display Port Dual – Mode technology (DP++) supports HDMI & DVI signals via a -Display Port-to-HDMI/DVI DP++ adapter**** -Hot pluggable – add or remove computers without powering down the switch -Keyboard emulation/bypass feature supports most gaming keyboard -Mouse emulation/bypass feature supports most mouse drivers & multifunction mice -Multi-platform support – Windows, Mac & Linux -Multilingual keyboard mapping supports English, Japanese, French & German keyboards -Mac keyboard support & emulation***** -Auto Scan Mode for monitoring all computers -Firmware upgradeable Note: 1. Mouse port switching is only supported under mouse emulation mode with a USB (Universal Serial Bus) 3-button mouse wheel. 2. HD audio through Display Port cannot be switched independently. 3. MST requires two monitors capable of Display Port 1.2 daisy-chaining, or use of a Display Port MST Hub. The PC source must be Display Port 1.2 compliant. A Display Port v 1.1a display can be the last display in a Display Port v 1.2 chain. 4. Display Port Dual – Mode technology (DP++) does not require an active adapter for most single display setups. Active Display Port adapters are recommended if you are unsure of the video source's DP++ compatibility. 5. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own operating system.

...

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1924M 4-Port USB (Universal Serial Bus) 3.0 4K Display Port MST KVMP Switch is the world’s first Display Port KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single Display Port 1.2 video source, providing an extended desktop mode & splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections. To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1924M integrates a USB (Universal Serial Bus) 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps – allowing you to maximize multitasking operations. The unique independent switching feature allows the KVM switch’s focus to be on one computer while its USB (Universal Serial Bus) peripheral focus is on another computer. This eliminates the need to purchase a separate USB (Universal Serial Bus) hub or st&-alone peripheral sharer – such as a print server or splitter. in addition, the switch means that you can share the audio from each of the connected computers & even allows HD audio transmitted through a Display Port source. World’s First Display Port KVM Switch with Built-in MST Hub
- One USB (Universal Serial Bus) keyboard/mouse & Display Port or HDMI monitor control 4 computers & 2 USB (Universal Serial Bus) peripherals
- Built-in Multi-Stream Transport (MST) hub allows dual displays (Display Port / HDMI) from a single Display Port source
- Supports MST Mode, Splitter Mode, & Single Port Mode.
- 2-port USB (Universal Serial Bus) 3.1 Gen 1 hub with Super Speed 5 Gbps data transfer speeds
- Display Port Dual-Mode (DP++) technology supports HDMI & DVI signals via a Display Port-to-HDMI/DVI DP++ adapter
- Firmware upgradeable
- Hot pluggable – add or remove computers without powering down the switch Remarkable Audio/ Video Experience
- Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) & 4K DCI (4096 x 2160 @ 60 Hz)
- Display Port 1.2 compliant, HDCP compliant
- Supports HD audio through Display Port
- Full bass response for high-quality 2.1 channel surround sound systems Intelligent Operation
- Computer selection via front panel pushbuttons, hotkeys, mouse, & RS-232 commands
- Independent switching of KVM, USB (Universal Serial Bus) hub, & Audio focus
- Power On Detection – if a computer is powered off, the CS1924M automatically switches to the next powered-on computer
- Auto Scan Mode for monitoring all computers Versatile Compatibility
- Keyboard emulation/bypass feature supports most gaming keyboards
- Mouse emulation/bypass feature supports most mouse drivers & multifunction mice
- Multi-platform support – Windows, Mac & Linux
- Multilingual keyboard mapping supports English, Japanese, French & German keyboards


















...

he ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB (Universal Serial Bus) keyboard, USB (Universal Serial Bus) mouse & two Display Port monitors. Advanced video support provides a better-defined Display Port connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen & easily switch between two or four Display Port systems. In addition, featuring a built-in USB (Universal Serial Bus) 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations. Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, & lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, & video post production. • One USB (Universal Serial Bus) keyboard & mouse controls two Display Port computers & share two USB (Universal Serial Bus) peripherals • Supports Quad Display by connecting two Dual Display KVM switches • Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz) • Computer Selection via front panel, hotkeys, mouse, & RS-232 commands • 2- Port USB (Universal Serial Bus) 3.1 Gen 1 hub with Super Speed 5 Gbps data transfer rates • Supports Display Port Dual-Mode technology (DP++)* • Supports MST (Multi-Stream Transport) • Supports Console keyboard emulation / bypass feature • Supports Console mouse emulation / bypass feature • Independent switching of KVM, USB (Universal Serial Bus), & Audio • Multilingual keyboard mapping – supports English, French, Japanese, & German keyboards • HDCP Compliant • Supports HD audio** • Power on detection • Firmware upgradable Note: * Display Port Dual– Mode technology (DP++) does not require an active adapter for most single display setups. Active Display Port adapters are recommended if you are unsure of the video source's DP++ compatibility. **HD audio through Display Port cannot be switched independently ...
