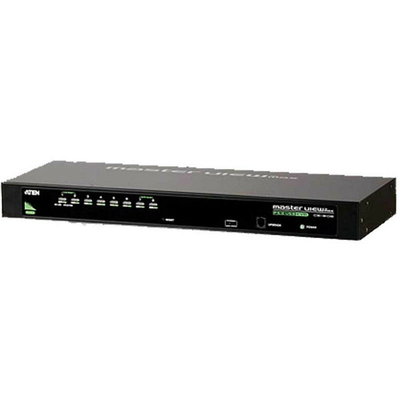

One USB (Universal Serial Bus)-PS/2 console controls up to 8 computers
- Daisy-chain up to 31 additional units
- control up to 256 computers from a single console
- Front accessible USB (Universal Serial Bus) port allows each computer to access USB (Universal Serial Bus) peripherals *
- Dual Interface
- supports computers & console with PS/2 or USB (Universal Serial Bus) keyboards & mice
- Multiplatform support
- Windows, Linux, Mac & Sun
- Video Dyna Sync™
- stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Supports USB (Universal Serial Bus) keyboards for PC, Mac & Sun
- Auto PS/2 & USB (Universal Serial Bus) interface detection
- USB (Universal Serial Bus) / PS/2 keyboard & mouse emulation
- computers boot even when the console focus is elsewhere
- Superior video quality
- up to 2048 x 1536; DDC2B
- No software required
- convenient computer selection via front panel pushbuttons, hotkeys & multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security; only authorized users view & control computers; up to four users & an administrator with separate profiles for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast Mode
- operation simultaneously performed on all selected computers... etc
- Hot pluggable
- add or remove computers without having to power down the switch
- Buzzer on/off via hotkey & OSD
- Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable
- Rack mountable in 19" system rack (1U) * The USB (Universal Serial Bus) peripheral function only works with USB (Universal Serial Bus) cable set connections. It will not work with PS/2 cable set connections.
