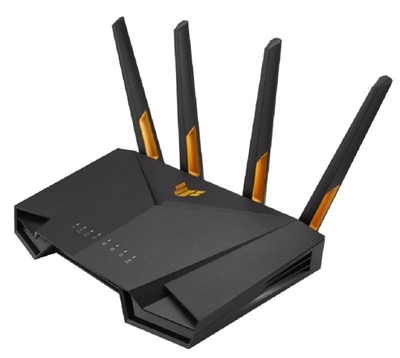

ASUS (TUF-AX4200) TUF Gaming AX4200 Dual Band Wi-Fi 6 Gaming Router
Mobile Game Mode 3 Steps Port Forwarding 2.5G LAN AiMesh AiProtection
Pro

Product Description

TUF Gaming AX4200 Dual Band Wi Fi 6 Gaming Router with Mobile Game Mode, 3 steps port forwarding, 2.5 Gbps port, Ai Mesh for mesh Wi Fi, Ai Protection Pro network security TUF Gaming AX4200 is designed to give you stable & fast wireless & wired connections in device-dense environments. Its a router that benefits all your devices, from laptops, smartphones, & game consoles right down to all the Io T devices in your home.4X Capacity. 2X Faster.* Wi Fi 6 provides faster wireless speeds with OFDMA, BSS coloring & MU-MIMO technologies, & it also boosts network efficiency, so all your devices get their fair share of Wi Fi bandwidth. Its perfect for busy networks with lots of different Wi Fi devices, such as laptops, smartphones & smart home devices. * The data compares speed of 4X4 Wi Fi 6 solution on 5 G Hz band 160 M Hz channel to speed of 4X4 Wi Fi 5 solution on 5 G Hz band 80 M Hz channel True Multi-Gigabit Wired Speeds TUF Gaming AX4200 can unlock up to 2 Gbps of internet bandwidth by 2.5 Gbps port, & aggregating two separate 1 Gbps internet services using the LAN1 & LAN2 ports.* * Link Aggregation (802.3ad) refers to the combining throughput of multiple devices. Wi Fi that Goes Further Weve designed TUF Gaming AX4200 to give you the widest possible Wi Fi coverage. It uses OFDMA, a new technology in Wi Fi 6 that allows signals to travel further than they can in Wi Fi 5. Along with other enhancements like beamforming, which focuses the signal towards each device, TUF Gaming AX4200 reaches every corner. Flexible & Scalable Wireless Mesh Networking If you need more coverage or new functions, you can simply add another compatible router to your Ai Mesh network at any time! Stable & Durable TUF Gaming AX4200 is engineered to deliver maximum Wi Fi performance. The vent location & heatsink design improve cooling for increased stability, & the fixed antennas & metal port protectors increase physical durability. One Router. All Game Types.TUF Gaming AX4200 provides gamers with different features for different game types. Switch Modes for an Easy Life Optimize whatever youre doing with different modes, & boost the task at hand! Simultaneous Gaming & VPNVPN Fusion lets you run both a VPN & an ordinary internet connection
- simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds. Commercial-Grade Security for Your Home Home network security is crucial when you have multiple connected devices, & even more so when there are devices without anti-virus capabilities such as Io T devices. TUF Gaming AX4200

Includes:: lifetime free Ai Protection Pro, including the latest WPA3 security protocol & advanced Parental Controls. Every device is protected with TUF Gaming AX4200, & you can keep an eye on everything thats happening on your network via the handy mobile app. More Privacy, Anywhere Instant Guard gives you one-click secure internet access via TUF Gaming AX4200 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With TUF Gaming AX4200, you can take your home network with you wherever you go — & say goodbye to web-based third-party VPNs! Specifications Ethernet LAN features Ethernet WAN Yes Ethernet LAN interface type Gigabit Ethernet Ethernet LAN Yes Ethernet LAN data rates 10, 100, 1000 Mbit/s Cabling technology 10/100/1000 Base-T (X) DSL features DSL WAN No Mobile network SIM card slot No 3G/4G USB (Universal Serial Bus) modem compatibility No Network Wake-on-LAN ready Yes Network address translation (NAT) Yes Guest access Yes Ethernet LAN interface type Gigabit Ethernet Ethernet LAN Yes VPN support VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client Wire Guard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server Wire Guard VPN Fusion Port forwarding Yes Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Ethernet LAN data rates 10, 100, 1000 Mbit/s Cabling technology 10/100/1000 Base-T (X) Port triggering Yes Number of guest networks (5 GHz) 3 Number of guest networks (2.4 GHz) 3 Support Samba (storage) Yes VPN server VPN Server OVPN, VPN Server PPTP, VPN Server Wire Guard SSID-based VLAN assignment Yes Dynamic DNS (DDNS) Yes Protocols DMZ support Yes Supported network protocols IPv 4, IPv 6 DHCP server Yes Security VPN support VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client Wire Guard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server Wire Guard VPN Fusion URL filtering Yes Network address translation (NAT) Yes NAT functionality PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPo E relay MAC address filtering Yes Guest access Yes Firewall Yes DMZ support Yes Filtering Yes Schedule access Yes Parental control Yes Performance Processor frequency 2 MHz Processor cores 2 Firmware upgradeable Yes Built-in processor Yes Internal memory 512 MB Flash memory 256 MB Weight &

Dimensions Package width 433 mm Package weight 1kg Package height 73 mm Package depth 326 mm Width 265 mm Weight 547.4 g Height 186 mm Depth 178 mm Packaging content Package type Box Number of products included 1 pc (s) Quick start guide Yes Cables included LAN (RJ-45) AC adapter included Yes Warranty card Yes WAN connection Ethernet WAN Yes DSL WAN No SIM card slot No 3G/4G USB (Universal Serial Bus) modem compatibility No WAN connection type RJ-45 Wireless LAN features Top Wi-Fi standard Wi-Fi 6 (802.11ax) WLAN data transfer rate (max) 3603 Mbit/s Wi-Fi band Dual-band (2.4 GHz / 5 GHz) WLAN data transfer rate (first band) 574 Mbit/s WLAN data transfer rate (second band) 3603 Mbit/s Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Ports & interfaces USB (Universal Serial Bus) port Yes Ethernet LAN (RJ-45) ports 4 DC-in jack Yes USB (Universal Serial Bus) 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 Management features WPS push button Yes Wake-on-LAN ready Yes Reset button Yes Quality of Service (Qo S) support Yes Bandwidth control Yes Intelligent Mesh technology Yes Design Product type Tabletop router On/off switch Yes LED indicators LAN, Power, WAN Product colour Black Indication light Yes Other features Internal memory 512 MB Flash memory 256 MB Antenna Antenna design External Antennas quantity 4 Features Processor frequency 2 MHz Processor cores 2 Firmware upgradeable Yes Built-in processor Yes Internal memory 512 MB Flash memory 256 MB Power Power source type DC Output voltage 12 V Output current 2.5 A AC input voltage 100
- 240 V AC input frequency 50/60 Hz Packaging data Quick start guide Yes Package width 433 mm Package weight 1kg Package type Box Package height 73 mm Package depth 326 mm Cables included LAN (RJ-45) AC adapter included Yes Warranty card Yes Number of products included 1 pc (s)
