“ Free AMD Radeon Rewards download coupon GOLD from 28th May 2014 whilst stocks last with selected cards. Offer on selected cards only, not available on ex-display cards.” Direct CU II achieves 20% lower temps with direct-contact copper heatpipes, plus 3X quieter & 6X more powerful twin 100mm fan operation. Exclusive Cool Tech Fan drives wider airflow to keep critical components cool. DIGI+ VRM with 12-phase Super Alloy Power delivers precise digital power for superior efficiency, reliability, & performance. GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface. Specifications Graphics Engine
- AMD Radeon R9 280X Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 3GB Engine Clock
- GPU Boost Clock: 1000 MHz, GPU Base Clock: 850 MHz Memory Clock
- 6000 MHz (1500 MHz GDDR5 ) Memory Interface
- 384-bit Resolution
- DVI Max Resolution: 2560x 1600 Interface
- DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D), HDMI Output: Yes x 1, Display Port: Yes x 1 (Regular DP) Power Consumption
- up to 300W additional 6+8 pin PCIe power required

Dimensions
- 11.2 " x 5.7 " x 1.5 " Inch











...

ASUS Radeon R9 280X Direct CU II gives new edge to hardcore gamers Direct CU II achieves 20% lower temps with direct-contact copper heatpipes, plus 3X quieter & 6X more powerful twin 100mm fan operation Exclusive Cool Tech Fan drives wider airflow to keep critical components cool TOP-selected 1070 M Hz cores run 70 M Hz higher than reference for smoother gameplay DIGI+ VRM with 12-phase Super Alloy Power delivers precise digital power for superior efficiency, reliability, & performance GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface Graphics Engine
- AMD Radeon R9 280X Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 3GB Engine Clock
- GPU Boost Clock: 1070 MHz, GPU Base Clock: 970 MHz Memory Clock
- 6400 MHz (1600 MHz GDDR5 ) Memory Interface
- 384-bit Resolution
- DVI Max Resolution: 2560x 1600 Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Power Consumption up to 300 Wadditional 6+8 pin PCIe power required ASUS Features Direct CU Series TOP Series Super Alloy Power

Dimensions 11.2 " x 5.7 " x 1.5 " Inch Note Specifications are subject to change without notice PCB color & bundled software versions are change without notice Brand & product names mentioned are trademarks of their respective company UEFI BIOS support








...

The ASUS R9 290 is a new graphics card powered by the latest AMD Radeon R9 290 graphics-processing unit (GPU). The new card benefits from exclusive ASUS GPU Tweak, an easy-to-use tuning tool for instant performance boosts, 4GB of super-fast GDDR5 memory for the best gaming experience at the highest resolutions & incorporates AMD Eyefinity & True Audio technologies to enable expansive multi-display setups & bring in-game audio to life with more accurate environmental sounds. R9 290 also

Includes:: support for both Direct X 11.2 & AMD’s new Mantle application programming interface (API) for great handling of even the most-demanding PC games. The new ASUS R9 290 has a unique advantage in the shape of GPU Tweak, an exclusive ASUS tool that helps users to squeeze every last drop of performance out of the Radeon R9 290 GPU. This

Includes:: the ability to control finely GPU & video-memory clock speeds & voltages, cooling-fan speeds & power-consumption thresholds — so overclocking is both made easy & can be carried out with high confidence. As well, the GPU Tweak Streaming tool lets users share on-screen action over the internet in real time — so others can watch live as games are played. It’s even possible to add a title to the streaming window along with scrolling text, pictures & webcam images. R9 290 is equipped with 4GB of high-speed GDDR5 memory, allowing gamers to push their favorite titles much further by upping in-game visuals to maximum resolutions. The new card also

Includes:: AMD Eyefinity technology to broaden the gaming landscape, so gamers can expand the playing field across up to six independent displays, via Display Port or DVI. Of course, R9 290 supports the very latest Direct X 11.2 standard that enables on-GPU tessellation, allowing more & incredibly detailed geometry to be packed into game scenes — characters come to life with cinema-quality detail levels. The card also offers AMD’s br&-new Mantle API that provides developers with direct access to the GPU, making life simpler for them & allowing game code to run much more efficiently — resulting in faster, smoother graphics & gameplay. R9 290 also benefits from AMD True Audio technology, a dedicated digital signal processor (DSP) that’s built in to the GPU. This provides game developers with processing power that’s designed purely for audio, allowing R9 290 to generate soundscapes that are much more true to life — so gamers become even more immersed in the action. The ASUS R9 290 is a new graphics card powered by the latest AMD Radeon R9 290 graphics-processing unit (GPU). The new card benefits from exclusive ASUS GPU Tweak, an easy-to-use tuning tool for instant performance boosts, 4GB of super-fast GDDR5 memory for the best gaming experience at the highest resolutions & incorporates AMD Eyefinity & True Audio technologies to enable expansive multi-display setups & bring in-game audio to life with more accurate environmental sounds. R9 290 also

Includes:: support for both Direct X 11.2 & AMD’s new Mantle application programming interface (API) for great handling of even the most-demanding PC games. SPECIFICATIONS AMD Radeon R9 290 PCI Express 3.0 Open GL 4.4 4096MB GDDR5 memory 947 M Hz core speed 2816 stream processors 5000 M Hz (1250 M Hz GDDR5) memory clock DVI-/DVI-D output HDMI output







...

Direct CU II: achieves 20% lower temps with 220% the dissipation area, plus 3X quieter running than reference Exclusive Cool Tech Fan: drives wider airflow to keep critical components cool. 1000 MHZ engine clock for better performance & outstanding gaming experience. DIGI+ VRM with 8-phase Super Alloy Power: delivers precise digital power for superior efficiency, reliability, & performance GPU Tweak: helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface GPU Tweak Streaming: let you share on-screen action in real time – so others can watch live as games are played 19% faster game performance than reference Radeon R9 290 in Battle Field 4. Graphics Engine
- AMD Radeon R9 290 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 4GB Engine Clock
- 1000 MHz Memory Clock
- 5040 MHz (1260 MHz GDDR5 ) Memory Interface
- 512-bit Interface DVI Output: Yes x 2 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Accessories 1 x Power cable Power Consumption up to 300 Wadditional 6+8 pin PCIe power required Software ASUS GPU Tweak & Driver ASUS Features Direct CU Series OC Series Super Alloy Power

Dimensions 11.3 " x 5.8 " x 1.6 " Inch 28.7 x 14.73 x 4.06 Centimeter







...

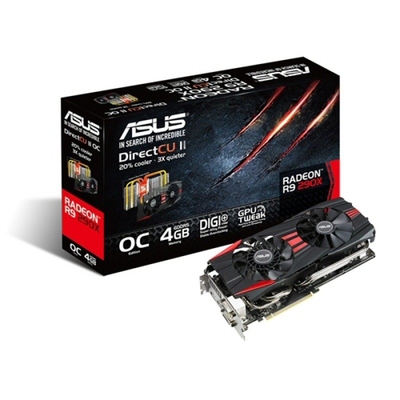

Asus R9 290X 4GB GDDR5 Dual DVI HDMI Display Port PCI-E Graphics Card 4GB GDDR5 memory for the best gaming experiences in the highest resolutions. Microsoft Direct X 11.2 API Brings new levels of visual realism to gaming on the PC & get top-notch performance.GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface. Graphics Engine
- AMD Radeon R9 290X Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 4GB Engine Clock
- 1000 MHz Memory Clock
- 1250 MHz (GDDR5 ) Memory Interface
- 512-bit Resolution
- DVI Max Resolution: 2560x 1600 Interface DVI Output: Yes x 2 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Power Consumption up to 300 Wadditional 6+8 pin PCIe power required Software
- ASUS GPU Tweak & Driver

Dimensions
- 10.9 " x 4.3 " x 1.4 " Inch










...

Asus Radeon R5 230 2GB DDR3 VGA DVI HDMI PCI-E Graphics Card Graphics Engine AMD Radeon R5 230 Bus Standard PCI Express 2.1 Video Memory DDR3 2GB Engine Clock 650 MHz Memory Clock 1200 MHz (600 MHz DDR3 ) Memory Interface 64-bit Resolution DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 DVI Output: Yes x 1 (DVI-D) HDMI Output: Yes x 1 HDCP Support: Yes Power Consumption up to 75 Wno additional PCIe power required Software ASUS Utilities & Driver

Dimensions 6.7 " x 2.7 " Inch 17.02 x 6.86 Centimeter

...

Features Dust-proof Fan design increases particle resistance & extends card lifespan by up to 25% longer than reference. Industry-Only Auto-Extreme Technology with Super Alloy Power II delivers premium quality & best reliability. GPU Tweak II makes overclocking easier & more visual than ever with an intuitive, all-new UI. Low profile graphics cards for HTPC & multimedia PCs support smooth 1280 x 1024 gaming & Blu-ray 3D. Brackets bundled for fast setup! Overview Raging Cool for the Win! R7 240 is the astonishing new graphics card from ASUS – that’s perfect for home-theater PCs (HTPCs) & multimedia setups! Equipped with the Radeon R7 240 graphics-processing unit (GPU), R7 240

Includes:: some brilliant technologies that you can get only from ASUS. We’ve fitted dust-proof fan for 25%-longer lifespan, & equipped the card with our exclusive Industry-exclusive Auto-Extreme Technology with Super Alloy Power II components for superior stability. R7 240 also comes with our easy-to-use tuning tool, GPU Tweak. Use this to squeeze every last drop of performance out of the card & then stream your pumped-up on-screen action over the internet in real time! Dust-Proof Fan 25% longer graphics card lifespan Unique fan design dissipates heat efficiently while extending a graphic card’s lifespan by 25%* through increased dust & particle resistance. Auto-Extreme Technology with Super Alloy Power II Premium quality & best reliability ASUS graphics cards are produced using Auto-Extreme technology, an industry-first 100% automated production process, & feature premium Super Alloy Power II components that enhance efficiency, reduce power loss, decrease component buzzing under load, & lower thermal temperatures for unsurpassed quality & reliability.

Specification Graphics Engine AMD Radeon R7 240 Bus Standard PCI Express 3.0 Open GL Open GL4.3 Video Memory GDDR5 2GB Engine Clock GPU Boost Clock: 780 MHz GPU Base Clock: 730 MHz Memory Clock 4600 MHz (1150 MHz GDDR5) Memory Interface 128-bit Resolution DVI Max Resolution: 1920x 1200 Interface D-Sub Output: Yes x 1 (Native) DVI Output: Yes x 1 Single-link (DVI-D) HDMI Output: Yes x 1 (Native) HDCP Support: Yes Accessories 1 x CD 1 x Quick Guide Software ASUS GPU Tweak II & Driver

Dimensions 5.8 " x 2.7 " x 0.8 " Inch 14.7 x 6.9 x 2.1 Centimeter





...

Asus Radeon R7 250 1GB GDDR5 DVI-I HDMI Display Port PCI-E Graphics Card Raging Cool for the Win! ASUS R7 250 graphics card is packed with industry only Auto-Extreme technology, 100% full automation for best reliability. Super Alloy Power II ensures heightened stability & durability, while GPU Tweak II with XSplit Gamecaster offers intuitive performance tweaking & instant gameplay streaming. Specifications Graphics Engine AMD Radeon R7 250 Bus Standard PCI Express 3.0 Open GL Open GL 4.5 Video Memory GDDR5 1GB Engine Clock GPU Boost Clock: 925 MHz GPU Base Clock: 725 MHz Memory Clock: 1125 MHz Memory Interface: 128-bit Resolution DVI Max Resolution: 2560x 1600 Interface DVI Output: Yes x 1 (Native) (DVI-I) HDMI Output: Yes x 1 (Native) Display Port: Yes x 1 (Native) (Regular DP) HDCP Support: Yes Software: ASUS GPU Tweak II & Driver

Dimensions 6.61 " x 4.76 " x 1.46 " Inch 16.8 x 12.1 x 3.7 Centimeter

...

Asus Radeon R9 270X 2GB GDDR5 VGA DVI HDMI Display Port PCI-E Graphics card Graphics Engine AMD Radeon R9 270X Bus Standard PCI Express 3.0 Video Memory GDDR5 2GB Engine Clock GPU Boost Clock: 1050 MHz GPU Base Clock: 1000 MHz Memory Clock 5600 MHz (1400 MHz GDDR5 ) Memory Interface 256-bit Resolution D-Sub Max Resolution: 2048x 1536 DVI Max Resolution: 2560x 1600 Interface D-Sub Output: Yes x 1 (via DVI to D-Sub adaptor x 1) DVI Output: Yes x 1 (DVI-D), Yes x 1 (DVI-I) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Software ASUS Utilities & Driver ASUS Features Direct CU Series Super Alloy Power

Dimensions 10.7 " x 5.24 " x 1.578 " Inch

...

Asus Radeon RX 460 2GB GDDR5 DVI-D HDMI Display Port PCI-E Graphics Card ASUS Dual Fan Cooling Dual fan provides 2X greater airflow while maintaining 3X quieter performance, combining enhanced cooling with a more pleasant gaming & computing environment. AUTO-EXTREME Technology An industry-only, 100% automated production process that incorporates Super Alloy Power II components for premium quality & best reliability. GPU Tweak II with Xsplit Gamecaster With an intuitive new UI, GPU Tweak II makes overclocking easier than ever, & features Game Booster to maximize graphics performance & XSplit Gamecaster to stream or record your gameplay. ASUS Features OC edition: OC-selected TBD MHz core – TBD MHz higher than reference for smoother gameplay. Gigantic 2GB GDDR5 Memory: On-board memory for the best gaming experience & the best resolution Unplugged: Unplugged benefits graphics card to upgrade using only motherboard power. Graphics GPU Features GCN Architecture: Get more usable processing power, enabling higher frame rates in the latest games at high resolutions & quality settings, & more everyday applications benefiting from GPU acceleration. AMD Eyefinity Technology: Extend the view across up to 3 displays to immerse yourself in gameplay & entertainment. AMD Free Sync Technology: The Free Sync technology in select AMD APUs & GPUs resolves the communication issues between processor & monitor, eliminating image tears & choppiness for effortlessly smooth gameplay. AMD Cross Fire Technology: Double the graphics available for your gaming with AMD Cross Fire™ technology without any strings attached. Specifications Model DUAL-RX460-O2G Graphics Engine AMD Radeon RX 460 Bus Standard PCI Express 3.0 Open GL Open GL 4.4 Video Memory 2GB GDDR5 Engine Clock TBD Stream Processor 896 Memory Clock 7000 MHz (1750 MHz GDDR5) Memory Interface 128 bit Digital Max Resolution 5120 * 2880 DVI Output 1x Native DVI-D HDMI Output 1x Native HDMI 2.0 HDCP compliant YES Display Port 1x Native Display Port 1.4 Software Bundled ASUS GPU Tweak II & Driver Dimension The card size is 204 x 115 x 42 mm The card size is 8.0 x 4.5 x 1.7 inches ...
