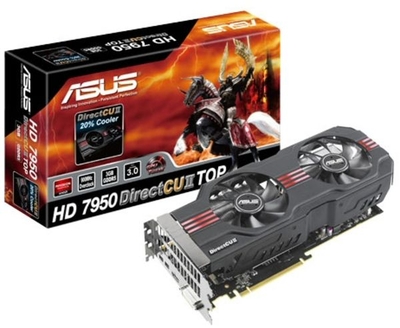

Asus HD 7950 DirectCU II 3GB GDDR5 DVI HDMI Dual Mini DisplayPort
PCI-E Graphics Card

Product Description

The Asus designed HD7950-DC2T-3GD5 graphics card with a 900 MHz supreme overclock is equipped with a 28nm GPU that packs 4.3bn transistors & is combined with 3GB GDDR5 providing users with the ultimate speed for an even smoother gaming experience. Also featuring additional exclusive ASUS technologies, including DIGI+ VRM, offering increased stability, efficiency & reliability combined with Super Alloy Power loaded onto a custom designed PCB from Asus. Supporting full Direct X 11, AMD Cross Fire X & AMD HD3D, the GPU

Includes:: an exclusive tweak utility which allows users to tune the performance of up to four graphics cards & check card status via an intuitive interface. This GPU Tweak function links the GPU clock frequency to the voltage, so as you scale the GPU clock the voltage automatically follows; a useful tool for inexperienced & experienced over-clockers. It also enables users to select between 2D & 3D mode by providing the ability to change the respective clock speeds, voltages & fan speeds of either. Disabling the 2D mode also forces the faster 3D mode, stabilising overclocking & benchmarking results. Embedded with GPU-Z to access accurate graphics card information, the card also contains a live update driver & BIOS benefiting users with the ability to keep their card in the best condition. Widget monitoring provides the choice to display the most needed information including a full widget, light widget or real time monitoring. Furthermore, dual fan Direct CU thermal design delivers 20% cooler performance with direct heat dissipation which runs significantly quieter at 600% greater airflow. New PCI Express 3.0 delivers enhanced encoding & twice the performance of the previous PCI Express 2.0 & vision horizons can be expanded across six displays with AMD Eyefinity technology. This technology delivers innovative graphics display capabilities enabling massive desktop workspaces & ultra-immersive visual environments for the ultimate panoramic computing experience. Cranked 100 M Hz over reference for an ultimate engine clock of 900 M Hz Dual fan Direct CU thermal delivers 20% cooler performance with direct heat dissipation & runs significantly quieter at 600% greater airflow GPU Tweak provides a professional yet intuitive graphics tuning interface for real time card adjustment & monitoring The latest PCIe 3.0 bus standard delivers enhanced encoding for twice the performance of current PCIe 2.0 Expand visual horizon across six displays with AMD Eyefinity technology If the GPU is the heart of a graphics card, then the cooling device would be its lungs. Without it, the graphics card would not be able to "breath" smoothly, causing it to break down or even cause the entire system to fail. For ultimate cooling, ASUS Direct CU thermal technology developed the ideal heat banishing copper in exclusively designed heat pipes for direct & fast heat dissipation. Specifications Graphics Engine
- AMD Radeon HD 7950 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 3GB Engine Clock
- 900 MHz Memory Clock
- 5000 MHz (1250 MHz GDDR5 ) RAMDAC
- 400 MHz Memory Interface
- 384-bit Resolution
- D-Sub Max Resolution: 2048x 1536, DVI Max Resolution: 2560x 1600 Interface
- DVI Output: Yes x 2, HDMI Output: Yes x 1, Display Port: Yes x 2 (Mini DP) HDCP Support
- Yes

Dimensions
- 11.8 " x 5.1 " x 2.3 " Inch Note * To have the best cooling performance, ASUS HD7950-DC2T-3GD5 extends the fansink to 2.5 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! * Support for six simultaneous displays may require complementary products compatible with Display Port 1.2 Multi-Stream Transport.
