As Rock Fatal 1ty X99X Killer Socket LGA 2011-3 7.1 CH HD Audio ATX Motherboard General Gaming Armor CPU Power Hi-Density Power Connector Ultra Dual-N MOSFET (UDM) Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP & MLCC) Memory 15& Icirc;14; Gold Contact in DIMM Slots VGA Card 15& Icirc;14; Gold Contact in VGA PCIe Slot (PCIE1 & PCIE3) PCIe Power Connector Internet Intel LAN Qualcomm Atheros Killer LAN Cooling XXL Aluminum Alloy Heatsink 2oz Copper PCB Heat Pipe Design Audio Purity Sound 2 Unique Feature ASRock Super Alloy XXL Aluminum Alloy Heatsink Premium 60A Power Choke Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) Ultra Dual-N MOSFET (UDM) Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock HDD Saver Technology ASRock Full Spike Protection ASRock Cloud ASRock APP Shop CPU Supports Intel Core i 7 & Xeon 18-Core Processors Family for the LGA 2011-3 Socket Digi Power design 12 Power Phase design Supports Intel Turbo Boost 2.0 Technology Supports Untied Overclocking Technology Chipset
- Intel X99 Memory Quad Channel DDR4 Memory Technology 8 x DDR4 DIMM Slots Supports DDR4 3000+ (OC)*/2933+ (OC)/2800 (OC)/2400 (OC)/2133/1866/1600/1333/1066 non-ECC, un-buffered memory Supports non-ECC RDIMM (Registered DIMM) Supports DDR4 ECC, un-buffered memory/RDIMM with Intel Xeon processors E5 series in the LGA 2011-3 Socket Max. capacity of system memory: 128GB Supports Intel Extreme Memory Profile (XMP) 2.0 * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. ** Please refer to Memory Support List on ASRock's website for more information. BIOS 2 x 128 Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS) Supports Secure Backup UEFI Technology ACPI 1.1 Compliant wake up events SMBIOS 2.3.1 Support CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment Audio, Video & Networking Graphics - n/a Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) Supports Purity Sound„¢ 2 Nichicon Fine Gold Series Audio Caps 115d B SNR DAC with differential amplifier TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) Direct Drive Technology EMI shielding cover PCB isolate shielding Supports DTS Connect LAN 1 x Intel I218V (Gigabit LAN PHY 10/100/1000 Mb/s) 1 x Qualcomm Atheros Killer„¢ E2200 Series (PCIE x 1 Gigabit LAN 10/100/1000 Mb/s) Supports Qualcomm Atheros Security Wake On Internet Technology (on Qualcomm Atheros Killer„¢ E2200 Series) Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports Energy Efficient Ethernet 802.3az Supports PXE Expansion / Connectivity Slots 3 x PCI Express 3.0 x 16 Slots (PCIE1 @ x 16 mode; PCIE3 @ x 16 mode; PCIE5 @ x 8 mode)* 2 x PCI Express 2.0 x 1 Slots 1 x mini-PCI Express Slot Supports AMD Quad Cross Fire X, 3-Way Cross Fire X & Cross Fire X Supports NVIDIA Quad SLI„¢, 3-Way SLI„¢ & SLI„¢*** * If you install CPU with 28 lanes, PCIE1/PCIE3/PCIE5 will run at x 16/x 8/x 4. ** If M.2 PCI Express module is installed, PCIE5 slot will be disabled. *** If you install CPU with 28 lanes, 3-Way SLI is not supported. Storage
- 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 & Intel Rapid Storage 13), NCQ, AHCI, Hot Plug & ASRock HDD Saver Technology 1 x e SATA Connector, supports NCQ, AHCI & Hot Plug 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s) *SSATA3_3 connector is shared with the e SATA port, SSATA3_2 connector is shared with Ultra M.2 Socket **RAID is supported on SATA3_0 ~ SATA3_5 ports only. Connector 1 x COM Port Header 1 x TPM Header 1 x Power LED Header 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control) 1 x Power Fan Connector (3-pin) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x HDD Saver Connector 1 x PCIe Power Connector 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector 2 x USB (Universal Serial Bus) 2.0 Headers (support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Vertical Type A USB (Universal Serial Bus) 2.0 2 x USB (Universal Serial Bus) 3.0 Headers (Support 4 USB (Universal Serial Bus) 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED 1 x BIOS Selection Switch Rear Panel I/O 1 x PS/2 Mouse/ Keyboard Port 1 x Optical SPDIF Out Port 1 x e SATA Connector 1 x USB (Universal Serial Bus) 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Fatal 1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) 4 x USB (Universal Serial Bus) 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection)) 2 x USB (Universal Serial Bus) 3.0 Ports (ASMedia ASM1042) (Supports ESD Protection (ASRock Full Spike Protection)) 2 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED) 1 x Clear CMOS Switch HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Software & UEFI Software ASRock F-Stream ASRock Disk Health Report ASRock USB (Universal Serial Bus) Key ASRock Key Master ASRock APP Charger ASRock XFast RAM ASRock Restart to UEFI UEFI ASRock Full HD UEFI ASRock Instant Flash ASRock Internet Flash ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock UEFI System Browser ASRock UEFI Tech Service ASRock Dehumidifier ASRock Easy RAID Installer ASRock Easy Driver Installer Support CD Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar, Start 8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7), XSplit, Killer Network Manager Hardware Monitor CPU/ Chassis temperature sensing CPU/ Chassis/ Power Fan Tachometer CPU/ Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) CPU/ Chassis Fan multi-speed control Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages Form Factor ATX Form Factor 2oz Copper PCB High Density Glass Fabric PCB Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP & MLCC) OS Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit Certifications FCC, CE, WHQL Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

...

ASRock Fatal 1ty Z170 Gaming K4/D3 Socket 1151 DVI-D HDMI 7.1 CH HD Audio ATX Motherboard Product Specifications: General Gaming Armor Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE2) Internet
- Killer E2400 LAN Cooling
- XXL Aluminum Alloy Heatsink Audio
- Purity Sound 3 Unique Feature: ASRock Super Alloy XXL Aluminum Alloy Heatsink Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) I/O Armor High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection ASRock Live Update & APP Shop CPU Supports 6th Generation Intel Core i 7/i 5/i 3/ Pentium/ Celeron Processors (Socket 1151) Digi Power design 10 Power Phase design Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPUs Supports ASRock BCLK Full-range Overclocking Chipset
- Intel Z170 Memory Dual Channel DDR3/DDR3L Memory Technology 4 x DDR3/DDR3L DIMM Slots Supports DDR3/DDR3L 2133+ (OC)/1866 (OC)/1600/1333/1066 non-ECC, un-buffered memory Max. capacity of system memory: 64GB* Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2 15μ Gold Contact in DIMM Slots * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS 2 x 128 Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS) Supports Secure Backup UEFI Technology ACPI 5.0 Compliant wake up events SMBIOS 2.7 Support CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment Audio, Video & Networking Graphics: Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530 Pixel Shader 5.0, Direct X 12 Max. shared memory 1792MB Dual graphics output: Support DVI-D & HDMI ports by independent display controllers Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 24 Hz / (3840x 2160) @ 30 Hz Supports DVI-D with max. resolution up to 1920x 1200 @ 60 Hz Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports Accelerated Media Codecs: HEVC, VP8, VP9 Supports HDCP with DVI-D & HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D & HDMI Ports * Intel HD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. ** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. *** Intel In Tru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) Supports Purity Sound 3 Nichicon Fine Gold Series Audio Caps 115d B SNR DAC with differential amplifier TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) Pure Power-In Direct Drive Technology PCB isolate shielding Supports DTS Connect LAN: PCIE x 1 Gigabit LAN 10/100/1000 Mb/s Killer E2400 Series Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports Energy Efficient Ethernet 802.3az Supports PXE Expansion / Connectivity Slots 2 x PCI Express 3.0 x 16 Slots (PCIE2: x 16 mode; PCIE4: x 4 mode)* 3 x PCI Express 3.0 x 1 Slots (Flexible PCIe) Supports AMD Quad Cross Fire X & Cross Fire X 15μ Gold Contact in VGA PCIe Slot (PCIE2) * Supports NVMe SSD as boot disks Storage 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 & Intel Smart Response Technology), NCQ, AHCI & Hot Plug 2 x SATA Express 10 Gb/s Connectors* 1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** * Support to be announced If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 & the SATA function of SATA3_2_3 & SATA3_4_5 will be disabled. ** Supports ASRock U.2 Kit Supports NVMe SSD as boot disks Connector: 1 x COM Port Header 1 x TPM Header 1 x Power LED & Speaker Header 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB (Universal Serial Bus) 3.0 Header (Supports 2 USB (Universal Serial Bus) 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) Rear Panel I/O 1 x PS/2 Mouse/ Keyboard Port 1 x DVI-D Port 1 x HDMI Port 1 x Optical SPDIF Out Port 1 x USB (Universal Serial Bus) 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Fatal 1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) 5 x USB (Universal Serial Bus) 3.0 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB (Universal Serial Bus) 3.0 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Software & BIOS Software ASRock F-Stream ASRock Disk Health Report ASRock USB (Universal Serial Bus) Key ASRock Key Master ASRock APP Charger ASRock XFast RAM ASRock Fast Boot (Fast Boot, Restart to UEFI)* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock UEFI System Browser ASRock UEFI Tech Service ASRock Easy RAID Installer ASRock Easy Driver Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar, XSplit, Killer Network Manager Hardware Monitor CPU/ Chassis temperature sensing CPU/ Chassis Fan Tachometer CPU/ Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) CPU/ Chassis Fan multi-speed control Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Form Factor
- ATX Form Factor OS
- Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* * To install Windows 7 OS, a modified installation disk with x HCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details. Certifications FCC, CE, WHQL Er P/ Eu P ready (Er P/ Eu P ready power supply is required)







...

ASRock Fatal 1ty Z170 Gaming K6 Socket 1151 DVI-D HDMI Display Port 7.1 CH HD Audio ATX Motherboard Product Specifications: General: Gaming Armor CPU Power
- Hi-Density Power Connector Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE2) Internet
- Killer™ E2400 LAN Cooling
- XXL Aluminum Alloy Heatsink
- Heat Pipe Design Audio
- Purity Sound 3 Unique Feature: ASRock USB (Universal Serial Bus) 3.1 ASRock USB (Universal Serial Bus) 3.1 Type-A Port (10 Gb/s) ASRock USB (Universal Serial Bus) 3.1 Type-C Port (10 Gb/s) ASRock Super Alloy XXL Aluminum Alloy Heatsink Premium 60A Power Choke Combo Caps (Nichicon 12K Platinum Caps) Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) I/O Armor Matte Black PCB High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection ASRock Live Update & APP Shop CPU Supports 6th Generation Intel Core i 7/i 5/i 3/ Pentium/ Celeron Processors (Socket 1151) Digi Power design 12 Power Phase design Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPUs Supports ASRock BCLK Full-range Overclocking Supports ASRock Hyper BCLK Engine Chipset
- Intel Z170 Memory Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Supports DDR4 3866+ (OC)*/3600 (OC)/3200 (OC)/2933 (OC)/2800 (OC)/2400 (OC)/2133 non-ECC, un-buffered memory Max. capacity of system memory: 64GB** Supports Intel Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots *3866+ (OC) memory frequency can only be achieved when a single memory module is installed (Single channel memory). Please refer to Memory Support List on ASRock's website for more information. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS: 2 x 128 Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS) Supports Secure Backup UEFI Technology ACPI 5.0 Compliant wake up events SMBIOS 2.7 Support CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment Audio, Video & Networking Graphics Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530 Pixel Shader 5.0, Direct X 12 Max. shared memory 1792MB Three graphics output options: DVI-D, HDMI & Display Port 1.2 Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 24 Hz / (3840x 2160) @ 30 Hz Supports DVI-D with max. resolution up to 1920x 1200 @ 60 Hz Supports Display Port 1.2 with max. resolution up to 4K x 2K (4096x 2304) @ 60 Hz Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports Accelerated Media Codecs: HEVC, VP8, VP9 Supports HDCP with DVI-D, HDMI & Display Port 1.2 Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI & Display Port 1.2 Ports * Intel HD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. ** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. *** Intel In Tru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) Supports Purity Sound 3 Nichicon Fine Gold Series Audio Caps 115d B SNR DAC with differential amplifier TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) Pure Power-In Direct Drive Technology PCB isolate shielding Supports DTS Connect LAN PCIE x 1 Gigabit LAN 10/100/1000 Mb/s Killer E2400 Series Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports Energy Efficient Ethernet 802.3az Supports PXE Expansion / Connectivity Slots 3 x PCI Express 3.0 x 16 Slots (PCIE2/PCIE4/PCIE6: single at x 16 (PCIE2); dual at x 8 (PCIE2) / x 8 (PCIE4); triple at x 8 (PCIE2) / x 8 (PCIE4) / x 4 (PCIE6))* 3 x PCI Express 3.0 x 1 Slots (Flexible PCIe) Supports AMD Quad Cross Fire X™, 3-Way Cross Fire X™ & Cross Fire X™ Supports NVIDIA Quad SLI™ & SLI™ 15μ Gold Contact in VGA PCIe Slot (PCIE2) * Supports NVMe SSD as boot disks Storage
- 6 x SATA3 6.0 Gb/s Connectors by Intel Z170, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 & Intel Smart Response Technology), NCQ, AHCI & Hot Plug 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI & Hot Plug 2 x SATA Express 10 Gb/s Connectors* 1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** * Support to be announced M2_1, SATA3_0, SATA3_1 & SATA_EXP0 share lanes. If either one of them is in use, the others will be disabled. ** Supports ASRock U.2 Kit Supports NVMe SSD as boot disks Connector 1 x COM Port Header 1 x TPM Header 1 x Power LED & Speaker Header 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB (Universal Serial Bus) 3.0 Header (Supports 2 USB (Universal Serial Bus) 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED Rear Panel I/O 1 x PS/2 Mouse/ Keyboard Port 1 x DVI-D Port 1 x HDMI Port 1 x Display Port 1.2 1 x Optical SPDIF Out Port 1 x USB (Universal Serial Bus) 3.1 Type-A Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB (Universal Serial Bus) 3.1 Type-C Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) 5 x USB (Universal Serial Bus) 3.0 Ports (Intel Z170) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Fatal 1ty Mouse Port (USB 3.0) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED) 1 x Clear CMOS Switch HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Software & BIOS Software ASRock F-Stream ASRock Disk Health Report ASRock USB (Universal Serial Bus) Key ASRock Key Master ASRock APP Charger ASRock XFast RAM ASRock Fast Boot (Fast Boot, Restart to UEFI)* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock UEFI System Browser ASRock UEFI Tech Service ASRock Easy RAID Installer ASRock Easy Driver Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar, XSplit, Killer Network Manager Hardware Monitor CPU/ Chassis temperature sensing CPU/ Chassis Fan Tachometer CPU/ Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) CPU/ Chassis Fan multi-speed control Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Form Factor - ATX Form Factor OS
- Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* * To install Windows 7 OS, a modified installation disk with x HCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details. Certifications FCC, CE, WHQL Er P/ Eu P ready (Er P/ Eu P ready power supply is required)









...

ASRock Fatal 1ty Z170 Gaming-ITX/ac Socket 1151 HDMI DIsplay Port 7.1 CH HD Audio Mini-ITX Motherboard Specifications: General Gaming Armor CPU Power Hi-Density Power Connector Dual-Stack MOSFET (DSM) Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1) Internet
- Intel LAN Cooling 8 Layer PCB 4 x 2oz copper Heat Pipe Design Unique Feature ASRock USB (Universal Serial Bus) 3.1 ASRock USB (Universal Serial Bus) 3.1 Type-A Port (10 Gb/s) ASRock USB (Universal Serial Bus) 3.1 Type-C Port (10 Gb/s) ASRock Super Alloy Premium 60A Power Choke Dual-Stack MOSFET (DSM) Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) Matte Black PCB High Density Glass Fabric PCB ASRock 802.11ac Wi Fi ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection ASRock Live Update & APP Shop CPU Supports 6th Generation Intel Core i 7/i 5/i 3/ Pentium/ Celeron Processors (Socket 1151) Digi Power design 8 Power Phase design Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPUs Supports ASRock BCLK Full-range Overclocking Chipset
- Intel Z170 Memory Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 4000+ (OC)*/3866 (OC)/3600 (OC)/3200 (OC)/2933 (OC)/2800 (OC)/2400 (OC)/2133 non-ECC, un-buffered memory* Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 32GB* Supports Intel Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. Please refer to Memory Support List on ASRock's website for more information. 4000+ (OC) memory frequency can only be achieved when a single memory module is installed (Single channel memory). BIOS 128 Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 5.0 Compliant wake up events SMBIOS 2.7 Support CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment Audio, Video & Networking Graphics Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530 Pixel Shader 5.0, Direct X 12 Max. shared memory 1792MB Three graphics output options: 2 x HDMI ports & Display Port 1.2 Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 24 Hz / (3840x 2160) @ 30 Hz (on HDMI1) Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 60 Hz (on HDMI2) Supports Display Port 1.2 with max. resolution up to 4K x 2K (4096x 2304) @ 60 Hz Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Ports (Compliant HDMI monitor is required) Supports Accelerated Media Codecs: HEVC, VP8, VP9 Supports HDCP with HDMI & Display Port 1.2 Ports Supports Full HD 1080p Blu-ray (BD) playback with HDMI & Display Port 1.2 Ports * Intel HD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. ** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. *** Intel In Tru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)* Premium Blu-ray Audio support Supports Surge Protection (ASRock Full Spike Protection) Nichicon Fine Gold Series Audio Caps TI NE5532 Premium Headset Amplifier (Supports up to 600 Ohm headsets) Supports DTS Connect * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel I219V Supports Wake-On-LAN Supports Lightning/ESD Protection (ASRock Full Spike Protection) Supports Energy Efficient Ethernet 802.3az Supports PXE Wireless LAN Supports IEEE 802.11a/b/g/n/ac Supports Dual-Band (2.4/5 GHz) Supports high speed wireless connections up to 867 Mbps 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 4.0 / 3.0 + High speed class II Expansion / Connectivity Slots 1 x PCI Express 3.0 x 16 Slot (PCIE1: x 16 mode)* 1 x Half-size Mini-PCI Express Slot: For Wi Fi + BT Module 15μ Gold Contact in VGA PCIe Slot (PCIE1) * Supports NVMe SSD as boot disks Storage 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 & Intel Smart Response Technology), NCQ, AHCI & Hot Plug 1 x SATA Express 10 Gb/s Connector* 1 x Ultra M.2 Socket, supports type 2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** * If M2_1 is occupied by a SATA-type M.2 device, SATA3_0, SATA3_1 & the SATA function of SATA_EXP0 will be disabled. Support to be announced ** Supports NVMe SSD as boot disks Connector 1 x Chassis Intrusion Header 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x USB (Universal Serial Bus) 2.0 Header (Supports 2 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB (Universal Serial Bus) 3.0 Header (Supports 2 USB (Universal Serial Bus) 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) *CPU_FAN1 & CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use. The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. Rear Panel I/O 1 x PS/2 Mouse/ Keyboard Port 2 x HDMI Ports 1 x Display Port 1.2 1 x Optical SPDIF Out Port 1 x USB (Universal Serial Bus) 3.1 Type-A Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB (Universal Serial Bus) 3.1 Type-C Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection)) 5 x USB (Universal Serial Bus) 3.0 Ports (Intel Z170) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Fatal 1ty Mouse Port (USB 3.0) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED) 1 x Clear CMOS Switch HD Audio Jacks: Line in / Front Speaker / Microphone Other Features / Miscellaneous Software & BIOS Software ASRock F-Stream ASRock Disk Health Report ASRock USB (Universal Serial Bus) Key ASRock Key Master ASRock APP Charger ASRock XFast LAN ASRock XFast RAM ASRock Fast Boot (Fast Boot, Restart to UEFI)* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock UEFI System Browser ASRock UEFI Tech Service ASRock Easy RAID Installer ASRock Easy Driver Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar, XSplit Hardware Monitor CPU/ Chassis temperature sensing CPU/ Chassis Fan Tachometer CPU/ Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) CPU/ Chassis Fan multi-speed control CASE OPEN detection Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Form Factor Mini-ITX Form Factor 8 Layer PCB 4 x 2oz copper OS Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* * To install Windows 7 OS, a modified installation disk with x HCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details. Certifications FCC, CE, WHQL Er P/ Eu P ready (Er P/ Eu P ready power supply is required)




...

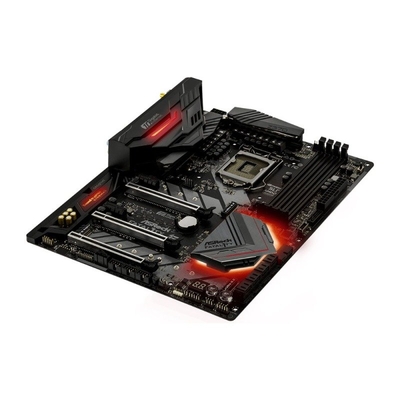

Product Overview Armor Your VR Machine Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software & drivers. Motherboard is the key to connect every critical components & ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components & rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems. AURA RGB LED Build your own colorful lighting system! AURA RGB LED & header allows users to connect LED strip & create their unique PC style easily. Dual Intel LAN Users are able to connect two LAN cables to this motherboard's rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective. * Teaming is not supported with Windows 10. Dual USB (Universal Serial Bus) 3.1 (Type-A + Type-C) This motherboard has a pair of onboard Type-A & Type-C USB (Universal Serial Bus) 3.1 ports built on the rear i/o for supporting next generation USB (Universal Serial Bus) 3.1 devices & to deliver up to 10 Gbps data transfer rates. Dual Ultra M.2 For SSD Two of the world’s fastest PCIe Gen 3 x 4 Ultra M.2 slots that deliver up to 32 Gb/s transfer speed, it also supports SATA3 6 Gb/s M.2 modules. 3 PCI-E Steel Slots Adopts three PCIe Steel Slots, which are built with more solder points on the PCB for better performance & preventing any signal interference with graphics cards. Allows your graphics cards with enhanced signals & to be well-installed in the PCIe slots. Intel Optane™ Memory Ready Supports Intel Optane™ memory technology & Intel Optane™ storage technology that redefines a new standard of high performance & responsiveness. ASRock Intel 4-Layer Memory POOL Technology POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties & performance. SLI HB Bridge Free Bundled The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA Ge Force GTX 1080 & 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay & experiencing surround gaming in the best way. F-Stream
- Modify Your Weapon Key Master Consists of two major features, Sniper Key & Macro Key. It enhances your mouse & keyboard with customizable macros, sniper modes, key repeat rates & repeat delay. F-Stream F-Stream is Fatal 1ty's multi purpose software suite with a new interface, more new features & enhanced utilities. Fatal 1ty Mouse Port After plugging a USB (Universal Serial Bus) mouse into the Fatal 1ty Mouse Port & running F-Stream, gamers can choose their own preferred mouse polling rate from 125 Hz to 1000 Hz. Creative Sound Blaster™ Cinema 3 Sound Blaster™ Cinema 3 is the latest software that is designed with SBX Pro Studio to deliver a holistic audio experience. Whether you're gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers. 120d B SNR DAC AURA RGB LED Gold Audio connector TI NE5532 Premium Headset Amplifier Individual PCB Layers for R/L Audio Channel Impedance Sensing on Front Out port PCB Isolate Shielding Pure Power-In Nichicon Fine Gold Series Audio Caps Gold Audio Jacks XXL Aluminum Alloy Heatsink Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET & chipset so that your whole system may perform more stable. 10 Power Phase Designed with an 10 Power Phase Design, this motherboard provides completely smooth power delivery to the CPU & offers unmatched overclocking capabilities & enhanced performance with the lowest temperature. Premium 45A Power Choke Compared to traditional chokes, ASRock’s premium 45A power chokes effectively make the saturation current up to three times better, thus providing enhanced & enhanced Vcore voltage to the motherboard. Premium Memory Alloy Choke Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic & heat resistant design, thus delivering more stable & reliable power to the motherboard & memory modules. Combo Caps A combination of 820u F & 100u F capacitors. Together these capacitors provide clearer, efficient & more responsive CPU Vcore power, & overclockers may achieve higher scores. Nichicon 12K Black Caps A combination of 820u F & 100u F capacitors. Together these capacitors provide clearer, efficient & more responsive CPU Vcore power, & overclockers may achieve higher scores. I/O Armor A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity. Matte Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality & gives the motherboard a more mysterious touch. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Gaming Armor
- Built to Kill Allows ASRock to be your most trustworthy ally, providing both hardware & software support. CPU Power Hi-Density Power Connector Memory 15µ Gold Contact in DIMM Slots VGA Card 15µ Gold Contact in PCI-E Steel Slots Audio Creative Sound Blaster™ Cinema 3 Cooling XXL Aluminum Alloy Heatsink Heat Pipe Design Internet Dual Intel LAN Hyper BCLK Engine II An additional external base clock generator which provides a wider range of frequencies & more precise clock waveforms. User friendly UEFI & EZ Mode ASRock UEFI is the smoothest, slickest mouse-controlled BIOS has been enhanced to make it even more friendly. Advanced mode provides a more comprehensive environment that is designed for overclockers & power users who want maximum control over their PC’s hardware. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc. Digi Power Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently & smoothly, so that the stability & lifespan of the motherboard is greatly enhanced. Water Pump Header This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise. Triple Monitor Graphics, graphics & even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors & use them simultaneously without installing another graphics card. 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. Gold Audio Jack / Gold Audio Connector Everything will wear off in time, but gold looks better! Gold audio jack & connector provides stable sound transmission! Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps & support software for users to download. You can also easily optimize your system & keep your motherboard up to date with ASRock Live Update & APP Shop. Features ASRock Super Alloy. Supports 7th & 6th Generation Intel Core™ i 7/i 5/i 3/ Pentium/ Celeron Processors (Socket 1151). Supports DDR4 3866+ (OC). 3 PCIe 3.0 x 16, 3 PCIe 3.0 x 1, 1 M.2 Socket (Key E). NVIDIA Quad SLI™, AMD 3-Way Cross Fire X™. Graphics Output Options: HDMI, DVI-D, D-Sub. Supports Triple Monitor. 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster Cinema 3. 8 SATA3, 2 Ultra M.2 (PCIe Gen 3 x 4 & SATA3). 2 USB (Universal Serial Bus) 3.1 10 Gb/s (1 Type-A + 1 Type-C), 8 USB (Universal Serial Bus) 3.0 (4 Front, 3 Rear, 1 Fatal 1ty Mouse Port). ASRock AURA RGB LED. Specifications Gaming Armor Power
- Hi-Density Power Connectors (24 pin & 8 pin) Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE2) Internet
- Intel LAN Cooling
- XXL Aluminum Alloy Heatsink
- Heat Pipe Design Audio
- Creative Sound Blaster™ Cinema 3 Unique Feature ASRock USB (Universal Serial Bus) 3.1
- ASRock USB (Universal Serial Bus) 3.1 Type-A Port (10 Gb/s)
- ASRock USB (Universal Serial Bus) 3.1 Type-C Port (10 Gb/s) ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 45A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Combo Caps (Nichicon 12K Black Caps)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Ultra USB (Universal Serial Bus) Power ASRock Full Spike Protection ASRock Live Update & APP Shop CPU
- Supports 7th & 6th Generation Intel Core™ i 7/i 5/i 3/ Pentium/ Celeron Processors (Socket 1151)
- Digi Power design
- 10 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking
- Supports ASRock Hyper BCLK Engine II Chipset
- Intel Z270 Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 3866+ (OC)*/3733 (OC)/3600 (OC)/3200 (OC)/2933 (OC)/2800 (OC)/2400**/2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB***
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots * Please refer to Memory Support List on ASRock's website for more information. **7th Gen Intel CPU supports DDR4 up to 2400; 6th Gen Intel CPU supports DDR4 up to 2133. *** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 2 x 128 Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL Voltage Multi-adjustment Graphics
- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel HD Graphics
- Gen 9 LP, DX11.3, DX12
- HWAEncode/ Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel CPU)
- HWA Encode/ Decode: VP8, HEVC 8b; GPU/SWEncode/ Decode: VP9, HEVC 10b (For 6th Gen Intel CPU)
- Max. shared memory 1024MB**
- Three graphics output options: D-Sub, DVI-D & HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 24 Hz / (3840x 2160) @ 30 Hz
- Supports DVI-D with max. resolution up to 1920x 1200 @ 60 Hz
- Supports D-Sub with max. resolution up to 1920x 1200 @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D & HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D & HDMI Ports * Intel HD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. ** The size of maximum shared memory may vary from different operating systems. *** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. **** Intel In Tru™ 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Nichicon Fine Gold Series Audio Caps
- 120d B SNR DAC with Differential Amplifier
- TI NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Front Out port
- Individual PCB Layers for R/L Audio Channel
- AURA RGB LED
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Supports Creative Sound Blaster™ Cinema 3 LAN
- Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel I219V, 1 x Giga LAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Dual LAN with Teaming*
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE * Teaming is not supported on Windows 10. Slots
- 3 x PCI Express 3.0 x 16 Slots (PCIE2/PCIE4/PCIE6: single at x 16 (PCIE2); dual at x 8 (PCIE2) / x 8 (PCIE4); triple at x 8 (PCIE2) / x 8 (PCIE4) / x 4 (PCIE6))*
- 3 x PCI Express 3.0 x 1 Slots (Flexible PCIe)
- Supports AMD Quad Cross Fire X™, 3-Way Cross Fire X™ & Cross Fire X™
- Supports NVIDIA Quad SLI™ & SLI™
- 1 x M.2 Socket (Key E), supports type 2230 Wi Fi/BT module
- 15μ Gold Contact in VGA PCIe Slot (PCIE2) * Supports NVMe SSD as boot disks Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15 & Intel Smart Response Technology), NCQ, AHCI & Hot Plug*
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI & Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)**
- 1 x Ultra M.2 Socket (M2_2), supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)** *M2_1, SATA3_0 & SATA3_1 share lanes. If either one of them is in use, the others will be disabled. M2_2, SATA3_4 & SATA3_5 share lanes. If either one of them is in use, the others will be disabled. ** Supports Intel Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED & Speaker Header
- 1 x AURA RGB LED Header*
- 1 x CPU Fan Connector (4-pin)**
- 1 x CPU Optional/ Water Pump Fan Connector (4-pin)***
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x Chassis Optional/ Water Pump Fan Connector (4-pin)****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin)
- 1 x Thunderbolt™ AIC Connector (10-pin)*****
- 3 x USB (Universal Serial Bus) 2.0 Headers (Support 6 USB (Universal Serial Bus) 2.0 ports) (Intel Z270) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB (Universal Serial Bus) 3.0 Header (Supports 2 USB (Universal Serial Bus) 3.0 ports) (Intel Z270) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB (Universal Serial Bus) 3.0 Header (Supports 2 USB (Universal Serial Bus) 3.0 ports) (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x Dr. Debug with LED
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x XMP Switch * Supports up to 12V/3A, 36W LED Strip. ** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *** The CPU Optional/ Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. **** The Chassis Optional/ Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. CHA_FAN1 & CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. ***** Only one Thunderbolt™ AIC Card is supported. Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/ Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x USB (Universal Serial Bus) 3.1 Type-A Port (10 Gb/s) (ASMedia ASM2142) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB (Universal Serial Bus) 3.1 Type-C Port (10 Gb/s) (ASMedia ASM2142) (Supports ESD Protection (ASRock Full Spike Protection))
- 3 x USB (Universal Serial Bus) 3.0 Ports (Intel Z270) (Supports ESD Protection (ASRock Full Spike Protection))*
- 1 x Fatal 1ty Mouse Port (USB 3.0) (Intel Z270) (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Ultra USB (Universal Serial Bus) Power is supported on USB3_34 ports. ACPI wake-up function is not supported on USB3_34 ports. Software & UEFI Software
- ASRock F-Stream
- ASRock AURA RGB LED
- ASRock Key Master
- ASRock APP Charger
- ASRock XFast LAN* UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x ASRock SLI_HB_ Bridge_2S Card
- 3 x Screws for M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Fan Tachometer: CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/ Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm OS
- Microsoft Windows 10 64-bit (For 7th Gen Intel CPU)
- Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel CPU)* * To install Windows 7 OS, a modified installation disk with x HCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details. Certifications
- FCC, CE, WHQL
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)
















































































































































...

ASRock Dura Caps (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors Digi Power Design, 8 + 4 Power Phase Design Supports Dual Channel DDR3 2800+ (OC) 1 x PCIe 3.0 x 16 Slot, Supports AMD Quad Cross Fire X™, Cross Fire X™ Supports Broadcom Gigabit LAN Supports Intel HD Graphics with Built-in Visuals Multi VGA Output options: D-Sub, DVI-D, HDMI Combo Cooler Option (C.C.O.) 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) Supports ASRock XFast RAM, XFast LAN, XFast USB (Universal Serial Bus), OMG, Internet Flash, No-K OC, On/ Off Play, Dehumidifier, UEFI System Browser Supports Fatal 1ty F-Stream, Fatal 1ty Mouse Port Supports Intel Smart Connect, Intel Rapid Start, Lucid Virtu Universal MVP Free Bundle: Cyber Link Media Espresso 6.5 Trial, ASRock MAGIX Multimedia Suite General CPU - Supports 3rd & 2nd Generation Intel Core™ i 7 / i 5 / i 3 / Xeon / Pentium / Celeron in LGA1155 Package
- Digi Power Design
- 8 + 4 Power Phase Design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series unlocked CPU
- Supports Hyper-Threading Technology Chipset - Intel Z77
- Supports Intel Rapid Start Technology & Smart Connect Technology * Intel Rapid Start Technology & Smart Connect Technology are only supported under Windows 7 OS or later versions. Memory
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2800+ (OC)/2400 (OC)/2133 (OC)/1866 (OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2 * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 64 Mb AMI UEFI Legal BIOS with GUI support
- Supports " Plug & Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment Audio, Video & Networking Graphics
- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video 2.0, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel HD Graphics 2500/4000 with Intel Ivy Bridge CPU
- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel HD Graphics 2000/3000, Intel Advanced Vector Extensions (AVX) with Intel Sandy Bridge CPU
- Pixel Shader 5.0, Direct X 11 with Intel Ivy Bridge CPU. Pixel Shader 4.1, Direct X 10.1 with Intel Sandy Bridge CPU
- Max. shared memory 1760MB with Intel Ivy Bridge CPU. Max. shared memory 1759MB with Intel Sandy Bridge CPU
- Multi VGA Output options: D-Sub, DVI-D & HDMI
- Supports HDMI Technology with max. resolution up to 1920x 1200 @ 60 Hz
- Supports DVI with max. resolution up to 1920x 1200 @ 60 Hz
- Supports D-Sub with max. resolution up to 2048x 1536 @ 75 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports HDCP function with DVI & HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI & HDMI ports * Intel HD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. ** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows Vista™ & Windows 7. *** Intel In Tru™ 3D is only supported under Windows 7 & Windows 7 x 64. Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio support LAN
- PCIE x 1 Gigabit LAN 10/100/1000 Mb/s
- Broadcom BCM57781
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Expansion / Connectivity Slots - 1 x PCI Express 3.0 x 16 slot (PCIE1: x 16 mode)
- 1 x PCI Express 2.0 x 16 slot (PCIE3: x 4 mode)
- 1 x PCI Express 2.0 x 1 slot
- 2 x PCI slots
- Supports AMD Quad Cross Fire X™ & Cross Fire X™ *PCIe Gen 3 is supported on 3rd Generation of Intel Core™ i 5 & Core™ i 7 CPUs. SATA3
- 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage & Intel Smart Response Technology), NCQ, AHCI & " Hot Plug" functions USB (Universal Serial Bus) 3.0
- 2 x Rear USB (Universal Serial Bus) 3.0 ports by Intel Z77, support USB (Universal Serial Bus) 1.0/2.0/3.0 up to 5 Gb/s
- 2 x Rear USB (Universal Serial Bus) 3.0 ports by Etron EJ168A, support USB (Universal Serial Bus) 1.0/2.0/3.0 up to 5 Gb/s
- 1 x Front USB (Universal Serial Bus) 3.0 header by Intel Z77 (supports 2 USB (Universal Serial Bus) 3.0 ports), supports USB (Universal Serial Bus) 1.0/2.0/3.0 up to 5 Gb/s Connector
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage & Intel Smart Response Technology), NCQ, AHCI & Hot Plug functions (SATA2_3 connector is shared with e SATA2 port)
- 2 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
- 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
- 1 x Power Fan connector (3-pin)
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB (Universal Serial Bus) 2.0 headers (support 6 USB (Universal Serial Bus) 2.0 ports)
- 1 x USB (Universal Serial Bus) 3.0 header (supports 2 USB (Universal Serial Bus) 3.0 ports)
- 1 x Dr. Debug with LED*
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED * Check the Dr. Debug code list here. Rear Panel I/O I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 3 x Ready-to-Use USB (Universal Serial Bus) 2.0 Ports
- 1 x Fatal 1ty Mouse Port (USB 2.0)
- 1 x e SATA2 Connector
- 4 x Ready-to-Use USB (Universal Serial Bus) 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Unique Feature - F-Stream
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB (Universal Serial Bus)
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock Dehumidifier Function
- ASRock No-K OC Technology
- ASRock On/ Off Play Technology
- Lucid Virtu Universal MVP
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED * Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated. ** Lucid Logix Virtu MVP only supports Windows 7 OS or later versions. Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/ Chassis/ Power Fan Tachometer
- CPU/ Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/ Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)



































































































...

Premium Gold Caps Digi Power Design, 16 + 8 Power Phase Design Supports Dual Channel DDR3 2800+ (OC) 2 x PCIe 3.0 x 16 Slots, Supports AMD Quad Cross Fire X™, 3-Way Cross Fire X, Cross Fire X™ & NVIDIA Quad SLI™, SLI™ Supports Broadcom Dual PCIE GLAN with Teaming function Supports Intel HD Graphics with Built-in Visuals Dual VGA Output options: HDMI, Display Port Combo Cooler Option (C.C.O.) 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec) Supports ASRock XFast RAM, XFast LAN, XFast USB (Universal Serial Bus), OMG, Internet Flash, No-K OC, Dehumidifier, UEFI System Browser Supports Fatal 1ty F-Stream, Fatal 1ty Mouse Port Supports Intel Smart Connect, Intel Rapid Start, Lucid Virtu Universal MVP General CPU
- Supports 3rd & 2nd Generation Intel Core™ i 7 / i 5 / i 3 / Xeon / Pentium / Celeron in LGA1155 Package
- Digi Power Design
- 16 + 8 Power Phase Design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series unlocked CPU
- Supports Hyper-Threading Technology Chipset - Intel Z77
- Supports Intel Rapid Start Technology & Smart Connect Technology * Intel Rapid Start Technology & Smart Connect Technology are only supported under Windows 7 OS or later versions. Memory
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2800+ (OC)/2400 (OC)/2133 (OC)/1866 (OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2 * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 64 Mb AMI UEFI Legal BIOS with GUI support
- Supports " Plug & Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment Audio, Video & Networking Graphics
- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video 2.0, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel HD Graphics 2500/4000 with Intel Ivy Bridge CPU
- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel HD Graphics 2000/3000, Intel Advanced Vector Extensions (AVX) with Intel Sandy Bridge CPU
- Pixel Shader 5.0, Direct X 11 with Intel Ivy Bridge CPU. Pixel Shader 4.1, Direct X 10.1 with Intel Sandy Bridge CPU
- Max. shared memory 1760MB with Intel Ivy Bridge CPU. Max. shared memory 1759MB with Intel Sandy Bridge CPU
- Dual VGA Output: support HDMI & Display Port ports by independent display controllers
- Supports HDMI Technology with max. resolution up to 1920x 1200 @ 60 Hz
- Supports Display Port with max. resolution up to 2560x 1600 @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports HDCP function with HDMI & Display Port ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI & Display Port ports * Intel HD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. ** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows Vista™ & Windows 7. *** Intel In Tru™ 3D is only supported under Windows 7 & Windows 7 x 64. Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec)
- Premium Blu-ray audio support LAN
- PCIE x 1 Gigabit LAN 10/100/1000 Mb/s
- Broadcom BCM57781
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE Expansion / Connectivity Slots
- 2 x PCI Express 3.0 x 16 slots (PCIE2/PCIE4: single at x 16 (PCIE2) / x 8 (PCIE4) or dual at x 8/x 8 mode)
- 1 x PCI Express 2.0 x 16 slot (PCIE5: x 4 mode)
- 2 x PCI Express 2.0 x 1 slots
- 2 x PCI slots
- Supports AMD Quad Cross Fire X™, 3-Way Cross Fire X™ & Cross Fire X™
- Supports NVIDIA Quad SLI™ & SLI™ *PCIe Gen 3 is supported on 3rd Generation of Intel Core™ i 5 & Core™ i 7 CPUs. SATA3 - 2 x SATA3 6.0 Gb/s connectors by Intel Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage & Intel Smart Response Technology), NCQ, AHCI & " Hot Plug" functions
- 4 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI & " Hot Plug" functions (SATA3_A4 connector is shared with e SATA3 port) USB (Universal Serial Bus) 3.0 - 2 x Rear USB (Universal Serial Bus) 3.0 ports by Intel Z77, support USB (Universal Serial Bus) 1.0/2.0/3.0 up to 5 Gb/s
- 4 x Rear USB (Universal Serial Bus) 3.0 ports by Etron EJ188H, support USB (Universal Serial Bus) 1.0/2.0/3.0 up to 5 Gb/s
- 1 x Front USB (Universal Serial Bus) 3.0 header by Intel Z77 (supports 2 USB (Universal Serial Bus) 3.0 ports), supports USB (Universal Serial Bus) 1.0/2.0/3.0 up to 5 Gb/s Connector
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage & Intel Smart Response Technology), NCQ, AHCI & Hot Plug functions
- 6 x SATA3 6.0 Gb/s connectors
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- 1 x Power LED header
- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
- 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
- 1 x Power Fan connector (3-pin)
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB (Universal Serial Bus) 2.0 headers (support 4 USB (Universal Serial Bus) 2.0 ports)
- 1 x USB (Universal Serial Bus) 3.0 header (supports 2 USB (Universal Serial Bus) 3.0 ports)
- 1 x Dr. Debug with LED*
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED * Check the Dr. Debug code list here. Rear Panel I/O I/O Panel
- 1 x PS/2 Keyboard/ Mouse Port
- 1 x HDMI Port
- 1 x Display Port
- 1 x Optical SPDIF Out Port
- 5 x Ready-to-Use USB (Universal Serial Bus) 2.0 Ports
- 1 x Fatal 1ty Mouse Port (USB 2.0)
- 1 x e SATA3 Connector
- 6 x Ready-to-Use USB (Universal Serial Bus) 3.0 Ports
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Unique Feature
- F-Stream
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB (Universal Serial Bus)
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock Dehumidifier Function
- ASRock No-K OC Technology
- Lucid Virtu Universal MVP
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED * Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated. ** Lucid Logix Virtu MVP only supports Windows 7 OS or later versions. Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/ Chassis/ Power Fan Tachometer
- CPU/ Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/ Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)









































































































...

Features
- Premium Gold Caps Digi Power Design Supports Dual Channel DDR3 2800+ (OC) 2 x PCIe 3.0 x 16 Slots, Supports AMD Quad
...

ASRock Fatal 1ty Z87 Professional Socket 1150 HDMI Display Port 7.1 CH HD Audio ATX Motherboard Product Specifications General A-Style Home Cloud HDMI-In Gaming Armor CPU Power Hi-Density Power Connector Dual-Stack MOSFET (DSM) Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP & MLCC) VGA Card 15μ Gold Finger in VGA PCIe Slot (PCIE2) Internet Intel LAN Cooling 2oz copper PCB Heat Pipe Design Audio Creative Sound Core 3D CPU Supports New 4th & 4th Generation Intel Core™ i 7/i 5/i 3/ Xeon/ Pentium/ Celeron Processors (Socket 1150) Digi Power Design 12 Power Phase Design Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPU Supports ASRock BCLK Full-range Overclocking Chipset Intel Z87 Memory Dual Channel DDR3 memory technology 4 x DDR3 DIMM slots Supports DDR3 2933+ (OC)/2800 (OC)/2400 (OC)/2133 (OC)/1866 (OC)/1600/1333/1066 non-ECC, un-buffered memory Max. capacity of system memory: 32GB* Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2 Distortion-Free Slot * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS 2 x 64 Mb AMI UEFI Legal BIOS with Multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS) Supports Secure Backup UEFI Technology ACPI 1.1 Compliance Wake Up Events SMBIOS 2.3.1 Support CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment Audio, Video & Networking Graphics Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600 Pixel Shader 5.0, Direct X 11.1 Max. shared memory 1792MB Dual VGA Output: support HDMI & Display Port ports by independent display controllers Supports HDMI Technology with max. resolution up to 4K x 2K (4096x 2304) @ 24 Hz Supports Display Port with max. resolution up to 4K x 2K (4096x 2304) @ 24 Hz Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) Supports HDCP function with HDMI & Display Port ports Supports Full HD 1080p Blu-ray (BD) playback with HDMI & Display Port ports * Intel HD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. ** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit / Vista / Vista 64-bit. *** Intel In Tru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. Audio 7.1 CH HD Audio Creative Sound Core 3D quad-core sound & voice processor Supports SBX Pro Studio Supports Crystal Voice Supports Scout Mode Supports EAX1.0 to EAX5.0 Premium Headset Amplifier (PHA) LAN Gigabit LAN 10/100/1000 Mb/s 1 x Giga PHY Intel I217V, 1 x Giga LAN Intel I211AT Supports Intel Remote Wake Technology (on Intel I217V) Supports Wake-On-LAN Supports Dual LAN with Teaming Supports Energy Efficient Ethernet 802.3az Supports PXE Expansion / Connectivity Slots 3 x PCI Express 3.0 x 16 slots (PCIE2/PCIE3/PCIE4: single at x 16 (PCIE2); dual at x 8 (PCIE2) / x 8 (PCIE3); triple at x 8 (PCIE2) / x 4 (PCIE3) / x 4 (PCIE4)) 1 x PCI Express 2.0 x 1 slot 1 x mini-PCI Express slot 2 x PCI slots Supports AMD Quad Cross Fire X, 3-Way Cross Fire X & Cross Fire X Supports NVIDIA Quad SLI & SLI Storage 6 x SATA3 6.0 Gb/s connectors by Intel Z87, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 12 & Intel Smart Response Technology), NCQ, AHCI & Hot Plug 4 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI & Hot Plug (SATA3_A4 connector is shared with the e SATA port) 1 x e SATA connector by ASMedia ASM1061, supports NCQ, AHCI, Hot Plug & Port Multiplier Connector 1 x IR header 1 x COM Port header 1 x Power LED header 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin) 1 x Power Fan connector (3-pin) 1 x 24 pin ATX power connector 1 x 8 pin 12V power connector 1 x SLI/XFire power connector 1 x Front panel audio connector 1 x SPDIF Out connector 2 x USB (Universal Serial Bus) 2.0 headers (support 4 USB (Universal Serial Bus) 2.0 ports) 2 x USB (Universal Serial Bus) 3.0 headers (support 4 USB (Universal Serial Bus) 3.0 ports) 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED Rear Panel I/O I/O Panel 1 x PS/2 Mouse/ Keyboard Port 1 x HDMI-Out Port 1 x HDMI-In Port 1 x Display Port 1 x Optical SPDIF Out Port 1 x e SATA Connector 3 x USB (Universal Serial Bus) 2.0 Ports 1 x Fatal 1ty Mouse Port (USB 2.0) 4 x USB (Universal Serial Bus) 3.0 Ports (ASMedia Hub) 2 x RJ-45 LAN Ports with LED (ACT/LINK LED & SPEED LED) 1 x Clear CMOS Switch HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Unique Feature ASRock F-Stream ASRock APP Shop ASRock Instant Flash ASRock APP Charger ASRock XFast USB (Universal Serial Bus) ASRock XFast LAN ASRock XFast RAM ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock Internet Flash ASRock UEFI System Browser ASRock UEFI Tech Service ASRock Dehumidifier ASRock Easy RAID Installer ASRock Easy Driver Installer ASRock Interactive UEFI ASRock Fast Boot ASRock Restart to UEFI ASRock USB (Universal Serial Bus) Key ASRock Key Master ASRock Home Cloud ASRock FAN-Tastic Tuning Hybrid Booster: CPU Frequency Stepless Control ASRock U-COP Boot Failure Guard (B.F.G.) Good Night LED Support CD Drivers, Utilities, Anti Virus Software (Trial Version), Cyber Link Media Espresso 6.5 Trial, Google Chrome Browser & Toolbar, Start 8 (30 days trial), Mesh Central, Splashtop Streamer, XSplit Hardware Monitor CPU/ Chassis Temperature Sensing CPU/ Chassis/ Power Fan Tachometer CPU/ Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/ Chassis Fan Multi-Speed Control Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor ATX Form Factor Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors) OS - Microsoft Windows 8 / 8 64-bit / 7 / 7 64-bit compliant Certifications FCC, CE, WHQL Er P/ Eu P Ready (Er P/ Eu P ready power supply is required) ...

Asrock Fatal 1ty Z97X Killer Socket 1150 VGA DVI HDMI 7.1 CH HD Audio ATX Motherboard Product Specifications General Gaming Armor CPU Power Hi-Density Power Connector Dual-Stack MOSFET (DSM) Memory Nex FET MOSFET 15μ Gold Contact in DIMM Slots VGA Card 15μ Gold Contact in VGA PCIe Slot (PCIE2) PCIe Power Connector Internet Qualcomm Atheros Killer LAN Cooling XXL Aluminum Alloy Heatsink Audio Purity Sound 2 Unique Feature ASRock Super Alloy XXL Aluminum Alloy Heatsink Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke) Dual-Stack MOSFET (DSM) Nex FET MOSFET Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB ASRock HDD Saver Technology ASRock Full Spike Protection ASRock Cloud ASRock APP Shop CPU
- Supports 5th Generation Intel Core™ i 7/i 5/i 3/ Pentium/ Celeron Processors (Socket 1150)
- Supports New 4th & 4th Generation Intel Xeon/ Core™ i 7/i 5/i 3/ Pentium/ Celeron Processors (Socket 1150)
- Digi Power design
- 8 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking Chipset
- Intel Z97 Memory
- Dual Channel DDR3 Memory Technology
- 4 x DDR3 DIMM Slots
- Supports DDR3 3200+ (OC)/2933 (OC)/2800 (OC)/2400 (OC)/2133 (OC)/1866 (OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2 * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 2 x 64 Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS & 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 Support
- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment Audio, Video & Networking Graphics
- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel HD Graphics 4400/4600
- Pixel Shader 5.0, Direct X 11.1
- Max. shared memory 1792MB
- Three graphics output options: D-Sub, DVI-D & HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2304) @ 24 Hz
- Supports DVI-D with max. resolution up to 1920x 1200 @ 60 Hz
- Supports D-Sub with max. resolution up to 1920x 1200 @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D & HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D & HDMI Ports * Intel HD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. ** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. *** Intel In Tru™ 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Supports Purity Sound™ 2
- Nichicon Fine Gold Series Audio Caps
- 115d B SNR DAC with differential amplifier
- TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
- Direct Drive Technology
- EMI shielding cover
- PCB isolate shielding
- Supports DTS Connect LAN
- PCIE x 1 Gigabit LAN 10/100/1000 Mb/s
- Qualcomm Atheros Killer E2200 Series
- Supports Qualcomm Atheros Security Wake On Internet Technology
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Expansion / Connectivity Slots 3 x PCI Express 3.0 x 16 Slots (PCIE2/PCIE4/PCIE6: single at x 16 (PCIE2); dual at x 8 (PCIE2) / x 8 (PCIE4); triple at x 8 (PCIE2) / x 4 (PCIE4) / x 4 (PCIE6) 3 x PCI Express 2.0 x 1 Slots Supports AMD Quad Cross Fire X™, 3-Way Cross Fire X™ & Cross Fire X Supports NVIDIA Quad SLI & SLI Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13 and Intel Smart Response Technology), NCQ, AHCI, Hot Plug & ASRock HDD Saver Technology 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4, SATA3_5 & M.2 Socket)* 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 2 x 2 (10 Gb/s) * Support to be announced. Connector 1 x COM Port Header 1 x TPM Header 1 x Power LED Header 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) 1 x Power Fan Connector (3-pin) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x HDD Saver Connector 1 x PCIe Power Connector 1 x Front Panel Audio Connector 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB (Universal Serial Bus) 3.0 Header (Supports 2 USB (Universal Serial Bus) 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) Rear Panel I/O 1 x PS/2 Mouse/ Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 1 x Optical SPDIF Out Port 1 x USB (Universal Serial Bus) 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Fatal 1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) 2 x USB (Universal Serial Bus) 3.0 Ports (ASMedia ASM1042AE) (Supports ESD Protection (ASRock Full Spike Protection)) 4 x USB (Universal Serial Bus) 3.0 Ports (Intel Z97) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Software & UEFI Software ASRock F-Stream ASRock Disk Health Report ASRock USB (Universal Serial Bus) Key ASRock Key Master ASRock APP Charger ASRock XFast RAM ASRock Restart to UEFI UEFI ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock UEFI Guide ASRock Instant Flash ASRock Internet Flash ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock UEFI System Browser ASRock UEFI Tech Service ASRock Dehumidifier ASRock Easy RAID Installer
- ASRock Easy Driver Installer Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar, Start 8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7), XSplit, Killer Network Manager Hardware Monitor
- CPU/ Chassis temperature sensing
- CPU/ Chassis/ Power Fan Tachometer
- CPU/ Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/ Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages Form Factor
- ATX Form Factor
- High Density Glass Fabric PCB OS
- Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit Certifications
- FCC, CE, WHQL
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)




























































...
