Features Supports 8th Generation Intel Core™ Processors (Socket 1151) 10 Power Phase Design Supports DDR4 2666 2 PCIe 3.0 x 16, 2 PCIe 3.0 x 1, 1 M.2 Key E for Wi Fi AMD Quad Cross Fire X™ Graphics Output Options: HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps 6 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4), 1 M.2 (PCIe Gen 3 x 1 & SATA3) 2 USB (Universal Serial Bus) 3.1 Gen 2 10 Gb/s (1 Type-A + 1 Type-C) 4 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 2 Rear) Intel Gigabit LAN Overview Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software & drivers. Motherboard is the key to connect every critical components & ASRock’s VR Ready products are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components & rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems. Dual M.2 For SSD Equipped with M.2 slot that supports both SATA3 6 Gb/s & PCIe Gen 3 x 4 Ultra M.2 interface that pushes data transfer speeds up to 32 Gb/s, & is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen 3 x 4 SSD.

Specification Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s)
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) ASRock Super Alloy
- Premium 45A Power Choke
- I/O Armor
- Sapphire Black PCB
- High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Ultra M.2 (PCIe Gen 3 x 4) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- Supports 8th Generation Intel Core™ Processors (Socket 1151)
- Supports CPU up to 95W
- Digi Power design
- 10 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology Chipset
- Intel B360 Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 128 Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment Graphics
- Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) & MPEG-2 Full HW Encode 1, Intel In Tru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics
- Direct X 12
- HWA Encode/ Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Three graphics output options: D-Sub, DVI-D & HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 30 Hz
- Supports DVI-D with max. resolution up to 1920x 1200 @ 60 Hz
- Supports D-Sub with max. resolution up to 1920x 1200 @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D & HDMI Ports
- Supports 4K Ultra HD (UHD) playback with HDMI Port * Intel UHD Graphics Built-in Visuals & the VGA outputs can be supported only with processors which are GPU integrated. Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
- Premium Blu-ray Audio support
- Supports Surge Protection
- ELNA Audio Caps * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Slots
- 2 x PCI Express 3.0 x 16 Slots (PCIE1/PCIE4: single at x 16 (PCIE1); dual at x 16 (PCIE1) / x 4 (PCIE4))*
- 2 x PCI Express 3.0 x 1 Slots (Flexible PCIe)
- Supports AMD Quad Cross Fire X™ & Cross Fire X™
- 1 x M.2 Socket (Key E), supports type 2230 Wi Fi/BT module & Intel CNVi (Integrated Wi Fi/BT) * If PCIE2 is occupied, PCIE4 will downgrade to x 2 mode. Supports NVMe SSD as boot disks Storage
- 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI & Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s)**
- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 1 (8 Gb/s)** * If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. ** Supports Intel Optane™ Technology (M2_1 only) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion & Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x CPU/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 2 x Chassis/ Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 3 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Header (Supports 2 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The CPU/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** The Chassis/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP & CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB (Universal Serial Bus) 2.0 Ports (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone Software & UEFI Software
- ASRock A-Tuning
- ASRock XFast LAN UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Tachometer: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- Solid Capacitor design OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

...

Available

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) Supports DDR4 2666 2 PCIe 3.0 x 16, 2 PCIe 3.0 x 1, 1 M.2 Key E for Wi Fi AMD Quad Cross Fire X™ Graphics Output Options: HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps 6 SATA3, 2 Ultra M.2 (1 x PCIe Gen 3 x 4 & SATA3, 1 x PCIe Gen 3 x 4) 8 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 5 Rear, 1 Type-C) Intel Gigabit LAN Overview RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB This motherboard features onboard RGB headers & an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis & so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. XXL Aluminum Alloy Heatsink Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET & chipset so that your whole system may perform more stable. Full Coverage M.2 Heatsink A massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best. Triple Monitor Graphics, graphics & even more graphics! Youve demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors & use them simultaneously without installing another graphics card. M.2 (KEY E) For Wi Fi Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. * Wi-Fi module is not included.
...

Available

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) Supports DDR4 2666 MHz 2 PCIe 3.0 x 16, 1 PCIe 3.0 x 1, 1 M.2 Key E for Wi Fi AMD Quad Cross Fire X™ Graphics Output Options: HDMI, Display Port 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Supports DTS Connect 6 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4), 1 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 7 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 4 Rear, 1 Type-C) Intel Gigabit LAN ASRock Polychrome SYNC Overview Armor Your VR Machine Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software & drivers. Motherboard is the key to connect every critical components & ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components & rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems. A SOLID M.2-SOLUTION PERFORMER Dual M.2 For SSD, Supports Type 22110 M.2 Ready for higher capacity & even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6 Gb/s & PCIe Gen 3 x 4 modes, pushing data transfer speeds up to 32 Gb/s, & is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen 3 x 4 SSD. M.2 Armors Good M.2 SSD protection is important for longevity & stability. ASRock provides a completed M.2 armor solution on B365 platform that makes SSDs to run in a certain low temperature. RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB In addition to the built-in RGB illumination, it also features onboard RGB headers & an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis & so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Post Status Checker An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast & easy way to identify the source of the problem. INTEL ETHERNET Stable & Reliable Intel LAN provides the best throughput performance, lower CPU utilization & enhanced stability & is able to deliver ultimate network experience to users!
...

Available

Features Supports 9th & 8th Gen Intel Core™ processors (Socket 1151) Supports DDR4 2666 2 PCIe 3.0 x 16, 1 PCIe 3.0 x 1, 1 M.2 Key E for Wi Fi AMD Quad Cross Fire X™ Graphics Output Options: HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps 6 SATA3, 2 Ultra M.2 (1 x PCIe Gen 3 x 4 & SATA3, 1 x PCIe Gen 3 x 4) 7 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 4 Rear, 1 Type-C) Intel Gigabit LAN Overview RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB This motherboard features onboard RGB headers & an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis & so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Dual M.2 For SSD Equipped with M.2 slot that supports both SATA3 6 Gb/s & PCIe Gen 3 x 4 Ultra M.2 interface that pushes data transfer speeds up to 32 Gb/s, & is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen 3 x 4 SSD. Full Coverage M.2 Heatsink A massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best. XXL Aluminum Alloy Heatsink Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET & chipset so that your whole system may perform more stable. PCI-E STEEL SLOT The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.
...

Available

Key Features Supports 9th & 8th Gen Intel Core processors (Socket 1151) Supports DDR4 2666 1 PCIe 3.0 x 16, 2 PCIe 3.0 x 1 Graphics Output Options: HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps 6 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 6 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 4 Rear) Intel Gigabit LAN Ultra M.2 32 Gb/s (PCIe Gen 3 x 4 & SATA3) The PCIe Gen 3 x 4 Ultra M.2 interface pushes data transfer speeds up to 32 Gb/s. In addition, it also supports SATA3 6 Gb/s M.2 modules & is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen 3 x 4 SSDs. Intel LAN Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability & can deliver ultimate network experience to users Triple Monitor Graphics, graphics & even more graphics! Youve demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors & use them simultaneously without installing another graphics card. 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus, the HDMI port supports 4K resolution. ELNA Audio Caps Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream & entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3u A. This is the key to reduce noise level significantly & satisfy even the pickiest audiophiles. A-Tuning A-Tuning is ASRocks multipurpose software suite with a new interface, more new features & enhanced utilities. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality & gives the motherboard a more mysterious touch. ...

Available

Features AMD AM4 Socket Supports DDR4 3200+ (OC) 2 PCIe 3.0 x 16, 4 PCIe 2.0 x 1 AMD Quad Cross Fire X™ Graphics Output: HDMI, Display Port, D-Sub 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps 6 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4), 1 M.2 (PCIe Gen 3 x 2 & SATA3) 2 USB (Universal Serial Bus) 3.1 Gen 2 (Rear Type A+C) 6 USB (Universal Serial Bus) 3.1 (2 Front, 4 Rear) Realtek Gigabit LAN Overview AMD Store MI Technology A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, & offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD Store MI technology “combines” these two types of storage into a single drive & automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, & mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data. *AMD Store MI software is only free with 400-series chipset based motherboards. Dual M.2 For SSD Equipped with M.2 slot that supports both SATA3 6 Gb/s & PCIe Gen 3 x 4 Ultra M.2 interface that pushes data transfer speeds up to 32 Gb/s, & is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen 3 x 4 SSD. Dual USB (Universal Serial Bus) 3.1 Gen 2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A & Type-C USB (Universal Serial Bus) 3.1 Gen 2 ports built on the rear i/o for supporting next generation USB (Universal Serial Bus) 3.1 Gen 2 devices & to deliver up to 10 Gbps data transfer rates. 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + Display Port + HDMI combo. Plus the HDMI port supports 4K resolution. * Supported with A-Series APUs only. Triple Monitor Graphics, graphics & even more graphics! Youve demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors & use them simultaneously without installing another graphics card. * Supported with processors with integrated graphics only. Solid Capacitor Design ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably & ensure longer lifetime.

Specification Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s)
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) ASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen 3 x 4) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- AMD AM4 Socket
- Digi Power design
- 9 Power Phase design
- Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge) Chipset
- AMD Promontory B450 Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+ (OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+ (OC) / 2933 (OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+ (OC) / 2933 (OC) / 2667/2400/2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- 15μ Gold Contact in DIMM Slots * For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. Please refer to below table for DDR4 UDIMM maximum frequency support. Ryzen Series CPUs (Pinnacle Ridge): UDIMM Memory Slot Frequency (MHZ) A1 A2 B1 B2 - SR - - 2667 - DR - - 2400 - SR - SR 2667 - DR - DR 2400 SR SR SR SR 2133 SR/DR DR SR/DR DR 1866 Ryzen Series CPUs (Summit Ridge): UDIMM Memory Slot Frequency (MHZ) A1 A2 B1 B2 - SR - - 2667 - DR - - 2667 - SR - SR 2667 - DR - DR 2400-2667 SR SR SR SR 2133-2400 SR/DR DR SR/DR DR 1866-2133 Ryzen Series CPUs (Raven Ridge): UDIMM Memory Slot Frequency (MHZ) A1 A2 B1 B2 - SR - - 2933 - DR - - 2667 - SR - SR 2667 - DR - DR 2400 SR SR SR SR 2133 SR/DR DR SR/DR DR 1866 SR: Single rank DIMM, 1 Rx 4 or 1 Rx 8 on DIMM module label DR: Dual rank DIMM, 2 Rx 4 or 2 Rx 8 on DIMM module label ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 128 Mb AMI UEFI Legal BIOS with multilingual GUI support
- Supports " Plug & Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- Direct X 12, Pixel Shader 5.0
- Max. shared memory 2GB
- Three graphics output options: D-Sub, HDMI & Display Port 1.2
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 24 Hz / (3840x 2160) @ 30 Hz
- Supports Display Port 1.2 with max. resolution up to 4K x 2K (4096x 2160) @ 60 Hz
- Supports D-Sub with max. resolution up to 1920x 1200 @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI & Display Port 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI & Display Port 1.2 Ports * Actual support may vary by CPU Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
- Premium Blu-ray Audio support
- Supports Surge Protection
- ELNA Audio Caps * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN
- PCIE x 1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Slots AMD Ryzen series CPUs (Summit Ridge & Pinnacle Ridge)
- 2 x PCI Express 3.0 x 16 Slots (PCIE2: x 16 mode; PCIE4: x 4 mode)* AMD Ryzen series CPUs (Raven Ridge)
- 2 x PCI Express 3.0 x 16 Slots (PCIE2: x 8 mode; PCIE4: x 4 mode)*
- 4 x PCI Express 2.0 x 1 Slots
- Supports AMD Quad Cross Fire X™ & Cross Fire X™** * Supports NVMe SSD as boot disks If M2_1 is occupied, PCIE4 will be disabled. ** This feature is only supported with Ryzen Series CPUs (Summit Ridge, Pinnacle Ridge & Raven Ridge). Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 & RAID 10), NCQ, AHCI & Hot Plug*
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI & Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s) (with Summit Ridge, Raven Ridge & Pinnacle Ridge)**
- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 2 (16 Gb/s)** *M2_2, SATA3_3 & SATA3_4 share lanes. If either one of them is in use, the others will be disabled. ** If M2_1 is occupied, PCIE4 will be disabled. Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED & Speaker Header
- 1 x RGB LED Header*
- 1 x Addressable LED Header**
- 1 x AMD Fan LED Header***
- 1 x CPU Fan Connector (4-pin)****
- 1 x CPU/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
- 3 x Chassis/ Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Header (Supports 2 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection) * Supports in total up to 12V/3A, 36W LED Strip ** Supports in total up to 5V/3A, 15W LED Strip *** The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) & length up to 2.5M. **** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ***** The CPU/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ****** The Chassis/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP & CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 1 x PS/2 Mouse/ Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x Display Port 1.2
- 2 x USB (Universal Serial Bus) 2.0 Ports (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone Software & UEFI Software
- ASRock A-Tuning
- ASRock Polychrome RGB
- ASRock XFast LAN UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, MB
- Fan Tachometer: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, Vcore Form Factor
- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
- Solid Capacitor design OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

...

Available

Features AMD AM4 Socket Supports DDR4 3533+ (OC) 2 PCIe 3.0 x 16, 4 PCIe 2.0 x 1 AMD Quad Cross Fire X™ Graphics Output: Display Port, HDMI 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps 6 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4), 1 M.2 (PCIe Gen 3 x 2 & SATA3) 2 USB (Universal Serial Bus) 3.1 Gen 2 (Rear Type-A+C) 6 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 4 Rear) Realtek Gigabit LAN Overview Steel Legend represents the philosophical state of rock-solid durability & irresistible aesthetics. Built around most demanding specs & features, the Steel Legend series aims at daily users & mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable & reliable performance. A motherboard that fulfills every task – with style! RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB Steel legend motherboards deliver stunning performance & superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis & any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. A SOLID M.2-SOLUTION PERFORMER Dual M.2 For SSD, Supports Type 22110 M.2 Two of the world’s fastest M.2 slots. One delivers up to PCIe Gen 3 x 4 32 Gb/s transfer speed, the other one supports PCIe Gen 3 x 2 & SATA3 6 Gb/s mode. M.2 Armors Good M.2 SSD protection is important for longevity & stability. ASRock provides a completed M.2 armor solution on B365 platform that makes SSDs to run in a certain low temperature. PCI-E STEEL SLOT The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.
...

Available

Features AMD AM4 Socket Supports DDR4 3200+ (OC) 1 PCIe 3.0 x 16, 1 PCIe 2.0 x 16, 1 PCIe 2.0 x 1 AMD Quad Cross Fire X™ Graphics Output:HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps 4 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4), 1 M.2 (SATA3) 2 USB (Universal Serial Bus) 3.1 Gen 2 (Rear Type-A+C) 6 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 4 Rear) Realtek Gigabit LAN Overview AMD Store MI Technology A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, & offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD Store MI technology “combines” these two types of storage into a single drive & automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, & mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data. *AMD Store MI software is only free with 400-series chipset based motherboards. Dual M.2 For SSD Equipped with M.2 slot that supports both SATA3 6 Gb/s & PCIe Gen 3 x 4 Ultra M.2 interface that pushes data transfer speeds up to 32 Gb/s, & is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen 3 x 4 SSD. Dual USB (Universal Serial Bus) 3.1 Gen 2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A & Type-C USB (Universal Serial Bus) 3.1 Gen 2 ports built on the rear i/o for supporting next generation USB (Universal Serial Bus) 3.1 Gen 2 devices & to deliver up to 10 Gbps data transfer rates. Digi Power This motherboard uses a next generation Hybrid Digi Power design to bring precise control & smooth power. With the ensured efficient & clean power delivery to the CPU, the stability & lifespan of motherboard is also greatly enhanced. ELNA Audio Caps Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream & entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3u A. This is the key to reduce noise level significantly & satisfy even the pickiest audiophiles. Solid Capacitor Design ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably & ensure longer lifetime.

Specification Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s)
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) ASRock Super Alloy
- Premium 42A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen 3 x 4) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- AMD AM4 Socket
- Digi Power design
- Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge) Chipset
- AMD Promontory B450 Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+ (OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+ (OC) / 2933 (OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+ (OC) / 2933 (OC) / 2667/2400/2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- 15μ Gold Contact in DIMM Slots * For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. Please refer to below table for DDR4 UDIMM maximum frequency support. Ryzen Series CPUs (Pinnacle Ridge): UDIMM Memory Slot Frequency (MHZ) A1 A2 B1 B2 - SR - - 2667 - DR - - 2400 - SR - SR 2667 - DR - DR 2400 SR SR SR SR 2133 SR/DR DR SR/DR DR 1866 Ryzen Series CPUs (Summit Ridge): UDIMM Memory Slot Frequency (MHZ) A1 A2 B1 B2 - SR - - 2667 - DR - - 2667 - SR - SR 2667 - DR - DR 2400-2667 SR SR SR SR 2133-2400 SR/DR DR SR/DR DR 1866-2133 Ryzen Series CPUs (Raven Ridge): UDIMM Memory Slot Frequency (MHZ) A1 A2 B1 B2 - SR - - 2933 - DR - - 2667 - SR - SR 2667 - DR - DR 2400 SR SR SR SR 2133 SR/DR DR SR/DR DR 1866 SR: Single rank DIMM, 1 Rx 4 or 1 Rx 8 on DIMM module label DR: Dual rank DIMM, 2 Rx 4 or 2 Rx 8 on DIMM module label ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 128 Mb AMI UEFI Legal BIOS with multilingual GUI support
- Supports " Plug & Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- Direct X 12, Pixel Shader 5.0
- Max. shared memory 2GB
- Three graphics output options: D-Sub, DVI-D & HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x 2160) @ 24 Hz / (3840x 2160) @ 30 Hz
- Supports DVI-D with max. resolution up to 1920x 1200 @ 60 Hz
- Supports D-Sub with max. resolution up to 1920x 1200 @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D & HDMI Ports
- Supports 4K Ultra HD (UHD) playback with HDMI Port * Actual support may vary by CPU Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
- Premium Blu-ray Audio support
- Supports Surge Protection
- ELNA Audio Caps * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module & enable the multi-channel audio feature through the audio driver. LAN
- PCIE x 1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Slots AMD Ryzen series CPUs (Summit Ridge & Pinnacle Ridge)
- 1 x PCI Express 3.0 x 16 Slot (PCIE2: x 16 mode)*
- 1 x PCI Express 2.0 x 16 Slot (PCIE3: x 4 mode) AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x 16 Slot (PCIE2: x 8 mode)*
- 1 x PCI Express 2.0 x 16 Slot (PCIE3: x 4 mode)
- 1 x PCI Express 2.0 x 1 Slot
- Supports AMD Quad Cross Fire X™ & Cross Fire X™ * Supports NVMe SSD as boot disks Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 & RAID 10), NCQ, AHCI & Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s) (with Summit Ridge, Raven Ridge & Pinnacle Ridge)**
- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module *M2_2 & SATA3_3 share lanes. If either one of them is in use, the other one will be disabled. ** Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion Header
- 1 x Power LED & Speaker Header
- 1 x RGB LED Header*
- 1 x Addressable LED Header**
- 1 x AMD Fan LED Header***
- 1 x CPU Fan Connector (4-pin)****
- 1 x CPU/ Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
- 3 x Chassis/ Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB (Universal Serial Bus) 2.0 Headers (Support 4 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Header (Supports 2 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection) * Supports in total up to 12V/3A, 36W LED Strip ** Supports in total up to 5V/3A, 15W LED Strip *** The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) & length up to 2.5M. **** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ***** The CPU/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ****** The Chassis/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP & CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 1 x PS/2 Mouse/ Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB (Universal Serial Bus) 2.0 Ports (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone Software & UEFI Software
- ASRock A-Tuning
- ASRock Polychrome RGB
- ASRock XFast LAN UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets Hardware Monitor
- Temperature Sensing: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Tachometer: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/ Water Pump, Chassis/ Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, Vcore Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- Solid Capacitor design OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

...

Available

Features AMD AM4 Socket Supports DDR4 3533+ (OC) 1 PCIe 3.0 x 16, 1 PCIe 2.0 x 16, 1 PCIe 2.0 x 1 AMD Quad Cross Fire X™ Graphics Output: Display Port, HDMI 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps 4 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4), 1 M.2 (SATA3) 2 USB (Universal Serial Bus) 3.1 Gen 2 (Rear Type-A+C) 6 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 4 Rear) Realtek Gigabit LAN Overview Steel Legend represents the philosophical state of rock-solid durability & irresistible aesthetics. Built around most demanding specs & features, the Steel Legend series aims at daily users & mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable & reliable performance. A motherboard that fulfills every task – with style! RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB Steel legend motherboards deliver stunning performance & superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis & any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. Dual M.2 For SSD Two of the world’s fastest M.2 slots. One delivers up to PCIe Gen 3 x 4 32 Gb/s transfer speed, the other one supports SATA3 6 Gb/s mode. Dual USB (Universal Serial Bus) 3.1 Gen 2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A & Type-C USB (Universal Serial Bus) 3.1 Gen 2 ports built on the rear i/o for supporting next generation USB (Universal Serial Bus) 3.1 Gen 2 devices & to deliver up to 10 Gbps data transfer rates. PCI-E STEEL SLOT The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.
...

Available

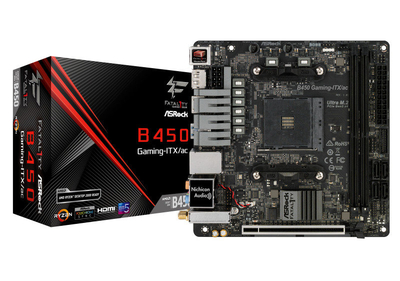

ASRock B450 GAMING-ITX/AC AM4 DDR4 MITX Motherboard

Features AMD AM4 Socket Supports DDR4 3466+ (OC) 1 PCIe 3.0 x16 Graphics Output: DisplayPort 1.2, HDMI 2.0 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 2 USB 3.1 Gen2 (Rear Type-A+C) 4 USB 3.1 Gen1 (2 Front, 2 Rear) Intel Gigabit LAN Intel 802.11ac WiFi + BT 4.2 Overview AMD StoreMI Technology A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically
moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data. *AMD StoreMI software is only free with 400-series chipset based motherboards. RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. *The addressable RGB LED header supports WS2812B addressable RGB LED strip
(5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters. CREATIVE SOUND BLASTER™ CINEMA5 A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers. Dual USB 3.1 Gen2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation
USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates. Specification Gaming Armor Power - Hi-Density Power Connector (8 pin) Memory - 15μ Gold Contact in DIMM Slots VGA Card - 15μ Gold Contact in VGA PCIe Slot (PCIE1) Internet - Intel LAN Cooling - 2oz Copper PCB Audio - Creative Sound Blaster™ Cinema 5 Unique Feature ASRock USB 3.1 Gen2 - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - Premium Power Choke - Dual-N MOSFET - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB Intel 802.11ac WiFi ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock
Live Update & APP Shop CPU - AMD AM4 Socket - Digi Power design - 8 Power Phase design - Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge) Chipset - AMD Promontory B450 Memory - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 32GB** - 15μ Gold Contact in DIMM
Slots *For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. Please refer to below table for DDR4 UDIMM maximum frequency support. Ryzen Series CPUs (Pinnacle Ridge): UDIMM Memory Slot Frequency(MHZ) A1 B1 - SR 2993 SR - 2993 - DR 2400 DR - 2400 SR SR 2993 DR DR 2400 Ryzen Series CPUs (Summit Ridge): UDIMM Memory Slot Frequency(MHZ) A1 B1 - SR 2667 SR - 2667 - DR 2667 DR - 2667 SR SR 2667 DR DR 2667 Ryzen Series CPUs (Raven Ridge): UDIMM Memory Slot Frequency(MHZ) A1 B1 - SR 2933 SR - 2933 - DR 2667 DR - 2667 SR SR 2667 DR DR 2400 SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under
Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment Graphics - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - Integrated AMD Radeon™ R-Series Graphics in A-series APU* - DirectX 12, Pixel Shader 5.0 - Max. shared memory 2GB - Dual graphics output: Support HDMI and DisplayPort 1.2 by independent display controllers - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync,
Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI 2.0 monitor is required) - Supports HDCP with HDMI 2.0 and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports *Actual support may vary by CPU Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps - 120dB SNR DAC with Differential Amplifier - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - Supports Creative Sound Blaster™ Cinema 5 LAN - Gigabit LAN 10/100/1000 Mb/s - GigaLAN Intel I211AT - Supports
Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE Wireless LAN - Intel 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II Slots AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)* - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) *Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs Supports NVMe SSD as boot disks
Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)* *Supports NVMe SSD as boot disks Connector - 1 x LPC Header - 1 x Addressable LED Header* - 1 x AMD Fan LED Header** - 1 x CPU Fan Connector (4-pin)*** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x AMD LED Fan USB Header - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1
Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *Supports in total up to 5V/3A, 15W LED Strip **The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 1 x Optical SPDIF Out Port - 2 x USB 2.0 Ports (Supports ESD Protection)* - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports
(Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *1 x Fatal1ty Mouse Port (USB 2.0) is included Software and UEFI Software - ASRock F-Stream - ASRock Polychrome RGB - ASRock Key Master - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5 GHz Antennas - 1 x Screw for M.2 Socket Hardware Monitor - Temperature Sensing:
CPU, Chassis/Water Pump Fans - Fan Tachometer: CPU, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm OS - Microsoft Windows 10 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Availability: In Stock
Supplier: Ebuyer
SKU: 854883

Description Reviews / Comments Add New

Product Description

Features AMD AM4 Socket Supports DDR4 3466+ (OC) 1 PCIe 3.0 x 16 Graphics Output: Display Port 1.2, HDMI 2.0 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5 4 SATA3, 1 Ultra M.2 (PCIe Gen 3 x 4 & SATA3) 2 USB (Universal Serial Bus) 3.1 Gen 2 (Rear Type-A+C) 4 USB (Universal Serial Bus) 3.1 Gen 1 (2 Front, 2 Rear) Intel Gigabit LAN Intel 802.11ac Wi Fi + BT 4.2 Overview AMD Store MI Technology A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, & offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD Store MI technology “combines” these two types of storage into a single drive & automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, & mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data. *AMD Store MI software is only free with 400-series chipset based motherboards. RULE YOUR OWN LIGHTING WAY
- POLYCHROME RGB In addition to the built-in RGB illumination, it also features onboard RGB headers & an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis & so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. * The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/ Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs & length within 2 meters. * The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) & length within 2 meters. CREATIVE SOUND BLASTER™ CINEMA5 A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics & punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers. Dual USB (Universal Serial Bus) 3.1 Gen 2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A & Type-C USB (Universal Serial Bus) 3.1 Gen 2 ports built on the rear i/o for supporting next generation USB (Universal Serial Bus) 3.1 Gen 2 devices & to deliver up to 10 Gbps data transfer rates.

Specification Gaming Armor Power
- Hi-Density Power Connector (8 pin) Memory
- 15μ Gold Contact in DIMM Slots VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1) Internet
- Intel LAN Cooling
- 2oz Copper PCB Audio
- Creative Sound Blaster™ Cinema 5 Unique Feature ASRock USB (Universal Serial Bus) 3.1 Gen 2
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s)
- ASRock USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) ASRock Super Alloy
- Premium Power Choke
- Dual-N MOSFET
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB Intel 802.11ac Wi Fi ASRock Ultra M.2 (PCIe Gen 3 x 4 & SATA3) ASRock Full Spike Protection (for all USB (Universal Serial Bus), Audio, LAN Ports) ASRock Live Update & APP Shop CPU
- AMD AM4 Socket
- Digi Power design
- 8 Power Phase design
- Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge) Chipset
- AMD Promontory B450 Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 (OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 (OC) / 2667/2400/2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 32GB**
- 15μ Gold Contact in DIMM Slots * For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. Please refer to below table for DDR4 UDIMM maximum frequency support. Ryzen Series CPUs (Pinnacle Ridge): UDIMM Memory Slot Frequency (MHZ) A1 B1 - SR 2993 SR - 2993 - DR 2400 DR - 2400 SR SR 2993 DR DR 2400 Ryzen Series CPUs (Summit Ridge): UDIMM Memory Slot Frequency (MHZ) A1 B1 - SR 2667 SR - 2667 - DR 2667 DR - 2667 SR SR 2667 DR DR 2667 Ryzen Series CPUs (Raven Ridge): UDIMM Memory Slot Frequency (MHZ) A1 B1 - SR 2933 SR - 2933 - DR 2667 DR - 2667 SR SR 2667 DR DR 2400 SR: Single rank DIMM, 1 Rx 4 or 1 Rx 8 on DIMM module label DR: Dual rank DIMM, 2 Rx 4 or 2 Rx 8 on DIMM module label ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS
- 128 Mb AMI UEFI Legal BIOS with GUI support
- Supports " Plug & Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- Integrated AMD Radeon™ R-Series Graphics in A-series APU*
- Direct X 12, Pixel Shader 5.0
- Max. shared memory 2GB
- Dual graphics output: Support HDMI & Display Port 1.2 by independent display controllers
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x 2160) @ 60 Hz
- Supports Display Port 1.2 with max. resolution up to 4K x 2K (4096x 2160) @ 60 Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xv YCC & HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI 2.0 monitor is required)
- Supports HDCP with HDMI 2.0 & Display Port 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 & Display Port 1.2 Ports * Actual support may vary by CPU Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120d B SNR DAC with Differential Amplifier
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Supports Creative Sound Blaster™ Cinema 5 LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga LAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE Wireless LAN
- Intel 802.11ac Wi Fi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433 Mbps
- Supports Bluetooth 4.2 / 3.0 + High speed class II Slots AMD Ryzen series CPUs (Summit Ridge & Pinnacle Ridge)
- 1 x PCI Express 3.0 x 16 Slot (PCIE1: x 16 mode)* AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x 16 Slot (PCIE1: x 8 mode)*
- 1 x Vertical M.2 Socket (Key E) with the bundled Wi Fi-802.11ac module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1) * Supports PCIe riser cards to extend one x 16 slot to two x 8 slots if you install AMD Ryzen series CPUs Supports NVMe SSD as boot disks Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 & RAID 10), NCQ, AHCI & Hot Plug
- 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module & M.2 PCI Express module up to Gen 3 x 4 (32 Gb/s) (with Summit Ridge, Raven Ridge & Pinnacle Ridge)* * Supports NVMe SSD as boot disks Connector
- 1 x LPC Header
- 1 x Addressable LED Header*
- 1 x AMD Fan LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 2 x Chassis/ Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x AMD LED Fan USB (Universal Serial Bus) Header
- 1 x USB (Universal Serial Bus) 2.0 Header (Supports 2 USB (Universal Serial Bus) 2.0 ports) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 1 Header (Supports 2 USB (Universal Serial Bus) 3.1 Gen 1 ports) (Supports ESD Protection) * Supports in total up to 5V/3A, 15W LED Strip ** The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) & length up to 2.5M. *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **** The Chassis/ Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP & CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/ Keyboard Port
- 1 x HDMI Port
- 1 x Display Port 1.2
- 1 x Optical SPDIF Out Port
- 2 x USB (Universal Serial Bus) 2.0 Ports (Supports ESD Protection)*
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB (Universal Serial Bus) 3.1 Gen 2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 2 x USB (Universal Serial Bus) 3.1 Gen 1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED & SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *1 x Fatal 1ty Mouse Port (USB 2.0) is included Software & UEFI Software
- ASRock F-Stream
- ASRock Polychrome RGB
- ASRock Key Master
- ASRock XFast LAN UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD
- Drivers, Utilities, Anti Virus Software (Trial Version), Google Chrome Browser & Toolbar Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock Wi Fi 2.4/5 GHz Antennas
- 1 x Screw for M.2 Socket Hardware Monitor
- Temperature Sensing: CPU, Chassis/ Water Pump Fans
- Fan Tachometer: CPU, Chassis/ Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/ Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis/ Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm OS
- Microsoft Windows 10 64-bit Certifications
- FCC, CE
- Er P/ Eu P ready (Er P/ Eu P ready power supply is required)

Reviews/Comments

Add New

Intelligent Comparison

Available

MSI B450M GAMING PLUS AM4 DDR4 MATX Motherboard Ebuyer

£72.99

Available

MSI B450 GAMING PLUS AM4 DDR4 ATX Motherboard Ebuyer

£90.98

Available

MSI X470 GAMING M7 AC AM4 DDR4 ATX Motherboard Ebuyer

£237.22

Available

ASRock X470 Taichi AM4 DDR4 ATX Motherboard Ebuyer

£174.96

Available

MSI X470 GAMING PRO AM4 DDR4 ATX Motherboard Ebuyer

£109.95

Available

AsRock J4105-ITX CPU J4105 DDR4 ITX Motherboard Ebuyer

£83.33

Available

ASRock A320M-DGS AM4 DDR4 MATX Motherboard Ebuyer

£40.41

Available

MSI X470 GAMING PLUS AM4 DDR4 ATX Motherboard Ebuyer

£114.99

Jargon Buster

USB - Universal Serial Bus

Bluetooth - A short range wireless mainly used for connecting to mobile phones

HDMI - High-Definition Multimedia Interface

Blu-ray - 25GB / 50GB Disc format

LAN - Local Area Network

Full HD - 1080 lines of vertical resolution

RAM - Random Access memory

PCB - Printed Circuit Board

LED - Light Emitting Diode - a small light source

AC - Alternating Current

WiFi - A term used for wireless networking

Hard Disk - A storage device

DIMM - Dual In-Line Memory Module

NON-ECC - Does not have error correcting code

Gold - A precious highly conductive metal

PCI - Peripheral Component Interconnect - Used as an expansion interface in computers

2GB - 2 Gigabytes

4GB - 4 Gigabytes

Copper - A metal element with a chemical formula of CU. A excellent conductor of electricity and heat.

Japan - An island in east Asia

Black - A colour which does not emit any colour of the spectrum. Black absorbs all frequencies of the spectrum.

SATA - Serial Advanced Technology Attachment - a connection type for additional drives

CPU - Central processing unit. The processing centre of computer programs. The faster the processor usually the faster the computer

Resolution - The number of pixels a device can display

Chrome - A shiney metalic finish where chromium is electroplated onto an object

Frequency - A term used to describe how often something is done

Frequency - A wave frequency is the number of times a wave repeats within a given time

Energy Efficient - A term used to describe an electrical item which makes the good use of energy

VGA - Video Graphics Array - A term used to describe a resolution of 640x480 pixels

Cm - Centimetres, one centimetre is equal to 10 milimetres

Glass - A solid, typically transparent. Brittle and used in windows. The first patent granted in the UK was for Glass.

water - A chemical substance. Chemical formula H2O.

hot - An indication of the temperature being high and a sensation of heat to the tough

deliver - The method by which something is delivered fomr one location to another

Key - A physical or virtual device or code used for opening something

Graphics - A general term for visual aspects of an item/display

Keyboard - A device with keys, letters, numbers and function keys used for interacting with a device

Keyboard - A musical instrument similar to a piano

World - A physical grouping, commonly used to describe earth and everything associated with ti

Chrome - A shiney bright metalic coating of chromium applied to metals

Intel - World leaders in silicon chip development and manufacture. Chips for Laptops, desktops and mobile devices. Their main competitor is AMD (Advanced Micro Devices)

AMD - Advanced Micro Devices. A silicon chip manufacturer for desktop, laptop and mobile devices. Also owners of ATI a leading graphics processor chip manufacturer

Microphone - A device for recording sounds. Also known as a mic.

Audio - Also known as sound. An audible vibration wave which can be heard.

speed - A measurement of how fast an object travels between two points

Quality - An object that has quality is superior in function and finish than a less quality object.

Size - is the measurement of how big an object is in space.

Quick - Something that is fast

USB - Universal Serial Bus. A method of connecting a device to a computer

Large - something that takes up more space than normal.

LED - Light Emitting Diode. A bulb that is very efficient at producing light. Often small.

Gold - A colour, a type of rich metal. Chemical symbol AU.

Specification - A description of a product with the details of its attributes.

Install - A process of putting materials together to create a finished product.

CD - A disc that plays music, short for compact disc.

Voltage - A measurement of volts.

Layer - Adding extra quantities of materials for extra practical benefits, e.g. warmth.

Experience - To gain further knowledge by practising.

Design - A drawing or styles that shows the look and functionality of something before its made.

Headphones - Earphones that are used to hear sound through, typically joined by a think band placed over the head

Feature - An attribute that makes something stand out.

Slots - A narrow opening which something can be inserted into, or a machine commonly found in casinos to win money and tokens.

Wireless - A wire free device that uses radio and microwaves to send signals.

Fan - A piece of equipment that has blades that rotate to cool the air, can be installed within other equipment,

Individual - A single separate item or person.

Memory - A way to describe the way in which the brain can remember things.

Supplier Information

Ebuyer

Ebuyer.com is an uber cool website for those looking for latest electronic gadgets. With host of freebies and discounted prices across a range of electronic devices right from computers to household appliances, Ebuyer has the distinction of being one of the prominent online electronic gadget retailers in UK. The site showcases over 19,000 quality products from reputed brands such as Apple, Sony, HP and Acer. Computing devices on offer include desktops, tablets, laptops and smart phones, hard drives, flash memory, memory, processors, graphics cards from AMD and NVIDIA, motherboards and other computer components, peripherals, software, audio visual and gaming devices. This site also has a comprehensive collection of household appliances for the homemakers.

More From Contributor

ASRock B450 GAMING-ITX/AC AM4 DDR4 MITX Motherboard

Product Description

Reviews/Comments

Add New

Intelligent Comparison

Price History

Vouchers

Facebook

Jargon Buster

Supplier Information

Community Generated Product Tags

Contact Us

Information

My Account
