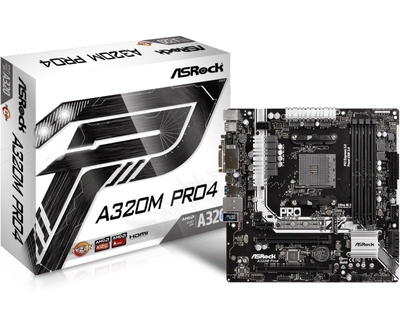

ASRock A320M Pro4 Socket AM4 Intel DDR4 MicroATX Motherboard
Features Micro ATX ASRock Super Alloy Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge) Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU) 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1 Graphics Output:HDMI, DVI-D, D-Sub Supports Triple Monitor 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3) 7 USB 3.1 Gen1 (1 Type-C, 2 Front, 4 Rear) Realtek Gigabit LAN Overview 2oz Copper It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking. Dual M.2 For SSD One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is
compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. And the other one supports SATA3 6Gb/s M.2 modules. USB Type-C A latest reversible USB Type-C design that fits the connector either way. Digi Power Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced. Triple Monitor Graphics, graphics and even more graphics! Youve demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without
installing another graphics card. *Supported with A-Series APUs only. Specification Unique Feature ASRock Super Alloy - Premium 42A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU - Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge) - Digi Power design - 9 Power Phase design - Supports 95W Air Cooling Chipset - AMD Promontory A320 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered
memory** - Max. capacity of system memory: 64GB** - 15μ Gold Contact in DIMM Slots*** *Please refer to Memory Support List on ASRocks website for more information. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. ***Please refer to below table for DDR4 UDIMM maximum frequency support. A-Series APUs: UDIMM Memory Slot Frequency(MHZ) A1 A2 B1 B2 - SR - - 2400 - DR - - 2400 - SR - SR 2400 - DR - DR 2133 SR SR SR SR 1866 SR/DR DR SR/DR DR 1866 Ryzen Series CPUs: UDIMM Memory Slot Frequency(MHZ) A1 A2 B1 B2 - SR - - 2667 - DR - - 2667 - SR - SR 2667 - DR - DR 2400-2667 SR SR SR SR 2133-2400 SR/DR DR SR/DR DR 1866-2133 SR:
Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment Graphics - Integrated AMD Radeon™ R-Series Graphics in A-series APU* - DirectX 12, Pixel Shader 5.0 - Max. shared memory 2GB - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC
and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports *Actual support may vary by CPU Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE Slots AMD Ryzen series CPUs - 1 x PCI Express
3.0 x16 Slot (PCIE2: x16 mode)* - 1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode) AMD 7th A-Series APUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* - 1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode) - 1 x PCI Express 2.0 x1 Slot *Supports NVMe SSD as boot disks Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)** - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module** *M2_2 and SATA3_4 share lanes. If either one of them is in use, the other one will be disabled. **Supports NVMe SSD as boot disks Supports ASRock U.2
Ki Connector - 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x AMD Fan LED Header* - 1 x CPU Fan Connector (4-pin)** - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin - Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *Supports in total up to 12V/3A, 36W LED Strip The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ***CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use. Rear Panel
I/O - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software - ASRock RGB LED - ASRock APP Charger - ASRock XFast LAN* UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories - Quick Installation
Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets Hardware Monitor - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, Vcore Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design OS - Microsoft Windows 10 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. And the other one supports SATA3 6Gb/s M.2 modules. USB Type-C A latest reversible USB Type-C design that fits the connector either way. Digi Power Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced. Triple Monitor Graphics, graphics and even more graphics! Youve demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without
installing another graphics card. *Supported with A-Series APUs only. Specification Unique Feature ASRock Super Alloy - Premium 42A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU - Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge) - Digi Power design - 9 Power Phase design - Supports 95W Air Cooling Chipset - AMD Promontory A320 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered
memory** - Max. capacity of system memory: 64GB** - 15μ Gold Contact in DIMM Slots*** *Please refer to Memory Support List on ASRocks website for more information. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. ***Please refer to below table for DDR4 UDIMM maximum frequency support. A-Series APUs: UDIMM Memory Slot Frequency(MHZ) A1 A2 B1 B2 - SR - - 2400 - DR - - 2400 - SR - SR 2400 - DR - DR 2133 SR SR SR SR 1866 SR/DR DR SR/DR DR 1866 Ryzen Series CPUs: UDIMM Memory Slot Frequency(MHZ) A1 A2 B1 B2 - SR - - 2667 - DR - - 2667 - SR - SR 2667 - DR - DR 2400-2667 SR SR SR SR 2133-2400 SR/DR DR SR/DR DR 1866-2133 SR:
Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment Graphics - Integrated AMD Radeon™ R-Series Graphics in A-series APU* - DirectX 12, Pixel Shader 5.0 - Max. shared memory 2GB - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC
and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports *Actual support may vary by CPU Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE Slots AMD Ryzen series CPUs - 1 x PCI Express
3.0 x16 Slot (PCIE2: x16 mode)* - 1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode) AMD 7th A-Series APUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* - 1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode) - 1 x PCI Express 2.0 x1 Slot *Supports NVMe SSD as boot disks Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)** - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module** *M2_2 and SATA3_4 share lanes. If either one of them is in use, the other one will be disabled. **Supports NVMe SSD as boot disks Supports ASRock U.2
Ki Connector - 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x AMD Fan LED Header* - 1 x CPU Fan Connector (4-pin)** - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin - Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *Supports in total up to 12V/3A, 36W LED Strip The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ***CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use. Rear Panel
I/O - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software - ASRock RGB LED - ASRock APP Charger - ASRock XFast LAN* UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories - Quick Installation
Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets Hardware Monitor - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, Vcore Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design OS - Microsoft Windows 10 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
