The MC1008 series Ethernet media converters are designed to extend the distance of your network by interconnecting LAN devices that are physically separated by large distances. These media converters have the functionality to connect any managed/unmanaged 1000 Mbps switch or hub using standard 1000T RJ-45 connections & convert the signal to 1000 Base optical via a GBIC. The pluggable optics feature allows for flexible network configurations of reach whilst reducing the number of products for sparing & inventory. ...

The MC1008 series Ethernet media converters are designed to extend the distance of your network by interconnecting LAN devices that are physically separated by large distances. These media converters have the functionality to connect any managed/unmanaged 1000 Mbps switch or hub using standard 1000T RJ-45 connections & convert the signal to 1000 Base optical via the SFP. The pluggable optics feature allows for flexible network configurations of reach whilst reducing the number of products for sparing & inventory. The AT-MC1008/SP media converter features a 1000T twisted pair port & an SFP port. The twisted pair port has an RJ45 connector & a maximum operating distance of 100 meters (328 feet). The fiber optic port has an SFP slot & a maximum operating distance dependent on the SFP. Although the provisioning of Gigabit Ethernet connections is becoming relatively inexpensive, thanks in part to the availability of lower-cost copper Gigabit network adapters, the distance limitations of copper cabling make fiber segments a necessity in most networks. Small, comparatively inexpensive copper to fiber Gigabit Ethernet media converters present a simple & very cost-effective way of connecting Gigabit Ethernet LANs over extended distances. Each small media converter is powered by an external power supply unit for use in standalone applications. Where multiple media converters are used, up to 12 standalone devices can be inserted into a low-cost AT-MCR12 rackmount chassis, allowing all the converters to be powered by a single internal power supply. In critical applications, a second load sharing internal power supply can be installed into the rackmount chassis. ...

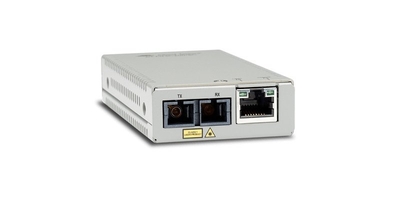

The Allied Telesis range of Fast Ethernet media converters provides a complete family of conversion devices, allowing users to extend the size of UTP networks with the use of fiber cabling. Supporting both SC & ST fiber connectors, the converters can be used to extend networks with up to 40km of single-mode fiber. The Missing Link feature enables the fiber optic ports on the media converter to pass the ' Link' status of their connections to each other. When the media converter detects a problem with one of the ports, such as the loss of connection to an end-node, the media converter shuts down the connection to the other port, thus notifying the node that the connection has been lost. The media converters feature auto MDI/MDI-X, allowing the converter to be connected to either a PC, hub or switch with a simple UTP cable. The media converters also allow the installer to test the integrity of fiber connection, by forcing the converters to communicate over the fiber cable. This ' Link Test' feature allows installers to check for cable faults without the need for expensive fiber optic test equipment. ...

The Allied Telesis' range of Fast Ethernet Media converters provides a complete family of conversion devices, allowing users to extend the size of UTP & multi-mode fiber networks with the use of single-mode fiber cabling. Supporting SC-connected single-mode fiber, these converters can be used to extend networks up to a distance of 100km. When connecting media converters to auto-negotiating Fast Ethernet switches, these media converters will automatically connect the link in either Full or Half-Duplex mode, allowing the link to be established with the greatest bandwidth. Alternatively, the Missing Link feature allows accurate reporting to network management systems as well as allowing devices with redundant link capability to be interconnected with these media converters, as a failure in one fiber link will be signaled to the switch, allowing the second link to become active. All the media converters with a UTP connection feature an internal MDI/MDIX switch, allowing the converter to be connected to a PC, hub or switch with a simple UTP cable. The media converters also allow the installer to test the integrity of fiber connection, by forcing the converters to communicate over the fiber cable. This Link Test feature allows installers to check for cable faults without the need for expensive fiber optic test equipment ...

Used as a pair, the AT-MC605 provides up to 100 Mbps/60 Mbps of data transfer, while supporting POTS service over phone-grade, twisted-pair, wiring (CAT1, 2, 3) at distances up to 3km or 10, 000 feet. These units are the ideal solution for providing data on 'last-mile' twisted pair circuits or existing in-building wiring. Standard Ethernet operation is preserved end-to-end, retaining VLAN tags, & Ethernet MAC information across the link, while higher layer protocols are passed transparently. 10/100 Mbps Ethernet operation is supported simultaneously with POTS, ISDN or PBX signaling, without disruption. The AT-MC605 provider unit is available as a compact standalone unit for installation at the central office, or alternatively, it can be rack mounted in the standard AT-MCR12 chassis from Allied Telesis, capable of housing up to twelve units in one compact chassis with a redundant power supply, simplifying wiring & minimizing space requirements. ...

The AT-SPEX can give companies Gigabit Ethernet connectivity for a distance of up to two kilometers without needing to replace existing cabling. This is ideal for companies with multi-mode fiber, which cannot carry Gigabit Ethernet traffic further than about 220 meters. The AT-SPEX is a standard-sized SFP module that is easy to install & compatible with most brands of Fast Ethernet & Gigabit switches. ...

The AT-SPFX/2 offers the latest industry standard in flexible, full-duplex Fast Ethernet connectivity. This hot-swappable, fiber interfaces simply plug into a SFP slot on Allied Telesis SFP compatible products. Configurations can be optimized to meet varied distance & service requirements. ...

The AT-SP series offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable, fiber interfaces simply plug into a SFP slot on SFP compatible products. Configurations can be optimized to meet varied distance & service requirements. Please note: networking components such as switches, routers, UPS & wireless devices require that speeds & standards be consistent throughout the network to gain optimum performance. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...

The AT-SP series offers the latest industry standard in flexible, full-duplex Gigabit Ethernet connectivity. These hot-swappable, fiber interfaces simply plug into a SFP slot on Allied Telesis SFP compatible products. Configurations can be optimized to meet varied distance & service requirements. Please note: networking components such as switches, routers, UPS & wireless devices require that speeds & standards be consistent throughout the network to gain optimum performance. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...

The AT-TQ2403 dual-radio enterprise-class wireless access point

Includes:: radios that operate within both

...
