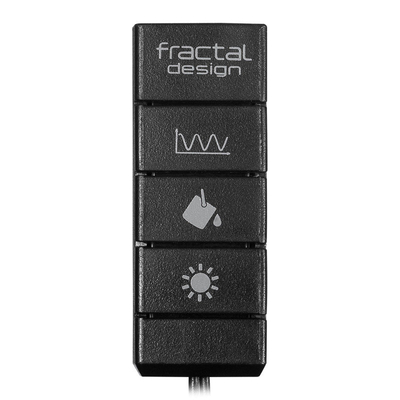

Product Overview The Adjust R1 gives you full manual control over your Fractal Design Prisma AL Series fans & other standard 5V addressable RGB devices. A single Adjust R1 provides easy software-free control, customization, & synchronized effects for several fans, LED strips, & other ARGB devices in daisy-chain or Y-cable configurations. Intuitive controls let you set customize colours, configure brightness, & set colour cycling modes with a variety of pulse & motion effects. Simple & Intuitive Controls Preset colour, colour cycle, custom colour, long rainbow, & short rainbow modes. Integrated Magnets Integrated magnets for convenient placement in any steel case. 5V ARGB Devices Compatible with standard 5V ARGB LED fans, strips, & devices. Ideal for: Users with addressable RGB devices who either don’t have integrated RGB control on their motherboards or instead prefer physical controls without software. Features• Simple & intuitive controls. • Compatible with standard 5V ARGB LED fans, strips, & devices. • Integrated magnets for convenient placement in any steel case. • Preset colour, colour cycle, custom colour, long rainbow, & short rainbow modes. • Eight colour presets & five brightness levels. • Six pulse & motion effects. • Remembers settings when powered off. • Included Y-cable & adapters.
Includes:: • Adjust R1 RGB Controller. • RGB Y-cable (female-to-female). • 2x Male-to-male adapters. Specifications: • Compatibility: 5V Addressable RGB devices with standard 3-pin connector. • Colour Modes:
- Preset
Colour: Set all LEDs to red, green, blue, orange, cyan, yellow, violet, or white.
- Colour cycle: All LEDs change colour in unison.
- Custom
Colour: Freeze colour cycle mode on the exact colour of your choice.
- Long rainbow: Colours animate in a long sequence.
- Short rainbow: Colours animate in a quick succession. • Brightness Settings: 5 levels. • Pulse & Motion Effects:
- On (constant brightness).
- Slow breathing effect.
- Fast breathing effect.
- Slow single pulse sequence.
- Fast single pulse sequence.
- Slow marquee chasing effect.
- Fast marquee chasing effect.
- Off (LEDs disabled). • Maximum Load: 2.6A • Dimensions: 45 x 17 x 8 mm • Weight: 14g
