Adaptec provides highly available storage access solutions that reliably move, manage & protect critical data & digital content. Adaptecs storage solutions are found in high-performance networks, servers, workstations & desktops from the worlds leading manufacturers, & are sold through OEMs & distribution channels to ISPs, enterprises, medium & small businesses & consumers. ...

Adaptec provides highly available storage access solutions that reliably move, manage & protect critical data & digital content. Adaptecs storage solutions are found in high-performance networks, servers, workstations & desktops from the worlds leading manufacturers, & are sold through OEMs & distribution channels to ISPs, enterprises, medium & small businesses & consumers. ...

Adaptec provides highly available storage access solutions that reliably move, manage & protect critical data & digital content. Adaptecs storage solutions are found in high-performance networks, servers, workstations & desktops from the worlds leading manufacturers, & are sold through OEMs & distribution channels to ISPs, enterprises, medium & small businesses & consumers. ...

Adaptec provides highly available storage access solutions that reliably move, manage & protect critical data & digital content. Adaptecs storage solutions are found in high-performance networks, servers, workstations & desktops from the worlds leading manufacturers, & are sold through OEMs & distribution channels to ISPs, enterprises, medium & small businesses & consumers. ...

Two Serial ATA 3 Gb/s ports, PCIe x 1, low-profile form factor with Native Command Queuing, RAID 0, 1, & JBOD for desktops, workstations & entry-level servers. Serial ATA 3 Gb/s, the successor technology to SATA for data storage, is a point-to-point connection that delivers full throughput to each storage device by allowing multiple ports to be managed by a single controller. ...

Reliable PCIe connectivity for SCSI tape drives & SCSI hard drives Key Features PCIe x 1 host connectivity Compatibility with SCSI & tape hard drives Ultra 320 SCSI single channel Top performance with Adaptec Speedflex Supports up to 15 SCSI bus IDs The Adaptec SCSI Card 29320LPE delivers the industry’s first Ultra 320 SCSI tape connectivity for PCIe servers with the reliability & stability of a single-channel I/O interface. This low-profile card protects existing investments through backward compatibility with existing drivers, disks, & tape drives. &, Adaptec Speedflex™ capability gives you the unique ability to mix SCSI devices without impacting performance. The Adaptec 29320LPE is an ideal choice for attaching the most powerful SCSI peripherals to PCIe workstations & servers. Like all Adaptec adapters, it’s built with the expertise of more than 25 years of SCSI leadership. Features PCIe x 1 host connectivity Compatibility with SCSI & tape hard drives Ultra 320 SCSI single channel Top performance with Adaptec Speedflex Supports up to 15 SCSI bus IDs Automatic termination Up to 12 meter cable lengths Low profile Key Differentiators Industry's first PCIe x 1 Ultra 320 SCSI adapter that is ideal as a SCSI disk drive & SCSI tape drive connection solution with unparalleled PCIe connectivity & industry standard compatibility. Customer Needs
- Connect SCSI devices to a workstation or server with PCIe slots System Environment
- x 86, AMD64 & EM64T system architectures with PCIe host connections Form Factor
- MD2 low-profile Number of devices
- Up to 15 SCSI devices Bus System Interface Type
- PCIe x 1 External Connectors
- One 68-pin VHDCI Internal Connectors
- One 68-pin Ultra 320 Data Transfer Rate
- Up to 320 MByte/sec. Operating System Microsoft Windows Su SE Linux Red Hat Linux Novell Net Ware SCO Open Server SCO Unix Ware Sun Solaris Package Contents Adaptec 29320LPE adapter with standard bracket Replacement low-profile bracket One 6-position Ultra 320 SCSI LVD cable with terminator (kits only) (2138800-R) Quick Install Guide CD with drivers & documentation Warranty
- 3 years limited warranty, 2 years technical support








...

Reliable PCIe connectivity for SCSI tape drives & SCSI hard drives Key Features Form Factor
- MD2 low-profile Number of devices
-

...

Series 5Z family of SAS/SATA adapters offers full cache protection without battery installation, monitoring, or replacement costs. Key Features Zero-Maintenance Cache Protection Intelligent Power Management MD2 Â- Low profile form factor 1.2 G Hz Dual Core RAID on Chip (ROC) 8-Lane PCI-Express bus interface The Series 5Z family of high-performance Adaptec SAS/SATA RAID adapters offers both high I/O transaction & high bandwidth processing for use with cost-effective, high-capacity SATA drives or high-performance SAS drives. The Adaptec RAID Series 5Z adapters utilize industry-leading dual core RAID on Chip (ROC), 512MB of DDR2 write cache, & connectivity with the latest x 8 PCI-Express to deliver over 250, 000 I/ Os 1.2 G Bs. Using SAS expanders, they can connect up to 256 SATA/SAS devices. The Adaptec RAID Series 5Z adapters supports a broad range of operating systems, compatibility with more than 300 third-party devices, & full integration with Adaptec Storage Manager™ for centralized management of all Adaptec raid adapters on the network. Zero-Maintenance Cache Protection Â- Save Thousands of Dollars in Data Center Costs Adaptec Series 5Z adapters introduce Zero-Maintenance Cache Protection, a revolutionary advancement that maximizes performance & extends power savings by protecting adapter cache without battery backup units & without incurring monitoring, maintenance, replacement or disposal costs. During a system power loss, the flash memory-based cache protection can preserve data for up to 10 years. Intelligent Power Management
- Reduce Power by up to 70% Adaptec Intelligent Power Management slashes storage power & cooling costs by spinning down idle disks & providing a lower power mode for active disks. Benefits Performance Unified Serial RAID adapter supports both SATA & SAS devices. Ideal for bandwidth intensive storage applications; NAS, OLTP servers, web servers, & digital surveillance. Offers Zero-Maintenance Cache Protection & Intelligent Power Management. Key RAID Features Supports 4 (5405Z) or 8 (5805Z) direct-attached or up to 256 SATA or SAS disk drives using SAS expanders RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50 & 60 Quick initialization Online Capacity Expansion Copyback Hot Spare Dynamic caching algorithm Native Command Queuing (NCQ) Background initialization Hot-plug drive support RAID Level Migration Hot spares Â- global, dedicated, & pooled Automatic/manual rebuild of hot spares SAF-TE enclosure management Configurable stripe size S.M.A.R.T. support Up to 512TB array sizes Multiple arrays per disk drive Bad stripe table Dynamic sector repair Staggered drive spin-up Bootable array support Optimized Disk Utilization Data Transfer Rate
- 3 Gb/s per port Bus System Interface
- 8-lane PCIe Form Factor
- Low-Profile MD2 Cache Memory
- 512MB of DDR2 memory Connector Configuration
- 5405Z: 1 internal (SFF-8087) Mini SAS Package Contents Adaptec RAID 5405Z adapter Pre-installed Flash Backup Module with Supercapacitor card Additional low profile vented bracket





...

Series 6 family of SAS/SATA adapters offer superior bandwidth & full cache protection without battery installation, monitoring, or replacement costs Key Features 6 Gb/s throughput at each port PMC-Sierra PM8013 Dual Core RAID on Chip (ROC) SAS 2.0 interfaces & PCIe Gen 2 Host Connection Low Profile, MD2 Form Factor Supports up to 256 SAS/SATA drives Adaptec RAID 6805 8 internal port, low profile, SAS 2.0 & Gen 2 PCI-Express (PCIe) Unified Serial RAID controller with Zero-Maintenance Cache Protection & Intelligent Power Management delivers exceptional performance, advanced data protection, maximum scalability & the lowest total cost of ownership for enterprise-class, high-density server applications The Series 6 & 6T high-performance Adaptec SAS/SATA RAID adapters offer maximum performance, scalability & reliability. With the enhanced bandwidth of its 6 Gb/s SAS 2.0 interfaces & the PCIe Gen 2 host connection they offer up to 60% higher sustained sequential throughput than previous generation adapters. Based on PMC-Sierra's market-leading, multi-core SRC 8x 6G RAID-on-Chip (Ro C) the Adaptec Series 6 & Series 6T can deliver up to 2 GB/s sustained data transfer rate to the host. Peak performance is up to 4.8GB/s through the SAS 2.0 interfaces & 4.0GB/s through the PCIe Gen 2 host interface. Using SAS expanders, it can connect up to 256 SAS/SATA. The Adaptec Series 6 & Series 6T support a broad range of operating systems, compatibility with more than 300 third-party devices, & full integration with Adaptec Storage Manager™ for centralized management of all Adaptec RAID adapters on the network. Zero-Maintenance Cache Protection Kit Option Â- Maximum protection & Savings Adaptec Series 6 is the industry's first adapter which offers Zero-Maintenance Cache Protection (ZMCP) that eliminates Battery Backup Units (BBUs) in favor of 4GB of NAND flash memory to protect cached data & eliminate the installation, monitoring, maintenance, disposal & replacement costs associated with BBUs. Available as a separate Kit: Adaptec Flash Module 600 (AFM-600). Hybrid RAID With Hybrid RAID 1 & 10 Series 6 & 6T adapters offer maximum performance & reliability by combining Solid State Drives (SSDs) & Hard Disk Drives (HDDs) in a single array. Performing read operations from the faster SSD & write operations on both the SSDs & HDD results in tremendous performance gains over standard HDD RAID arrays. Hybrid RAID offers the benefits of both technologies & allows a better cost-per-operation. Specifications Operating System Microsoft Windows Red Hat Linux SUSE Linux Fedora Debian Linux Ubuntu Linux Sun Solaris Free BSD VMware ESX Benefits Performance Unified Serial RAID controller supports both SATA & SAS devices. Ideal for bandwidth intensive storage applications; NAS, OLTP servers, web servers, & digital surveillance. Offers Zero-Maintenance Cache Protection & Intelligent Power Management. Key Differentiators Zero-Maintenance Cache Protection Intelligent Power Management Customer Needs High I/O transaction & high bandwidth processing. Form Factor
- MD2 Low-Profile Cache Memory
- 512MB of DDR2 667 M Hz cache memory RAID Levels
- RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50, 60 & JBOD Key RAID Features Supports up to 256 SATA or SAS devices using SAS expanders RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50, 60 & JBOD Quick initialization Online Capacity Expansion Copyback Hot Spare Dynamic caching algorithm Native Command Queuing (NCQ) Background initialization Hot-plug drive support RAID Level Migration Hot spares Â- global, dedicated, & pooled Automatic/manual rebuild of hot spares SES & SAF-TE enclosure management Configurable stripe size S.M.A.R.T. support Multiple arrays per disk drive Dynamic sector repair Staggered drive spin-up Bootable array support Optimized Disk Utilization Bus System Interface Type
- 8-lane PCIe Gen 2 Internal Connectors
- 2 internal (SFF-8087) Mini SAS Data Transfer Rate
- 6 Gb/s per port Management Utilities Adaptec Storage Manager™ (ASM) Java-based GUI Management Utility Remote configuration, monitoring & notification ASM OS Support: Windows, Linux, SCO, Solaris Free BSD Microsoft VDS Support SNMP, SMTP Remote firmware updates ARCCONF Command Line Interface SMI-S support for VMware Adaptec BIOS Configuration Utility (ACU) BIOS level configuration utility Flashable BIOS support Physical Size
- 2.5" H x 6.6" L (64mm x 167mm) Operating Temperature 0°C to 55°C* (with 200 LFM airflow; without flash module) 0°C to 50°C* (with 200LFM airflow; with flash module) Note: This Adaptec card contains a powerful RAID processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM). * Ambient temperature measured 1" away from the RAID processor Operating Voltage 0.17 amp @ 3.3V 1.25 amp @ 12V measured on PCIe Gen 2 systems with 6G drives Regulatory Certification
- CE, FCC, UL, C-tick, VCCI, KCC Environmental Compliance
- Ro HS, REACH Mean Time Before Failure (MTBF)

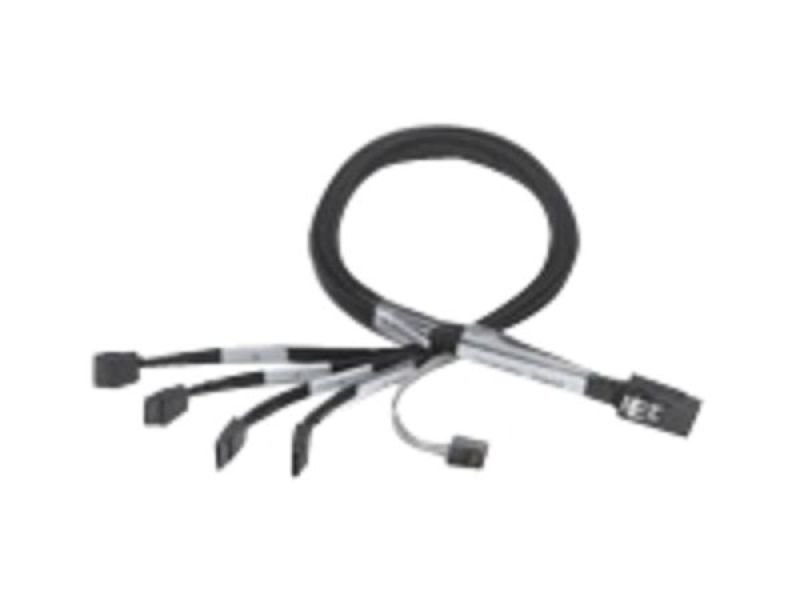

- 860, 953 hours at 40 degree C. Package Contents Adaptec RAID 6805 Controller Additional low profile vented bracket Quick Installation Guide (English/ French/ German/ Italian/ Spanish/ Japanese) Adaptec RAID Installation DVD (bootable, incl. documentation, drivers & software) Cables: Two m SASx 4-4SATA x 1-SB (2272300-R), 0.7m * Singles do not contain cable









...

Adaptec RAID 6405E 4 internal port, low-profile MD2
- Low Profile (2.535"H x 5.115"L) with PCIe x 1, SAS 2.0 & Gen 2 PCI-Express
...
