Free Never Settle Forever Gold Games Coupon. Select 3 games from the AMD Redemption Portal. Valid with selected purchases from 20th August 2013 whilst coupon stocks last. Offer not available on ex display cards. AMD Radeon HD 7950 A Quantum Leap In Graphics Technology The AMD Radeon HD 7950 graphics processor harnesses the visionary GCN Architecture. As the worlds first 28nm GPU, this chip is primed to enable astonishing performance & breathtaking image quality, making it the only solution for gamers who expect the best. Black Edition: Overclocked This card features XFXs unique Overclock GPU core at 900 MHz which is 100 MHz more than the base models. Push your gaming experience to the max. Double Dissipation Edition XFXs unique dual fan design allows air to cool everything including the thermal, GPU, heatsinks, components & the PCB board. Specifications Processor & Bus GPU Clock
- 900 MHz Chipset version
- AMD Radeon HD 7950 Memory Memory Bus
- 384 bit Memory Clock
- 5.5 GHz Memory Size
- 3 GB Memory Type
- GDDR5 Feature Technologies AMD Eyefinity Technology
- Y AMD HD3D Technology
- Y Other Features AMD
- Cross Fire ready
- Y Display Output Display Port ready
- 1.2 Dual link Support
- Y HDMI Ready
- 1.4a Max Supported Resolution (ANALOG)
- 2048 x 1536 Max Supported Resolution (DIGITAL)
- 2560 x 1600 Output
- DL-DVI-I x 1 Output
- HDMI x 1 Output
- mini DP x 2 Requirements External Power
- 6-Pins
- 2 Minimum Power Supply Requirement
- 500 watt XFX Recommended Power Supply
- XFX 650W PSU





















...

Free Never Settle Forever Gold Games Coupon. Select 3 games from the AMD Redemption Portal. Valid with selected purchases from 20th August 2013 whilst coupon stocks last. Offer not available on ex display cards. A Quantum Leap In Graphics Technology The AMD Radeon HD 7950 graphics processor harnesses the visionary GCN Architecture. As the world’s first 28nm GPU, this chip is primed to enable astonishing performance & breathtaking image quality, making it the only solution for gamers who expect the best. Processor & Bus: Chipset version: ATI Radeon HD 7950 GPU Clock: 800 MHz Memory: Memory Bus: 384 bit Memory Clock: 5.0 GHz Memory Size: 3 GB Memory Type: DDR5 Feature Technologies: AMD Eyefinity Technology: Y AMD HD3D Technology: Y Other

Features: AMD
- Cross Fire ready: Y Display Output Display Port ready: 1.2 Dual link Support: Y HDMI Ready: 1.4a Max Supported Resolution (ANALOG): 2048 x 1536 Max Supported Resolution (DIGITAL): 2560 x 1600 Output
- DL-DVI-I: 1 Output
- HDMI: 1 Output
- mini DP: 2 Output
- SL-DVI-D: 1 Physical: Card Profile: Dual Thermal Solution: HD7970 GHOST DD FANSINK Thermal Type: Dual slot Card Dimension (cm): 27.5 x 11.12 x 3.81 Card Dimension (inch): 10.8 x 4.4 x 1.5 Requirements: External Power
- 6-pins: 1 External Power
- 8-pins: 1 Minimum Power Supply Requirement: 500 watt XFX Recommended Power Supply: XFX 650W PSU








...

Free Never Settle Forever Gold Games Coupon. Select 3 games from the AMD Redemption Portal. Valid with selected purchases from 20th August 2013 whilst coupon stocks last. Offer not available on ex display cards. AMD Radeon HD 7970 A Quantum Leap In Graphics Technology The AMD Radeon HD 7970 graphics processor harnesses the visionary GCN Architecture. As the world’s first 28nm GPU, this chip is primed to enable astonishing performance & breathtaking image quality, making it the only solution for gamers who expect the best. Double Dissipation Edition XFX’s unique dual fan design allows air to cool everything including the thermal, GPU, heatsinks, components & the PCB board. GHz Edition The first generation of ground breaking GPUs with core clocks above 1 G Hz. The GHz Edition graphics cards from XFX & AMD are designed with massive headroom for overclocking beyond 1 G Hz Specifications Processor & Bus GPU Clock
- 1050 MHz Chipset version
- AMD Radeon HD 7970 Memory Memory Bus
- 384 bit Memory Clock
- 6.0 GHz Memory Size
- 3 GB Memory Type
- GDDR5 Feature Technologies AMD Eyefinity Technology
- Y AMD HD3D Technology
- Y Other Features AMD
- Cross Fire ready
- Y Display Output Display Port ready
- 1.2 Dual link Support
- Y HDMI Ready
- 1.4a Max Supported Resolution (ANALOG)
- 2048 x 1536 Max Supported Resolution (DIGITAL)
- 2560 x 1600 Output
- DVI x 2 Output
- HDMI x 1 Output
- mini DP x 2 Requirements External Power
- 6-Pins x 1 External Power
- 8-Pins x 1 Minimum Power Supply Requirement x 500 watt XFX Recommended Power Supply x XFX 650W PSU



















...

Specifications Processor & Bus Chipset version: ATI Radeon HD 7970 GPU Clock: 925 MHz Memory: Memory Bus: 384 bit Memory Clock: 5.5 GHz Memory Size: 3 GB Memory Type: DDR5 Feature Technologies: AMD Eyefinity Technology: Y AMD HD3D Technology: Y Other

Features: AMD
- Cross Fire ready: Y Display Output: Display Port ready: 1.2 Dual link Support: Y HDMI Ready: 1.4a Max Supported Resolution (ANALOG): 2048 x 1536 Max Supported Resolution (DIGITAL): 2560 x 1600 Output
- DL-DVI-I: 1 Output
- HDMI: 1 Output
- mini DP: 2 Output
- SL-DVI-D: 1 Physical: Card Profile: Dual Thermal Solution: HD7970 Ghost Dual fan fansink Thermal Type: Dual slot Card Dimension (cm): 27.5 x 11.12 x 3.81 Card Dimension (inch): 10.8 x 4.4 x 1.5 Requirements: External Power
- 6-pins: 1 External Power
- 8-pins: 1 Minimum Power Supply Requirement: 500 watt XFX Recommended Power Supply: XFX 650W PSU








...

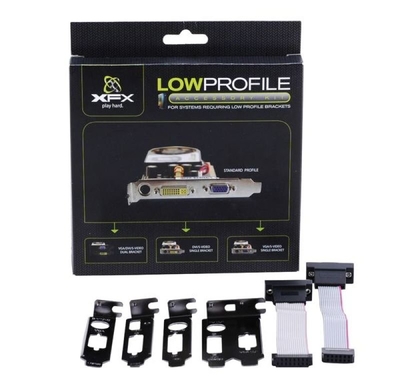

Everything you need to transform your low-profile-compatible XFX graphics card into a low-profile configuration. Simply replace the standard bracket with the low-profile bracket. Allows for the installation of a compatible full profile graphics card in a low profile system through the changing of the bracket. ...

Easy Rail Technology Provides Maximum Power Unique, continuous Easy Rail technology enables you to maximize available power & make set-up easy. Stack numerous power-hungry components without fear of crashing. Its also a perfect solution for hardcore gamers. The worlds only PSUs with Easy Rail Key Features * 650W of continuous power at 50 * Tight voltage regulation (±5%) * High efficiency operation up to 85% (80 Plus Bronze) * Single, high power +12V rail (up to 53A/636W) * High quality Japanese brand capacitors (105 degrees C) * Quiet 135mm ball bearing fan provides superior cooling * Supports multiple high-end graphic adapters (NVIDIA SLI & ATI Cross Fire Ready) * Supports the latest ATX12V & EPS12V standards * Active PFC with Universal AC input * Energy Star 4.0 & Ro HS compliant * 5-Year Limited Warranty Cable Connectors: 20+4pin Power 4+4pin ATX12v 8pin ATX12v 2x 6pin PCI-Express 2x 8pin PCI-Express (4x PCI-E Total) 9x SATA 9x 4pin Molex 1x Floppy

Specification Input Voltage
- 90-264 Vac Input Frequency Range
- 47-63 Hz Input Current
- 9A (rms) Efficiency
- up to 85% PFC
- >0.95 at full load Maximum Wattage
- 650 Multi-Graphics Cards Support
- NVIDIA SLI ready certified ATX12V 2.2 & ESP12V 2.91 Compliant
- Yes Efficiency @ Typical Load
- 85% 80PLUS Certification
- Bronze Maximum Operation Temperature
- 50 Degrees C +12V Output Rail Design
- Single Rail Quality of Capacitors
- High quality Japanese brand capacitors Temperature Rating of Capacitors
- 105 Degrees C Fully Sleeve Cables
- Yes DC to DC Converters (+3.3V & +5V)
- Yes Intake Fan: Diameter
- 135 x 135 x 25 mm Intake Fan: Airflow
- 82 CFM min



















...

Specifications Manufacturer
- XFX Model Number
- R5-230A-ZLH2 Product Name
- AMD Radeon R5 230 Product Description
- CORE



...

XFX R7 240 2GB DDR3 VGA DVI HDMI Display Port PCI-E Graphics Card The AMD Radeon R7 250/240 GPUs are packed with incredible features & unprecedented performance. These advanced graphics cards feature the award-winning GCN Architecture for spectacular performance & efficiency.1 Equipped with the latest technologies, such as PCI Express 3.0, AMD Power Tune technology, the incredibly efficient AMD Zero Core Power technology, & AMD App Acceleration “ enhanced performance to accelerate your game & multimedia applications “ why settle for anything less? Specifications: General Product Description: CORE RADEON R7 240 780M BOOST READY 2GB D3 LP HDMI DVI VGA UPC Number: 778656063174 Processor & Bus Bus Type: PCI-E 3.0 Chipset version: Oland Pro GPU Boost Clock: 780 M Hz GPU Bus (bit): 128 GPU Clock: 730 M Hz Performance Category: Warrior Stream Processors: 320 Memory Memory Bus: 128 bit Memory Clock: 1.6 GHz Memory Size: 2 GB Memory Type: DDR3 Feature Technologies AMD HD3D Technology: Y AMD Hybrid Graphics Technology: Y AMD Power Play Technology: Y AMD Stream Technology: Y Environmental Ro HS: Y Display Output Dual link Support: Y HDMI Ready: 1.4a Max Supported Resolution (ANALOG): 2048 x 1536 Max Supported Resolution (DIGITAL): 4096 x 2160 (HDMI) Output
- HDMI: 1 Output
- SL-DVI-D: 1 Output
- VGA: 1 Physical: Card Profile: Single Thermal Solution: Heatsink Thermal Type: Dual slot Card Dimension (cm): 17.7 x 6.88 x 3.81 Card Dimension (inch): 6.9 x 2.7 x 1.5 Requirements: Minimum Power Supply Requirement: 400 watt XFX Recommended Power Supply: XFX 450W PSU


...

The AMD Radeon R7 240 GPU is packed with incredible features & unprecedented performance. These advanced graphics cards feature the award-winning GCN Architecture for spectacular performance & efficiency. Equipped with the latest technologies, such as PCI Express 3.0, AMD Power Tune technology, the incredibly efficient AMD Zero Core Power technology, & AMD App Acceleration
- enhanced performance to accelerate your game & multimedia applications
- why settle for anything less? Specifications Manufacturer
- XFX Product Name
- AMD Radeon R7 240 Bus Type
- PCI-E 3.0 GPU Boost Clock
- 780 M Hz GPU Clock
- 730 M Hz Stream Processors
- 320 Memory Bus
- 128 bit Memory Clock
- 1.6 GHz Memory Size
- 2 GB Memory Type
- DDR3 Card Profile
- Single Thermal Solution
- LP Fansink Outputs: Max Supported Resolution (ANALOG)
- 2048 x 1536 Max Supported Resolution (DIGITAL)
- 4096 x 2160 (HDMI) Outputs
- HDMI x 1, SL-DVI x 1, VGA x 1 Requirements Minimum Power Supply Requirement
- 400 watt XFX Recommended Power Supply
- XFX 450W PSU


















...

Key Features 320 Stream Processors 600 MHz Core Clock 2GB 64-Bit DDR3 1300 MHz Effective Memory Clock PCI Express 3.0 Specifications Bus Type - PCI-E 3.0 Chipset version
- Oland Pro GPU Bus (bit)
- 64 GPU Clock
- 600 MHz Performance Category
- Warrior Stream Processors
- 320 Memory Memory Bus
- 64 bit Memory Clock
- 1.3 GHz Memory Size
- 2 GB Memory Type
- DDR3 Feature Technologies AMD HD3D Technology
- Y AMD Hyper Memory
- Y AMD Stream Technology
- Y Display Output HDMI Ready
- 1.4a Max Supported Resolution (ANALOG)
- 2048 x 1536 Max Supported Resolution (DIGITAL)
- 1920 x 1080 (DVI);4096 x 2160 (HDMI) Output
- HDMI
- 1 Output
- SL-DVI-D
- 1 Output
- VGA
- 1 Physical Card Profile
- Single Thermal Solution
- LP Fansink Thermal Type - Single Slot Card Dimension (cm)
- 15 x 6.88 x 1.41 Card Dimension (inch)
- 5.9 x 2.7 x 0.55 Requirements Minimum Power Supply Requirement: 400 watt XFX Recommended Power Supply: XFX 450W PSU
























...
