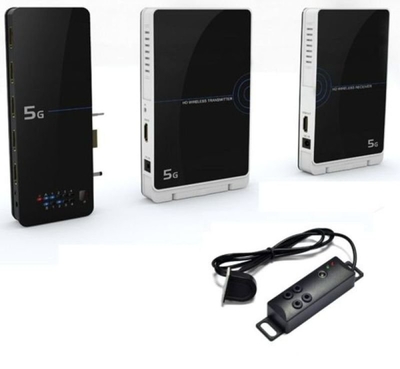

Xenta Wireless HDMI Kit + HDMI Switch - WHDI HDMI Transmitter And
Receiver
This is the same as our existing wireless HDMI kit QF 257588 except this includes a 4 port HDMI switch that attaches to the Wireless HDMI transmitter to allow you to connect up to 4 source devices and switch between them using the wireless remote control and IR remote controller extender kit. This is a wireless HDMI HD Sender transmitter/receiver kit to allow you to send HD video and audio wirelessly between 2 devices with no loss of quality. It can trasmit up to 720p and 1080p without interference over distances of up to 30 Metres (depends on line of sight and wall thickness). Using the brand new WHDI wireless HDMI technology. The HD sender and receiver will pair with each other automatically, no setup required. Simply plug the transmitter box into the HDMI source, e.g DVD player or SKY
box, and the receiver box into the TV. Customer note: due to the way HDMI works, if you want to use this to send your existing TV signal, e.g SKY HD to a secondary TV while still using it with your main TV, you will need to use this with an active HDMI splitter such as ebuyer QF 230507. this will actively split the HDMI signal to allow it to be displayed both on main TV (wired HDMI) and secondary TV (wireless HDMI) at the same time. Package Content 1 x Wireless HDMI Transmitter(TX) 1 x Wireless HDMI Receiver(RX) 1 x HDMI Switch 1 x IR Extension BOX 1 x Remote control 2 x DC 5V Power Adapter for RX/TX 5 x IR Extension Cable 1 x User Manual Wireless HDMI Transmitter & Receiver Kits run at 5GHz operation frequency to deliver uncompressed HD video/audio 20 meters in open field. This
device kits make wireless connection by using WHDI Technology from HD Media Source Devices such as HD Disc Player, PC, Game Console, Set-top Box to Display Device for example LCD, Plasma or LED TV, Projector… while keep wire-equivalent quality and no latency. Features: 1. MIMO technology using a 5GHz band and 18MHz bandwidth 2. Uncompressed HD Video/Audio hybrid transmission quality equivalent at wire transmission 3. Distance transmission range within 30 meters open field and within 10 meters through wall 4. Less than 1millisecond latency ideal for PC and on line game 5. IR technology enabled for easy remote control operation 6. Supports HDMI 1.3 video format and HDCP 1.2 with video encryption 7.Strong 128-bit AES encryption Specifications: Video Format Support TV: 1080p,
1080i, 720p, 576p, 480p PC: VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024) Audio Format Support PCM, DTS, DOLBY DIGITAL RF Communication System MIMO Modulation OFDM Maximum Transmission Power 12dBm Wireless HDMI HD Sender Image Transmission Distance 100 feet Image Delay < 1ms Antenna High Performance Internal Antennas Operating Frequency 5.1GHz to 5.9GHz IR Carrier Modulation Frequency Support 38KHz Power Supply AC In 100~240V, DC Out 5V/2A Power Adapter Operation Temperature 32F to 104F Troubleshooting Tips: Please ensure you have the IR remote control sensor positioned correctly near the device you are trying to control. please ensure you know where the sensor is on the source device and have the sensor positioned directly in front of it, otherwise it may not
work correctly. If the picture and sound doesnt come through correctly to the receiver unit/TV, please switch off both sender and receiver, then switch sender on first, wait until 2 blue lights show, then turn the receiver back on. Please ensure the source device is switched on and transmitting a signal before you turn on these devices. If you are using an HDMI splitter (I.E to split a sky box signal), transmission problems can be fixed by resetting the HDMI splitter. Depending on the construction of your house there can be range issues. It is mainly a problem for new build houses where foil insulation is used between internal walls, and also an issue for very thick walls. If you are able to use a wireless internet network in your house then you should generally be able to get a good
signal from this device. Most video/sound transmission problems can be fixed by resetting the sender and receiver boxes as described above and turning them on in the correct order (sender first, then receiver).
box, and the receiver box into the TV. Customer note: due to the way HDMI works, if you want to use this to send your existing TV signal, e.g SKY HD to a secondary TV while still using it with your main TV, you will need to use this with an active HDMI splitter such as ebuyer QF 230507. this will actively split the HDMI signal to allow it to be displayed both on main TV (wired HDMI) and secondary TV (wireless HDMI) at the same time. Package Content 1 x Wireless HDMI Transmitter(TX) 1 x Wireless HDMI Receiver(RX) 1 x HDMI Switch 1 x IR Extension BOX 1 x Remote control 2 x DC 5V Power Adapter for RX/TX 5 x IR Extension Cable 1 x User Manual Wireless HDMI Transmitter & Receiver Kits run at 5GHz operation frequency to deliver uncompressed HD video/audio 20 meters in open field. This
device kits make wireless connection by using WHDI Technology from HD Media Source Devices such as HD Disc Player, PC, Game Console, Set-top Box to Display Device for example LCD, Plasma or LED TV, Projector… while keep wire-equivalent quality and no latency. Features: 1. MIMO technology using a 5GHz band and 18MHz bandwidth 2. Uncompressed HD Video/Audio hybrid transmission quality equivalent at wire transmission 3. Distance transmission range within 30 meters open field and within 10 meters through wall 4. Less than 1millisecond latency ideal for PC and on line game 5. IR technology enabled for easy remote control operation 6. Supports HDMI 1.3 video format and HDCP 1.2 with video encryption 7.Strong 128-bit AES encryption Specifications: Video Format Support TV: 1080p,
1080i, 720p, 576p, 480p PC: VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024) Audio Format Support PCM, DTS, DOLBY DIGITAL RF Communication System MIMO Modulation OFDM Maximum Transmission Power 12dBm Wireless HDMI HD Sender Image Transmission Distance 100 feet Image Delay < 1ms Antenna High Performance Internal Antennas Operating Frequency 5.1GHz to 5.9GHz IR Carrier Modulation Frequency Support 38KHz Power Supply AC In 100~240V, DC Out 5V/2A Power Adapter Operation Temperature 32F to 104F Troubleshooting Tips: Please ensure you have the IR remote control sensor positioned correctly near the device you are trying to control. please ensure you know where the sensor is on the source device and have the sensor positioned directly in front of it, otherwise it may not
work correctly. If the picture and sound doesnt come through correctly to the receiver unit/TV, please switch off both sender and receiver, then switch sender on first, wait until 2 blue lights show, then turn the receiver back on. Please ensure the source device is switched on and transmitting a signal before you turn on these devices. If you are using an HDMI splitter (I.E to split a sky box signal), transmission problems can be fixed by resetting the HDMI splitter. Depending on the construction of your house there can be range issues. It is mainly a problem for new build houses where foil insulation is used between internal walls, and also an issue for very thick walls. If you are able to use a wireless internet network in your house then you should generally be able to get a good
signal from this device. Most video/sound transmission problems can be fixed by resetting the sender and receiver boxes as described above and turning them on in the correct order (sender first, then receiver).
