Trendnet Wireless Internet Camera V1.0R

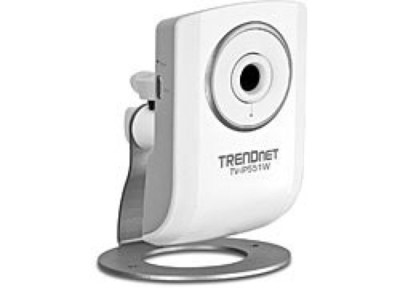

The Wireless N Internet Camera, model TV- IP551W, transmits real-time video over the Internet. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS). Record 640 x 480 (VGA) video at up to 20 frames per second (fps). Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, one-way audio, an adjustable lens, and four times digital zoom. A wall / ceiling mounting kit is included and the camera’s off white housing blends into most environments. General - Sensor - 1/5" CMOS sensor
Resolution - 640 x 480 pixel Lens Type - Board lens Focal Length - 0.15" (4 mm) Aperture - F1.5 Minimum Illumination - 1 lux Focus Depth - 7.87" (20 cm) to infinity View - Horizontal: 38° View - Vertical: 28.7° View - Diagonal: 46.5° Digital Zoom - 4x Audio - Microphone - Built-in omni-directional microphone Sensitivity - -38 dB +/- 3 dB (5 m maximum) Frequency - 100 to 20000 Hz S/N - Greater than 60 dB Codec - PCM Wireless - Standard - IEEE 802.11b, IEEE 802.11g and IEEE 802.11n Frequency - 2.4 to 2.497 GHz ISM band Modulation - DQPSK, DBPSK, DSSS and CCK Antenna - Built-in 2 dBi antenna Date Rate - 802.11b: up to 11 Mbps Date Rate - 802.11g: up to 54 Mbps Date Rate - 802.11n: up to 150 Mbps Security - 64/128-bit WEP, WPA / WPA2-PSK Output Power - 802.11b: 17 dBm
(typical) Output Power - 802.11g: 15 dBm (typical) Output Power - 802.11n: 14 dBm (typical) Receiving Sensitivity - 802.11b: -88 dBm @ 11 Mbps Receiving Sensitivity - 802.11g: -74 dBm @ 54 Mbps Receiving Sensitivity - 802.11n: -68 dBm @ 150 Mbps Channels - 1 to 11 (FCC), 1 to 13(ETSI) Hardware - Network - IEEE 802.3u 10/100 Mbps Auto-MDIX fast Ethernet LED - Power, Link/Act WPS Button - Enable WPS connection Reset Button - Reset to factory default Power Consumption - Maximum 5 W Power - Input: 100 to 240 V, 50/60 Hz, 0.2 A Power - Output: 5 V, 1.2 A external power adapter Humidity - Maximum 95% (non-condensing) Temperature - Operating: 32 to 104°F (0 to 40°C) Temperature - Storage: 5 to 140°F (-15 to 60°C) Dimensions - 2.95 x 4.5 x 1.2" (75 x 115 x 30 mm) Weight -
3.8 oz (110 g) Requirement - Management Interface - Internet Explorer 7.0 or above, Firefox, Safari System Requirement - Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows Server 2003, 2008 SecurView Pro Software - Channel: supports up to 32 cameras SecurView Pro Software - Record/playback/motion detection/audio Network Protocols - IPv4, ARP, TCP, UDP, ICMP, DHCP client, NTP client, DNS client, DDNS client, SMTP client, FTP client, HTTP, PPPoE, UPnP
