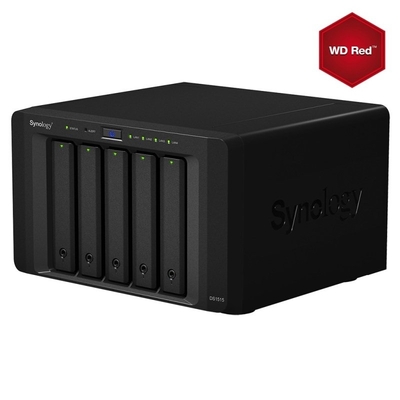

Synology DS1515 15TB (5 X 3TB WD Red) 5 Bay Desktop NAS
High-performance and reliable. Ready for your growing needs. Featuring a quad-core processor, hardware encryption engine, and floating-point unit, DS1515 is a powerful, expandable 5-bay NAS server that delivers outstanding data transmission speed. With built-in four Gigabit LAN ports featuring failover and Link Aggregation, plus High Availability and SSD read/write cache support, DS1515 offers the reliable storage solution at a cost-effective price point for your growing needs. Contains the WD Red HDD’s NAS optimised for up to 8 bays Desktop solutions, Designed for Low duty cycle environment with 3 years warranty Quad-core CPU for high performance Powered by a quad-core CPU combined with 2GB of DDR3 RAM, DS1515 delivers outstanding performance over 403.77 MB/s reading and
421.85 MB/s writing1 with Link Aggregation enabled. Powerful hardware enables DS1515 to deal with considerable amounts of data processing requests and provide consistently high throughput to all connected clients. Hardware encryption engine and floating-point unit DS1515 is equipped with a dedicated hardware encryption engine, delivering encrypted data transmission speeds over 296.54 MB/s reading and 150.04 MB/s writing with Link Aggregation enabled. DS1515 also features a built-in floating-point unit which enhances the overall capability of the main CPU to enable higher working efficiency. Quad LAN ports for failover and Link Aggregation support Equipped with four Ethernet ports featuring failover and Link Aggregation support, Failover support ensures continual network uptime even if
LAN connection malfunction occurs on one port, reducing the chance of service disruption and costly downtime. Link Aggregation improves connection speeds beyond the limits of a single network cable or port. SSD cache technology DS1515 enables the combination of hard drives and read/write-optimized SSD cache, boosting throughput efficiently while minimizing cost per gigabyte. With full SSD cache reading and writing support, DS1515 offers a significant reduction in I/O latency without crippling your budget. With only a small upfront investment, businesses can benefit from significant server performance enhancement. Robust scalability up to 15 drives As your data storage needs grow, DS1515 can be connected with up to two dedicated DX513 expansion units2 for additional storage on the fly,
growing capacity with minimal effort. With two DX513 connected through cables with specially-designed locking connectors, raw capacity can be as high as 120TB3. Reliable redundancy mechanisms DS1515 comes with four LAN failover support to ensure continual network service in case of LAN failure, while the hot-swappable design facilitates easy and risk-free hard drive replacement. The hard drive tray lock design further secures your hard drives from unauthorized or accidental withdrawal. USB 3.0 and eSATA ensure speedy transfers to external storage DS1515 boasts USB 3.0 and eSATA ports to connect to various kinds of external storage devices, while ensuring fast and efficient file transfer speeds. Support for USB 3.0 offers transfer speeds of up to 5 Gbps (about 10 times faster than USB
2.0), meaning it takes less time to transfer data to external hard drives, while also consuming less power. Award winning OS - DiskStation Manager Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work. Fit into business environments easily With the support of Windows AD, LDAP, and Domain Trust, DS1515 enables seamless account integration. The User
Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on DS1515 allows IT administrators to fine tune access controls and set up privileges to files and folders on DS1515 through the familiar Windows user interface. With compatibility for major protocols, DS1515 can eliminate server configuration overhead and enhance IT administrators’ efficiency. Optimize storage management With Synology's Storage Manager, DS1515 allows for flexible storage deployment and utilization. You can optimize RAID configuration with Synology Hybrid RAID (SHR) while providing redundant data protection. Other features such as multiple volumes on single RAID and Global Hot
Spare also greatly enhance management efficiency and fit deployment of any kind. Synology CMS (Central Management System) For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration. Ensuring business continuity Uninterrupted availability is a critical goal for all businesses. DS1515 supports Synology High Availability (SHA) technology which combines an active
and passive server into one cluster, the former always mirrored to the latter. The Heartbeat mechanism detects regular "heartbeats" between the two servers. If the main server encounters unexpected downtime, the passive server immediately takes over. With multiple LAN ports, DS1515 also ensures redundancy in the event of unexpected network failure. All-in-One server Offering rich office applications, DS1515 can serve as your multi-function server. With add-on packages Mail Server and Mail Station, DS1515 can become a dedicated mail server, and let you enjoy complete webmail service. DS1515 can become a VPN server or VPN client. The comprehensive VPN service let you access resources remotely while maintaining security protocols. As a printer server, DS1515 minimizes businesses'
operating costs by sharing printing resources throughout the office. Administration and network tools, such as DNS Server, Directory Server, RADIUS Server, DHCP Server, and Log Center help you manage IT deployment and policies more efficiently. Maximize resource utilization with DS1515! Effective backup solution Synology DS1515 can serve as a centralized backup target. Whether you are a Windows or Mac user, you can back up everything on your computer directly to Synology NAS using Cloud Station. Whenever you modify a file, the changes are backed up to DS1515 automatically. Mac users also enjoy native Apple Time Machine support. You can also back up data from your DS1515 to another DiskStation, rsync servers, external drives, or even Amazon S3, Glacier cloud service, Microsoft
Azure, SFR, and hicloud. "Backup & Replication" allows you to schedule backup tasks and restore the server to any particular point in time, while minimizing storage consumption and processing time by saving only the specific data block that has been changed between versions. Increase business productivity with cloud solutions With comprehensive cloud solutions, DS1515 lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones
and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM — no one will be able to access its content without your private key. Secure your data DS1515 offers advanced security measures to protect you from potential security holes. Security Advisor analyses system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust
level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, DS1515 provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention. Eco-friendly NAS server All Synology NAS is designed with energy efficiency in mind. DS1515 only consumes 18.2W in HDD Hibernation and 32.3W in access. The support of Wake on LAN/WAN and scheduled power on and off can further reduce power consumption and operation cost. Synology acknowledges the responsibility as a global citizen, so all Synology products are produced with RoHS compliant parts and packed with recyclable packing materials. * The power consumption figures may
vary on different environments. Specifications CPU CPU Model Annapurna Labs Alpine AL-314 CPU Frequency Quad Core 1.4 GHz Floating Point Yes Hardware Ecryption Engine Yes Memory System Memory 2 GB DDR3 Storage Drive Bay(s) 5 Maximum Drive Bays with Expansion Unit 15 Compatible Drive Type 3.5" SATA III / SATA II HDD 2.5" SATA III / SATA II HDD 2.5" SATA III / SATA II SSD Maximum Internal Raw Capacity 40 TB (8 TB HDD X 5) (Capacity may vary by RAID types) Hot Swappable Drive Yes External USB 3.0 2 eSATA Port 2 File System Internal Drives EXT4 External Drives EXT4, EXT3, FAT, NTFS, HFS+ Appearance Size (Height x Width x Depth) 157 mm X 248 mm X 233 mm Weight 4.15kg Others RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support) Wake on LAN/WAN Yes System Fan 80 mm X 80 mm X 2 pcs
Fan Speed Mode Cool Mode Quiet Mode Easy Replacement System Fan Yes Wireless Support (dongle) Yes Noise Level* 22.4 dB(A) Power Recovery Yes Scheduled Power On/Off Yes Power Supply Unit / Adapter 200W AC Input Power Voltage 100V to 240V AC Power Frequency 50/60 HZ, Single Phase Power Consumption* 32.3 W (Access) 18.2 W (HDD Hibernation) British Thermal Unit 110.21 BTU/hr (Access) 62.10 BTU/hr (HDD Hibernation) Environment Temperature Operating Temperature 5°C to 35°C (40°F to 95°F) Storage Temperature -20°C to 60°C (-5°F to 140°F) Relative Humidity 5% to 95% RH Certification FCC Class B CE Class B BSMI Class B Warranty 3 Years
421.85 MB/s writing1 with Link Aggregation enabled. Powerful hardware enables DS1515 to deal with considerable amounts of data processing requests and provide consistently high throughput to all connected clients. Hardware encryption engine and floating-point unit DS1515 is equipped with a dedicated hardware encryption engine, delivering encrypted data transmission speeds over 296.54 MB/s reading and 150.04 MB/s writing with Link Aggregation enabled. DS1515 also features a built-in floating-point unit which enhances the overall capability of the main CPU to enable higher working efficiency. Quad LAN ports for failover and Link Aggregation support Equipped with four Ethernet ports featuring failover and Link Aggregation support, Failover support ensures continual network uptime even if
LAN connection malfunction occurs on one port, reducing the chance of service disruption and costly downtime. Link Aggregation improves connection speeds beyond the limits of a single network cable or port. SSD cache technology DS1515 enables the combination of hard drives and read/write-optimized SSD cache, boosting throughput efficiently while minimizing cost per gigabyte. With full SSD cache reading and writing support, DS1515 offers a significant reduction in I/O latency without crippling your budget. With only a small upfront investment, businesses can benefit from significant server performance enhancement. Robust scalability up to 15 drives As your data storage needs grow, DS1515 can be connected with up to two dedicated DX513 expansion units2 for additional storage on the fly,
growing capacity with minimal effort. With two DX513 connected through cables with specially-designed locking connectors, raw capacity can be as high as 120TB3. Reliable redundancy mechanisms DS1515 comes with four LAN failover support to ensure continual network service in case of LAN failure, while the hot-swappable design facilitates easy and risk-free hard drive replacement. The hard drive tray lock design further secures your hard drives from unauthorized or accidental withdrawal. USB 3.0 and eSATA ensure speedy transfers to external storage DS1515 boasts USB 3.0 and eSATA ports to connect to various kinds of external storage devices, while ensuring fast and efficient file transfer speeds. Support for USB 3.0 offers transfer speeds of up to 5 Gbps (about 10 times faster than USB
2.0), meaning it takes less time to transfer data to external hard drives, while also consuming less power. Award winning OS - DiskStation Manager Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work. Fit into business environments easily With the support of Windows AD, LDAP, and Domain Trust, DS1515 enables seamless account integration. The User
Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on DS1515 allows IT administrators to fine tune access controls and set up privileges to files and folders on DS1515 through the familiar Windows user interface. With compatibility for major protocols, DS1515 can eliminate server configuration overhead and enhance IT administrators’ efficiency. Optimize storage management With Synology's Storage Manager, DS1515 allows for flexible storage deployment and utilization. You can optimize RAID configuration with Synology Hybrid RAID (SHR) while providing redundant data protection. Other features such as multiple volumes on single RAID and Global Hot
Spare also greatly enhance management efficiency and fit deployment of any kind. Synology CMS (Central Management System) For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration. Ensuring business continuity Uninterrupted availability is a critical goal for all businesses. DS1515 supports Synology High Availability (SHA) technology which combines an active
and passive server into one cluster, the former always mirrored to the latter. The Heartbeat mechanism detects regular "heartbeats" between the two servers. If the main server encounters unexpected downtime, the passive server immediately takes over. With multiple LAN ports, DS1515 also ensures redundancy in the event of unexpected network failure. All-in-One server Offering rich office applications, DS1515 can serve as your multi-function server. With add-on packages Mail Server and Mail Station, DS1515 can become a dedicated mail server, and let you enjoy complete webmail service. DS1515 can become a VPN server or VPN client. The comprehensive VPN service let you access resources remotely while maintaining security protocols. As a printer server, DS1515 minimizes businesses'
operating costs by sharing printing resources throughout the office. Administration and network tools, such as DNS Server, Directory Server, RADIUS Server, DHCP Server, and Log Center help you manage IT deployment and policies more efficiently. Maximize resource utilization with DS1515! Effective backup solution Synology DS1515 can serve as a centralized backup target. Whether you are a Windows or Mac user, you can back up everything on your computer directly to Synology NAS using Cloud Station. Whenever you modify a file, the changes are backed up to DS1515 automatically. Mac users also enjoy native Apple Time Machine support. You can also back up data from your DS1515 to another DiskStation, rsync servers, external drives, or even Amazon S3, Glacier cloud service, Microsoft
Azure, SFR, and hicloud. "Backup & Replication" allows you to schedule backup tasks and restore the server to any particular point in time, while minimizing storage consumption and processing time by saving only the specific data block that has been changed between versions. Increase business productivity with cloud solutions With comprehensive cloud solutions, DS1515 lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones
and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM — no one will be able to access its content without your private key. Secure your data DS1515 offers advanced security measures to protect you from potential security holes. Security Advisor analyses system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust
level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, DS1515 provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention. Eco-friendly NAS server All Synology NAS is designed with energy efficiency in mind. DS1515 only consumes 18.2W in HDD Hibernation and 32.3W in access. The support of Wake on LAN/WAN and scheduled power on and off can further reduce power consumption and operation cost. Synology acknowledges the responsibility as a global citizen, so all Synology products are produced with RoHS compliant parts and packed with recyclable packing materials. * The power consumption figures may
vary on different environments. Specifications CPU CPU Model Annapurna Labs Alpine AL-314 CPU Frequency Quad Core 1.4 GHz Floating Point Yes Hardware Ecryption Engine Yes Memory System Memory 2 GB DDR3 Storage Drive Bay(s) 5 Maximum Drive Bays with Expansion Unit 15 Compatible Drive Type 3.5" SATA III / SATA II HDD 2.5" SATA III / SATA II HDD 2.5" SATA III / SATA II SSD Maximum Internal Raw Capacity 40 TB (8 TB HDD X 5) (Capacity may vary by RAID types) Hot Swappable Drive Yes External USB 3.0 2 eSATA Port 2 File System Internal Drives EXT4 External Drives EXT4, EXT3, FAT, NTFS, HFS+ Appearance Size (Height x Width x Depth) 157 mm X 248 mm X 233 mm Weight 4.15kg Others RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support) Wake on LAN/WAN Yes System Fan 80 mm X 80 mm X 2 pcs
Fan Speed Mode Cool Mode Quiet Mode Easy Replacement System Fan Yes Wireless Support (dongle) Yes Noise Level* 22.4 dB(A) Power Recovery Yes Scheduled Power On/Off Yes Power Supply Unit / Adapter 200W AC Input Power Voltage 100V to 240V AC Power Frequency 50/60 HZ, Single Phase Power Consumption* 32.3 W (Access) 18.2 W (HDD Hibernation) British Thermal Unit 110.21 BTU/hr (Access) 62.10 BTU/hr (HDD Hibernation) Environment Temperature Operating Temperature 5°C to 35°C (40°F to 95°F) Storage Temperature -20°C to 60°C (-5°F to 140°F) Relative Humidity 5% to 95% RH Certification FCC Class B CE Class B BSMI Class B Warranty 3 Years
