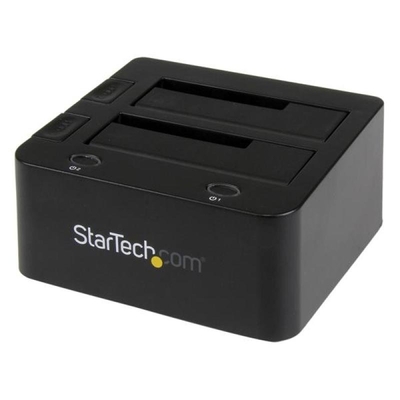

StarTech Universal Docking Station For Hard Drives USB 3.0 With UASP
The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray. Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details. The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA
drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables. A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives). The UNIDOCKU33 is backed by a StarTech.com 2-year warranty and free lifetime technical support. Improved
Performance with UASP UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing UASP also shows an 80% reduction in required processor resources. Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive. Features Maximum versatility with support for SATA & IDE as well as 2.5in and 3.5in HDDs & SSDs Optimal performance with support for SATA III & UASP Hassle-free operation with upright slot-loading SATA and IDE drive bays Compatible with USB 3.0 / 2.0 / 1.1 (5 Gbps / 480 Mbps / 1.5 Mbps) Compatible with SATA revision I/II/III
(1.5/3.0/6.0 Gbps) drives Compatible with PATA (IDE) 66/100/133 MBps hard drives Supports 2.5" or 3.5" form factor hard drives (HDD) or solid state drives (SSD) Compact, desktop-style form factor Plug-and-Play and hot-swap compatible Patented drive ejection mechanism for SATA drives Combined power switch and status LED for each drive Specification Warranty 2 Years Hardware Chipset ID JMicron - JMS561U, JMD330 Compatible Drive Types (Type and Rate) SATA & IDE Drive Installation Removable Drive Size 2.5in & 3.5in Fan(s) No Interface USB 3.0 Number of Drives 2 Performance Insertion Rating 15, 000 Cycles (SATA) Max Drive Capacity Currently tested with up to 6TB 7200 RPM 3.5" hard drives and 2TB 5400 RPM 2.5" hard drive Maximum Data Transfer Rate 5 Gbps MTBF 30000 hours RAID No Type
and Rate USB 3.0 - 5 Gbit/s SATA III (6 Gbps) UASP Support Yes Connector(s) Drive Connectors 1 - IDE (40 Pin; EIDE/PATA) Male 1 - LP4 (4 pin; Molex Large Drive Power) Male 1 - SATA Data & Power Combo (7+15 pin) Receptacle Host Connectors 1 - USB 3.0 B (9 pin; SuperSpeed) Female Physical Characteristics Color Black Enclosure Type Plastic Product Height 70 mm [2.8 in] Product Length 147 mm [5.8 in] Product Weight 512 g [18.1 oz] Product Width 130 mm [5.1 in] Indicators LED Indicators 2 - Power and Drive Activity Power Center Tip Polarity Positive Input Current 1.3 A Input Voltage 110 ~ 240 AC Output Current 3 A Output Voltage 12 DC Plug Type M Power Source AC Adapter Included
drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables. A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives). The UNIDOCKU33 is backed by a StarTech.com 2-year warranty and free lifetime technical support. Improved
Performance with UASP UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing UASP also shows an 80% reduction in required processor resources. Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive. Features Maximum versatility with support for SATA & IDE as well as 2.5in and 3.5in HDDs & SSDs Optimal performance with support for SATA III & UASP Hassle-free operation with upright slot-loading SATA and IDE drive bays Compatible with USB 3.0 / 2.0 / 1.1 (5 Gbps / 480 Mbps / 1.5 Mbps) Compatible with SATA revision I/II/III
(1.5/3.0/6.0 Gbps) drives Compatible with PATA (IDE) 66/100/133 MBps hard drives Supports 2.5" or 3.5" form factor hard drives (HDD) or solid state drives (SSD) Compact, desktop-style form factor Plug-and-Play and hot-swap compatible Patented drive ejection mechanism for SATA drives Combined power switch and status LED for each drive Specification Warranty 2 Years Hardware Chipset ID JMicron - JMS561U, JMD330 Compatible Drive Types (Type and Rate) SATA & IDE Drive Installation Removable Drive Size 2.5in & 3.5in Fan(s) No Interface USB 3.0 Number of Drives 2 Performance Insertion Rating 15, 000 Cycles (SATA) Max Drive Capacity Currently tested with up to 6TB 7200 RPM 3.5" hard drives and 2TB 5400 RPM 2.5" hard drive Maximum Data Transfer Rate 5 Gbps MTBF 30000 hours RAID No Type
and Rate USB 3.0 - 5 Gbit/s SATA III (6 Gbps) UASP Support Yes Connector(s) Drive Connectors 1 - IDE (40 Pin; EIDE/PATA) Male 1 - LP4 (4 pin; Molex Large Drive Power) Male 1 - SATA Data & Power Combo (7+15 pin) Receptacle Host Connectors 1 - USB 3.0 B (9 pin; SuperSpeed) Female Physical Characteristics Color Black Enclosure Type Plastic Product Height 70 mm [2.8 in] Product Length 147 mm [5.8 in] Product Weight 512 g [18.1 oz] Product Width 130 mm [5.1 in] Indicators LED Indicators 2 - Power and Drive Activity Power Center Tip Polarity Positive Input Current 1.3 A Input Voltage 110 ~ 240 AC Output Current 3 A Output Voltage 12 DC Plug Type M Power Source AC Adapter Included
