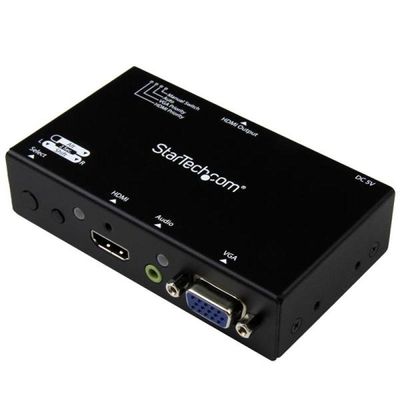

StarTech.com 2x1 HDMI + VGA To HDMI Converter Switch W/ Automatic And
Priority Switching 1080p
The VS221VGA2HD HDMI & VGA Auto Switch lets you connect an HDMI and a VGA audio/video source to the same HDMI display or projector, and automatically or manually switch between which video source is displayed. The multi-input A/V switch supports video resolution up to 1920x1200 (1080p) and includes mounting hardware for a tidy professional installation. One Switch for VGA and HDMI The A/V switch features built-in VGA conversion, enabling you to connect an HDMI and a VGA video source to the same HDMI display without the use of additional adapters or scalers. The switch also supports EDID pass-through, EDID copy, and EDID emulation to ensure your VGA and HDMI native resolutions will be maintained between both source connections. Effortless Control The VS221VGA2HD ensures hassle-free
operation with two different auto switching modes: automatic switching that detects and selects a newly connected device, as well as priority selection which lets you choose which port should be activated by default for automatic switching. Focus on the Presentation, Not Boardroom Connections This A/V switch has been designed with the boardroom and classroom in mind: the VS221VGA2HD features VGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to the room’s display without the use of additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it easy to share your projector between multiple source devices. Features Accommodates both VGA and HDMI input devices in
a single switch with HDMI output, saving hassle and expense by reducing the need for adapters Effortless control with automatic and priority port selection Ideal for classroom and boardroom display applications, allowing presenters to connect a wide range of devices Supports video resolutions up to 1920x1200 / 1080p Supports EDID pass-through, EDID Copy and EDID Emulation Mounting hardware included Specifications Warranty 2 Years Hardware Audio Yes Ports 2 Performance Audio Specifications 2-channel 3.5mm stereo audio (VGA) 7.1 surround sound (HDMI) Maximum Analog Resolutions 1290x1200 Maximum Digital Resolutions 1920x1200 Supported Resolutions Supports resolutions up to 1920x1200 / 1080p Wide Screen Supported Yes Connector(s) Connector A 1 - HDMI (19 pin) Female 1 - VGA (15 pin; High
Density D-Sub) Female Connector B 1 - HDMI (19 pin) Female Physical Characteristics Product Height 29 mm [1.1 in] Product Length 102 mm [4 in] Product Weight 225 g [7.9 oz] Product Width 54 mm [2.1 in] Indicators LED Indicators 1 - VGA Port Selected 1 - HDMI Port Selected Power Input Current 0.4 A Input Voltage 100 ~ 240 AC Output Current 1 A Output Voltage 5 DC Power Source AC Adapter Included
operation with two different auto switching modes: automatic switching that detects and selects a newly connected device, as well as priority selection which lets you choose which port should be activated by default for automatic switching. Focus on the Presentation, Not Boardroom Connections This A/V switch has been designed with the boardroom and classroom in mind: the VS221VGA2HD features VGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to the room’s display without the use of additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it easy to share your projector between multiple source devices. Features Accommodates both VGA and HDMI input devices in
a single switch with HDMI output, saving hassle and expense by reducing the need for adapters Effortless control with automatic and priority port selection Ideal for classroom and boardroom display applications, allowing presenters to connect a wide range of devices Supports video resolutions up to 1920x1200 / 1080p Supports EDID pass-through, EDID Copy and EDID Emulation Mounting hardware included Specifications Warranty 2 Years Hardware Audio Yes Ports 2 Performance Audio Specifications 2-channel 3.5mm stereo audio (VGA) 7.1 surround sound (HDMI) Maximum Analog Resolutions 1290x1200 Maximum Digital Resolutions 1920x1200 Supported Resolutions Supports resolutions up to 1920x1200 / 1080p Wide Screen Supported Yes Connector(s) Connector A 1 - HDMI (19 pin) Female 1 - VGA (15 pin; High
Density D-Sub) Female Connector B 1 - HDMI (19 pin) Female Physical Characteristics Product Height 29 mm [1.1 in] Product Length 102 mm [4 in] Product Weight 225 g [7.9 oz] Product Width 54 mm [2.1 in] Indicators LED Indicators 1 - VGA Port Selected 1 - HDMI Port Selected Power Input Current 0.4 A Input Voltage 100 ~ 240 AC Output Current 1 A Output Voltage 5 DC Power Source AC Adapter Included
