SAPPHIRE Technology launches a new top of the range graphics card, the SAPPHIRE R9 290X. Based on the latest Graphics Core Next (GCN) architecture from AMD, the card is being heralded as the ultimate GPU for a new era in PC gaming. The new SAPPHIRE R9 290X delivers breathtaking performance while pushing the boundaries of audio & visual realism for gamers who demand the best. For gamers who demand the very best, AMD Radeon R9 290X graphics shatter ordinary GPU performance. Groundbreaking GCN Architecture pushes your performance to insane levels while AMD True Audio technology & ultra-resolution gaming take you even deeper into the action. Radeon is faster. Radeon is immersive. Radeon is gaming. With Ultra Resolution Gaming you can leave HD in the dust by gaming on displays much, much larger. Whether using a 4k monitor or combining multiple HD monitors, you’ll get an expansive experience that’s truly out of sight. With AMD True Audio technology, you get the most revolutionary, realistic & breathtaking sound we’ve ever put in a GPU10 Mantle gives game developers the power to speak directly to the GPU core. With such a direct connection to your hardware, game developers are discovering a whole new world of immersion & performance made possible by AMD graphics leadership. Specifications Display Support
- Supports up to 3 display monitor (s) without Display Port. 4 x Maximum Display Monitor (s) support Output
- 1 x HDMI (with 3D), 1 x Display Port 1.2, 2 x Dual-Link DVI-D GPU
- Up to 1000 MHz Core Clock, 28 nm Chip, 2816 x Stream Processors Video Memory
- 4096 MB Size, 512bit GDDR5, 5000 MHz Effective

Dimensions
- 277 (L)X104 (W)X35 (H) mm Size, 2 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 1X75 Watt 6-pin PCI Express power connector is required. Certified power supplies are recommended. 4096MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. 750 Watt Power Supply is required. 1X150 Watt 8-pin PCI Express power connector is required. 64-bit operating system highly recommended Windows Vista, Windows 7 or Windows 8 operating system. 64-bit operating system highly recommended.






...

“ Free AMD Radeon Rewards download coupon GOLD from 28th April 2014 whilst stocks last with selected cards. Offer on selected cards only, not available on ex-display cards.” SAPPHIRE R9 290X Tri-X features the latest GCN (graphics core next) architecture from AMD with 2816 stream processing units & an enhanced engine clock of up to 1040 Mhz. It is equipped with 4GB of the latest high performance GDDR5 memory on a 512-bit interface & now clocked at 1300 MHz (5.2 G Hz effective) delivering higher bandwidth than the reference design. Specifications Display Support Supports up to 3 display monitor (s) without Display Port 4 x Maximum Display Monitor (s) support Output 1 x HDMI (with 3D) 1 x Display Port 1.2 2 x Dual-Link DVI-D GPU 28 nm Chip 1040 MHz Core Clock 2816 x Stream Processors Video Memory 4096 MB Size 512 -bit GDDR5 5200 MHz Effective

Dimensions 305 (L)X113 (W)X38 (H) mm Size 2.2 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 1X75 Watt 6-pin PCI Express power connector is required 4096MB Minimum of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray™ / HD DVD playback requires Blu-ray / HD DVD drive 750 Watt Power Supply is required 1X150 Watt 8-pin PCI Express power connector is required 64-bit operating system highly recommended A display with digital input (HDMI, Display Port or DVI) is required

...

Based on the award-winning Graphics Core Next (GCN) architecture from AMD with 2816 Stream Processors, the SAPPHIRE R9 290X Vapor-X boasts 4GB of the latest GDDR5 memory running at 1325 MHz & high speed engine clocks of 1030 M Hz. Together these clocks deliver industry leading performance – but to achieve this performance with stability & reliability demands high quality components throughout the design (especially in the power control circuitry) together with a sophisticated cooling solution. Please be aware that Overclocking or Overvolting this product with procedures other than those embedded in the driver, including the use of SAPPHIRE Tri XX, are carried out at the users own risk & may cause permanent damage or critical component failure. Such damage will not be covered by the normal warranty terms.

Specification Display Support 4 x Maximum Display Monitor (s) support Output 1 x HDMI (with 3D) 1 x Display Port 1.2 2 x Dual-Link DVI-D GPU 1030 MHz Core Clock 2816 x Stream Processors 28 nm Chip Video Memory 4096 MB Size 512 -bit GDDR5 5300 MHz Effective Dimension 305 (L)X 114 (W)X 47 (H) mm Size 2.5 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 4096MB Minimum of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray™ / HD DVD playback requires Blu-ray / HD DVD drive 750 Watt Power Supply is required 2X150 Watt 8-pin PCI Express power connector is required 64-bit operating system highly recommended

...

“ Free AMD Radeon Rewards download coupon GOLD from 22nd May 2014 whilst stocks last with selected cards. Offer on selected cards only, not available on ex-display cards.” Based on the award-winning Graphics Core Next (GCN) architecture from AMD with 2816 Stream Processors, the SAPPHIRE R9 290X Vapor-X boasts 4GB of the latest GDDR5 memory running at 1325 MHz & high speed engine clocks of 1030 M Hz. Together these clocks deliver industry leading performance – but to achieve this performance with stability & reliability demands high quality components throughout the design (especially in the power control circuitry) together with a sophisticated cooling solution. Specifications Display Support 4 x Maximum Display Monitor (s) support Output 1 x HDMI (with 3D) 1 x Display Port 1.2 2 x Dual-Link DVI-D GPU 1030 MHz Core Clock 28 nm Chip 2816 x Stream Processors Video Memory 4096 MB Size 512 -bit GDDR5 5300 MHz Effective Dimension 305 (L)X 114 (W)X 47 (H) mm Size. 2.5 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 4096MBMinimum of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray™ / HD DVD playback requires Blu-ray / HD DVD drive 750 Watt Power Supply is required 2X150 Watt 8-pin PCI Express power connector is required 64-bit operating system highly recommended ...

Sapphire R9 380 DUAL-X OC DVI-I DVI-D HDMI Display Port PCI-E Graphics Card GPU Sapphire Dual-X R9 380 2GB OC SPI 3, for 1080P gaming with max effect Engine Clock 985 MHz Memory Clock 5600 MHz Stream Processor 1792 SP Memory Size 2GB D5 Memory bus 256 Bit Display Output DL-DVI x 2 +HDMI+DP Maximum Display 4 Displays Cooling Dual-X Cooling Bearing Dual-Ball Bearing Form Factor 2 slot, ATX API Support Direct X 12, Vulcan, Mantle, Open GL 4.4 Windows 10 Support Yes GPU Features Free Sync, Liquid VR, Cross Fire XDMA, True Audio, VSR, Frame Rate Target Control Board Features UEFI Ready Tri-XX ...

The SAPPHIRE ITX Compact R9 380 edition has been developed especially for small form factor PC systems. This model features a shorter PCB, measuring only 171mm long, & an efficient heatpipe cooler with a single dual-ball bearing fan. With its 2GB frame buffer it is no slouch despite its small size. Sharing the latest AMD GCN core with the NITRO & Dual-X models, the SAPPHIRE ITX Compact R9 380 supports Direct X 12, True Audio, AMD Free Sync & Ultra HD. With a SAPPHIRE Performance Index of 3 it is guaranteed to deliver a great gaming experience in high detail at 1080p & beyond. Specifications GPU 1792 Stream Processors 28 nm Graphics Core Next (GNC) 980 MHz Engine Clock Interface PCI-Express 3.0 Memory 256 bit Memory Bus GDDR5 Memory Type 2048 MB Size Displays 4 Outputs Outputs 1 x DVI 1 x HDMI 2 x Mini Display Port Resolution 4096X2160 Pixel Display Port Resolution 2560x 1600 Pixel Dual Link DVI Resolution 1920x 1200 Pixel Single Link DVI Resolution API Open GL 4.5 Open CL 2.0 Direct X 12 Shader Model 5.0 Feature AMD Cross Fire Pro AMD Power Tune AMD Zero Core Power Technology Free Sync Technology AMD Eyefinity Quad HD Display (4K*2K Support) Video Codec Engine (VCE) AMD HD3D Technology Black diamond choke Dual BIOS Cooling Single fan Two-ball bearing Form Factor 2 Part Slot Occupied 170 x 116.15 x 37 Dimension /mm Power Consumption 225W OS Windows 10 Windows 8/8.1 Windows 7 System Requirement 500 Watt Power Supply 1 x 8-pin AUX Power Connector 2 x 8-pin AUX Power Connector is required for Cross Fire X™ system CD-ROM or DVD-ROM drive for installing software PCI Express based PC is required with one X16 lane graphics slot available on the motherboard ...

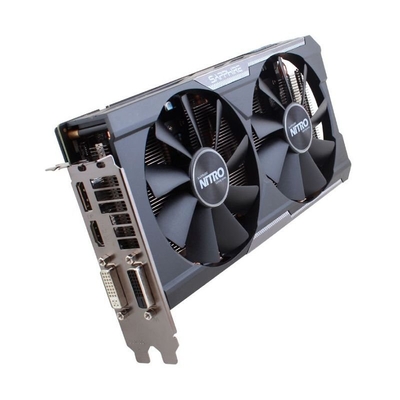

Sapphire R9 380X NITRO 4GB GDDR5 Dual DVI HDMI Display Port PCI-E Graphics Card The SAPPHIRE NITRO R9 380X features the latest version of our award winning Dual-X cooler now with dual ball bearings in both of the fans for higher reliability & enhanced Intelligent Fan Control (IFC-II) which turns off the fans for silent operation under light load. Its industry leading 10cm fans are designed to be easy to remove in the event of needing to replace them. & a diecast heatsink design keeps the card running cool even under the most demanding applications. The use of long life capacitors & SAPPHIRE Black Diamond chokes contribute to consistent performance & high reliability. Based on the latest GCN architecture from AMD, the SAPPHIRE NITRO R9 380X supports Direct X 12, True Audio, AMD Free Sync & Ultra HD. With a 4GB frame buffer & a SAPPHIRE Performance Index of 3 it is guaranteed to deliver a great gaming experience in high detail at 1080p & is the entry point for 1440p gaming. Specifications: GPU: 2048 Stream Processors 28 nm Graphics Core Next (GCN) 1040 MHz Engine Clock Interface: PCI-Express 3.0 Memory 256 bit Memory Bus GDDR5 Memory Type 6000 MHz Effective Memory Clock 4096 MB Size Displays Maximum 4 Outputs Output: 1 x DVI-I 1 x DVI-D 1 x HDMI 1 x Display Port Resolution: 4096X2160 Pixel Display Port Resolution 2560x 1600 Pixel Dual Link DVI Resolution 2160P HDMI Resolution API: Open GL 4.5 Open CL 2.0 Direct X 12 Shader Model 5.0 Feature: AMD Cross Fire AMD Power Tune AMD Zero Core Power Technology Free Sync Technology AMD Eyefinity Quad HD Display (4K*2K Support) Video Codec Engine (VCE) AMD HD3D Technology 16K Hours Capacitor Black diamond choke Intelligent Fan Control 10mm Heat Pipe Dual BIOS AMD Liquid VR technology AMD Virtual Super Resolution (VSR) Universal Video Decoder (UVD) Cooling: Dual-X fans Two ball bearing Form Factor 2 Part Slot Occupied 9.35 (L)X4.5 (W)X1.6 (H) Dimension / Inch 237.5 (L)X 126.5 (W)X 41 (H) Dimension /mm Power Consumption 225W OS Windows 10&12288; Windows 8/8.1&12288; Windows 7&12288; System Requirement 500 Watt Power Supply (Suggestion) 2 x 6-pin AUX Power Connector 4 x 6-pin AUX Power Connector is required for Cross Fire X system. CD-ROM or DVD-ROM drive for installing software PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. ...

Specifications GPU
- AMD Radeon R9 Fury X GPU Stream Processors
- Up to 4096units Compute Units
- 64 3D Clock
- Up to



...

Additional hardware (e.g. Blu-ray drive, 4K monitor, TV tuner, wirelessly enabled HDTV) and/or software (e.g. multimedia applications) are required for the full enablement of some features. HD Video display requires an HD video source. Not all features maybe supported on all components or systems -check with your component or system manufacturer for specific model capabilities & supported technologies. Testing conducted by AMD Engineering on optimized AMD reference systems. PC manufacturers may vary configurations yielding different results. Far Cry 4 at 3840x 2180, Ultra High preset, SMAA, 0XAF is used to simulate GPU performance; the Radeon™ R9 Nano on the system using the Intel Core™ i 7-5960X 3.0 G Hz processor, 16GB (4x 4GB) DDR4 2666 MHz memory, Windows 10 64-bit, & AMD Catalyst Driver 15.201 scored 37.966 fps while the Radeon™ R9 290X on the same system & AMD Catalyst Driver 15.20 scored 27.207 fps GRDT-69 Based on the product design, the Radeon™ R9 Nano is defined with an operating temperature target of 75°C while the Radeon™ R9 290X is defined with an operating temperature target of 95°C GRDT-75 Based on the product design, the Radeon™ R9 Nano is defined with a typical board power of 175W while the Radeon™ R9 290X is defined with a typical board power of 250W GRDT-76 Based on the product design, the Radeon™ R9 Nano is defined with a fan acoustic target of 42d BA while the Radeon™ R9 290X is defined with a fan acoustic target of 58d BA GRDT-77 Testing conducted by AMD Engineering on optimized AMD reference systems. PC manufacturers may vary configurations yielding different results. Far Cry 4 at 3840x 2180, Ultra High preset, SMAA, 0XAF is used to simulate GPU performance; the Radeon™ R9 Nano on the system using the Intel Core™ i 7-5960X 3.0 G Hz processor, 16GB (4x 4GB) DDR4 2666 MHz memory, Windows 10 64-bit, & AMD Catalyst Driver 15.201 scored 0.2169 fps/watt while the Radeon™ R9 290X on the same system & AMD Catalyst Driver 15.20 scored 0.1088 fps/watt GRDT-72 Testing conducted by AMD Engineering on optimized AMD reference systems. PC manufacturers may vary configurations yielding different results. Far Cry 4 at 3840x 2180, Ultra High preset, SMAA, 0XAF is used to simulate GPU performance; the Radeon™ R9 Nano on the system using the Intel Core™ i 7-5960X 3.0 G Hz processor, 16GB (4x 4GB) DDR4 2666 MHz memory, Windows 10 64-bit, & AMD Catalyst Driver 15.201 scored 0.2498 fps/mm while the Radeon™ R9 290X on the same system & AMD Catalyst Driver 15.20 scored 0.0989 fps/mm GRDT-71 Testing conducted by AMD Engineering on optimized AMD reference systems. PC manufacturers may vary configurations yielding different results. 3 D Mark Fire Strike at 3840x 2180, Ultra preset, 0x MSAA, 0XAF is used to simulate GPU performance; the Radeon™ R9 Nano on the system using the Intel Core™ i 7-5960X 3.0 G Hz processor, 16GB (4x 4GB) DDR4 2666 MHz memory, Windows 10 64-bit, & AMD Catalyst Driver 15.201 scored 3411 while the Sapphire Radeon™ R9 380 Mini ITX on the same system & AMD Catalyst Driver 15.20 scored 1551, the GTX 970 Mini ITX on the same system & Ge Force Driver 355.60 WHQL scored 2593, the GTX 960 Mini ITX on the same system & Ge Force Driver scored 1297 GRDT-73. Testing conducted by AMD Engineering on optimized AMD reference systems. PC manufacturers may vary configurations yielding different results. Far Cry 4 at 3840x 2180, Ultra High preset, SMAA, 0XAF is used to simulate GPU performance; the Radeon™ R9 Nano on the system using the Intel Core™ i 7-5960X 3.0 G Hz processor, 16GB (4x 4GB) DDR4 2666 MHz memory, Windows 10 64-bit, & AMD Catalyst Driver 15.201 scored 37.966 fps while the GTX 970 Mini ITX on the same system & Ge Force Driver 355.60 WHQL scored 27.345 fps GRDT-70 Testing conducted by AMD as of 17 August, 2015 in AMD Performance Labs on the AMD Radeon™ R9 Nano vs. NVIDIA Ge Force GTX 970 Mini ITX at 4K resolution. The games were tested using the following settings: Battlefield 4, 3840x 2160, High, FXAA, 0XAF; Crysis 3, 3840x 2160, High, 0XAA, 0XAF; Far Cry 4, 3840x 2160, High, SMAA, 0XAF; GTA V, 3840x 2160, High, 0XAA, 4XAF; Shadow of Mordor, 3840x 2160, High, 0XAA, 0XAF; Witcher 3, 3840x 2160, High, 0XAA, 0XAF;. System Configuration: test system comprised an Intel Core™i 7-5960X 3.0 G Hz processor, 16GB (4x 4GB) DDR4 2666 MHz memory, Windows 10 64-bit. AMD Catalyst Driver 15.201 & NVIDIA 355.60 WHQL Driver. GRDT-78 Testing conducted by AMD Engineering on optimized AMD reference systems. PC manufacturers may vary configurations yielding different results. Far Cry 4 at 3840x 2180, Ultra High preset, SMAA, 0XAF is used to simulate GPU performance; the Radeon™ R9 Nano on the system using the Intel Core™ i 7-5960X 3.0 G Hz processor, 16GB (4x 4GB) DDR4 2666 MHz memory, Windows 10 64-bit, & AMD Catalyst Driver 15.201 scored 0.22 fps/watt while the Sapphire Radeon™ R9 380 Mini ITX on the same system & AMD Catalyst Driver 15.20 scored 0.08 fps/watt, the GTX 970 Mini ITX on the same system & Ge Force Driver 355.60 WHQL scored 0.12 fps/watt, the GTX 960 Mini ITX on the same system & Ge Force Driver scored 0.13 fps/watt GRDT-74 Discrete AMD Radeon™ GPUs & AMD Fire Pro™ GPUs based on the Graphics Core Next architecture consist of multiple discrete execution engines known as a Compute Unit (“CU”). Each CU contains 64 shaders (“ Stream Processors”) working in unison. GRT-5 Direct X 12 enablement requires an x 86 processor & an AMD Radeon™ graphics chip based on the Graphics Core Next architecture. Windows 10 Technical Preview 2 (or later) & AMD Catalyst™ driver 15.20 (or later) from Windows Update required. GRT-9 AMD Free Sync™ technology is designed to eliminate stuttering and/or tearing in games & videos by locking a displays refresh rate to the framerate of the graphics card. Check with your component or system manufacturer for specific capabilities. AMD Free Sync™ technology compatible monitor, AMD Radeon™ Graphics and/or AMD A-Series APU compliant with Display Port™ Adaptive-Sync required. AMD Catalyst™ 15.2 Beta (or newer) required. Adaptive refresh rates vary by display; check with your monitor manufacturer forspecific capabilities. A list of supported hardware & compatible monitors is available at www.amd.com/freesync. GRT-2 AMDs Virtual Super Resolution (VSR) feature is offered by the AMD Radeon™ R9 Fury X, R9 390 Series, R9 380, R7 370, R7 360, AMD Radeon™ R9 290 Series & R9 285 graphics cards & is designed to automatically re-render games at higher resolutions & dynamically rescale them for HD displays at higher quality & visual details. Check with your system manufacturer for specific capabilities. GRT-8 15. Frame rate targeting is offered by select AMD Radeon™ R9 & R7 300 Series graphics & is designed to reduce heat, noise & powerconsumption by letting users set a target frame rate for their games & applications. Not currently compatible with AMD Cross Fire™ multi-GPU configurations. Confirm supported technologies with your component or system manufacturer for specific capabilities before purchase. GRT-1 ...

Sapphire Ultimate HD 6570 1GB DDR3 VGA DVI HDMI Display Port PCI-E Graphics Card The HD 6570 ULTIMATE from SAPPHIRE features a single slot low profile card with silent heatpipe cooler. With its 480 stream processors, engine clocks of 650 M Hz & 1GB of DDR3 memory. This is an ideal solution for HTPCs or general purpose PCs where silent operation is an advantage. Outputs are HDMI, DVI-D & VGA. The AMD Radeon HD 6570 graphics processors offer advanced video & display features, as well as 2nd generation support for Direct X 11 to offer the ultimate in versatility for the everyday computing desktop.

Specification Display Support 2 x Maximum Display Monitor (s) support Output: D-Sub (VGA) 1 x HDMI (with 3D) 1 x Single-Link DVI-D GPU: 650 MHz Core Clock 40 nm Chip 480 x Stream Processors Video Memory: 1024 MB Size 128 -bit DDR3 1334 MHz Effective Dimension
- 180 (L)x 95 (W)x 20 (H) mm Size. Software
- Driver CD System Requirements: PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. Certified power supplies are recommended. Please refer to: http://support.amd.com/us/certified/power-supplies/ Pages/listing.aspx 1024MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. 400 Watt Power Supply is required. For best cooling performance, a chassis installed with at least one 120mm or 90mm fan is required.



...
