The SAPPHIRE R7 265 Dual-X has 2GB of the latest DDR5 memory clocked at 1400 M Hz (5.6GB/s effective) & core clocks of 900 M Hz (925 M Hz with dynamic boost) to deliver new levels of performance in its price segment. Performance is optimised with the latest version of AMD’s Power Tune technology.

Specification Display Support 3 x Maximum Display Monitor (s) support Output 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU 900 (Boost:925) MHz Core Clock 28 nm Chip 1024 x Stream Processors Video Memory 2048 MB Size 256 -bit GDDR5 5600 MHz Effective Dimension 228 (L)X109 (W)X35 (H) mm Size. 2 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 2X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 1X75 Watt 6-pin PCI Express power connector is required. 1024MB Minimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. 500 Watt Power Supply is required. 600 Watt Power Supply is recommended for Cross Fire X System.

...

The SAPPHIRE R7 370 Series is based on the latest Graphics Core Next architecture from AMD & is designed to provide great graphics performance with support for a range of new features The SAPPHIRE NITRO R7 370 is a member of the SAPPHIRE NITRO Gaming series & is designed to deliver a great gaming experience at 1080p & beyond. Direct X 12 is a new, “console-like” graphics API from Microsoft that empowers game developers with more direct & obvious control of PC hardware. This direct or “explicit” control better exposes the hardware resources of AMD Radeon™ GPUs to yield higher hardware throughput &, ultimately, more performance for users. To put it simply: much more efficient hardware through smarter software! At the discretion of a game developer, this superior efficiency can be spent on higher framerates, lower latency (VR), lower power consumption, better image quality, or some calculated balance of all four. In any scenario, gamers stand to benefit greatly from choosing AMD hardware to run their favorite Direct X 12 game. AMD Eyefinity Technology We are taking you beyond the boundaries of traditional PC displays. AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful & you become more productive (an average of 42% more productive according to one study). Take your PC games to the next level of reality & immersion. Most modern games look great on three screens, & only AMD Radeon graphics offer you the ability to play across five screens for an eye-popping gaming experience. Other combinations & configurations with up to six screens work too. Create your dream display. Specifications GPU
- SAPPHIRE NITRO R7 370 4GB OC Engine Clock
- 985 MHz Memory Clock
- 5600 MHz Stream Processor
- 1024 SP Memory Size
- 4GB D5 Memory bus
- 256 Bit Display Output
- DL-DVIx 2+HDMI+DP Maximum Display
- 4 Displays Cooling
- Dual-X Cooling, 0d BA under 52C Bearing
- HJB Bearing Form Factor
- 2 slot, ATX API Support
- Direct X 12, Vulcan, Mantle, Open GL 4.4 Windows 10 Support
- Yes GPU Features
- VSR, Frame Rate Target Control Board Features
- UEFI Ready, Stiffer PCB design, 16K Hour Capacitor, Intelligent Fan Control 2, Black Diamond Choke Tri-XX














...

The R9 270 supports Direct X 11.2 & all the latest game enhancements. It has 1280 stream processors & 2GB of GDDR5 memory delivering excellent performance in all but the most extreme settings, & is considerably faster than competing solutions in this price range. Specifications Display Support Supports up to 2 display monitor (s) without Display Port 3 x Maximum Display Monitor (s) support Output 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU 920/ Boost:945 MHz Core Clock 28 nm Chip 1280 x Stream Processors Video Memory 2048 MB Size 256 -bit GDDR5 5600 MHz Effective

Dimensions 228 (L)X109 (W)X35 (H) mm Size 2 x slot System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 2X75 Watt 6-pin PCI Express power connector is required for Cross Fire X™ system. 1X75 Watt 6-pin PCI Express power connector is required. 4096MB Minimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray™ / HD DVD playback requires Blu-ray / HD DVD drive. 500 Watt Power Supply is required. 600 Watt Power Supply is recommended for Cross Fire X System.

...

The R9 270 supports Direct X 11.2 & all the latest game enhancements. It has 1280 stream processors & 2GB of GDDR5 memory delivering excellent performance in all but the most extreme settings, & is considerably faster than competing solutions in this price range. Specifications GPU 920/ Boost:945 MHz Core Clock 1280 x Stream Processors 28 nm Chip Video Memory 2048 MB Size 256 -bit GDDR5 5600 MHz Effective Display Support supports up to 2 display monitor (s) without Display Port 3 x Maximum Display Monitor (s) support Output 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I Dimension 228 (L)X109 (W)X35 (H) mm Size 2 x slot ...

The R9 270 supports Direct X 11.2 & all the latest game enhancements. It has 1280 stream processors & 2GB of GDDR5 memory delivering excellent performance in all but the most extreme settings, & is considerably faster than competing solutions in this price range. PCI Express based PC is required with one X16 lane graphics slot available on the motherboard 2X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system 1X75 Watt 6-pin PCI Express power connector is required 4096MB Minimum of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive 500 Watt Power Supply is required 600 Watt Power Supply is recommended for Cross Fire X System Specifications Display Support
- supports up to 2 display monitor (s) without Display Port 3 x Maximum Display Monitor (s)
- support Output
- 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU
- 920/ Boost:945 MHz Core Clock 28 nm Chip 1280 x Stream Processors Video Memory
- 2048 MB Size 256 -bit GDDR5 5600 MHz Effective

Dimensions
- 228 (L)X109 (W)X35 (H) mm Size 2 x slot







...

Sapphire R9 270X 4GB GDDR5 WITH BOOST & OC Dual DVI HDMI Display Port Graphics Card The R9 270X supports Direct X 11.2 & all the latest game enhancements. It has 1280 stream processors & 4GB of GDDR5 memory delivering excellent performance in all but the most extreme settings, & is considerably faster than competing solutions in this price range. Specification: Display Support 3 x Maximum Display Monitor (s) support Output 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU Up to 1020/ Boost: Up to 1070 MHz Core Clock 28 nm Chip up to 1280 x Stream Processors Video Memory 4096 MB Size 256 -bit GDDR5 5600 MHz Effective Dimension 228 (L)X109 (W)X35 (H) mm Size. 2 x slot Software Driver CD SAPPHIRE Tri XX Utility Accessory Cross Fire Bridge Interconnect Cable DVI to VGA Adapter 6 PIN to 4 PIN Power Cable x 2 HDMI 1.4a high speed 1.8 meter cable (Full Retail SKU only) System Requirements: PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 4X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 2X75 Watt 6-pin PCI Express power connector is required. 4096MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. 500 Watt Power Supply is required. 600 Watt Power Supply is recommended for Cross Fire X System. 64-bit operating system highly recommended ...

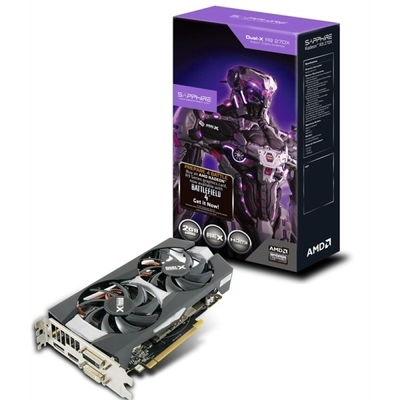

SAPPHIRE DUAL-X R9 270X 2GB GDDR5 OC Dual DVI HDMI Display Port PCI-E Graphics Card Aimed at the slightly more budget conscious gamer, the R9 270X series is the perfect match for gameplay at 1080p with maximum settings. The SAPPHIRE R9 270X Dual-X model again features the proven SAPPHIRE Dual-X technology & delivers the best cost:performance ratio in its class. Specification: Display Support 3 x Maximum Display Monitor (s) support Output: 1 x HDMI (with 3D) 1 x Display Port 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU: 1020 MHz Core Clock 28 nm Chip 1280 x Stream Processors Video Memory: 2048 MB Size 256 -bit GDDR5 5600 MHz Effective Dimension: 228 (L)X109 (W)X35 (H) mm Size. 2 x slot Software: Driver CD SAPPHIRE Tri XX Utility System Requirements: PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 4X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 2X75 Watt 6-pin PCI Express power connector is required. 4096MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. 500 Watt Power Supply is required. 600 Watt Power Supply is recommended for Cross Fire X System. 64-bit operating system highly recommended ...

SAPPHIRE TOXIC R9 270X 2GB GDDR5 Dual DVI HDMI Display Port PCI-E Graphics Card Aimed at the slightly more budget conscious gamer, the R9 270X series is the perfect match for gameplay at 1080p with maximum settings, yet has models starting from as low as $199. Extreme factory overclocks again make this the fastest product available in this family. This model allows the gamer with a more limited budget to take advantage of the high quality & enhanced performance of the flagship TOXIC series.

Specification Display Support: supports up to 4 display monitor (s) without Display Port 4 x Maximum Display Monitor (s) support Output: 1 x HDMI (with 3D) 1 x Display Port 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU: 1100/ Boost:1150 MHz Core Clock 28 nm Chip 1280 x Stream Processors Video Memory: 2048 MB Size 256 -bit GDDR5 6000 MHz Effective Dimension: 308 (L)X113 (W)X41 (H) mm Size. 2.2 x slot Software: Driver CD SAPPHIRE Tri XX Utility System Requirements: PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 4X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 2X75 Watt 6-pin PCI Express power connector is required. 4096MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. 500 Watt Power Supply is required. 600 Watt Power Supply is recommended for Cross Fire X System. 64-bit operating system highly recommended

...

Sapphire Vapor-X R9 270X 2GB GDDR5 OC Dual DVI HDMI Displayort PCI-E Graphics Card Aimed at the slightly more budget conscious gamer, the R9 270X series is the perfect match for gameplay at 1080p with maximum settings. The SAPPHIRE R9 270X Vapor-X model features a second generation Vapor-X cooler design, lighter in weight but delivering the industry acclaimed quiet & efficient cooling associated with this br&. Specification: Display Support 4 x Maximum Display Monitor (s) support Output 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU: 1050/ Boost:1100 MHz Core Clock 28 nm Chip 1280 x Stream Processors Video Memory: 2048 MB Size 256 -bit GDDR5 5800 MHz Effective Dimension: 264 (L)X103 (W)X35 (H) mm Size. 2 x slot Software: Driver CD SAPPHIRE Tri XX Utility System Requirements: PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 4X75 Watt 6-pin PCI Express power connector is required for Cross Fire X system. 2X75 Watt 6-pin PCI Express power connector is required. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray/HD DVD playback requires Blu-ray / HD DVD drive. 500 Watt Power Supply is required. 600 Watt Power Supply is recommended for Cross Fire X System. 64-bit operating system highly recommended ...

The SAPPHIRE R9 270X Vapor-X model features a second generation Vapor-X cooler design, lighter in weight but delivering the industry acclaimed quiet & efficient cooling associated with this br&.

Specification Display Support 4 x Maximum Display Monitor (s) support Output 1 x HDMI (with 3D) 1 x Display Port 1.2 1 x Dual-Link DVI-D 1 x Dual-Link DVI-I GPU 1050/ Boost:1100 MHz Core Clock 28 nm Chip 1280 x Stream Processors Video Memory 2048 MB Size 256 -bit GDDR5 5800 MHz Effective

Dimensions 264 (L)X103 (W)X35 (H) mm Size. 2 x slot



...
