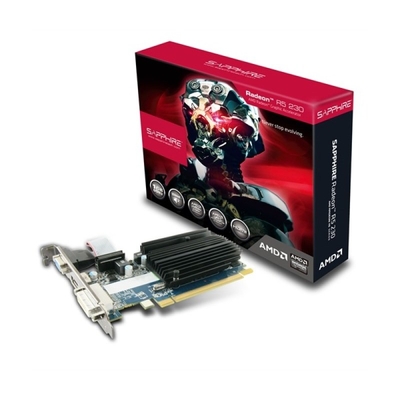

Sapphire R5 230 1GB DDR3 VGA DUAL DVI HDMI PCI-E Graphics Card The new SAPPHIRE R5 230 1GB is a low profile PCI-Express graphics cards that require no additional power connector, making it ideal for entry level systems or for upgrading existing PC systems & providing additional monitor support. It has 160 Stream processors & core clocks of 625 M Hz, & offer 1GB DDR3 memory to deliver excellent performance & great value. Outputs are Dual-link DVI, VGA & HDMI, supporting a choice of monitor types & the cards ship with optional backplates for use in standard or low-profile chassis.
Specification Display Support 2 x Maximum Display Monitor (s) support Output 1 x D-Sub (VGA) 1 x HDMI (with 3D) 1 x Dual-Link DVI-D GPU 625 MHz Core Clock 160 x Stream Processors Video Memory 1024 MB Size 64 -bit DDR3 1334 MHz Effective Dimension 146 (L)X94 (W)X22 (H) mm Size. 1 x slot Software Driver CD SAPPHIRE Tri XX Utility System Requirements PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. 1024MBMinimum of system memory. Installation software requires CD-ROM drive. DVD playback requires DVD drive. Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive. 400 Watt Power Supply is required.
