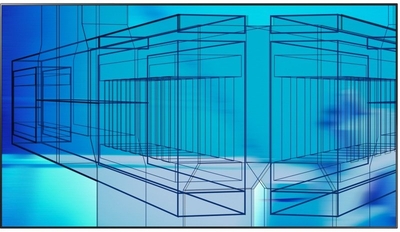

Samsung 46 Inch Led 1920 X 1080 Vga Dvi 450cd Video Wall Range 3 Year
Warranty
Create an exquisite video wall with ultra-thin, space-saving displays With UEC Series displays, the thinnest video wall yet with a depth of 29.9mm (1.18 in.), you don’t need to clear out a large area to accommodate your video wall. These ultra-thin displays are designed to take up less space, barely protruding from the wall to blend discreetly into your business environment. The slim and light-weight design of the displays and extensive optional installation accessories such as wall brackets help make installation an easy job in even tight spaces. The unobtrusive displays also feature narrow bezels, which provide a broad viewing area on a near-seamless digital canvas. Control and manage content with ease with built-in Samsung Smart Signage Platform. The embedded content
management solution, Samsung Smart Signage Platform (SSSP), eliminates the need to purchase an additional PC or media player for each display in a video wall. Operating on a powerful system-on-chip (SoC), SSSP supports the MagicInfo VideoWall application that can play content created with the VideoWall authoring program or console applications. The embedded MagicInfo™ VideoWall S Player enables the easy display of video walls up to 4 x 4, providing content managers with a strong control over video walls of various sizes and configurations for seamless display. Single or multiple images and video clips can also be uniquely arranged through dynamic screen editing and split screen support. Panel 46" Diagonal Size 240Hz e-LED BLU Type 1920 x 1080 (16:9) Resolution 0.15375 (H) x
0.46125 (V) Pixel Pitch (mm) 1018.08 (H) x 572.67 (V) Active Display Area 500nit Brightness 100000:1 Contrast Ratio (Dynamic) 178° / 178° Viewing Angle (Horizontal / Vertical) 4ms Response Time (G-to-G) 10bit Dithering - 1.07Billion Display Color 72% Colour Gamut 5000:1 Power AC 100 - 240V ~ (+ / - 10%), 50 / 60Hz Power Supply less than 0.5W Off Mode 132 (Max) / 89 (Typ.) / 450.12 (BTU)On Mode less than 0.5W Sleep Mode Connectivity Analog D-SUB, DVI-D, Display Port 1.2 HDMI1, HDMI2, Component (CVBS Common) Stereo mini Jack DP1.2 (Loop-out) Stereo mini Jack RS232C (in / out) thru stereo jack, RJ45 IR, Ambient Light Mechanical Specification 1030.3 x 584.8 x 29.9mm Set Dimension (W x H x D) 1170.0 x 705.0 x 199.0mm Package Dimension (W x H x D) 11.6kg Set Weight 15.5kg Package
Weight 400 x 400mm VESA Mount Foot Stand (Optional) Stand Type Embbeded, SBB-C (Attachable) Media Player Option Type Bezel Width 5.5mm Operation 0°C ~ 40°C Operating Temperature 10 ~ 80% Humidity Embedded PC SBB-C (optional) Certification CUL (USA + Canada): UL60065 TUV (Germany): EN60065 CB (Europe): IEC60065 / EN60065 EK (Korea): K60065 CCC (China): GB8898 PSB (Singapore): IEC60065 GOST (Russia): IEC60065, EN55022 SIQ (Slovenia): IEC60065, EN55022 PCBC (Poland): IEC60065, EN55022 NOM (Mexico): NOM-001-SCFI-1993 IRAM (Argentina): IRAM SASO (Saudi Arabia): IEC60065 FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea): KN22, KN24 BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia): AS / NZS3548 (CISPR22) CCC (China): GB
9254-2008, GB 17625.1-2003 General Features ACM Support (Advanced Colour Management), Magic Clone (to USB), Auto Source Switching & Recovery, Lamp Error Detection, Super Clear Coating, Temperature Sensor, RS232C / RJ45 MDC, Plug and Play (DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2 x 2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F / W update, Clock Battery (80hrs Clock Keeping), Built in Speaker Built In MagicInfo (Lite, Premium-S, Videowall-S) Cortex-A9 1GHz Dual Core CPU L1 (I / D): 32KB / 32KB L2 (Unified): 512KB 1GHz CPU Dual 1GB Dual 32bit DDR3-667 (1333MHz) 2D & 3D Graphics Engine - Up to 1920 x 1080. 32bpp - Supports OpenGL ES 8GB (2GB Occupied by O / S, 6GB
Available) Video Decoder - MPEG - 1/2, H.264 / AVC (Dual) - VC-1, JPEG, PNG Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc. USB 2.0 Linux Accessory Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries Included WMN4270SD, WMN250MD, WMN4675MD (for Video wall W / M) Mount CML450D (ceiling mount) Specialty STN-L4055AD Stand
management solution, Samsung Smart Signage Platform (SSSP), eliminates the need to purchase an additional PC or media player for each display in a video wall. Operating on a powerful system-on-chip (SoC), SSSP supports the MagicInfo VideoWall application that can play content created with the VideoWall authoring program or console applications. The embedded MagicInfo™ VideoWall S Player enables the easy display of video walls up to 4 x 4, providing content managers with a strong control over video walls of various sizes and configurations for seamless display. Single or multiple images and video clips can also be uniquely arranged through dynamic screen editing and split screen support. Panel 46" Diagonal Size 240Hz e-LED BLU Type 1920 x 1080 (16:9) Resolution 0.15375 (H) x
0.46125 (V) Pixel Pitch (mm) 1018.08 (H) x 572.67 (V) Active Display Area 500nit Brightness 100000:1 Contrast Ratio (Dynamic) 178° / 178° Viewing Angle (Horizontal / Vertical) 4ms Response Time (G-to-G) 10bit Dithering - 1.07Billion Display Color 72% Colour Gamut 5000:1 Power AC 100 - 240V ~ (+ / - 10%), 50 / 60Hz Power Supply less than 0.5W Off Mode 132 (Max) / 89 (Typ.) / 450.12 (BTU)On Mode less than 0.5W Sleep Mode Connectivity Analog D-SUB, DVI-D, Display Port 1.2 HDMI1, HDMI2, Component (CVBS Common) Stereo mini Jack DP1.2 (Loop-out) Stereo mini Jack RS232C (in / out) thru stereo jack, RJ45 IR, Ambient Light Mechanical Specification 1030.3 x 584.8 x 29.9mm Set Dimension (W x H x D) 1170.0 x 705.0 x 199.0mm Package Dimension (W x H x D) 11.6kg Set Weight 15.5kg Package
Weight 400 x 400mm VESA Mount Foot Stand (Optional) Stand Type Embbeded, SBB-C (Attachable) Media Player Option Type Bezel Width 5.5mm Operation 0°C ~ 40°C Operating Temperature 10 ~ 80% Humidity Embedded PC SBB-C (optional) Certification CUL (USA + Canada): UL60065 TUV (Germany): EN60065 CB (Europe): IEC60065 / EN60065 EK (Korea): K60065 CCC (China): GB8898 PSB (Singapore): IEC60065 GOST (Russia): IEC60065, EN55022 SIQ (Slovenia): IEC60065, EN55022 PCBC (Poland): IEC60065, EN55022 NOM (Mexico): NOM-001-SCFI-1993 IRAM (Argentina): IRAM SASO (Saudi Arabia): IEC60065 FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea): KN22, KN24 BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia): AS / NZS3548 (CISPR22) CCC (China): GB
9254-2008, GB 17625.1-2003 General Features ACM Support (Advanced Colour Management), Magic Clone (to USB), Auto Source Switching & Recovery, Lamp Error Detection, Super Clear Coating, Temperature Sensor, RS232C / RJ45 MDC, Plug and Play (DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2 x 2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F / W update, Clock Battery (80hrs Clock Keeping), Built in Speaker Built In MagicInfo (Lite, Premium-S, Videowall-S) Cortex-A9 1GHz Dual Core CPU L1 (I / D): 32KB / 32KB L2 (Unified): 512KB 1GHz CPU Dual 1GB Dual 32bit DDR3-667 (1333MHz) 2D & 3D Graphics Engine - Up to 1920 x 1080. 32bpp - Supports OpenGL ES 8GB (2GB Occupied by O / S, 6GB
Available) Video Decoder - MPEG - 1/2, H.264 / AVC (Dual) - VC-1, JPEG, PNG Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc. USB 2.0 Linux Accessory Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries Included WMN4270SD, WMN250MD, WMN4675MD (for Video wall W / M) Mount CML450D (ceiling mount) Specialty STN-L4055AD Stand
