NVIDIA Surround™ technology NVIDIA Pure Video HD technology Blu-ray 3D support True HD & DTS-HD Audio Bitstreaming support Microsoft Direct X 11 support NVIDIA Phys X technology NVIDIA CUDA technology PCI Express 3.0 Open GL 4.2 support Support for three concurrent displays including: DVI / VGA / HDMI Performance Features Bus connector: PCI Express 3.0 Outputs: DVI, VGA, HDMI CUDA Cores: 384 Memory Capacity: 2 GB Memory Interface: 128-bit DDR3 Core Clock: 900 Memory Speed: 1, 8 GBPs Memory Bandwith: 28, 5 GB/sec FIl Rate: 28, 8 billion/sec Minimum Requirements PCI Express-compliant motherboard with one dual-width x 16 graphics slot Minimum 350W or greater system power supply (with a minimum 12V current rating of 20A) 300 MB of available hard-disk space 2GB system memory (4GB or higher recommended) Microsoft Windows 7, Windows Vista, or Windows XP Operating System (32 or 64-bit) DVD-ROM drive or Internet connection ...

Every PC deserves dedicated graphics. Bring your multimedia performance to life with an NVIDIA Ge Force GT 610 graphics card. Count on NVIDIA dedicated graphics for a faster, more immersive experience in your favorite applications—every time. GPU
- GT 610 Processor Cores
- 48 Core Clock
- 810 MHz Memory Amount
- 1024MB DDR3 Memory Data Rate, effective
- 1000 MHz Memory Interface
- 64-bit Power & Thermal
- 44W Active On-board Outputs
- DVI, VGA, HDMI Bus Type
- PCI Express 2.0 Minimum System Requirements PCI Express-compliant motherboard with one dual-width x 16 graphics slot Minimum 350W or greater system power supply (with a minimum 12V current rating of 20A) 300 MB of available hard-disk space 2GB system memory (4GB or higher recommended) Microsoft Windows 7, Windows Vista, or Windows XP Operating System (32 or 64-bit) DVD-ROM drive or Internet connection for installation DVI or HDMI or VGA compatible monitor








...

Every PC deserves great graphics. The PNY Ge Force GT 620 graphics card gives you a superior multimedia experience, every time. Count on NVIDIA dedicated graphics for faster, more immersive experience in your favorite applications every time. SPECIFICATIONS Bus Connector
- PCI-Express 2.0 Outputs
- VGA, DVI-I, HDMI Core Clock
- 700 MHz Memory Clock
- 1400 Mhz Memory Capacity
- 1 GB DDR3 Memory Interface
- 64-bit Memory Bandwidth
- 11, 2 GB/s Microsoft Direct X
- 11.1 API (feature level 11_0) MINIMUM SYSTEM REQUIREMENTS PCI Express or PCI Express 2.0-compliant motherboard with one dual-width x 16 graphics slot Minimum 350W or greater system power supply







...

Every PC deserves dedicated graphics. The PNY Ge Force GT 630 graphics card is designed to deliver a premium multimedia experience & reliable entry-level PC gaming, every time. Insist on NVIDIA dedicated graphics for faster, more immersive experience in your favorite applications every time. SPECIFICATIONS Bus Connector: PCI-Express 2.0 Outputs: VGA, DVI-I, HDMI Core Clock: 780 MHz Memory Clock: 1600 Mhz Memory Capacity: 1 GB DDR3 Memory Interface: 128-bit Memory Band
Width: 25, 6 GB/s Microsoft Direct X 11.1 API (feature level 11_0) MINIMUM SYSTEM REQUIREMENTS PCI Express or PCI Express 2.0-compliant motherboard with one dual-width x 16 graphics slot Minimum 350W or greater system power supply
...

Features Kepler GPU Architecture NVIDIA's Kepler GPU architecture has been designed from the ground up not just for maximum performance, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation & the new geometry engine draws triangles twice as fast. The result is world class performance & the highest image quality in an elegant & power efficient graphics card. Blu-ray 3D Support Connect your PC to any 3D enabled TV over HDMI & enjoy a cinematic 3D experience in your home with seamless support for 1080p Blu-ray 3D discs. NVIDIA Adaptive Vertical Sync Nothing is more distracting than framerate stuttering & screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, it's disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming. New Anti-aliasing Mode: FXAA Anti-aliasing smoothes out jagged edges but can be demanding on framerates. FXAA is a new antialiasing technology that produces beautiful smooth lines with minimal performance impact. & with Kepler based GPUs, you'll be able to enable FXAA in hundreds of game titles through the NVIDIA Control Panel. Technical

Specification Manufacturer
- PNY Chipset
- GT 640 Chipset Features Direct Compute Support HDMI Output Support Microsoft Direct X 11 Microsoft Windows 7 support NVIDIA 3D-Vision Ready NVIDIA Adaptive Vertical Sync NVIDIA CUDA Technology NVIDIA Phys X Ready Open CL Support Open GL 4.2 Pure Video HD Shader Model 5.0 Manufacturing process
- 28 nm Cores
- 384 Core Clock
- 900 MHz Shader Clock
- 1800 MHz Memory
- 2GB Memory Bit Rate
- 128 Bit Memory Type
- GDDR3 Memory Clock
- 1782 MHz Cooling
- Fan Interface
- PCIe 3.0 (x 16) Connectivity 1 x D-Sub 1 x Dual Link DVI-D 1 x HDMI Maximum GPU Power
- 65W Maximum GPU Temperature
- 98 °C















...

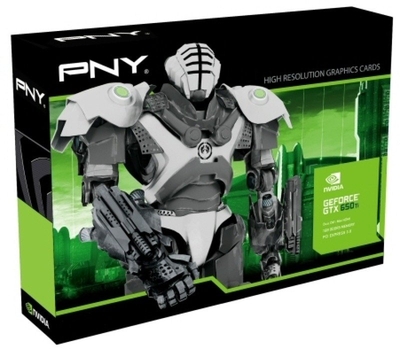

Step up to the PNY Ge Force GTX 650 for GTX gaming at a remarkable price. Based on the fast & efficient Nvidia Kepler architecture, PNY Ge Force GTX 650 provides the perfect entry point to Direct X 11 & 1080p HD gaming in your favorite FPS & MMO games. SPECIFICATIONS Bus Connector: PCI-Express 3.0 Outputs: Dual DVI, Mini HDMI Core Clock: 1058 MHz Memory Capacity: 1 GB GDDR5 Memory Interface: 128-bit Memory Band
Width: 80 GB/s Fill Rate (texels/sec.): 33, 9 Billion Microsoft Direct X 11.1 API (feature level 11_0) MINIMUM SYSTEM REQUIREMENTS PCI Express or PCI Express 2.0-compliant motherboard with one dual-width x 16 graphics slot. Minimum 400W or greater system power supply. One 6-pin PCI Express supplementary power connector.
...

SEE HOW PNY IS REDEFINING SMOOTH, SEAMLESS, LIFELIKE GAMING. The powerful new Ge Force GTX 600-series architecture delivers more than just state-of-the-art features & technology. It gives you truly game-changing performance that will transform the way you experience all your favorite titles—now & in the future. This innovative architecture was designed from the ground up to deliver power-efficient gaming performance thats faster, smoother, & richer than anything youve experienced before. The Ge Force GTX 660 Ti adds a new dimension to the game-changing NVIDIA Kepler-powered family of graphics cards by delivering the ideal combination of performance, power efficiency, & affordability. Its a must-have upgrade for todays hottest & most demanding games. Specifications Processor Cores
- 1344 Core Clock
- 915 MHz Boost Clock
- 980 MHz Memory Amount
- 2048MB GDDR5 Memory Data Rate, effective
- 6.0 Gbps Memory Interface
- 192-bit Power & Thermal
- 150W-Active On-board Outputs
- DVI, DVI, HDMI, Display Port Bus Type
- PCI Express 3.0 Minimum System Requirements PCI Express-compliant motherboard with one dual-width x 16 graphics slot Two 6-pin PCI Express supplementary power connectors Minimum 550W or greater system power supply (with a minimum 12V current rating of 38A)3 300 MB of available hard-disk space 2GB system memory (4GB or higher recommended) Microsoft Windows 7, Windows Vista, or Windows XP Operating System (32 or 64-bit) DVD-ROM drive or Internet connection for installation DVI or HDMI or Display Port or VGA compatible monitor








...

The Ge Force GTX 660 is built for fast & fluid 1080p gaming in the Direct X 11 & NVIDIA Phys X-enabled games. Packed with all the Kepler features found in the flagship GTX680, Ge Force GTX 660 delivers the ideal fusion of power, performance, & affordability. General
-
- Graphics Engine
- NVIDIA Ge Force GTX 660
- Max Monitors Supported
- 4
- API Supported
- Direct X 11, Open GL 4.2
- Boost Clock
- 1033 MHz
- Bus Type
- PCI Express 3.0 x 16
- CUDA Cores
- 960
- Core Clock
- 980 MHz
- Interfaces
- 2 x DVI ¦ HDMI ¦ Display Port Features
-
- Nvidia CUDA technology, Nvidia Phys X-Ready, Nvidia 3D Vision technology, Nvidia Surround technology, Nvidia SLI ready, TXAA,
- NVIDIA Adaptive Vertical Sync, NVIDIA GPU Boost, Nvidia Fast Approximate Antialiasing Technology (FXAA), Kepler GPU Architecture Memory
-
- Bandwidth
- 144.2 GBps
- Bus Width
- 192-bit
- Size
- 2GB
- Technology
- GDDR5 SDRAM System Requirements
-
- Min Hard Drive Space
- 300 MB
- Min RAM Size
- 2GB
- OS Required
- Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits)
- Peripheral / Interface Devices
- DVD-ROM, two 6-pin power connectors
- Required Power Supply
- 450W







































...

Fast just got faster. The next-generation Ge Force GTX 770 is a high-performance graphics card designed from the ground up to deliver high-speed, super-smooth gaming. It’s stacked with unique gaming technologies that make it fast. Really fast. GTX 770 features a massively powerful NVIDIA Kepler GPU. Plus, it comes with 7 Gbps memory—the fastest ever on a GPU & NVIDIA GPU Boost 2.0 technology, giving you the performance capabilities you need to game at extreme settings. NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Kepler GPU Architecture NVIDIAs Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest Direct X 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation & the new geometry engine draws triangles twice as fast. The result is world class performance & the highest image quality in an elegant & power efficient graphics card. NVIDIA TXAA Technology Film studios invest enormous resources in developing advanced technologies & post-production effects to deliver visually spectacular experiences for movie-goers. For games to achieve this level of fidelity, developers need new anti–aliasing technologies that deliver a viewing experience that eliminates the distraction of unrealistic, jagged lines (”jaggies”) & aliased shimmering–without compromising performance. NVIDIA is making this happen today, bringing cinema-quality graphics to life in blockbuster gaming titles with an innovative new temporal antialiasing technology called TXAA. Available exclusively on Ge Force GTX Kepler-powered GPUs, TXAA is designed to be directly integrated into game engines. Plus, it combines the raw power of MSAA (multi–sample anti–aliasing) with a temporal filter & sophisticated resolve filters similar to those used in CG films. The end result is a smoother, more lifelike image than any other comparable technique. NVIDIA FXAA Technology FXAA is a NVIDIA-developed post-processing technique that selectively blurs a game’s graphics to tackle unsightly jagged edges & high-contrast pixel deviation. Gaining popularity amongst developers due to its low performance impact & its ability to anti-alias transparent textures & details, FXAA is highly recommended for low-end & mid-range systems. NVIDIA GPU Boost 2.0 Technology Up until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load & increases the clock speed whenever possible. The result is that the GPU always performs at its peak & you get the highest framerate possible. With NVIDIA GPU Boost 2.0 Enjoy new levels of customization with advanced controls like GPU temperature target, overclocking, & overvoltage. NVIDIA Adaptive V-Sync Technology Nothing is more distracting than framerate stuttering & screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, its disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA Surround with up to 4 Monitors Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision & provides for the most immersive experience in racing & flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA SLI Technology Used by the most demanding gamers worldwide, SLI lets you link up to three Ge Force GTX 780s together for astounding performance. & with NVIDIA’s track record for fast & frequent software updates, you’ll not only get the best performance in existing games, but future games too. ...

NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Kepler GPU Architecture NVIDIAs Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest Direct X 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation & the new geometry engine draws triangles twice as fast. The result is world class performance & the highest image quality in an elegant & power efficient graphics card. NVIDIA TXAA Technology Film studios invest enormous resources in developing advanced technologies & post-production effects to deliver visually spectacular experiences for movie-goers. For games to achieve this level of fidelity, developers need new anti–aliasing technologies that deliver a viewing experience that eliminates the distraction of unrealistic, jagged lines (”jaggies”) & aliased shimmering–without compromising performance. NVIDIA is making this happen today, bringing cinema-quality graphics to life in blockbuster gaming titles with an innovative new temporal antialiasing technology called TXAA. Available exclusively on Ge Force GTX Kepler-powered GPUs, TXAA is designed to be directly integrated into game engines. Plus, it combines the raw power of MSAA (multi–sample anti–aliasing) with a temporal filter & sophisticated resolve filters similar to those used in CG films. The end result is a smoother, more lifelike image than any other comparable technique. NVIDIA FXAA Technology FXAA is a NVIDIA-developed post-processing technique that selectively blurs a game’s graphics to tackle unsightly jagged edges & high-contrast pixel deviation. Gaining popularity amongst developers due to its low performance impact & its ability to anti-alias transparent textures & details, FXAA is highly recommended for low-end & mid-range systems. NVIDIA G-SYNC Technology NVIDIA G-SYNC is a groundbreaking new innovation that casts aside decades-old thinking to create the smoothest, most responsive computer displays ever seen. A monitor module you can install yourself, or buy pre-installed in gamer-focused monitors, NVIDIA G-SYNC waves goodbye to the days of screen tearing, input lag, & eyestrain-inducing stuttering caused by decades-old tech lazily carried over from analog TVs to modern-day monitors. NVIDIA GPU Boost 2.0 Technology Up until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load & increases the clock speed whenever possible. The result is that the GPU always performs at its peak & you get the highest framerate possible. With NVIDIA GPU Boost 2.0 Enjoy new levels of customization with advanced controls like GPU temperature target, overclocking, & overvoltage. NVIDIA Adaptive V-Sync Technology Nothing is more distracting than framerate stuttering & screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, its disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA Surround with up to 4 Monitors Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision & provides for the most immersive experience in racing & flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA SLI Technology Used by the most demanding gamers worldwide, SLI lets you link up to three Ge Force GTX 780s together for astounding performance. & with NVIDIA’s track record for fast & frequent software updates, you’ll not only get the best performance in existing games, but future games too. Specifications GPU
- Ge Force GTX 780 CUDA Cores
- 2304 Core Speed
- 863 M Hz Boost Speed
- 902 MHz Memory Size
- 3072 MB GDDR5 Mem. Interface
- 384-bit Mem. Frequency
- 6008 MHz (effective) TDP
- 250W-Active SLI
- 3-Way SLI Multi-Screen 4 Concurrent Screens 1 NVIDIA 3D Surround 2 Outputs Two Dual-Link DVI HDMI 1.4b Display Port 1.2 Resolution
- 2560 x 1600 (Digital) Power Input
- 1x 8-pin Aux Input
- 1x 6-pin Aux Input Bus Type
- PCI-Express 3.0 16x Key Features NVIDIA GPU Boost 2.0 NVIDIA Adaptive Vertical Sync NVIDIA TXAA & FXAA Technology NVIDIA Surround Support for four concurrent Displays including:
- Two Dual-Link DVI
- HDMI 1.4b
- Display Port 1.2 Microsoft Direct X 11.1 NVIDIA Phys X technology NVIDIA 3D Vision-Ready NVIDIA SLI-Ready NVIDIA Shield -Ready NVIDIA CUDA technology PCI Express 3.0 support Open GL 4.3 support Open CL support Requirements: PCI Express compliant motherboard with one dual-width x 16 graphics slot One 8-pin & One 6-pin PCI Express supplementary power connectors Minimum 600W or greater system power supply (with a minimum 12V current rating of 42A)3 300 MB of available hard-disk space 2GB system memory (4GB or higher recommended) Microsoft Windows 8, Windows 7, Windows Vista, or Windows XP Operating System (32 or 64-bit) DVD-ROM drive or Internet connection for installation DVI, HDMI, Display Port or VGA compatible monitor















...
