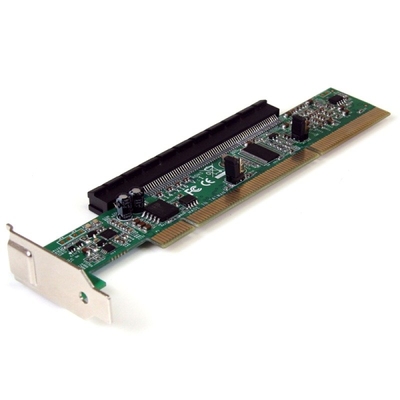

The PCIX1PEX4 PCI-X to x 4 PCI Express Adapter lets you install a low profile/half-height x 4 PCI Express card into a full height PCI-X (3.3V, 64-bit) slot on a server or other high-end motherboard.
With a physical x 16 PCI Express female slot connector, the PCI-X to PCIe adapter card accepts all types of x 16/x 8/x 4/x 1 physical PCI Express cards (maximum speed of x 4), allowing an older system to run the newest cards.
Backed by a Star Tech.com 2-year warranty & free lifetime technical support.
The Star Tech.com Advantage
• Add almost any low profile PCI Express card to a Full Profile PCI-X system at speeds up to 10 Gbps (x 4)
• Backed by a Star Tech.com 2-year warranty & free lifetime technical support
Technical Specifications
Warranty Information
Warranty
2 Years
Hardware
Bus Type
PCI-X (3.3V)
Interface
PCI Express
Chipset ID
PLX
- PEX8114
Connector (s)
Connector Type (s)
1
- PCI-X (3.3V; 64-bit) Male
Internal Ports
1
- PCI Express x 4 Slot Female
Physical Characteristics
Product Length
164 mm [6.5 in]
Product Width
40 mm [1.6 in]
Product Height
20 mm [0.8 in]
Product Weight
41 g [1.4 oz]
Environmental
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Storage Temperature
-65°C to 150°C (-85°F to 302°F)
Special Notes / Requirements
System & Cable Requirements
Full Profile PCI-X (3.3V) slot
Note
The x 16 PCI Express connector is only electrically x 4 compatible. Maximum data transfer rates are therefore limited to x 4 speeds.
Packaging Information
Shipping (Package) Weight
112 g [4 oz]
What's in the Box
Included in Package
1
- PCI-X to PCI Express adapter card
1
- Spare Full Height Bracket
1
- User Manual
